A Study on the User Behavior of Geoscience Data Sharing Based on Web Usage Mining

  • WANG Mo 1, 2 ,
  • WANG Juanle , 1, 3, *
Expand
  • 1. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
  • 2. University of Chinese Academy of Sciences, Beijing 100049, China
  • 3. Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Nanjing 210023, China
*Corresponding author: WANG Juanle, E-mail:

Received date: 2015-11-06

  Request revised date: 2016-03-16

  Online published: 2016-09-27

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

Understanding the user behavior of science data sharing is a key step to implement effective and accurate service for science data sharing. This study aims to explore the user behavior of science data sharing using spatial data mining and Web usage mining techniques for the National Earth System Science Data Sharing Platform. At the stage of data preprocessing, procedures of user identification, session identification and user location identification were performed. Spatial hotspot analysis was conducted to analyze the user pageviews, sessions, and dataset visits to explore the geographical variance of user behaviors using the Getis-Ord Gi* method. FP-growth was taken to be the algorithm for mining association rules, and was performed for analyzing data visits and data downloads. Data mining results show that: (1) the user distribution of data sharing platform does not show significant correlation with the overall university population distribution in China, but shows a significant positive correlation with the population of research-oriented universities; (2) the hotspot analysis shows that regions of hotspots were clustering in Beijing, Tianjin, and northern Hebei Province for all three perspectives, whereas the cold spots geographically scattered to a greater extent, e.g. the southern coastal provinces, Henan Province, Shandong Province, Sichuan Province, etc.; (3) the association rules mining reveals a number of frequently visited item sets and rules from the valuable user pageviews. The frequently visited item sets for data downloads were well coincided with the frequently visited data. However, no conspicuous rules occurred in data downloads. Results of the spatial hotspot analysis and association rules mining detected the geographical variance of users’ interests in data and discovered the usage patterns for the frequently visited data, which can be used for designing the personalized recommendation. This study provides a method for mining web user behaviors with the combination of Web usage mining and spatial data mining techniques, which can also be applied to the data mining of websites in other fields.

Key words： Web usage mining; spatial data mining; user behavior mining; science data sharing; Earth System Science data

Cite this article

WANG Mo , WANG Juanle . A Study on the User Behavior of Geoscience Data Sharing Based on Web Usage Mining[J]. Journal of Geo-information Science, 2016 , 18(9) : 1174 -1183 . DOI: 10.3724/SP.J.1047.2016.01174

1 引言

科学数据是科学研究的基本条件,为科学结论的提出、科学决策的产生等提供基础[1]。数据密集型科学研究、数据驱动下的科学发现已成为当今科学研究的新范式。这些研究首先要有足够的数据支撑,需要有支持多源数据访问的数据开放环境,因而科学数据共享成为这一科学范式实现的最基本需求。数据共享在学术界有悠久的历史。系统的数据共享理念出现在20世纪的下半叶,当时科学界的“大挑战”（如希格斯粒子、人类基因系列、全球气候变化等）使学术界意识到跨领域的数据共享的重要性。发达国家很早就开始在政策和国家制度层面重视数据共享问题,如美国从20世纪下半叶开始建立以法律为保障的数据共享机制,并把数据共享提升到国家战略高度[2]。中国自20世纪80年代开始,也在多个层面推动了科学数据共享,并在21世纪初先后启动了国家科学数据共享工程和国家科技基础条件平台建设[3]。在这一背景下,掌握科学数据共享用户行为特征对实现高效、精准地数据共享服务,甚至对于数据共享政策的制定都具有重要的参考意义。
随着计算机及互联网技术高速发展,互联网已成为科学数据共享的主要途径。科学数据共享用户通过专业的科学数据共享网站获取研究数据已成为科研流程的一部分。因此,科学数据共享用户在网络上的行为可被视为Web使用行为。Web使用挖掘是一个通过服务器产生的网络日志数据发现有价值的知识和用户行为模式的研究领域[4-5]。该领域理论和方法的研究成果已经得到广泛的应用,如基于网页导航的用户模式分析[6-8]、用户行为预测[9-10]、个性化推荐[11-13]、网站服务改进[14-15]。而因网站的专业领域不同,Web使用挖掘所服务的领域非常广泛,如电子商务[16-17]、医疗保健[18]、网络教学[19-20]、旅游业分析[21-22]。对购物网站的用户行为挖掘可以得到社会消费需求和购买趋势等知识;对医疗保健服务的网络挖掘可以分析医疗需求、医疗患者划分等知识;对网络教学网站用户行为模式的挖掘可以获得用户的学习需求、最佳课程组合等知识;对旅游网站用户行为进行数据挖掘可得到用户的行为偏好,给出相应的旅行地推荐。然而,在科学数据共享领域,目前还缺乏对用户的行为模式和规律的掌握。通过对科学数据共享网站用户行为模式的挖掘可得到用户对数据的需求、用户的聚类、数据的关联规则等知识,可为提高数据共享效率、改进数据共享服务策略提供参考依据。
国家科技基础条件平台——地球系统科学数据共享平台（geodata.cn）是中国主要的地学领域数据共享网络。其共享的数据资源类型全面,数据类型涵盖大气圈、陆地表层、陆地水圈、自然资源、海洋等,在中国科学数据共享领域具有较好的代表性。本研究基于该国家平台网站日志数据及服务记录数据,使用Web使用挖掘以及空间数据挖掘技术,挖掘该平台网站的数据共享行为模式。

2 数据与方法

2.1 数据

本文的数据来源主要为Web服务器日志数据、注册用户服务记录数据以及用户注册信息。
2.1.1 Web服务器日志数据
Web服务器日志数据记录了访问者的导航行为。它是Web使用记录挖掘中的首要数据来源。每一次对服务器的访问相当于一个HTTP请求,在服务器访问日志里产生一条记录。每条日志记录包含多个部分（由日志格式决定）,通常包括请求的时间与日期、客户端的IP地址、所请求的资源、调用的Web应用程序所使用的参数、请求状态、使用的HTTP方法、用户代理、被哪个网络资源调用等,在某些浏览器环境设置下还会有记录用户重复访问信息的客户端cookies。
本文获取了国家地球系统科学数据共享平台2014年的Web服务器日志记录文件以及数据库日志文件。Web服务器日志格式为Apache的NCSA ECLF格式（图1）。全年日志记录共11 062 608条。
Fig.1 An example of Web server log entries

图1 Web服务器日志数据示例

以其中一条日志为例,可以从日志数据中可以整理出表1所示信息：
Tab.1 Contents of a Web server log entry

表1 Web服务器日志数据内容

fan
类别 详情
主机IP 128.227.49.92
时间 05/Aug/2014:10:26:42 +0800
方法 GET
URL /extra/res/libs/kendo/extensions/kendo.extension.ui.js
协议 HTTP/1.1
状态 200
文件大小 15072
访问来源 http://www.geodata.cn/extra/TopicsWin2/pro3.jsp
客户端 Mozilla/5.0 (Windows NT 6.3; WOW64; rv:31.0) Gecko/20100101 Firefox/31.0

2.1.2 注册用户服务记录

注册用户服务记录数据记录了注册用户对共享数据的在线下载、离线申请等活动。本文获取了2014年的国家地球系统科学数据共享平台网站注册用户数据下载日志。该日志共有170 809条记录,包含了用户名、IP地址、下载或申请的数据名称等信息。
2.1.3 用户注册信息

用户注册信息在数据挖掘过程中提供了重要的用户外在属性信息,为用户行为的解释提供依据,也可用于用户的分类。本文将采用匿名的用户注册信息,作为辅助数据,判定用户来源。用户注册信息包括用户的学历、职业、联系方式、所在机构等信息。

2.2 研究方法

2.2.1 数据预处理
数据预处理是Web使用挖掘过程中最繁琐、最耗时的部分。本文的数据预处理分为以下5部分。
（1）数据清洗
数据清洗的目的是去除与数据挖掘任务无关的日志记录项,如浏览器对图片、声音、CSS样式文件的请求,以及网络爬虫的请求等[23]。本文采用的数据清洗算法包括以下3个步骤：
① 清理无用的网络请求记录,如对图像文件、声音文件、样式文件的请求。该过程通过检查URL项的后缀名来实现。所有包含“.jpg”、“.gif”、“.map”、“.mp3”、“.css”等后缀名的请求都应被清理。
② 对网络爬虫请求的清理。本文采用3种启发式方法找到爬虫请求日志项：被请求页面为“robots.txt”的日志项;若用户主机识别信息与已知的网络爬虫（百度、谷歌、搜狗等）用户代理匹配,则使用正则表达式识别常见搜索引擎的爬虫请求;通过计算浏览速度判断是否是爬虫请求项。方法是“浏览速度BS=已查看页面数/会话时间”。如果 BS 超过一个阈值 t ,并且一个会话内访问页面数超过一个阈值 n ,就认为该日志项为爬虫请求项。本研究取阈值 t 为2秒/页, n 为100。
③ 错误请求项的清洗。清洗错误请求的方法利用请求状态码来完成。所有日志项状态码小于200或大于400的都是不成功的请求,应被清理。
（2）用户识别
用户识别是指对网站匿名访问用户的区分过程。由于本文采用的Web服务器日志数据并不包含用户认证信息,因此对用户的识别是首要解决的问题。用户识别最准确的方法是使用cookie信息,但cookie信息在本文中并不可用。另一个常用的用户识别方法是通过用户IP。然而,仅仅使用IP还不足以准确识别单独的用户,这是因为代理服务器会产生动态的IP分配给用户[24]。在代理服务器将同一IP地址分配给多台计算机使用的情况下,通过日志中的访问来源（referrer）项及网站拓扑结构检查用户是否能通过近期历史访问页面链接到当前请求页面。本文开发了一种启发式方法来识别用户,步骤如下：
① 出现一个新的IP地址,假定产生一个新的用户。
② 在步骤1辨别出的用户中,如果同一IP地址对应的浏览器或者操作系统不同,则产生新的用户。
③ 在步骤2辨别出的用户中,如果某一用户请求的URL不能通过任何其在30 min内访问过的网页访问,则产生新的用户。
研究对象网站的导航特点是基于数据分类导航或通过关键字检索获取数据页面,数据页面间超链接较少,网站拓扑结构较易区分同一IP下不同的用户访问。因此,经过步骤3能较准确地区分同一局域网内的不同用户。
（3）用户位置识别
用户位置信息可通过用户的IP地址获取。本研究采用ipinfo.io提供的IP地址位置查询服务,获取用户的地理位置信息。该服务能提供用户所使用的网络服务提供商所在位置信息,并能提供用户所使用的网络服务商名称。ipinfo.in对IP地址查询返回JSON格式信息,包括IP地址所在的国家、城市、经纬度、主机名称等信息。
（4）会话识别
会话识别是将用户对网站的点击流分割为访问单元的过程。一个会话可定义为一个用户在某段时间对网站进行一次访问所浏览的页面序列。最常用的方法是时间窗口法。设定一个时间阈值法来确定用户会话（如30 min）,如果某次用户访问时间超过这个阈值,就开始一个新的会话。Berendt等[25]通过比较研究发现基于来源页面（referrer）启发式算法（Referrer-based heuristic algorithm）有较好的识别率。该方法在一定时间窗口的基础上考虑来源页面是否出现在最近的访问记录中,可视为时间窗口法的改进方法。本文采用该方法进行会话识别。
由于真实的用户会话无法获取,会话识别的准确度无法通绝对误差的方式来衡量。但网络用户会话体现出固有的分布规律可用来对会话识别精度做出评估。Levene[26]等发现网络用户会话长度分布符合逆幂律分布。通过会话识别的会话长度分布与逆幂律分布的接近程度可一定程度上衡量会话识别质量。
（5）数据建模
Web服务器日志数据在经过预处理步骤后,得到一个有n个页面访问的集合, P = p 1 , p 2 , … , p n ,以及一个包含m个用户会话的集合,其中T中的 t i 是P的子集。基于此,可以将每个用户会话t表示为一个长度为l的有序对序列,如式（1）所示。
t = p 1 t , w p 1 t , p 2 t , w p 2 t , … , p l t , w p l t （1）
式中： p i t = p j ( j = 1,2 , … , n ) ; w p i t 是会话t中的页面访问 p i t 的权重[27]。在本文中,权重取二值型。1表示用户对某一页面的访问,0表示用户对该页面未被访问。基于上述所给出的用户会话t,可以将每个用户的会话表示成一个n维空间的页面访问向量tv,可表示为式（2）。
tv = ( w p 1 t , w p 2 t , … , w p n t ) （2）
若 p j 在会话t中出现,则 w p i t =1, ( j = 1,2 , … , n ) ,否则 w p i t =0。所有的用户会话集合可以表示为一个 m × n 的用户页面访问矩阵,如图2所示。

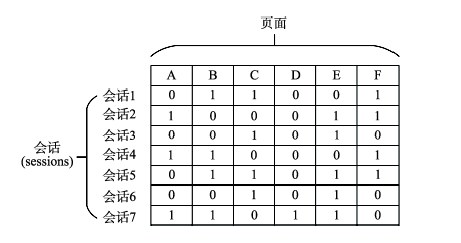

Fig.2 User pageview matrix (in this case, A, B and C represent different webpages)

图2 页面访问会话矩阵示例（A、B、C等表示不同的页面）

图2所示的用户页面访问矩阵能满足普通的用户行为模式挖掘,但若需进行用户行为空间模式挖掘,还需在矩阵中增加用户的位置信息。对于每一个用户会话,一个空间信息增强型的会话向量 st 可表示为式（3）。
st = ( x , y , tv ) （3）
式中：x和y表示用户的地理坐标信息;tv为用户页面访问向量。最终的页面访问向量模型可在三维空间里的多维向量,如图3所示。经过上述的数据预处理步骤,将最终的用户行为记录数据储存在MySQL数据库和ArcGIS Geodatabase数据库,以分别满足不同的数据挖掘任务。

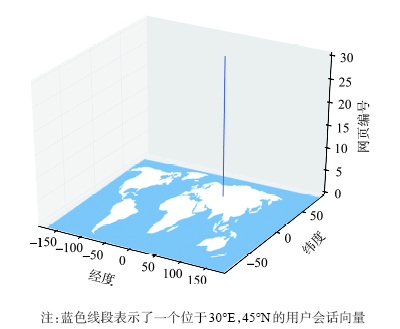

Fig.3 An example of a georeferenced user transaction data model, the blue line represents the transaction vector of a user located at 30°E, 45°N

图3 空间信息增强型用户会话向量模型

2.2.2 用户行为空间“热点”分析
空间“热点”分析可用来识别地理空间上有统计显著性的“热点”和“冷点”地区。本文在数据预处理后将用户行为记录储存于空间数据库,视每个用户为一个空间要素,其行为统计数据为其空间属性,采用Getis-Ord Gi*[28]指数方法分别对用户对网站网页的访问次数、产生的会话次数、以及对数据的访问个数进行空间“热点”分析。Getis-Ord Gi*统计也别称为“热点”分析,是General G统计的一种改进方法[29]。该空间聚类分析在流行病学[30]、降水[31]、农业分析[32]等领域得到广泛应用。Getis-Ord Gi*的计算公式可表示为式（4）。
G i * = ∑ j = 1 n w i , j - X ¯ ∑ j = 1 n w i , j S n ∑ j = 1 n w i , j 2 - ∑ j = 1 n w i , j 2 n - 1 （4）
式中： w i , j 是要素 i 和 j 之间的空间权重; n 为要素总数。 X ̅ 及 S 的计算方法分别如式（5）和（6）所示。
X ¯ = ∑ j = 1 n x j n （5）
S = ∑ j = 1 n x j 2 n - X ¯ 2 （6）
式中： x j 是空间要素 j 的属性值。
空间权重 w i , j 采用反距离,即空间距离的倒数。通过式（4）计算所得Gi*值即为每个空间要素 z 的得分。 z 得分越高,则高值（“热点”）的聚类越显著。而统计学显著的负 z 值得分越低,低值（“冷点”）聚类越显著。该分析的结果中需考虑的另一个值是 p 。该值表示所发现的模式是由某一随机过程产生的概率。 p 值本身为正态分布,并与分析结果产生的z值关联。最终可得到一定 p 值范围下的 z 值范围。最终所得的模式的置信度为 ( 1 - p ) 。本文只考虑置信度不低于90%的“热点”或“冷点”模式。
2.2.3 关联规则挖掘
关联规则是最常用的用户行为模式挖掘项目,主要用来发现用户的页面浏览之间的潜在关系。一个典型的关联规则可以表述为式（7）。表示用户在一定的支持度（support）和置信度（confidence）下,访问了 A , B ， 也会访问 C 。
A , B → C ( support , confidence ) （7）
常见的关联规则挖掘算法有Apriori算法[33]、Eclat算法[34]、FP-growth[35]算法等。其中,FP-growth算法是一种较新的关联规则挖掘算法。该算法使用树状数据结构（FP-tree）大大提高了数据扫描效率,克服了Apriori算法的效率问题。因此,本文采用FP-growth算法进行用户对数据浏览及下载的关联规则挖掘。高频高频高频高频该算法的思想是将数据库压缩到高频模式树（FP-tree）,只需2次遍历数据库。算法的实现步骤为：
（1）扫描事务集,找出所有高频项 F ,并用 F 中的项,按支持度计数降序生成高频项头表。
（2）再次扫描事务集,生成FP-tree,并填写头表中的指针。
（3）按头表中从表尾至表头的顺序,用FP-tree生成以每一个项为后缀项的条件模式基,并建立其条件模式树。
（4）在条件模式树上递归地进行挖掘,获得高频模式。
本文分别对用户数据浏览行为以及注册用户数据下载进行关联规则挖掘,以探索用户的数据需求特征。需要指出的是,对于用户数据浏览行为模式挖掘,本文在进行关联规则挖掘时首先区分活跃用户和非活跃用户。区分二者的方法是探查用户在2014年年度访问数据集数是否大于或等于某一经验值（本文设置为10）。若大于10,则认为该用户为活跃用户。用户数据浏览关联规则挖掘是基于活跃用户所产生的数据访问记录。非活跃用户的访问记录将被剔除,以减小数据的不确定性。

3 结果与分析

3.1 预处理结果

原始的Web服务器日志数据为11 062 608条。经过数据清洗,获得的有效日志记录为2 845 150条,约为原始数据的四分之一;识别的会话数目为448 495;独立用户为76 111,其中可识别用户位置的个数为76 069。详细信息如表2所示。
Tab.2 Statistics of data preprocessing results

表2 数据预处理结果统计

原始日志记录 清洗后记录 用户数 会话数 识别位置
11 062 608 2 845 150 76 111 448 495 76 069
采用用户会话长度概率分布与幂率分布的符合程度来衡量识别的准确度,结果如图4所示。会话长度概率分布拟合函数如式（8）所示。
p n = 1.141 × n - 1.966 （8）
拟合方程的确定系数（R2）为0.98, p < 0.001 ,拟合在99%的显著性水平下显著。该结果表明该方程的拟合度极高,用户会话长度概率分布基本符合幂律分布规律,数据预处理的结果可信。

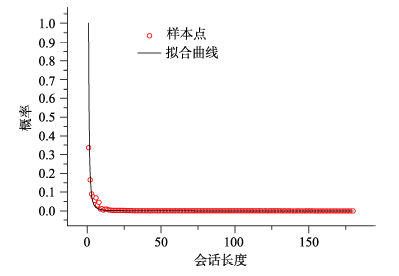

Fig.4 Distribution of the session length probability

图4 用户会话长度概率分布拟合曲线

3.2 用户行为空间分析

3.2.1 用户空间分布
本文识别的国内用户总数为76 111人,成功定位位置的用户为76 069人。用户在全国各省市均有分布,其中用户最多的三个省（市）为北京市（16 432人）、山东省（6424人）、江苏省（4357人）。各省市用户分布如图5所示,图中所示的黑点表示用户的聚集地。聚集点不同的大小表示不同的用户聚集规模。而各省用户数量以橙色的深浅表示,色彩越深表示用户数量越多。

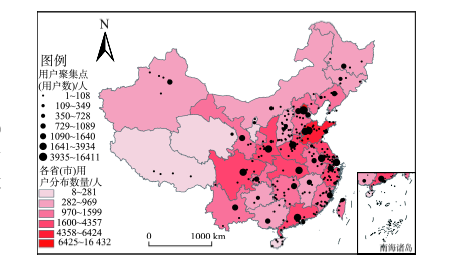

Fig.5 User distribution in China

图5 国内用户数量分布

从地球系统科学数据共享平台网站用户注册资料库可知,用户主要来自高校及研究院所。根据这一用户特点,本文收集了国家统计局发布的2013年各省市“普通高校在校学生数”（港澳台除外）。将此数据与地球系统科学数据共享平台网站各省市用户进行Pearson相关性分析。所得相关系数为0.324,P值为0.075,表明二者无明显相关性。考虑到科学数据的用户更有可能来自研究型大学,本文究同时收集了中国“211工程”高校里的综合性以及理工科类大学2014年在校本科及研究生学生数,并以省为地域范围进行统计。“211工程”高校能较好地代表中国的研究型大学。此项数据与该共享平台用户的Pearson相关性分析结果为,相关系数0.792,且P值小于0.01,表明二者有显著的正相关性。结果与科学数据的用户更有可能来自研究型大学的假设相符合。
3.2.2 空间“热点”分析
本文分别对用户网页浏览数、会话次数、数据集浏览个数进行空间“热点”分析。用户的网页浏览数体现了网站的流量来源以及用户的浏览习惯;会话次数则反映用户使用网站的次数,可反映用户的活跃度;用户对数据集浏览个数则反映用户对数据需求量。空间“热点”分析可识别出上述3个方面的“热点”地区,以期对特定“热点”区域的服务策略指导,以及对识别“冷点”地区进行宣传推广提供参考。
网页浏览数“热点”分析结果如图6所示,由结果可知用户对网页浏览数的“热点”地区主要分布在北京市、天津市、河北省北部以及四川省部分城市等多个区域,表明这些区域用户较集中地对网站有较高的访问量;“冷点”地区主要分布在河北省南部、河南省北部、山东省西部、广东省、台湾地区等,表明这些区域用户对网站访问不活跃。其他地区用户对网站访问量的分布较随机,未表现出明显空间聚集特征。

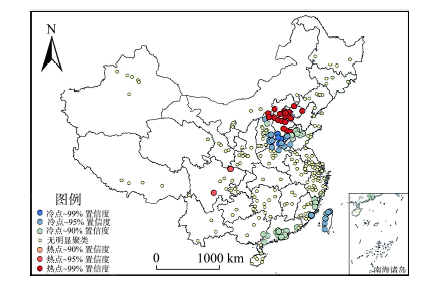

Fig.6 Hotspot analysis of user pageviews

图6 用户网页浏览数“热点”分析

用户会话可反映用户对网站的使用次数。一个会话代表了用户对网站的一次使用。用户会话数“热点”分析结果如图7所示,“热点”地区主要分布在北京市、河北省北部以及江苏省、浙江省,“冷点”地区主要分布较集中,主要在河南省北部、山东省西部,以及台湾地区。

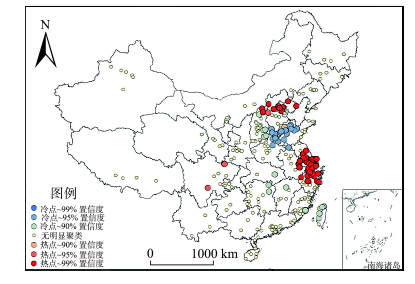

Fig.7 Hotspot analysis of user sessions

图7 用户会话数“热点”分析

用户数据集浏览数反映了用户关注的数据集数量,一定程度反映了用户在地球系统科学领域的研究热度。图8展示了用户数据集浏览数的“热点”分析结果。由图可见,用户浏览的数据集个数较多的“热点”区域有北京市、天津市、河北省北部、陕西省、江苏省、浙江省等,与图7中用户会话“热点”分布类似。不同的是,数据集浏览数“冷点”地区分布广泛,包括河南省、山西省、山东省西部、四川省、广东省、福建省、东北部分地区,以及台湾地区。而且数据集浏览数“热点”表现出极高的置信度（99%）,“冷点”地区也普遍表现非常高的置信度,空间聚类模式显著。

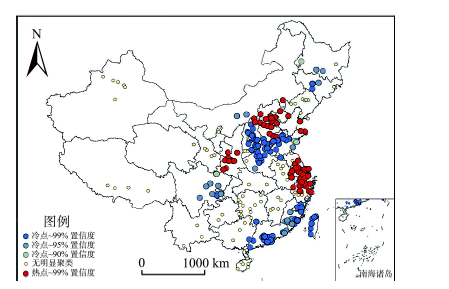

Fig.8 Hotspot analysis of datasets visits

图8 用户数据集浏览数“热点”分析

3.3 关联规则挖掘

3.3.1 数据访问关联规则
关联规则挖掘算法的第一步是找出数据库中的高频项目集。本文分别对所有的用户访问以及活跃用户的访问进行了高频项目集的挖掘。最小支持度和置信度的设置取决于挖掘任务的需要。本文为了展示数个相对高频的数据访问集合,在实验程序中5%为单位递增进行试验,选取合适的最小支持度。实验发现将用户高频项目集挖掘的最小支持度设置为10%,活跃用户的最小支持度设置为25%,挖掘的高频项目集个数适中。挖掘结果如表3、4所示。
Tab.3 Frequent itemsets for datasets visits of all users (S≥10%)

表3 所有用户数据访问高频项目集（S≥10%）

项目集 支持度（S）/（%） 内容描述
100101-22 27.1 中国1:400万地貌图（形态）
100101-2 12.9 中国1:400万资源环境数据（中国地形,1988年）
100101-18 11.6 全国土地利用数据库（分省:1980s,1987-2001年;分县：1980s）
100101-38 10.8 全国1 km网格人口数据（1995,2000, 2003,2005和2010年）
100101-66 10.6 中国1:400万全要素基础数据 （1970s-1990s）
Tab.4 Frequent itemseds for datasets visits ofactive users (S≥25%)

表4 活跃用户数据访问高频项目集（S≥25%）

项目集 支持度（S）/(%) 内容描述
100101-18 34.1 全国土地利用数据库(分省:1980s,1987-2001年;分县:1980s)
100101-38 32.4 全国1 km网格人口数据(1995、2000、2003、2005和2010年)
100101-2 30.7 中国1:400万资源环境数据(中国地形,1988年)
100101-3 29.6 1996年浙江省1:25万数字化土地利用现状图
100101-30 29.2 全国多年平均降雨分布图(1 km)(建站到1996年)
100101-38、100101-18 28.0 全国1 km网络人口数据、全国土地利用数据库
100101-18、100101-2 27.5 全国土地利用数据库、中国1:400万资源环境数据
100101-30、100101-18 27.2 全国多年平均降雨分布图、全国土地利用数据库
100101-66 27.1 中国1:400万全要素基础数据(1970 s-1990 s)
100101-18、100101-3 26.8 全国土地利用数据库、1996年浙江省1:25万数字化土地利用现状图
表3、4结果可知,所有用户中最常访问的数据是100101-22（中国1:400万地貌图）,访问比例达27.1%。而活跃用户最常访问的数据是100101-18：全国土地利用数据库（分省：1980s,1987-2001年;分县：1980s）。值得注意的是,在活跃用户最常访问的数据中,100101-22并未出现,说明该数据虽然需求量较大,但并未受活跃用户的普遍关注,反映出此类数据的需求特征。而100101-3：浙江省1：25万数字化土地利用现状图也受到将近30%活跃用户关注,是活跃用户数据访问高频项目集前10中唯一的非全国性数据。经过数据探查,这一结果与华东地区,包括浙江省用户,对数据访问活跃比例较高可能存在因果关系。这一结果也与图8所示用户数据集浏览数热点在浙江出现明显的聚集现象相一致。
对活跃用户,满足表4中支持度,且置信度不低于90%关联规则挖掘结果如表5所示。其中置信度最高的关联规则可解读为活跃用户在同时访问100101-30（全国多年平均降雨分布图（1 km））以及100101-3（1996年浙江省1：25万数字化土地利用现状图）后,有高达98.5%的概率会访问100101-18（全国土地利用数据库（分省：1980s,1987-2001年;分县：1980s））。在支持度大于25%,置信度大于90%的情况下,可用的关联规则达18个。这些关联规则可用于对用户进行精准数据推荐服务,以及网站导航设计参考等。
Tab.5 Association rules (C≥90%)

表5 关联规则（C≥90%）

关联规则 置信度（C）/(%)
100101-30 ==> 100101-2 90.4
100101-3==> 100101-18 90.8
100101-38、 100101-18==> 100101-2 91.4
100101-18、100101-2==> 100101-3 92.4
100101-2、100101-18 ==> 100101-38 92.9
100101-30、100101-18==> 100101-3 93.0
100101-30 ==> 100101-18 93.1
100101-18、100101-3==> 100101-30 94.1
100101-18、100101-2==> 100101-30 94.2
100101-18、100101-3 ==> 100101-2 94.6
100101-30、100101-2==> 100101-3 95.4
100101-30、100101-18 ==> 100101-2 95.4
100101-2、100101-3 ==>100101-30 96.9
100101-38、100101-2 ==> 100101-18 97.2
100101-2、100101-3==> 100101-18 97.8
100101-30、100101-3 ==> 100101-2 98.2
100101-30、100101-2 ==> 100101-18 98.2
100101-30、100101-3==> 100101-18 98.5

3.3.2 数据下载或申请关联规则

地球系统科学数据共享平台的共享数据服务分为2种,在线下载和离线申请。本文将注册用户在2014年产生的在线下载或者离线申请数据所产生的记录输入关联规则挖掘算法以挖掘数据使用上的关联规则。挖掘结果显示用户的数据下载或申请并未表现出支持度高的显著高频项目集。以最小支持度10%进行高频项目集挖掘,只有一个数据集满足挖掘条件,且无可用的关联规则。注册用户下载数据中,最受欢迎的是100101-66（中国 1:400万全要素基础数据）。
表6列出了排名前5的高频项目,与表3中所有用户数据浏览高频项目集比较,注册用户最常下载或申请的数据与用户最常浏览的数据有较好的吻合度。在支持度前5的高频项目中,100101-66（中国1:400万全要素基础数据）、100101-38（全国1 km网格人口数据）、100101-18（全国土地利用数据库）同时出现在以上2种高频项目集列表中,表明这3个数据集不论在匿名用户中还是在注册用户中,都最受欢迎。
Tab.6 Frequent itemsets for datasetsdownloads or application (top 5)

表6 注册用户数据下载或申请高频项目集（前5）

项目集 支持度（S）/（%） 内容描述
100101-66 13.7 中国1:400万全要素基础数据（1970s-1990s）
100101-38 9.6 全国1 km网格人口数据（1995、2000、2003、2005和2010年）
100101-11860 8.1 全国1:25万土地覆被数据（1980s,2005年）
100101-18 8.0 全国土地利用数据库（分省：1980s,1987-2001年;分县：1980s）
100101-29 7.3 陆地卫星MSS/TM/ETM+（1973-2008年、覆盖全国）

4 讨论与结论

本文以地球系统科学数据共享平台网站2014年Web服务器日志数据和用户服务记录数据为基础,提取用户行为数据,经过数据预处理并对数据进行建模,输入空间数据库和关系数据库。首先使用空间数据挖掘方法Getis-Ord Gi*指数发现中国境内用户行为的“热点”地区以及区域性差异。然后进一步深入探究用户——数据关系的潜在规律,对活跃用户的数据浏览行为以及数据下载行为进行关联规则挖掘发现一些有价值的关联规则,可进一步用于用户数据推荐等个性化服务。基于数据挖掘结果可得出以下结论：
（1）地球系统科学数据共享平台国内用户在国内各省市均有分布。用户最多的3个省（市）分别为北京市、山东省、江苏省。将平台网站用户与国内高校在校学生进行Pearson相关分析表明二者无明显相关性,但与研究型高校学生人数有显著正相关性,说明该平台在研究型大学有一定用户基础,但在教学型高校有较大用户开发潜力。此挖掘结果可为该数据共享平台宣传推广提供参考。
（2）分别对网页浏览数、会话数、数据集浏览数3个指标进行“热点”分析,可探寻用户行为的“热点”地区和“冷点”地区。用户对网站网页点击的“热点”地区有北京市、天津市、河北省北部以及四川省部分城市等多个区域;用户会话的“热点”地区有北京市、河北省北部以及江苏省、浙江省等,表明这地地区用户对网站有较高的使用频率;而用户对数据集浏览个数的“热点”地区有北京市、天津市、河北省北部、陕西省、江苏省、浙江省,表明这些地区在地球系统科学领域研究较为活跃,且模式的置信度极高。
（3）本文分别对用户数据浏览以及数据下载或申请进行了关联规则挖掘。挖掘结果反映了用户的数据需求特征。对于用户数据浏览,挖掘出多条置信度高的关联规则,可作为知识库,用于数据推荐服务。对于数据下载或申请,挖掘结果显示并无显著的关联规则可用。注册用户最常下载或申请的数据与用户最常浏览的数据有较好的吻合度。在高频项目集的挖掘结果中,100101-66（中国1:400万全要素基础数据）、100101-38（全国1 km网格人口数据）、100101-18（全国土地利用数据库）这3个数据集不论在匿名用户中还是在注册用户中,都是需求度最高的。100101-3（浙江省1:25万数字化土地利用现状图）也以较高的频率出现在数据访问记录中,这可能与浙江省用户数据浏览活跃性较高有关。
本文结合Web使用挖掘及空间数据挖掘方法,展示了网络用户行为地理空间模式挖掘方法,并对国家地球系统科学数据共享平台2014年有用户行为特征进行分析。今后将在这一方法探索的基础上,收集和整理该国家平台的用户多年历史日志信息,分析和发现用户行为模式的时间动态变化,完善用户行为建模,为精准化、个性化的用户服务提供支撑。
致谢：感谢国家科技基础条件平台——地球系统科学数据共享平台为本文提供数据支持。

The authors have declared that no competing interests exist.
