Review of Research Works on Maritime Network

  • FANG Zhixiang , 1, 2, * ,
  • YU Hongchu 1 ,
  • HUANG Shouqian 1
Expand
  • 1. State Key Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University, Wuhan 430079, China
  • 2. Engineering Research Center for Spatiotemporal Data Smart Acquisition and Application, Ministry of Education of China, Wuhan 430079, China
*Corresponding author: FANG Zhixiang, E-mail:

Received date: 2018-04-01

  Request revised date: 2018-04-26

  Online published: 2018-05-20

Supported by

Key Project of the Chinese Academy of Sciences, No.ZDRW-ZS-2016-6-3

National Natural Science Foundation of China, No.41771473

National Key Research and Development Program of China, No.2017YFC1405302

Special Research Funding of State Key Laboratory of Information Engineering in Surveying.

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

With the rapid development of economic globalization, the scale of international trade has continued to be expanded. Global maritime network are attracting much attention from researchers in multidisciplinary areas, such as ocean transportation, geographical information science, mathematical physics, statistics science, complex network science, big data science, computer science and so on. The maritime network studies become hot research topics among them, which plays an important role in designing affective and sustainable macro strategies and policies for countries. This paper summarizes the data sources, theoretical models and research methods in maritime network studies, for example, the used data includes the statistics data and Automatic Identification System （AIS） traced vessel trajectory data, the used methods are from mathematics, physics and statistical theory methods, complex network science, data mining theory, etc. Then, this paper reviewed the research works of maritime network from the perspectives of maritime network transportation mode, network structure characteristics, and evolution mechanism of maritime network, and concluded the existing problems in these perspectives. Previous studies on maritime transportation mode design and optimization are useful to improve shipping service quality, assess the feasibility of new routes and improve the efficiency and capacity of the transportation system. The researches for maritime network structure reveal the static （i.e. network connectivity, clustering coefficient, mean shortest path lengths, closeness centrality, betweeness centrality, and straightness centrality） and dynamic characteristics （i.e. spatial-temporal changes, hierarchical characteristics, dynamic connectivity） through the approaches of modelling, statistical and empirical analyzing. The studies on evolution mechanism for maritime network focus on the structure evolution and traffic flow evolution, which are helpful to identify the influential factors and to predict traffic flow in the maritime network. The future promising research avenues on maritime network include involving experts from multidisciplinary areas, using the research methods from cross-domains, integrating multi-source heterogeneous data, and linking the theoretical analysis with practical application problems.

Key words： automatic identification system; vessel trajectory; maritime network; complex network; transportation mode; topological structure; evolution mechanism

Cite this article

FANG Zhixiang , YU Hongchu , HUANG Shouqian . Review of Research Works on Maritime Network[J]. Journal of Geo-information Science, 2018 , 20(5) : 554 -563 . DOI: 10.12082/dqxxkx.2018.180178

1 引言

经济全球一体化和信息技术的快速发展,促使国际海运贸易的规模不断扩大。海洋运输与其他运输方式相比,具有运费低廉、运量大、航程远、通过能力大等优点,成为大宗货物跨洋流动的主要运输方式,支撑着90%的国际贸易总量,是国际贸易最重要的运输方式[1,2]。海洋运输系统主要由船舶-货物、港口、水上航线等组成,港口在海洋运输系统中主要停泊船只、装卸货物等,是海洋运输系统的重要节点,水上航线是船舶在不同地点之间的固定移动路线,主要是由不同地区之间的贸易所促成的。海洋运输系统可以借用复杂网络模型进行表达,即为海洋运输网络（本文简称海运网络）。目前相关研究关于海运网络节点的定义包括微观（港口）和宏观（国家或区域）等方式。以港口为节点的海运网络主要从港口和航线等角度出发,研究单个港口的竞争力、局部港口群的复杂关系、港口间或港口群运营模式的时空差异等。港口竞争力的衡量包括港口吞吐能力、港口地理位置、港口基础设施服务水平、腹地可达性等[3]。港口的竞争力研究有助于明确港口的发展现状,可以为港口建设和规划战略制定提供对策。局部港口群的复杂关系包括竞争、合作、竞合、双赢等模式[4]。港口群的一体化建设能够形成分工明确、层次分明的内部港口布局,有助于提升港口群的凝聚力。港口间或港口群运营模式的时空差异有助于港口群的层级划分、优化资源配置、明晰港口群的关系网络,提升整个海运网络的竞争力。针对航线的研究以航线结构优化为目标,充分考虑运输成本、航运运距、航线运量、碳排放、政府补贴、货物调度等复杂因素,设计出效率最高、成本最小、收益最大的航线网络[5]。以国家为节点的海运网络研究主要针对国家层级的海运网络的结构时空特征,分析海运网络的稳定性、发展过程、航运中心转移、特殊航道国家权益（如北极航道）格局[6]等。

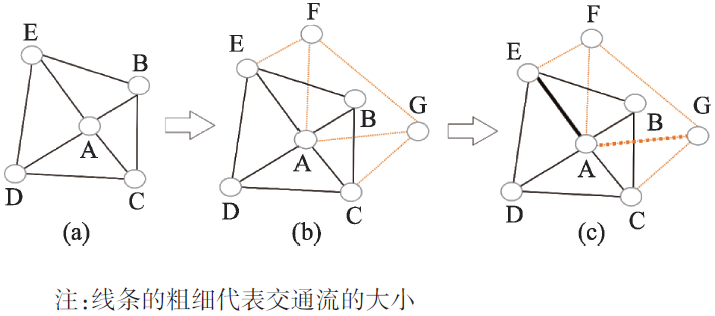

Fig. 1 Maritime network structure and traffic flow changes

图1 海运网络的结构和交通流变化示意图

海运网络作为海上交通流的表达结构,不仅包含着结构变化也包含着交通流的变化,海运网络结构变化代表着贸易格局的变化,而海上交通流的变化代表着贸易需求的变化。例如,图1（a）-（b）A国家的海运网络结构由{A→B, A→C, A→D, A→E, A→F,…}变为{A→B, A→C, A→D, A→E, A→F, A→G, A→H,…},说明A国家在图1（b）阶段进行了贸易格局的调整,与F、G国家建立了海上运输贸易。图1（b）-（c）,A国家与E、G国家间的贸易流明显增强,说明A国家和E、G国家之间的贸易需求发生了变化。通过充分理解海运网络时空特性、演变规律、影响机制等,明确海洋运输系统在建设、实施和运营中的问题,对国家层面的科学应对与部署具有重要的参考意义。例如,“一带一路”倡议以深化中国与沿线国家的贸易合作为目标,对所覆盖的沿线国家会产生诸多经济与社会影响,同时也影响着“一带一路”国家同其他国家的海上贸易,通过研究重要经济发展区域海运网络结构和交通流在该倡议实施期间的动态变化,能够一定程度上理解该倡议对海洋运输贸易的影响。
图2描述了海运网络研究的大体框架。海洋运输统计数据和船舶跟踪轨迹大数据为海运网络研究提供了数据支撑,数学物理、统计学科、复杂网络科学、数据挖掘理论等为海运网络研究提供了方法支撑,现有研究主要围绕海运网络运输模式设计与优化、海运网络结构特征、海运网络演化机制3个角度开展研究,其结果可以用于海洋交通规划、港口安全与管理、港口交通组织等方面。
Fig. 2 Research framework of maritime network

图2 海运网络研究框架

2 数据来源

目前海运网络相关研究采用的数据包括统计数据、船舶自动识别系统跟踪轨迹大数据等。其中,统计数据包括国际集装箱、劳氏海事情报组、劳氏船级社以及专门公司网站的统计数据等,以记录性数据为主的统计数据为海运网络的实证研究提供了基础,但统计数据存在受人为因素影响大、时间滞后期长、精度低、时间粒度粗、实时性差、空间分辨率低、数据量不均衡（主要关注大型港口,小型港口数据难以获得）等缺点,在严谨的方法论上存在不足,难以满足及时分析的需求,并在识别全球尺度下的海运网络演变规律的区域差异化特征上存在明显的局限性[7,8]。另外,集装箱运输具有固定港口、固定船舶、固定价格、航班时期固定、航线明确等特点,更容易获得相关港口和航线相关数据,因此目前的实证研究基本以集装箱为主[9]。散货和油轮型的海运网络较集装箱网络更为复杂多变,因此统计数据更难获得,限制了当前的实证研究。
船舶轨迹数据是人类在海上活动产生的轨迹数据,传统的获取方法包括雷达回波信号[10]、航海日志[11]、志愿船报告[12]等,由于存在成本高、连续性差、样本小等不足,无法满足海上交通活动和运输网络分析的要求。随着海上导航、定位、通讯技术的发展,船舶自动识别系统（AIS）[13,14]和渔船监测系统（VSM）[15,16]等的普及,为基于位置传感器的海上时空轨迹大数据采集、管理、发布提供了技术基础,也为海上轨迹大数据挖掘、建模、预测和海运网络等相关研究提供了较好的数据来源。目前AIS系统包括岸基AIS站台和卫星AIS,已基本覆盖全球港口的近海区域,并且AIS数据具有实时性,为海上运输网络构建与分析提供了及时的数据支撑,有助于提升海运网络研究与决策的及时性,弥补基于统计数据的实证分析在时效性和精准性等方面 的缺陷。

3 海运网络研究理论与方法

数学物理、统计学、复杂网络、数据挖掘等学科的交叉为海运网络研究提供了理论方法支撑。不同学科关注的研究内容、研究角度不同,因而采取的研究方法也不同,使得海运网络的研究方法呈现多样化特点。

3.1 数学物理统计理论方法

有些研究把海洋运输网络被视为一种物理网络,通过数学统计理论模型能有效地对海运网络的物理性质作出定量解释,探索其隐藏的动力学机制和深层机理,同时发现海运网络的建设、运营、管理中的动力因子和干扰问题,从而优化海上运输模式,提升其自适应力、调节力、恢复力等[17,18,19,20]。例如,考虑运输成本、航运运距、航线运量、碳排放、政府补贴、货物调度等复杂因素,设计出效率最高、成本最小、收益最大的多目标优化航运网络模型,不仅需要考虑港口、航线、腹地的物理空间特性,而且需要兼顾活动碳排放、政府补贴、航线运量、航运运距、运输成本等的统计模型,以效率最高、成本最小、收益最大等为多目标,设计出多目标数学优化模型,获得最优的航运网络模型[5]。

3.2 基于复杂网络的分析方法

有些研究把海洋运输网络被视为复杂网络的一种应用形式,用复杂网络的相关理论来分析海运网络的特性。复杂网络作为研究海运网络的一种重要方法,关注港口、国家或区域之间的关联拓扑结构,为理解海运网络的复杂特性和功能区划等提供有效的方法支撑[21]。复杂网络具有自组织、小世界、无标度、社团结构等特性,常采用节点度、聚类系数、最短路径、直达中心性、介数中心性、接近中心性等指标来定量分析海运网络的拓扑结构特 征[22,23,24,25,26,27]。例如,利用复杂网络的社团发现方法分析海运网络的集群特性,对理解海运贸易的区域特性和关键节点（桥点）识别具有重要作用[28]。通过复杂网络的中心性评价方法能够有效识别海运网络的中心及其转移情况,有助于及时掌握海运网络的格局变化。

3.3 大数据挖掘理论方法

在一些海运网络研究中,把大数据挖掘理论与复杂网络科学、数学物理统计等理论结合起来 使用。例如,先采用复杂网络学科方法分析不同时期的海运网络结构特征,将多个时期的分析结果组成时间序列,进而采用大数据挖掘的方法,获得海运网络结构随时间变化的规律及模式[29,30,31],有助于海运网络的演化机制研究和重大事件影响分析。方志祥等[32]通过时空模型来度量重大事件前后的海运交通流趋势相似性特征,并提出基于相似性度量的直接影响、间接影响国家分析框架。

4 海运网络研究进展

海洋运输是国际贸易运输的主要方式之一,海运网络是海洋运输系统的抽象化表达,海运服务需求、服务模式、时空变化过程等都在海运网络中得到体现,同时海运网络研究能够为海运服务的最佳配置,海运的整合协调以及港口合理规划布局等提供决策支持。为此,本文主要从海运网络运输模式设计和优化、海运网络结构特征、海运网络演化机制等角度出发,来分析海运网络研究进展。

4.1 海运网络运输模式设计和优化

海运网络运输模式设计和优化研究包括海运航线结构设计、海运航线开辟与设置、船舶调度、船队规划等方面。航线结构模式包括了直达式、轴辐式（Hub-and-Spoke）、混合式等形式,其中直达式是传统的海运航线结构模式,如：往复式航线、钟摆式航线和环状航线等,以多点挂靠（Multi-port of Call）或点对点（Point to Point）模式为主;轴辐式是海运干支线结合的航线模式,以班轮运输（Liner shipping strategies）为主;混合式主要是指支线配合干线的“混合轴辐式”航线结构,具有资源共享和协同管理的干线联营、支线独立的基本特征[33]。
海运网络设计研究旨在优化海运航线安排、提升航运服务质量、评估新增航线的可行性等[34],需考虑船舶大小、航行频率、运输类型、运输时间限制、港口规模经济以及转运成本等诸多因素。相关学者提出的计算模型主要包括：运输和库存成本最小化的双目标优化模型[35],混合统一规划模型及其改进方法[36,37],运营成本最小化模型[38],概率分布自由线性部署模型[39],混合整数非线性优化模型[40],基于集装箱货流、港口选择和船队管理的集装箱网络优化模型[41]等。这些模型的求解一般采用启发式算法、基于加速拉格朗日方程的改进启发式算法[42]、基于遗传算法的多阶段求解方法[39]等。目前的研究主要基于完全网络图形和恒定运输需求假设[43,44],对海上运输复杂多变的运输需求考虑不足。

4.2 海运网络结构特征

海运网络的结构不仅具有静态的节点-边连接关系、空间集群性[45]、空间异质性[46]、鲁棒性[47]、稳健性[48]等特征,同时受到供应链变化、海洋航运公司运营模式调整、运输服务模式和腹地可达性等影响,海运网络的结构是随时间空间不断变化的,具有多样化多层级的动态特性。
4.2.1 海运网络静态结构特征
海运网络的静态结构特征主要包括网络规模、节点重要性、特征路径长度、节点邻近程度、节点聚集程度等,主要的评价指标有：
（1）船舶数量（Number of ships）
船舶数量在一定程度上可以反映海运贸易的繁荣程度,贸易越频繁,往来船舶数量越多。
（2）网络节点数（Number of nodes）
网络的节点数主要是指海运网络中的港口数量或国家数量。据WorldPortSource网站（http://www.worldortsource.com/）统计,目前全球共有4936个港口（涉及196个国家）,海运网络的节点个数反映了海运网络的规模大小。
（3）网络边数（Number of edges）
网络包含的边数主要表示内部港口（国家）之间连接可达性,2个港口（国家）之间有边连接,说明该港口之间连通可达,具有贸易往来,反之,则不可达,不具有贸易往来。
（4）网络连通性（Network connectivity）
网络连通性反应的是网络节点之间连接密集程度,计算公式为[49]：
δ ≈ 2 E / N 2 （1）
式中： δ 表示网络的连通性,值越大连通性越好;E表示网络的边数;N表示网络的节点数。
（5）网络总行程数（Total journeys）
网络总行程数是通过港口（国家）之间船舶航行次数来度量的,2个港口（国家）之间的航行次数越多,总行程数越大,贸易往来越频繁。
（6）网络节点度（Node degree）
节点度是指和该节点相连接的边的条数,又称为关联度。一个节点的度越大表示这个节点在某种意义上越重要。所有节点的度平均值构成了网络的平均节点度。
（7）网络聚类系数（Clustering coefficient）
聚类系数表示节点聚集程度,反映了节点间的组织关系,通常定义为[50]：
c i = 2 E i N i ( N i - 1 ) （2）
式中： c i 表示网络节点 i 的聚类系数; N i 表示与该节点具有连接关系的节点数,也可称为节点 i 的邻居; N i 个节点最多可能有 N i ( N i - 1 ) / 2 条边; E i 表示这 N i 个节点之间实际存在的边数。网络聚类系数一般指所有节点聚类系数的均值。
（8）平均最短路径（Mean shortest path lengths）
最短路径表示节点之间边数最少的路径,平均最短路径等于网络中所有节点之间最短路径的总和除以节点对总数。平均最短路径指的是网络中任意2个节点之间需要经过多少个中介节点的相连,也可称为网络的特征路径长度。计算公式为[50]：
L ̅ = 1 2 N ( N + 1 ) ∑ d ij （3）
式中： L ̅ 表示平均最短路径长; N 表示网络节点数; d ij 表示节点 i 和 j 之间的最短路径距离,常用Dijkstra算法计算。
（9）节点平均行程数（Mean journeys per node）
网络中节点的平均行程数反映了海运网络的繁忙程度,平均行程数量越大,海运贸易流越频繁。
（10）接近中心性（Closeness centrality）
该指标衡量一个节点与海运网络中其他节点的邻近程度,节点的接近中心性与该节点到海运网络中其他所有节点的最短路径的和成反比,计算公式为[51]：
C ( c , i ) = N - 1 ∑ d ij （4）
式中： C ( c , i ) 表示节点 i 的接近中心性; d ij 表示节点 i 到节点 j 的最短路径长度; N 表示整个网络中的节点数量。不难看出,节点 i 与其他节点的平均距离越大,则接近程度就越低,接近中心性 C ( c , i ) 的值就越小。
（11）介数中心性（Betweeness centrality）
介数中心性是衡量某一个节点在海运网络中所起的作用,节点的介数中心性是海运网络中任意2个节点的最短路径中过该节点的最短路径的数量,计算公式为[51]：
C ( b , i ) = 1 ( N - 1 ) ( N - 2 ) ∑ n ijk n jk （5）
式中：C(b, i)表示节点 i 的介数中心性;njk表示节点j和k之间的最短路径数量;nijk表示节点j和k之间的最短路径数量过路径节点 i 的数量。介数中心性衡量的是通过某一节点的最短路径数量,数量越多,则中心性越高,表示该节点在网络流动中连通能力越强。
（12）直达中心性（Straightness centrality）
直达中心性是衡量网络中节点到其他节点的直线系数,2个节点的直达性是这2个节点之间的欧氏距离与最短路径距离的比值。节点 i 在海运网络中的直达中心性是指该节点到海运网络中其他节点的欧氏距离与最短路径距离的比值之和的平均值,计算公式为[52]：
C ( s , i ) = 1 N - 1 ∑ d ij ' d ij （6）
式中： C ( s , i ) 表示节点 i 的直达中心性; d ij ' 表示节点 i 和 j 之间的欧氏距离; d ij 表示网络节点 i 和 j 之间的最短路径距离。直达中心性是衡量路网中节点到其他节点的最短路径距离与直线距离的偏离程度,偏离程度越小,表示该节点到其他节点的直线性越强,因此直达中心性常用来衡量网络中节点的直达效率。
4.2.2 海运网络动态结构特征
海运网络结构动态研究包括结构时空变化、层级特性发现、中心枢纽港口转移、动态连接性评价、网络复杂性探究及其影响因素分析等方面。目前的研究方法包括模型构建、统计分析和实证研究等。海运网络结构时空变化和层级特性分析[53]研究包括基于图论的微积分方法分析港口层级特性[54],不同货物类型耦合作用下的港口层级特性分析[55],货运公司联合运营下的集装箱海运网络拓扑结构和层级特性分析[56],基于港口群运营战略联盟和子网空间拓扑结构的海运网络多层级动态研究[57]等方面。相关学者对中心枢纽港口转移的研究主要从复杂网络中心性度量方法出发,提出了基于中心性度量指标的港口地位变化评价[58]和全球海运中心的动态转移分析框架[59]等。动态连接性评价研究则包括基于最小运输时间和最大运输能力的全球集装箱海运网络连接性评价模型[60],基于国际贸易、海上运输、航运服务配置的多层级网络的国际贸易连接性评价[61],基于重力模型和双向连接指数的班轮运输连接性评价[62]等。此外,在海运网络复杂性分析方面,Kaluza等[63]提出了基于重力模型的集装箱、散货、油轮移动模式研究和海运网络复杂性分析方法,Ducruet等[64]针对西亚海运走廊,研究了基于节点流的港口竞争力和网络极化复杂特征。
海运网络结构动态影响分析主要从2个角度开展研究工作：① 从海运网络内部结构变化出发,分析内部节点变化对海运网络动态拓扑结构的影响,如基于节点度、中心性、聚类系数、平均路径长度、模块度等网络结构特征评价指标分析节点聚合对海运网络拓扑结构的动态影响[65];② 从海洋运输系统其它因素出发,分析运输服务模式、腹地可达性、商品多样性等对海运网络动态结构的影响,如基于全球集装箱供应链性能的海运网络动态特性分析[66],运输服务模式和腹地可达性对海运网络结构的影响[67,68],基于全球海运网络的运输服务模式动态互补关系研究[69],考虑海运运营成本和运输模式,构建基于组合优化和优先级规则的启发式海运贸易分配模型[70]等。

4.3 海运网络演化机制

4.3.1 海运网络结构演化
海运网络演化是一个时空动态变化过程,不仅促进世界海运贸易的发展,同时也受到多方面的因素制约,如新增港口、港口繁荣、港口衰落、航线挂靠调整、航运公司并购重组、航道扩建等内部因素[9],以及灾害事件（如飓风、地震、海啸、船舶碰撞、油品泄漏等）、市场价格波动、政权更迭、国际经济制裁、国际经济协定、地缘政策、武装冲突等外部因素的共同影响。
班轮运输是海运网络的一种重要特点,其网络演化过程主要包括4个阶段：① 以点对点的直达运输服务为主,区域导向明显,但与海外市场互联性差,政府干预程度高,不利于行业的市场化、国际化发展;② 轴辐式网络开始出现,枢纽港口的出现增强了港口系统与海外市场的连通性,同时政府减少干预,有利于满足港口服务日益增长的需求,与海运市场的动态变化相适应;③ 轴辐式网络进入发展阶段,干线日益增多,支线网络功能进一步增强; ④ 部分支线网络逐步演变成干线网络,非支线网络发展成为支线网络,轴辐式网络二级中心日益增多[65]。目前的研究工作多集中在从第③阶段向第④阶段演化角度,如传统空间港口扩张模式的模拟分析[71],基于腹地可达性和港口区域特性的港口系统演变规律分析[72,73,74],基于环境-政策-结构匹配框架和生命周期理论的港口管理系统演化模型等[75]。
4.3.2 海运网络交通流演变
海运网络中的节点交通流、连接边中的交通流都是随时间和空间而变化。目前海运交通流演变研究主要包括海运交通流演变特性分析、影响因素识别、交通流预测3个方面。
在交通流演变特性方面,有些学者研究了基于图论和复杂网络的运输流的动态演化模型（如随机游走模型和拓扑结构演变分析）[76],基于OD矩阵流、同质性、同配系数、连接性等方法的全球海运交通流多样化动态演化分析[77],和基于复杂网络中心性、主导性和脆弱性评价方法,分析全球尺度下的海运网络区域性交通流不均衡演化过程[78]等。
在影响因素识别方面,Wilmsmeie等[79]以拉丁美洲和加勒比海域为例,提出基于货流时空变化模式和转运港口转移的港口系统演化分析框架,识别港口货流变化的影响因素包括经济增长（货物吞吐量增加、货运结构变化等）,科技发展（船舶大小改变、自动化程度提高、物流信息系统完善）,港口衰落（港口体制改革、私有运营商的入侵、内部港口竞争）,港口功能差异（通道港口、混合港口、转运港口）,运输服务模式（直达服务、转运策略）,港口系统变化（新增港口、内部港口竞争、支线港口多样化发展）等。
在交通流预测方面,Tavasszy[80]以国家贸易信息和集装箱班轮运输服务为数据来源,考虑港口的集装箱进入流、流出流、转运流、腹地流等交通流量信息,提出了集装箱货流预测及不确定性分析框架,有助于分析集装箱运输需求的变化和政策影响。

5 结论与展望

海洋运输统计数据和船舶跟踪轨迹大数据为海运网络研究提供了丰富即时的数据来源,数学物理、统计学科、复杂网络科学、数据挖掘理论等为海运网络研究提供了基础的方法支撑。目前,海运网络研究的研究内容和应用领域都呈现多样化特点。然而,海运网络研究也存在诸多挑战,例如：分析数据以海上交通活动数据为主,缺乏政治、经济、地理、管理等辅助支撑数据。未来海运网络的研究可能会侧重在以下3个方面：
（1）跨学科跨领域研究方法的交叉
海运网络及其影响因素分析是集地理、政治、海洋等学科于一体的综合性研究问题,具有一定的挑战性。不同学科研究理论和研究方法的交叉融合为深入理解海运网络的动态变化、演化过程、内在机理、未来趋势等提供了理论依据和技术创新,是未来发展的重要方向。
（2）多源异构数据融合分析
海运网络目前的研究侧重于海上活动轨迹大数据和统计记录数据,仍需尽可能融合多种类型数据（如社会经济数据、陆地交通数据、区域国际关系数据、海域管理信息数据等）,使海运网络分析更加全面。
（3）注重与实际决策应用的结合
海运网络研究成果应更加注重与实际应用相结合,如通过分析海运网络动态和演化机制受灾害事件、市场价格波动、政权更迭、国际经济制裁、国际经济协定、地缘政策、武装冲突等的影响,深入理解其内在影响机理,进而提出国家经济、战略决策的有效应对措施。
