Accuracy Evaluation of Land Use Mapping Using Remote Sensing Techniques in Coastal Zone of China

  • HOU Xiyong , 1, 2, 3 ,
  • DI Xianghong 1, 2, 3 ,
  • HOU Wan 1, 2, 3 ,
  • WU Li 1, 2, 3 ,
  • LIU Jing 1, 2, 3 ,
  • WANG Junhui 1, 3, 4 ,
  • SU Hongfan 1, 3 ,
  • LU Xiao 1, 2, 3 ,
  • YING Lanlan 1, 2, 3 ,
  • YU Xinyang 1, 3, 4 ,
  • WU Ting 1, 2, 3 ,
  • ZHU Mingming 1, 2, 3 ,
  • HAN Lei 1, 2, 3 ,
  • LI Mingjie 1, 2, 3
Expand
  • 1. Yantai Institute of Coastal Zone Research, Chinese Academy of Sciences, Yantai 264003, China
  • 2. University of Chinese Academy of Sciences, Beijing 100049, China
  • 3. Key Laboratory of Coastal Environmental Processes and Ecological Remediation, Chinese Academy of Sciences, Yantai 264003, China
  • 4. School of Resources and Environmental Engineering, Ludong University, Yantai 264025, China
*Corresponding author: HOU Xiyong, E-mail:

Received date: 2018-04-12

  Request revised date: 2018-06-22

  Online published: 2018-10-17

Supported by

The Strategic Priority Research Program of the Chinese Academy of Sciences,No.XDA19060205, XDA11020305

National Natural Science Foundation of China, No.31461143032, 40801016.

Copyright

《地球信息科学学报》编辑部 所有

Abstract

Land use mapping using remote sensing techniques supplies essential datasets for scientific researches including global climate change, regional sustainable development and so on. The evaluation information on the accuracy of the land use mapping determines the integrity, reliability, usability, controllability and shareability of the land use maps obtained by the applications of remote sensing techniques. In this paper, the methods, processes and results of multiple temporal land use mapping for China's coastal zone using remote sensing techniques were overviewed, and the land use maps in 2010 and 2015 were selected for accuracy evaluation. The validation samples were collected based on Google Earth and the confusion matrices were established for the whole coastal zone and its sub-regions, respectively. Then, the overall accuracy and Kappa coefficient were calculated. Main findings are as follows: (1) Results of land use mapping in 2010 and 2015 using remote sensing techniques achieved high accuracy. For the entire coastal zone in China, the overall accuracy came to 95.15% and 93.98%, with the Kappa coefficients of 0.9357 and 0.9229 in 2010 and 2015, respectively. (2) The accuracy of land use mapping in China's coastal zone exhibited obvious regional differences. The best accuracy was found in the coastal area of Jiangsu province in 2010, and very high accuracy were found in the coastal area of Hebei-Tianjin, Shanghai city, Hainan province and Taiwan province in 2015, while the worst accuracy was found in the coastal area of Fujian province in both 2010 and 2015. (3) The accuracy of land use mapping in China's coastal zone exhibited obvious typological differences. The very high accuracy (both producer precision and user precision) were achieved for farmland, forest, grassland and saltwater wetlands, and the high accuracy for built-up, freshwater wetlands and human made saltwater wetland, while the worst accuracy for unused land. (4) The misclassification between cultivated land and forest land, construction land and grassland is quite significant. Inland water bodies were easily misclassified into cultivated land, forest land and construction land. Artificial salt water wetlands were easily misclassified into cultivated land and construction land, and unused land. It was easy to mistakenly classify the unused land as cultivated land. These are the issues that should be paid more attention during the continuous update of the land use maps in the future. This study provides supports for the dynamic monitoring and scientific researches on coastal land use changes.

Cite this article

HOU Xiyong , DI Xianghong , HOU Wan , WU Li , LIU Jing , WANG Junhui , SU Hongfan , LU Xiao , YING Lanlan , YU Xinyang , WU Ting , ZHU Mingming , HAN Lei , LI Mingjie . Accuracy Evaluation of Land Use Mapping Using Remote Sensing Techniques in Coastal Zone of China[J]. Journal of Geo-information Science, 2018 , 20(10) : 1478 -1488 . DOI: 10.12082/dqxxkx.2018.180184

1 引言

土地利用/覆盖变化(Land Use/Cover Change, LUCC)遥感监测是开展气候变化与人类活动及其相互作用等方面科学研究的重要基础[1];20世纪80年代以来,该领域研究开始进入快速发展的阶段,如国际地圈与生物圈计划(IGBP)与全球变化人文因素计划(IHDP)在1993年联合制订土地利用/覆盖变化(LUCC)科学研究计划,又于2005年启动全球土地计划(GLP)[2]。作为遥感对地观测技术发展的重要产物,土地利用/覆盖遥感分类结果已成为支撑全球变化和区域可持续发展等研究不可或缺的重要基础数据[3],全球范围的科学家以及众多的国际组织发挥遥感技术的优势开展了一系列全球及区域尺度的土地利用/覆盖遥感制图研究,目前已经形成了众多的土地利用/覆盖数据产品[4]。例如,针对全球尺度,美国地质调查局为国际地圈与生物圈计划建立IGBP DISCover数据集[5],美国马里兰大学开发了全球土地覆盖数据(UMD数据集)[6],欧盟联合研究中心制作了GLC数据集[7],美国波士顿大学基于MODIS影像生产了MCD12Q1数据集[8],欧洲空间局制备了GlobCover数据集[9]和CCI-LC数据集[10],中国清华大学研制了FROM-GLC数据集[11],中国国家基础地理信息中心制作了GlobeLand30数据集[12]等。针对中国区域,较具代表性的工作有:中国科学院组织开展了全国范围以遥感手段为主的土地资源调查,建立了全国1:10万多时相土地利用数据库[13,14]等。土地利用/覆盖遥感制图精度评价是正确使用遥感制图结果、发挥其巨大价值的前提和保证,因此受到国内外学者的高度重视。由于数据源、分类系统和分类方法不同,遥感制图结果差异显著;通过遥感制图精度评价,数据生产者可以不断改进方法获得更高质量的数据产品,数据使用者则可以分析数据的优劣从而做出正确的选择以及合理地使用数据来满足具体的应用需求[15]。目前,常用的评估遥感制图精度的方法包括:野外实地验证(直接验证)、以更高分辨率的同类产品为真值进行对比验证(间接验证),以及二者相结合的验证方法[16]。在地面真实值难以获取或难以与制图产品在时间上同步的情况下,间接验证是一种行之有效的验证方法,尤其是针对大范围区域的遥感制图。例如,对IGBP DISCover、UMD、GLC2000和MCD12Q1进行比较,结果表明其在数量和空间分布上的一致性较差[17];以Google Earth高分影像为参考,评估和对比IGBP DISCover、UMD、GLC2000、MCD12Q1和GlobCover2005在中国区域及其周边范围的精度特征,发现GLC2000的总体精度和Kappa系数最高、GlobCover2005的总体精度和Kappa系数最低[18]。将中国1:10万土地利用数据CHINA 2010与30 m分辨率的GlobleLand30数据,针对中国河南省进行对比,表明GlobleLand30与CHINA 2010的空间一致性高达80.20%[19]
城市、人口和经济等要素高度聚集的海岸带区域是全球变化等领域科学研究的重要“窗口”。中国海岸带自20世纪80年代以来经历了明显的变化,因此针对中国海岸带开展长时间序列的土地利用动态遥感监测具有重要的科学意义。本文简要回顾和总结研究组针对中国海岸带区域所开展的土地利用遥感分类系统调整、数据修改与更新工作,在此基础上,针对2010年和2015年中国海岸带土地利用遥感制图结果,基于Google Earth高分影像建立参考数据并进行精度评价。通过研究,旨在为后续的海岸带土地利用变化、生态系统评估等相关领域的科学研究和数据共享等提供必要的信息与支持。

2 土地利用数据制备与精度分析方法

2.1 多期土地利用遥感制图的技术方法

中国海岸带区域南北及东西跨度大,气候、地貌、植被、土壤、水文以及人类活动等因素都存在着非常显著的空间差异,而且与内陆区域相比也有其突出的独特性,因此自2009年以来陆续开展了如下研究工作:① 针对山东沿海,尤其是黄河三角洲和胶东半岛区域,开展了多目的的野外调查和考察,土地利用是历次野外调查和考察的重要研究目标之一,并在此基础上开展了区域性的海岸带多时相土地利用遥感制图工作;② 通过文献分析,总结和评估已有的能够覆盖整个中国沿海区域的土地利用遥感制图产品,确定以中国科学院地理科学与资源研究所建立的多时相1:10万比例尺中国土地利用数据库[13,20-21]为基础开展中国海岸带土地利用数据制备和变化特征研究;③ 强调中国海岸带区域自然环境、人类活动以及土地资源的特殊性,综合国内外相关研究成果,对多时相1:10万比例尺土地利用数据的分类系统进行必要的调整,得到中国海岸带土地利用遥感分类系统(表1[22,23];④ 从2000年1:10万比例尺中国土地利用数据中提取出中国沿海区域的数据,对照2000年成像的Landsat卫星影像,按照中国海岸带土地利用遥感分类系统进行目视判读,修改图斑边界及属性,得到2000年中国海岸带土地利用数据[22,24];⑤ 对照2005年成像的Landsat卫星影像修改2000年中国海岸带土地利用数据,进行目视判读,通过变化区域图斑勾绘和代码赋值建立2005年中国海岸带土地利用数据,依次类推、顺次更新,获得2010年和2015年中国海岸带土地利用数据;⑥ 2000年数据修改以及2005、2010和2015年数据顺次更新,在土地利用类型遥感判读和GIS制图规范等方面遵循1:10万比例尺的技术要求;⑦ 遥感制图范围以中国沿海地级市为主体(①制图范围:早期的研究工作是以“大陆海岸带(沿海)”为重点,因而未包含海南省和台湾省,后续进行了补充;二级类型中的“浅海水域”仅通过光学遥感技术难以确定其具体范围,因而早期数据产品缺少这一类型,导致海部边界不固定,后期以-10 m等深线和离岸10 km缓冲区为依据,取二者的并集建立了固定的海域边界,因此数据产品中实际上是“浅海/近海水域”。),兼顾鞍山、德州、临沂、湖州、佛山和玉林6个不临海但辖区距海很近的地级市。截至2017年,完成了2000、2005、2010和2015年4个时相的中国海岸带土地利用遥感制图工作(图1),数据图斑数量分别多达41.33、43.17、42.82和42.01万。
Tab. 1 Land use hierarchy for China's coastal zone based on remote sensing techniques

表1 中国海岸带土地利用遥感分类系统

一级类型
(编码+名称)
二级类型
(编码+名称)
1 耕地 11水田;12旱地
2 林地 21有林地;22疏林地;23灌木林地;24其他林地
3 草地 31高覆盖度草地;32中覆盖度草地;33低覆盖度草地
4 建设用地 41城镇用地;42农村居民点;43独立工矿及交通用地
5 内陆水体 51河渠;52湖泊;53水库坑塘;54滩地
6 滨海湿地 61滩涂;62河口水域;63河口三角洲湿地;64沿海瀉湖;65浅海水域
7 人工咸水湿地 71盐田;72养殖
8 未利用地 81未利用地

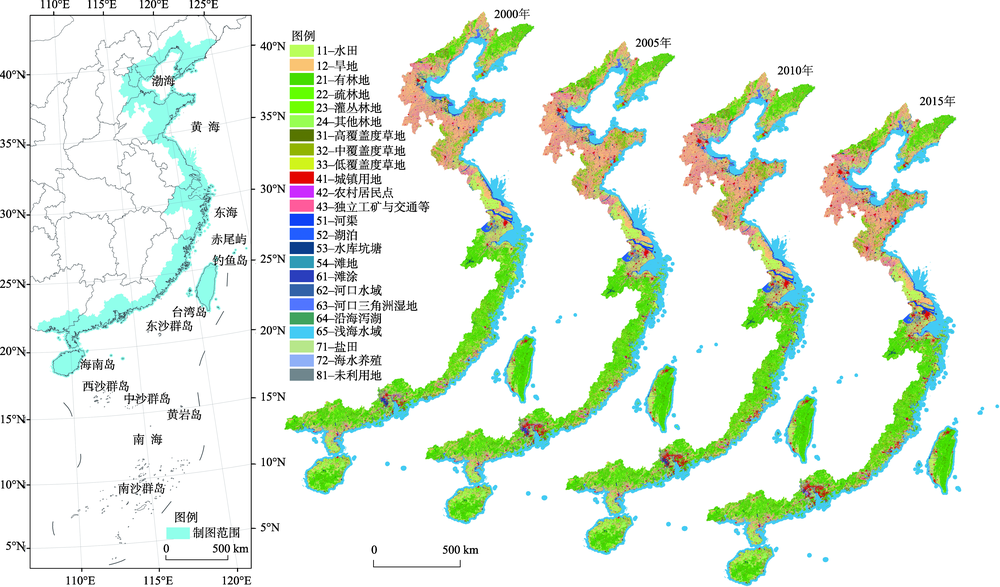

Fig. 1 Land use maps in multiple years in China's coastal zone based on remote sensing techniques

图1 中国海岸带多时相土地利用遥感制图结果

2.2 土地利用数据精度分析的技术途径2.3 土地利用数据分类精度计算的方法

随着遥感技术的不断发展和数据开放共享的逐渐推进,已经有越来越多的中、高分辨率卫星影像数据实现了共享,很好地满足了各种各样与日俱增的需求。2005年,Google公司推出Google Earth(GE)虚拟地球软件[25],实时为用户提供覆盖全球的高分影像数据,这一数据资源迅速成为中低分辨率(30 m~1 km)土地利用/覆盖遥感制图精度评价的有效参考数据。为此,设置采样点,基于Google Earth高分影像建立中国海岸带土地利用遥感制图精度评价的参考数据集。验证样本采集及制图精度评价的技术流程如图2所示。具体过程包括: ① 中国海岸带土地利用分类系统确定与多时相遥感制图,主要通过Landsat卫星影像假彩色合成、土地利用类型目视判读、变化图斑勾绘与编码、多时相数据顺次更新的技术途径获得4个年份的土地利用分类结果;② 利用ArcGIS中的Generate工具,在不同的行政区内按照不同的采样间距生成采样点,其中2010年共计13 013个样点,2015年共计16 418个样点(表2);③ 将采样点图层与土地利用遥感制图结果进行叠加分析,获得每个样点位置2010年和2015年的土地利用遥感分类结果;④ 将采样点图层转换为KML文件,进而将其加载至Google Earth中,根据Google Earth高分影像目视判读每个采样点的土地利用类型,其中,针对2010年数据的样本采集时间为2011-2012年,针对2015年数据的样本采集时间为2015-2016年;⑤ 针对整个中国海岸带以及分行政区空间范围,分别进行土地利用类型的一致性检验,在8个一级类型层面建立混淆矩阵并计算精度水平,获得土地利用遥感制图精度评估结果。

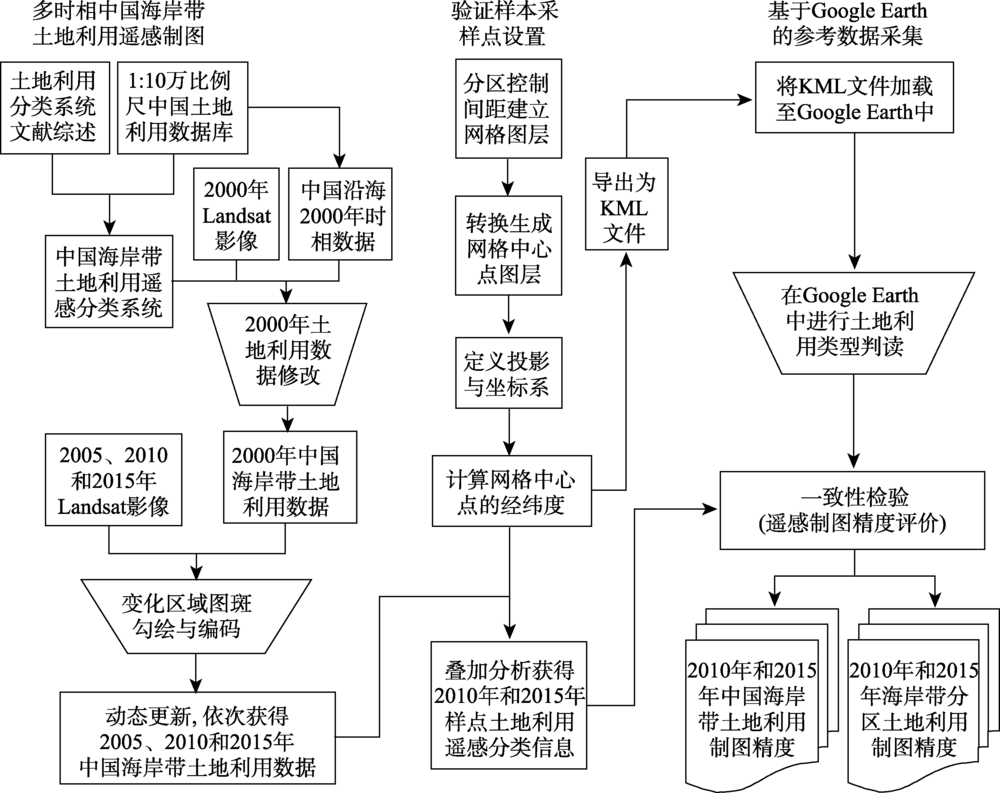

Fig. 2 Technical approaches of land use mapping and accuracy evaluation for China's coastal zone

图2 中国海岸带土地利用遥感制图及精度评价的技术流程

Tab. 2 Spacing and amounts of sampling points in each administrative region

表2 不同行政区域的采样间距及样点数量

行政区域 辽宁 河北 天津 山东 江苏 上海 浙江 福建 广东 广西 海南 港澳 台湾 合计
采样间距/km 7 7 5 7 7 4.5 8 7 7 6 6 2 10
2010年采样点数量/个 1358 730 500 1410 1098 500 1163 1117 1772 1000 1311 500 554 13013
2015年采样点数量/个 1780 1019 474 2445 1318 578 1463 1304 2397 1123 1311 652 554 16418
土地利用遥感制图精度评价是一项非常重要的工作,一般主要从面积一致性和空间一致性2个方面进行考察[26,27]。面积一致性强调数量方面的精度,用于验证待评价数据各类别的数量是否与参考数据对应类别的数量一致[28],多采用一致性系数[29]或相关系数[30]来表征;空间一致性是将特定位置的分类结果和参考数据相应点的类别进行比较,多采用混淆矩阵来度量[31]。本研究基于较大数量的样本数据,针对土地利用遥感制图的空间一致性进行定量评价,具体方法如下:
混淆矩阵是nn列的矩阵,n为类别数;矩阵列方向依次为实际类别的第1类、第2类、…、第n类的代码或名称,矩阵行方向依次为制图类别的第1类、第2类、…、第n类的代码或名称;矩阵中的元素是各类别的样点数[32]。总体精度等于被正确分类的样点总和除以总样点数,被正确分类的样点数沿混淆矩阵的对角线分布;生产者精度是被正确分类样点数占参考数据样点数的百分比,描述待评价数据与参考数据的一致性;用户精度描述待评价数据中被正确分类样点所占的百分比,从用户角度描述数据的可用程度。总体精度、生产者精度和用户精度的不足在于样点类别的小变动即可能导致其较大的变化,而Kappa系数则能够更全面地反映制图结果的分类精度[33]。计算公式如下:
O = i = 1 n x ii N (1)
P = x ii x + i (2)
U = x i i x i + (3)
K = N i = 1 n x ii - i = 1 n x i + x + i N 2 - i = 1 n x i + x + i (4)
式中:O是总体精度;P是生产者精度;U是用户精度;N是用于精度评价的总样点数;n为混淆矩阵中的总列数;xii为混淆矩阵中第i行、第i列上样点数;xi+x+i分别是第i行和第i列的总样点数;K是Kappa系数。

3 精度评价结果与分析

3.1 分区层面的制图精度

在沿海省、区、市层面对2010年和2015年中国海岸带土地利用遥感制图的结果进行精度评价,针对8个一级土地利用类型,基于遥感分类结果和Google Earth采样信息建立混淆矩阵,计算总体精度和Kappa系数,汇总各行政区的计算结果如表3所示。可见:① 各个分区2010年和2015年的土地利用遥感分类结果的精度均比较高,2010年精度水平总体上略优于2015年。② 2010年各分区的总体精度普遍大于95%,Kappa系数普遍大于0.94;江苏沿海区域土地利用分类结果的精度最高,总体精度达97.45%,Kappa系数达0.9641;福建沿海区域土地利用分类结果的精度最低,总体精度为92.57%,Kappa系数为0.8839。③ 2015年各分区总体精度普遍大于94%,Kappa系数普遍大于0.93;上海、台湾、海南以及津冀沿海区域土地利用分类结果的精度最高,总体精度均大于95.30%,Kappa系数均大于0.9340;福建沿海区域土地利用分类结果的精度仍为各个分区中的最低水平,总体精度为90.95%,Kappa系数仅为0.8714。④ 福建沿海地貌类型及其格局比较复杂,地形起伏剧烈,主要受此影响,30m分辨率卫星影像中混合像元占比高,以其为主要数据源进行土地利用目视解译具有较高的不确定性。
Tab. 3 Accuracy of land use mapping in each administrative region in China's coastal zone

表3 分区层面中国海岸带土地利用遥感制图的精度

分区编号 所属的
行政区
2010年 2015年
总体精度/% Kappa系数 总体精度/% Kappa系数
1 辽宁 95.06 0.9318 94.83 0.9332
2 津冀 94.39 0.9110 95.71 0.9348
3 山东 93.90 0.8991 95.17 0.9288
4 江苏 97.45 0.9641 94.69 0.9280
5 上海 95.20 0.9331 95.33 0.9374
6 浙江 95.96 0.9430 94.81 0.9317
7 福建 92.57 0.8839 90.95 0.8714
8 广东 93.12 0.8996 90.99 0.8809
9 广西 96.90 0.9523 92.43 0.8917
10 海南 97.40 0.9606 95.65 0.9342
11 港澳 96.20 0.9408 94.02 0.9180
12 台湾 96.39 0.9500 95.30 0.9349

3.2 海岸带整体的制图精度

针对整个中国海岸带区域2010年和2015年土地利用遥感制图结果进行精度评价,在8个一级土地利用类型层面,基于遥感分类结果和Google Earth采样信息建立混淆矩阵,进而计算总体精度和Kappa系数,如表4、5所示。可见:① 2010年分类结果的总体精度为95.16%,Kappa系数为0.9357;② 2015年分类结果的精度水平略低于2010年,但总体精度和Kappa系数仍然分别高达93.98%和0.9229;③ 总的来说,2010年和2015年中国海岸带土地利用遥感制图结果的精度水平均比较高。
Tab. 4 Confusion matrix of land use mapping in China's coastal zone in 2010

表4 2010年中国海岸带土地利用遥感制图混淆矩阵

分类数据 标准数据 行总数 用户精度/%
1 2 3 4 5 6 7 8
1 4103 102 33 83 26 4 19 3 4373 93.83
2 88 4170 7 15 8 1 0 2 4291 97.18
3 32 10 671 4 5 0 3 3 728 92.17
4 39 17 2 1484 7 4 10 1 1564 94.88
5 11 5 5 6 664 3 7 2 703 94.45
6 2 5 1 2 0 901 3 0 914 98.58
7 7 1 1 5 3 0 335 2 354 94.63
8 12 9 0 3 0 6 1 55 86 63.95
列总数 4294 4319 720 1602 713 919 378 68
生产者精度/% 95.55 96.55 93.19 92.63 93.13 98.04 88.62 80.88
总体精度/% 95.16 Kappa系数 0.9357

注:土地利用类型编码请参表1

Tab. 5 Confusion matrix of land use mapping in China's coastal zone in 2015

表5 2015年中国海岸带土地利用遥感制图混淆矩阵

分类数据 标准数据 行总数 用户精度/%
1 2 3 4 5 6 7 8
1 4424 231 5 173 26 2 6 1 4868 90.88
2 107 4117 5 48 11 10 6 2 4306 95.61
3 31 4 723 23 4 7 4 4 800 90.38
4 58 42 9 1587 17 10 4 2 1729 91.79
5 29 14 8 18 625 3 6 2 705 88.65
6 3 8 2 3 0 3559 1 0 3576 99.52
7 2 0 0 5 2 2 350 0 361 96.95
8 16 4 1 2 0 5 0 45 73 61.64
列总数 4670 4420 753 1859 685 3598 377 56
生产者精度/% 94.73 93.14 96.02 85.37 91.24 98.92 92.84 80.36
总体精度/% 93.98 Kappa系数 0.9229

注:土地利用类型编码请参表1

3.3 制图精度的类型差异

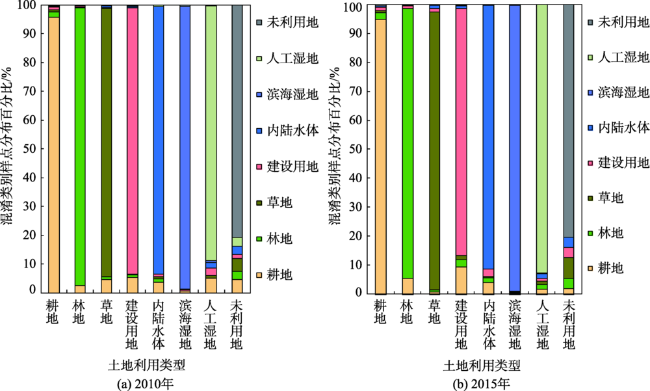

分析遥感制图结果与Google Earth验证样本之间的混淆特征以及错误样点的数量分布特征(图3、4),可以发现:2010年和2015年,林地和滨海湿地的生产者精度与用户精度均超过93%,这是由于林地主要分布于地势较高的区域,色调和纹理特征显著,目视解译比较容易判读;而滨海湿地主要位于大陆海岸线附近,解译标志亦比较明显,与其他地类之间的边界清晰。

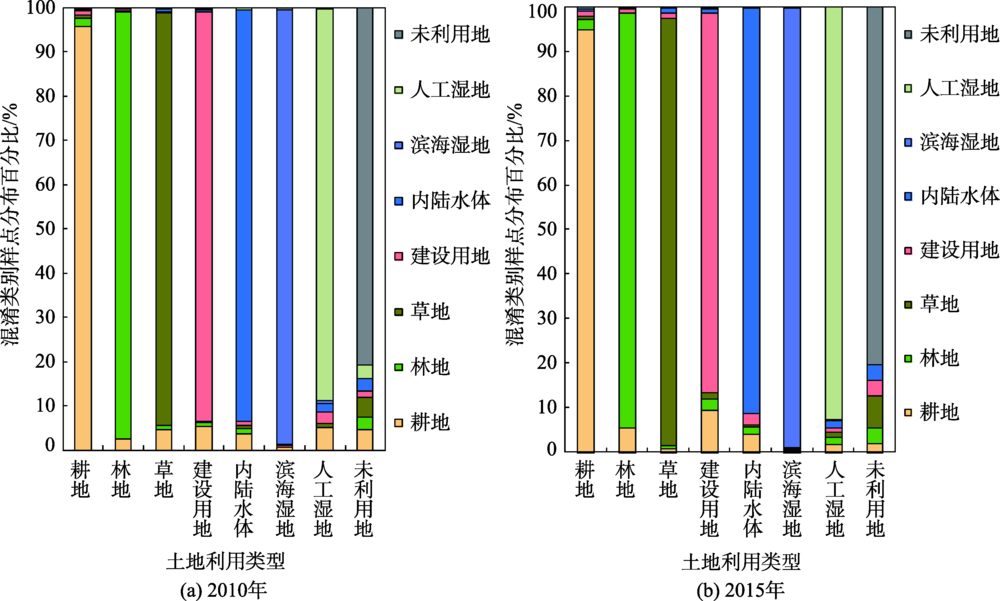

Fig. 3 Confusions between remote sensing based land use map and Google Earth based samples in 2010 and 2015

图3 土地利用遥感制图与Google Earth验证样本混淆特征

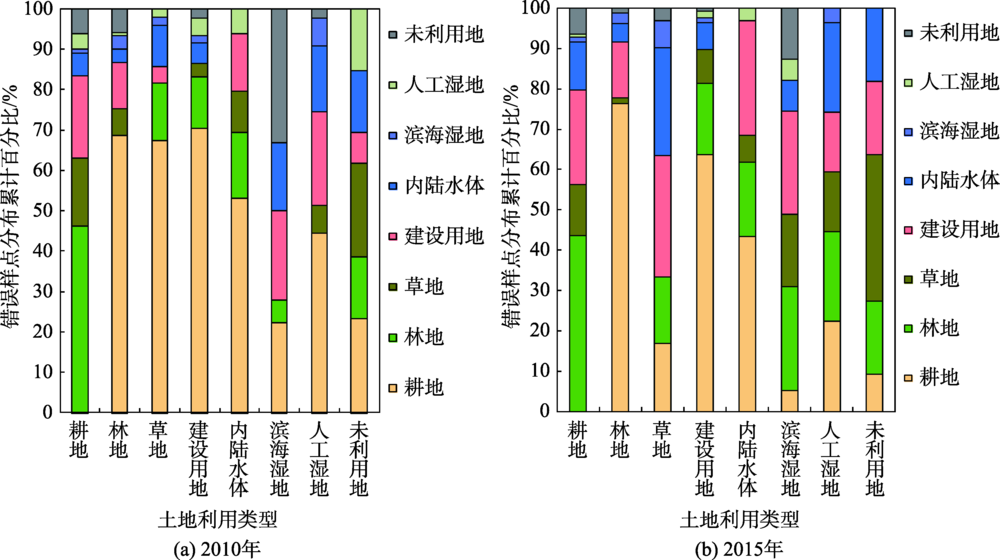

Fig. 4 Statistical characters of misclassified samples of land use mapping in 2010 and 2015
