A Review on Application of Techniques of Principle Component Analysis on Extracting Alteration Information of Remote Sensing
Received date: 2018-04-18
Request revised date: 2018-09-04
Online published: 2018-11-20
Supported by
National Science Foundation of China, No.41802247, 41603031
The Scientific Research Fund of Jiangxi Provincial Education Department, No.GJJ160584
Key Laboratory for Radioactive Geology and Exploration Technology, Fundamental Science for National Defense, No.RGET1305
Key Laboratory for Digital Land and Resources of Jiangxi Province, No.DLLJ201614.
Copyright
The principle component analysis (PCA) technique, as one of the common method of extracting alteration information of remote sensing, is characterized by undemanding quality of atmospheric correction images, easily realization, effective, and steadily i.e., and is widely used by geologists. Based on the number and type of the input images and times of the PCA, this paper subdivided the PCA analysis into the standard principle component analysis (SPCA), feature oriented principal components selection (FPCS), directed principal component analysis (DPCA), the secondary principle component analysis and the principle component analysis of different images, of which the FPCS comprise four bands and three bands principle component analysis. Based on the above mentioned, every PCA and selection criteria have been systematically introduced, especially for the Crosta technique of the FPCS and the software defoliant technique of the DPCA. Images of TM/ETM+、ASTER are selected as examples to analyze the part of application techniques of PCA on extracting alteration information of remote sensing. The results indicate that different PCA all are in favor of extracting information of iron and clay alteration. The methods of SPCA, Crosta technique, modified Crosta technique, software defoliant technique and mask or inhibition of interference information+PCA have been effectively applicated in the medium-low vegetated-covered area. In contrast, in the high vegetated-cover area, the principle component of alteration information derived from PCA was adopted to conduct color composite. The resulted color images were then visual interpreted to estimate the type and extent of alteration. Among these techniques, the “Mask and Crosta technique”, the “Mask and software defoliant technique” and the secondary principle component analysis also can achieve good results in the high vegetated-cover area. For areas characterized by numerous kinds of interference information and complex lithology, firstly, it is practicable to divide the area into several sub-areas based on kinds of interference information and lithology; secondly, different methods of extracting alteration information should be proposed according to the features of every sub-areas; lastly, synthesizing alteration information extracted from every sub-areas.
WU Zhichun , YE Fawang , GUO Fusheng , LIU Wenheng , LI Hualiang , YANG Yi . A Review on Application of Techniques of Principle Component Analysis on Extracting Alteration Information of Remote Sensing[J]. Journal of Geo-information Science, 2018 , 20(11) : 1644 -1656 . DOI: 10.12082/dqxxkx.2018.180195

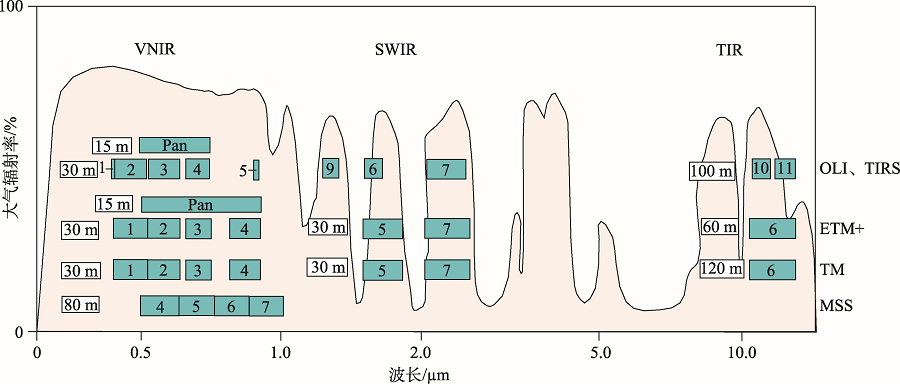

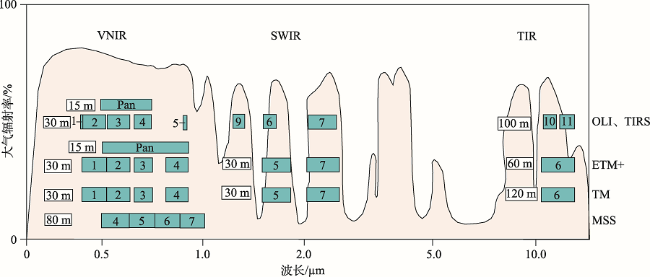

Fig. 1 Comparision of spatial resolution and spectral resolution of each band of MSS, TM, ETM+ and OIL images图1 MSS、TM、ETM+和OIL各波段空间分辨率、光谱分辨率比较 |

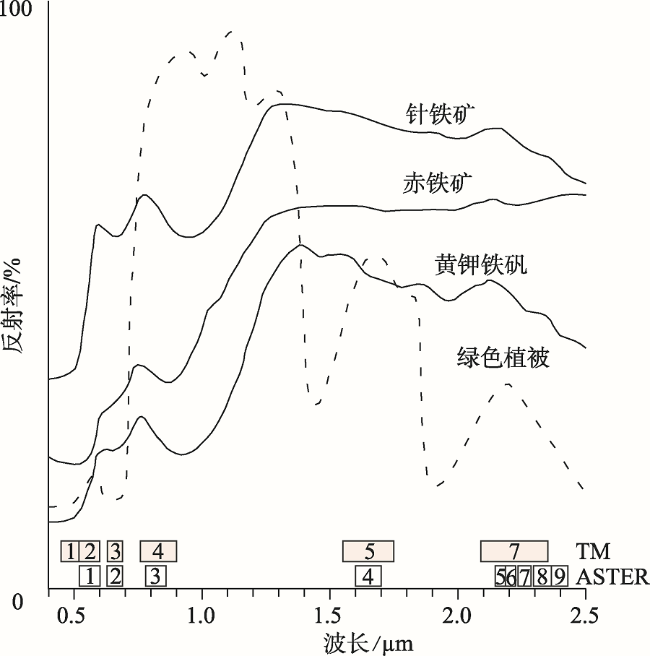

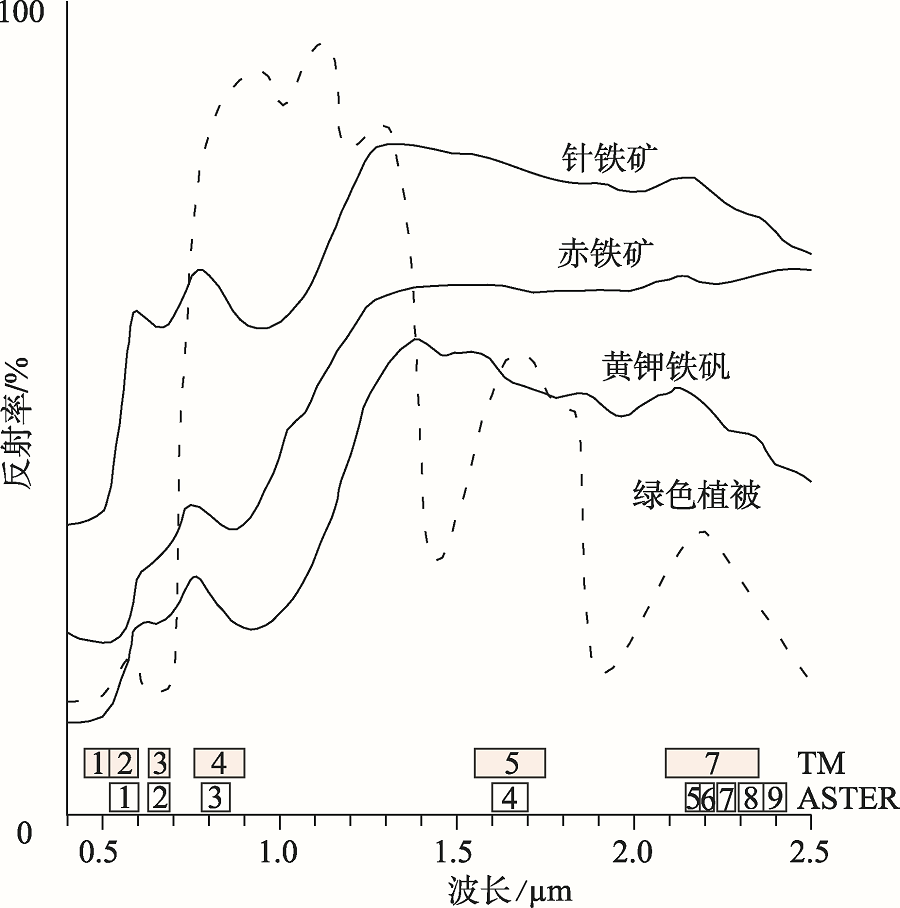

Fig. 2 Mineral spectral curves of iron alteration图2 铁化蚀变矿物光谱曲线 |

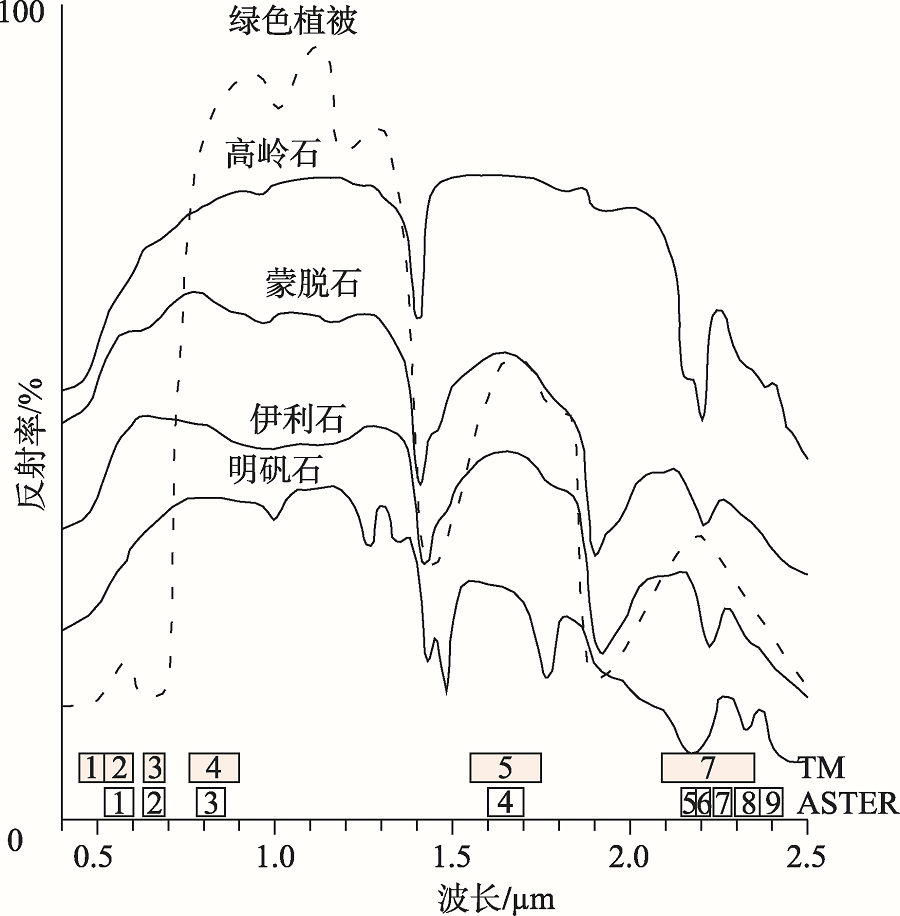

Fig. 3 Mineral spectral curves of clay alteration图3 泥化蚀变矿物光谱曲线 |
Tab. 1 Modified Crosta technique表1 改进的Crosta技术 |
技术方法 | 提取的蚀变类型及应用效果 |
---|---|
PCA(TM2,TM4,TM5,TM7) | 提取泥化蚀变和碳酸盐化蚀变[70] |
PCA(TM1,TM4/3,TM5,TM7) | RGB(PC1,PC3,PC4)影像合成,图像中含钾长石斑晶花岗岩和含金钾化硅化蚀变带呈鲜红色,可清楚辨别。通过对PC1和PC4二维散点投图,可将含钾长石斑晶花岗岩、含金钾化硅化蚀变带进一步分离[71]。该方法在加拿大北部冰川、森林覆盖区,中国河北等金矿区得到较好应用[26] |
PCA(TM1+TM2,TM4/3,TM5,TM7) | 干旱基岩裸露区,可以同时提取铁化、泥化蚀变信息,提取的蚀变信息与已知矿床、矿(化)点吻合度高[55,72-73]。在北祁连山西段疏勒河以东约9000 km2范围内,提取的蚀变异常与已知的103个矿床(点)吻合度高达83.5%[55]。在东天山戈壁地区的石英滩至赤湖地区约33 000 km2范围内,提取的蚀变异常与已知的122个矿床(点)吻合度达86%[72] |
PCA(TM1,TM4,TM5/7,TM7) | 在基岩裸露区,运用TM5/7代替TM5,增强了泥化蚀变信息,扩大了泥化蚀变与植被之间的光谱差异[59,74]。吴浩等[59]有效提取了青海省五龙沟金矿区的泥化蚀变信息,提取的蚀变信息在野外得到验证 |
PCA(TM1,TM3/1,TM4,TM5) | 在基岩裸露区,运用TM3/1代替TM3,增强了铁化蚀变信息,扩大了铁化蚀变与植被之间的光谱差异。在青海省五龙沟金矿区提取的铁化蚀变,受断裂构造控制明显,与成矿物质来源和运移通道相吻合,提取的蚀变信息可作为该区的金矿找矿标志[59] |
PCA(TM2,TM3,TM4,TM5/1) | 提取褐铁矿化蚀变异常。提取的蚀变异常信息与金矿体、水系沉积物Au和Cu异常相吻合[70] |
