Monitoring Tidal Flats in the Yangtze River Delta Using Landsat Images

  • QIU Chuanyin ,
  • LI Xing , * ,
  • LIU Shu'an ,
  • CHEN Dan
Expand
  • School of Geography, Geomatics and Planning, Jiangsu Normal University, Xuzhou 221116, China
*Corresponding author: LI Xing, E-mail:

Received date: 2018-07-27

  Request revised date: 2018-11-29

  Online published: 2019-01-30

Supported by

National Natural Science Foundation of China, No.41401093

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

As an important ecological resource in coastal zones, tidal flats are of great significance for environmental protection and regional sustainable development. Additionally, tidal flats are sentinels of regional and global changes and thus have recently become a focus of academic research. However, the accessibility of tidal flats is poor because tidal waters periodically inundate them. This makes it difficult to employ traditional measurements to monitor such highly dynamic environments. Accordingly, remote sensing observation has become a potential choice. Yet, remote sensing observations also face great challenges because of influences from imaging modes, atmospheric conditions, and tide conditions. For this research, we selected the Yangtze River Delta, which is covered by a single full scene of Landsat image, as the study region, specifically including parts of the Jiangsu coast and the Yangtze River estuary zone. A collection of the Landsat images with the lowest tidal level in each year from 1975 to 2017 was selected as the main data sources. Meanwhile, to extract tidal flat data, we choose the waterline as the outer boundary and the vegetation line or reclamation dyke as the inner boundary. Then, ArcGIS software was used to acquire and analyze the temporal and spatial variability of the tidal flat data. The results show the following: (1) The tidal flat area in the study region has generally decreased since 1975. The area remained generally stable before 1990s, but after 1990s, the decline was evident. The tidal flat areas along the north of the Yuantuojiao Point and the Yangtze River estuary zone reached their maximums around 1995, at 1101.2 km2 and 1495.5 km2, respectively, but were 649.5 km2 and 1043.4 km2 by 2017. This indicates an overall decreasing rate of 21.7 km2/a. (2) Reduced riverine sediment, reclamation, and estuarine engineering projects, such as the Deep-water Navigation Channel project, are the main controlling factors in tidal flat shrinkage in the study region. The results provide a holistic perspective on the evolution of the tidal flats in the Yangtze River Delta, which may be helpful for coastal zone management and planning.

Key words： The Yangtze River Delta; tidal flat; remote sensing; dynamics monitoring; reclamation; controlling factor

Cite this article

QIU Chuanyin , LI Xing , LIU Shu'an , CHEN Dan . Monitoring Tidal Flats in the Yangtze River Delta Using Landsat Images[J]. Journal of Geo-information Science, 2019 , 21(2) : 269 -278 . DOI: 10.12082/dqxxkx.2019.180344

1 引言

滩涂,在地貌学上称为“潮间带”,指沿海大潮高潮位与低潮位之间的潮浸地带[1]。它是海岸带的重要组成部分,位于海陆交接处,在陆海相互作用的影响下,形成了复杂多变的地理环境。长江河口三角洲的滩涂是生物多样性丰富、生态服务价值较高的生态系统类型,具有净化环境、储碳固碳、防护风暴潮等多种生态服务功能。其中,崇明东滩和九段沙分别是鸟类和湿地国家级自然保护区,二者又都是东亚-澳大利西亚鸟类迁徙的重要通道,在区域和全球生态安全保障方面占据重要地位,而滩涂又是鸟类重要的栖息地。以上海为中心的长江三角洲区域是中国最大的经济核心区,目前正处于优化提升、转型发展的新阶段,长江口滩涂作为社会经济发展所需的重要后备土地资源和生态屏障,对区域可持续发展具有重要意义;同时,河口滩涂又是高度脆弱的生态系统,对气候变化和人类活动比较敏感。因此,在全球变化和人类活动日益加剧的背景下,及时、准确地了解滩涂的动态变化信息,为滩涂资源的保护和可持续利用提供参考数据就显得尤为重要。
河口区滩涂的演变问题一直是研究的热点。但滩涂环境复杂多变,较差的进入性和通达性使传统的测量方法难以满足高频率变化环境的准确监测需求[2]。遥感技术以其宏观、快速、高效、低成本等突出特点,能在大范围区域内对多种地表资源和土地覆盖类型进行有效监测,将其应用于海岸滩涂监测与研究,有着传统手段无法比拟的优势。近年来,各种新的遥感数据源、数据处理技术和遥感监测方法也被逐渐应用在滩涂的提取与分析中[3]。例如,韩震等[4]利用多时相Landsat影像水边线高程反演,来确定1978-2001年伶仃洋大铲湾岸线变化,并估算了滩涂面积;赵亮等[5]提出一种联合光谱和纹理特征的支持向量机分类算法,用于滩涂和其它地物的提取;付军等[6]通过融合模型,对分别基于像元光谱特征和纹理特征的海岸带地物分类结果进行决策级的信息融合,从而获得滩涂信息;陈亨霖等[7]通过Landsat影像和其它更高分辨率的影像进行融合,唐伯惠等[8]利用星载高光谱Hyperion数据,实现滩涂的准确提取。也有研究者利用Landsat等影像结合成像时刻对应潮位或直接通过地形数据构建DEM来分析滩涂信息[9,10,11,12]。但对于滩涂变化的遥 感监测,由于成像方式、大气条件和潮情等影响,遥 感数据在其变化监测中应用仍存在很多困难。 Murray等[13]结合潮汐模型,首先计算高低潮时刻遥感影像的水体指数,然后对水体指数影像相减来实现东亚滨海潮间带大尺度的遥感制图,该方法虽然避开潮位校正难点,但同样因影像成像时刻对应潮位与大潮高、低潮位的差异,监测的潮间带面积存在不确定性。王靖雯等[14]针对这一问题,通过将江苏盐城沿岸进行分段,利用计算坡度的方法对影像成像时刻对应潮位进一步校正,来实现对各段滩涂的准确提取及变化分析。但这种方法仅对小尺度及岸线高程变化比较“平滑”的地区较为适用。Chen等[15]通过叠加5年内所有Landsat影像确定水频率范围,进而对长江口的围垦和滩涂损失进行了研究,部分解决了卫星过境时获取低潮海岸线图像概率较低的问题。可见,利用遥感方法进行滩涂变化监测有其特有的优势,但仍存在低潮位遥感影像较少、潮位校正困难等问题。
对长江口三角洲地区而言,目前多数研究是利用遥感影像或历史时期的海图数据,对上海和江苏沿岸重点区域的滩涂进行分析[16,17,18,19,20]。考虑到长江口滩涂对区域可持续发展的重要性,本研究收集了1975年以来每年潮位最低的Landsat影像数据,利用遥感和GIS技术获取滩涂信息,在40多年来滩涂存量信息统计的基础上,对研究区滩涂的时空分布模式及其影响因子进行了分析。

2 研究区概况及数据源

2.1 研究区概况

长江三角洲位于长江入海口,处于海洋、陆地和河流三大生态系统的交汇地带,是全球五十大生态敏感区之一。同时,长江河口滩涂也是世界上最大的河口冲积滩涂湿地之一。长江河口是一个丰水、多沙、中等潮汐强度的分汊河口,受径潮流的相互作用呈“三级分汊、四口入海”的态势（图1）：崇明岛将长江河口分为南支和北支,南支又被长兴岛、横沙岛分为南港和北港,九段沙又将南港分为南槽和北槽。长江携带的巨量泥沙孕育了河口丰富的滩涂湿地,为长江三角洲区域提供了大量的土地资源和重要的生态屏障。
Fig. 1 Location map of study area with reclamation zone and tidal flats distribution in 2017

图1 研究区位置、2017年围垦、滩涂空间分布

2.2 数据源及预处理

本文以Landsat MSS/ TM/ ETM+/OLI遥感影像作为数据源,并筛选出1975年以来每年潮位最低、无云或少云的影像,共计41景（表1）,大部分影像的潮位都位于平均潮位以下（图2,见第273页）。所有影像都进行了大气校正,并利用ERDAS软件对部分几何精度较差的数据进行几何校正,确保总体误差小于0.5个像元。
Tab. 1 Landsat images used for this study

表1 选用的Landsat影像数据

编号 卫星 传感器 成像日期 成像时刻
1 Landsat 2 MSS 1975-12-20 09:44:45
2 Landsat 2 MSS 1976-11-26 09:35:23
3 Landsat 2 MSS 1977-04-19 09:29:13
4 Landsat 3 MSS 1978-05-11 09:46:21
5 Landsat 2 MSS 1979-03-04 09:36:02
6 Landsat 3 MSS 1980-10-27 09:33:50
7 Landsat 3 MSS 1981-05-13 09:40:58
8 Landsat 4 MSS 1983-02-08 09:54:17
9 Landsat 5 TM 1984-04-23 09:52:10
10 Landsat 5 TM 1985-02-21 09:55:26
11 Landsat 4 MSS 1986-07-26 09:44:13
12 Landsat 5 TM 1987-05-18 09:48:53
13 Landsat 5 TM 1988-06-05 09:55:31
14 Landsat 5 TM 1989-01-15 09:55:08
15 Landsat 5 TM 1990-07-13 09:45:07
16 Landsat 5 TM 1991-01-05 09:44:57
17 Landsat 5 TM 1992-01-24 09:49:16
18 Landsat 5 TM 1993-02-11 09:46:55
19 Landsat 5 TM 1994-03-02 09:45:49
20 Landsat 5 TM 1995-03-05 09:35:39
21 Landsat 5 TM 1996-04-24 09:34:50
22 Landsat 5 TM 1997-04-11 09:52:10
23 Landsat 5 TM 1998-11-08 10:03:58
24 Landsat 5 TM 1999-12-29 10:00:06
25 Landsat 5 TM 2000-06-06 10:01:10
26 Landsat 7 ETM+ 2001-03-13 10:15:18
27 Landsat 5 TM 2002-01-03 10:04:06
28 Landsat 5 TM 2003-08-02 10:01:44
29 Landsat 5 TM 2004-03-13 10:04:04
30 Landsat 5 TM 2005-09-08 10:13:07
31 Landsat 5 TM 2006-03-03 10:15:53
32 Landsat 5 TM 2007-04-23 10:19:43
33 Landsat 5 TM 2008-05-11 10:13:38
34 Landsat 5 TM 2009-04-28 10:12:26
35 Landsat 5 TM 2010-12-27 10:14:54
36 Landsat 5 TM 2011-01-12 10:14:56
37 Landsat 8 OLI 2013-08-13 10:27:00
38 Landsat 8 OLI 2014-02-21 10:25:47
39 Landsat 8 OLI 2015-09-04 10:24:49
40 Landsat 8 OLI 2016-09-22 10:25:14
41 Landsat 8 OLI 2017-04-02 10:24:34

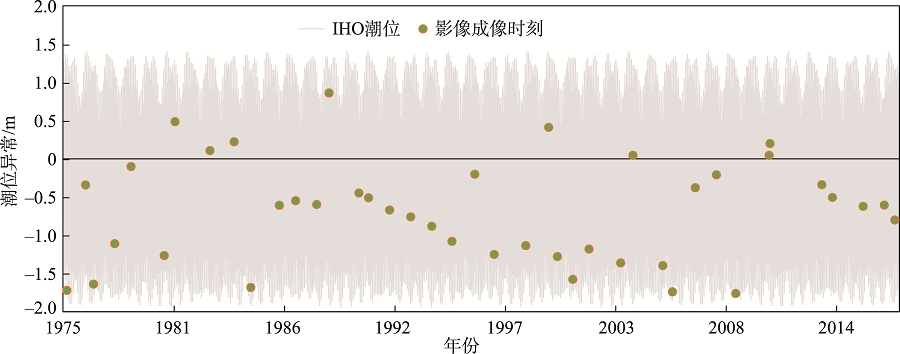

Fig. 2 Tidal level of the IHO Sheshan station at the imaging time of Landsat images used in this study

图2 所选Landsat影像成像时刻对应的IHO佘山站潮位情况

3 研究方法

长江口海岸类型以淤泥质海岸为主,该类型海岸往往生长着数量繁多的耐盐植被,其近陆侧的植被生长茂密,近海侧的植被生长则比较稀疏,形成一条耐盐植物生长变化明显的过渡带。当海水大潮来临时,潮汐作用将一些贝壳、碎石、垃圾碎片等冲击到该生长界限,不再继续前进,从而形成了一条典型的“痕迹线”,在Landsat影像上清晰可见,因此可以用作高潮线指标[21,22]。此外,还有部分已开发的淤泥质海岸,人工构筑物如围垦大堤可以作为高潮线指标。考虑到目前大范围的精确潮位校正仍存在困难,本文选择每年最低潮位影像的水边线作为滩涂的外边界,以植被线或围垦大堤作为内边界进行滩涂的提取。尽管每年的影像存在潮位差异,但长期的统计规律能够反映其演变趋势,且这种方法已被成功用于其它类似的研究当中[23,24]。
本文的研究流程主要包括遥感影像数据的获取,大气校正及几何校正,计算归一化植被指数（NDVI）,利用阈值分割法或目视解译分别获取瞬时水边线、植被线或围垦大堤边界线,进而获取滩涂信息。NDVI能够通过植被在近红外波段与红光波段的反射率差异来减少岸线附近悬浮泥沙对水边线提取精度的影响[25],并提高植被与其他地物的对比度,因此基于NDVI采用阈值分割法可以较为精确地提取水边线和植被线。由于研究区范围较大,近岸水体环境存在较大差异,针对研究区不同区域选择合适的阈值可以得到更为精确的结果。最后,对获取的矢量边界参照假彩色合成影像进行目视解译修改完善。在ArcGIS中获取矢量高潮线（植被线或围垦大堤边界线）和低潮线（瞬时水边线）之后,对2个数据进行矢量相减,即可得到对应年份的滩涂矢量数据（图3,见第273页）。通过统计分析1995-2017年滩涂的时空变化,揭示长江口及重点区域滩涂的演变规律。

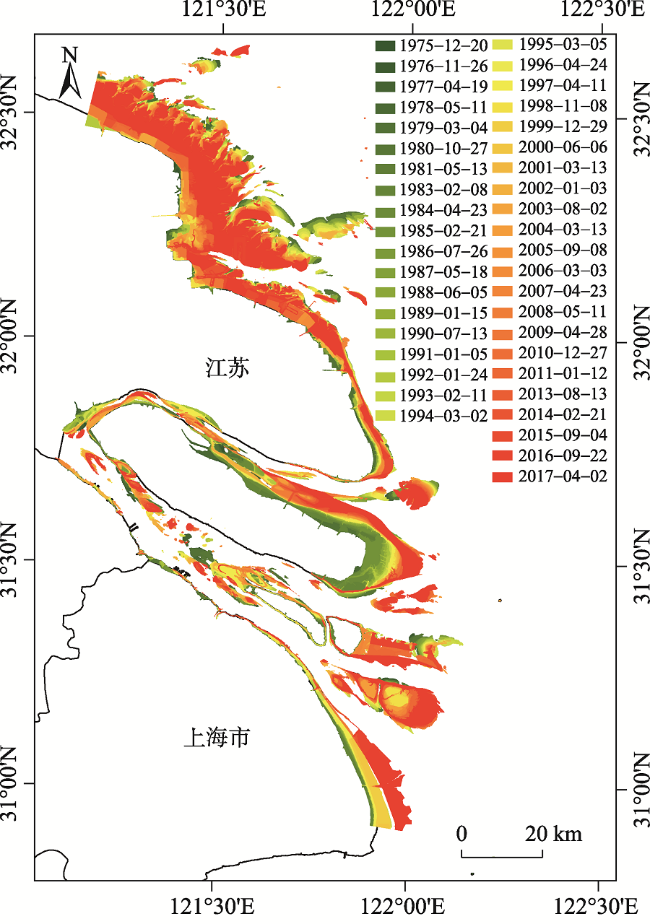

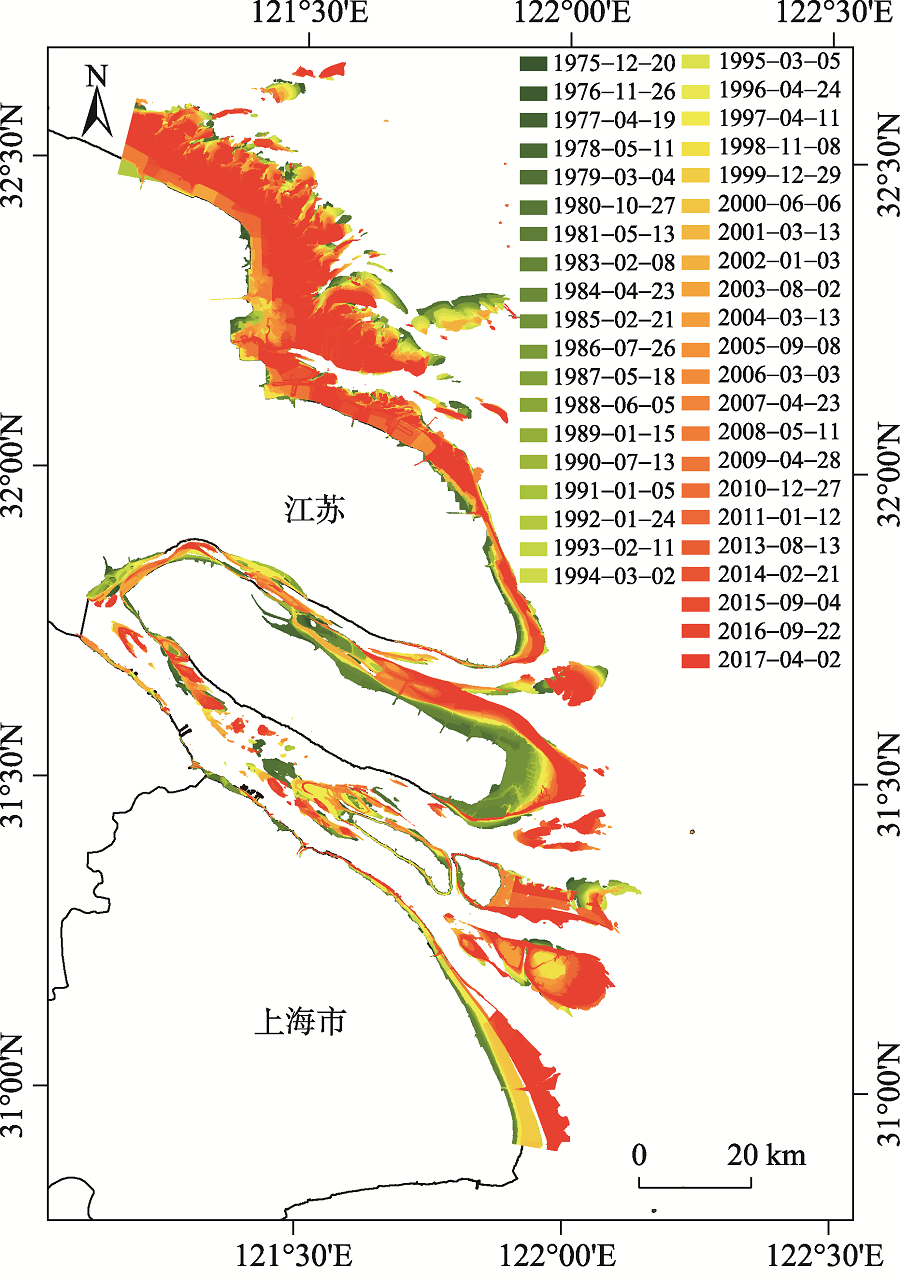

Fig. 3 Temporal and spatial distribution of tidal flats in the study area from 1975 to 2017

图3 1975-2017年研究区滩涂时空分布

4 结果与分析

4.1 滩涂面积总体变化情况

结果表明,1975年以来,研究区滩涂面积整体呈下降趋势;1990s之前滩涂面积基本保持稳定,1990s之后降低趋势较为明显,1995年前后滩涂面积达到最大值,约为1495.5 km2。1990年至今滩涂面积减少了324 km2,减少约24%,降低速率约为21.7 km2/a（图4）。其中,2017年江苏海岸（小洋口以南圆陀角以北）和长江口区域的滩涂面积分别为649.5 km2、1043.4 km2。研究区滩涂面积变化较大的区域主要位于苏北沿岸、崇明东滩及北支沿岸、长兴岛周边、横沙东滩、九段沙及南汇边滩几个区域（图3）。其中,圆陀角以北的苏北沿岸滩涂面积较大,约占研究区总滩涂面积的73%左右,在2003年和2005年甚至达到了80%。

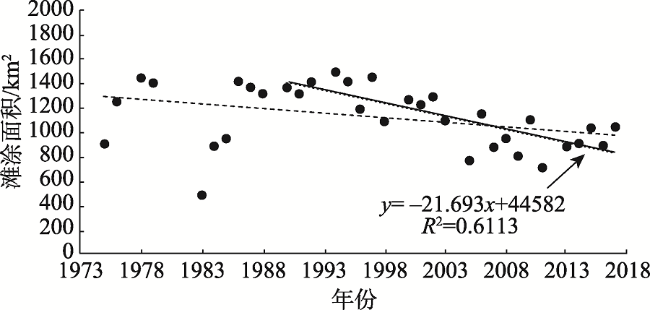

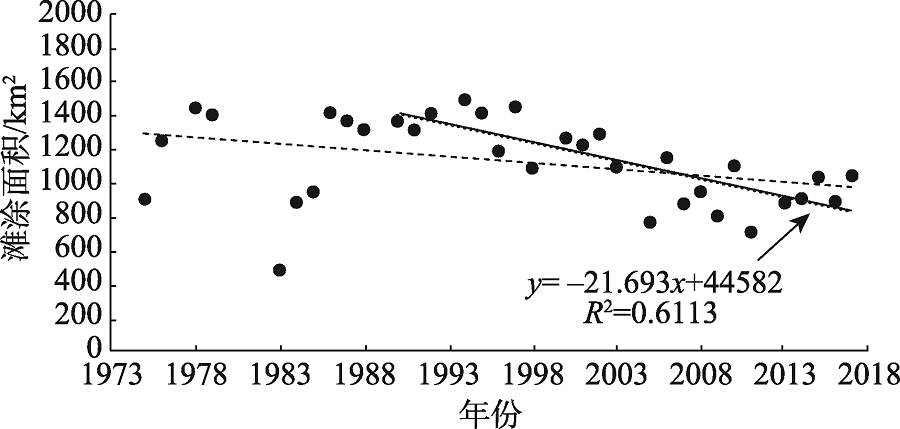

Fig. 4 Total area changes of tidal flats in the study area from 1975 to 2017

图4 1975-2017年滩涂面积总体变化情况

4.2 重点区域滩涂面积变化分析

苏北沿岸滩涂面积在整体上呈减少趋势,速率约为10.4 km2/a。滩涂面积在1976-1994年呈增长趋势,1994年达到最大值1101.2 km2,之后呈减少趋势（图5）。江苏区域的泥沙来源和滩涂的管理方式与长江河口区不同,并且苏北沿岸不同岸段滩涂变化存在差异,部分岸段滩涂变化比较大。1975年以来圆陀角以北的江苏海岸总共围垦了约394 km2,持续的围垦工程是沿岸滩涂演变的重要影响因素。此外,从1970年后引种的护花米草,堤外滩面的淤积加速,使得滩涂同步淤高。

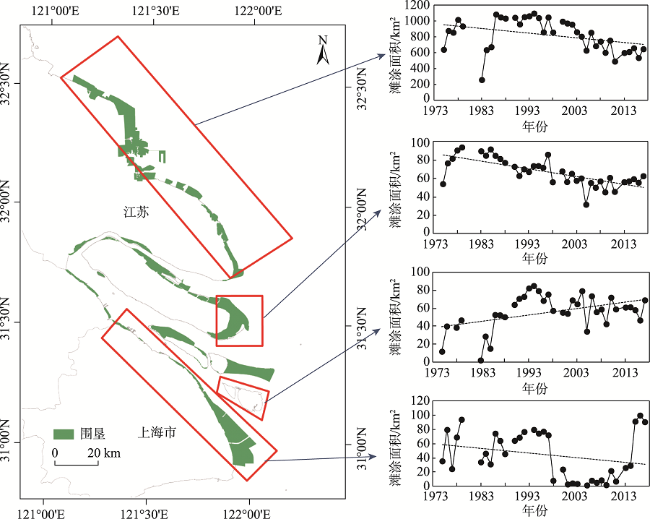

Fig. 5 The areas change of tidal flats in the hotspots of the study area from 1975 to 2017

图5 1975-2017年重点区域滩涂面积变化情况

崇明东滩作为鸟类国家级自然保护区,并位于长江河口的中心位置,一直都是研究者重点关注的区域。崇明东滩岸线整体上是不断向海推进的,但其滩涂面积在整体上呈减少趋势,减少速率约为0.97 km2/a,40多年来减少了约17.9%。崇明东滩滩涂面积在1980年之前增长趋势显著,之后至2007年开始明显降低,2007年以来又呈现缓慢增加的趋势（图5）。其中,1980-2007年减少超过40 km2。
1975-2017年,九段沙滩涂面积在整体上呈增长趋势（图5）。1990s之前滩涂面积增长了约50%,但有较大的波动;1990年起,九段沙开始有植被生长,到1997年“生态引鸟工程”人工种植互花米草和芦苇,并于同期开始的深水航道建设使得九段沙植被群落扩散增速并使滩涂面积逐渐趋于稳定。1994年滩涂面积达到最大,约为85.0 km2。
南汇边滩曾经是长江河口重要的滩涂之一,1997年之前平均滩涂面积约为62.1 km2。之后,受到多次大规模围垦的影响,滩涂面积锐减,2000-2008年平均滩涂面积仅为7.6 km2（图5）。最近的围垦工程始于2008年,计划围垦149 km2。数据显示的2008年之后滩涂面积的增加是围垦促淤所产生的暂时性的滩涂,当围垦工程完成之后这些滩涂将会消失。

4.3 驱动力分析

沿海滩涂是入海河流或海流携带泥沙等在入海口或海岸附近沉积形成的,其变化取决于泥沙沉积与所处水动力环境形成的“收支”关系,同时也受到人为因素的影响,而对于研究区而言人类活动已成为主要驱动力之一[26]。20世纪50年代以来,长江入海泥沙持续减少,特别是三峡大坝建成之后入海泥沙的降低趋势更为显著[27]。据不完全统计,20世纪50年代以来整个长江流域修建了五万多座大坝,包括目前世界上最大的三峡大坝[28]。大坝拦截泥沙会减少河流入海泥沙通量,进而影响到河口滩涂的演变,而大坝对径流的调节作用也可能在一定程度上对河口滩涂的演变产生影响[27,29-30]。从大通站输沙率与研究区滩涂面积时间变化的对比可发现,二者的变化趋势基本一致,尤其是2000年以来其波动趋势吻合较好（图6）,因此可以推断长江入海泥沙是长江河口滩涂演变的重要影响因素之一。而长江入海泥沙的变化除了气候变化的影响之外,主要受到流域建坝、水土保持工程等人类活动的影响[31]。

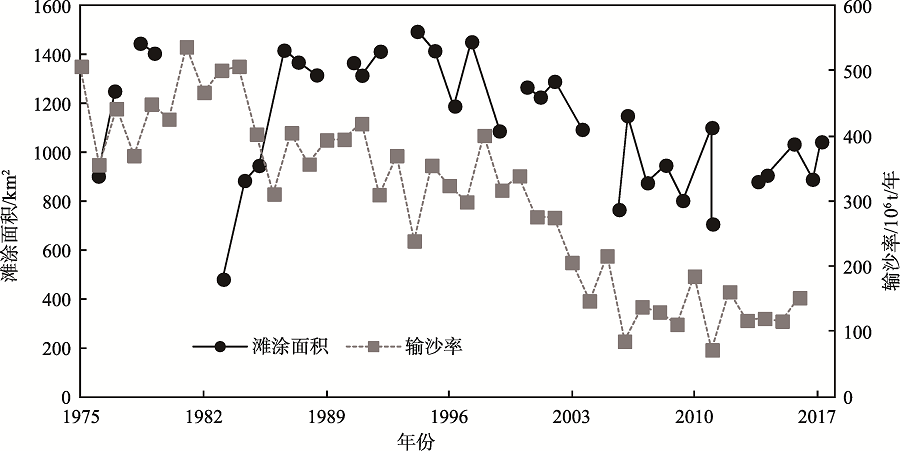

Fig. 6 Comparison of the sediment discharge at Datong station and the area change of tidal flats from 1975 to 2017

图6 1975-2017年大通站输沙率与滩涂面积变化对比

围垦、航道工程等河口人类活动也是影响长江口滩涂演变的另一个重要因素[32,33]。近年来,研究区大面积的护岸工程、围垦、水库、深水航道等开发活动总体呈增加趋势（图7）。1975年以来研究区大规模的围垦工程包括：南汇边滩为建设和扩建浦东国际机场进行的促淤围垦工程、横沙东滩的大面积促淤围垦工程、长兴岛青草沙水库工程、崇明东滩历史上多次大范围的围垦以及2013年开始为防止护花米草扩散进行的围垦工程、苏北沿岸在海岸带大开发背景下进行的围垦等（图8）。已有研究表明河口工程对长江口滩涂的演变产生了重要影响,如深水航道和南汇边滩围垦工程对九段沙的生长形态及淤涨速率均有显著影响[32],崇明东滩的围垦工程也与其滩涂的发育密切相关[27]。

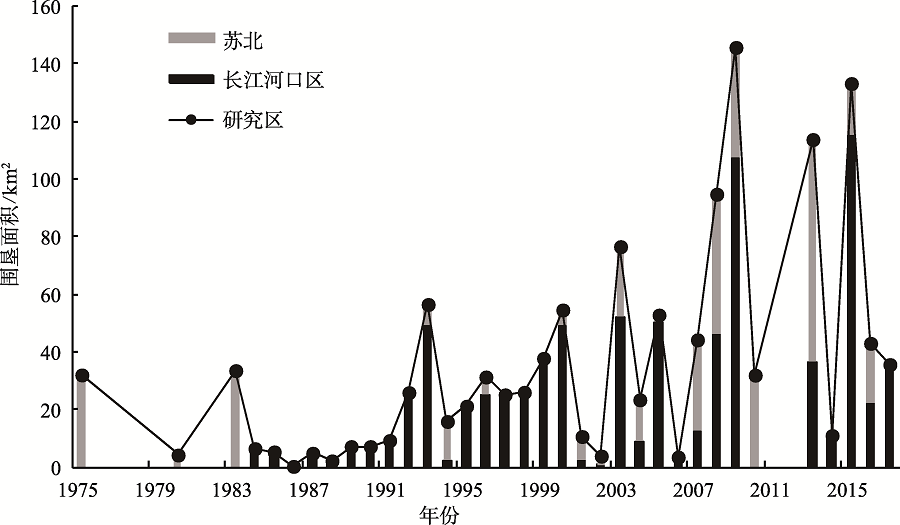

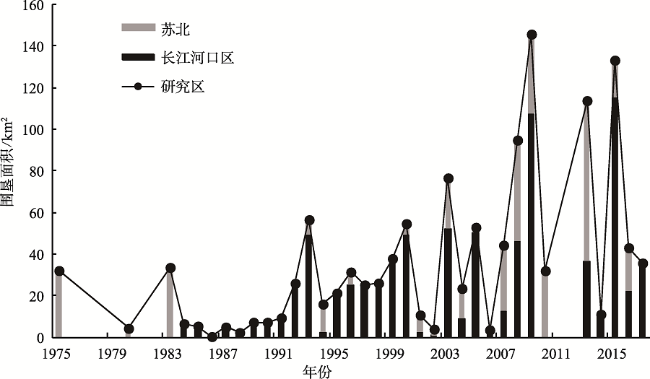

Fig. 7 The area changes of reclamations in the Jiangsu coast, the Yangtze River estuary zone, and the whole study area

图7 苏北、长江河口区及整个研究区的围垦面积变化

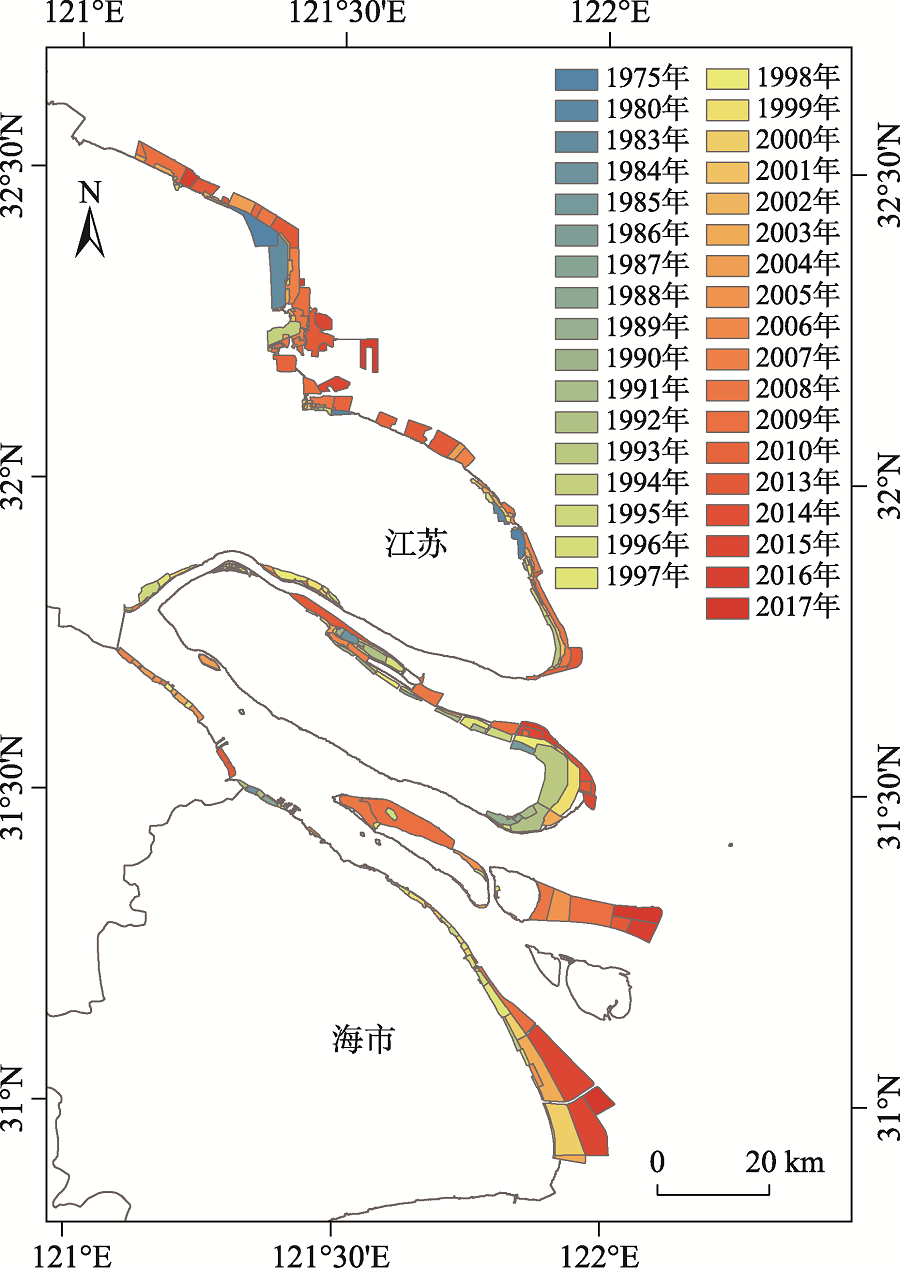

Fig. 8 Spatial distribution of the reclamation in study area

图8 研究区围垦空间分布

此外,海平面变化是备受关注的全球性环境问题,它对地势低平的河口三角洲区域的影响较为显著[34]。根据国家海洋局中国海平面公报数据,长江口海平面高度呈波动增加的趋势,预计到2050年,江苏沿岸的海平面上升幅度为30~60 cm。由于海平面的上升,淤涨岸段滩面逐渐变陡,上凸形态曲率加大;侵蚀岸段滩面逐渐变缓,上凹形态趋于平直,滩面形态的变化势必对滩涂的发育产生影响[35]。预测表明,到2100年崇明东滩40%的滩涂将由于海平面上升而淹没[36]。尽管海平面变化的影响是一个长期和缓慢的过程,其对研究区滩涂演变的潜在影响仍然不能忽视。

5 结论

本文选取1975年以来长江口每年潮位最低的Landsat遥感影像,利用遥感和GIS技术,通过分别获取高潮线（植被线或围垦大堤边界线）和低潮线（瞬时水边线）,进而采用矢量相减的方法,获取了1975-2017年研究区滩涂数据,并对其时空演变模式和影响因素进行了分析,主要结论如下：
（1）选取每年潮位相对最低的影像获取河口滩涂数据,研究滩涂的时空演变规律具有一定的可行性,作为一种简单易行的手段可以初步解决河口区大尺度滩涂信息的提取及动态监测问题,但更精确的可操作性方法还有待进一步研究。
（2）1975-2017年,长江三角洲滩涂面积整体上呈降低趋势,但存在区域差异,20世纪90年代后降低趋势较为明显,总体降低速率约为21.7 km2/a。当前研究区滩涂主要位于苏北沿岸、崇明东滩、北支沿岸和九段沙,其中苏北沿岸滩涂面积占研究区总滩涂面积的70%以上,崇明东滩滩涂面积减少了约17.9%,九段沙滩涂面积自20世纪90年代以来基本保持稳定。
（3）流域来沙减少和围垦、深水航道等大尺度的河口工程是滩涂面积变化的主要控制因素。从长期来看,海平面上升也是影响研究区滩涂演变的一个重要的潜在因素。
