Hyperparameter Selection for Urban Metro Travel Knowledge Graph Embedding
Received date: 2023-02-10
Revised date: 2023-04-19
Online published: 2023-06-02
Supported by
National Natural Science Foundation of China(42171449)
National Natural Science Foundation of China(42101464)
Open Research Fund Program of LIESMARS(21I03)

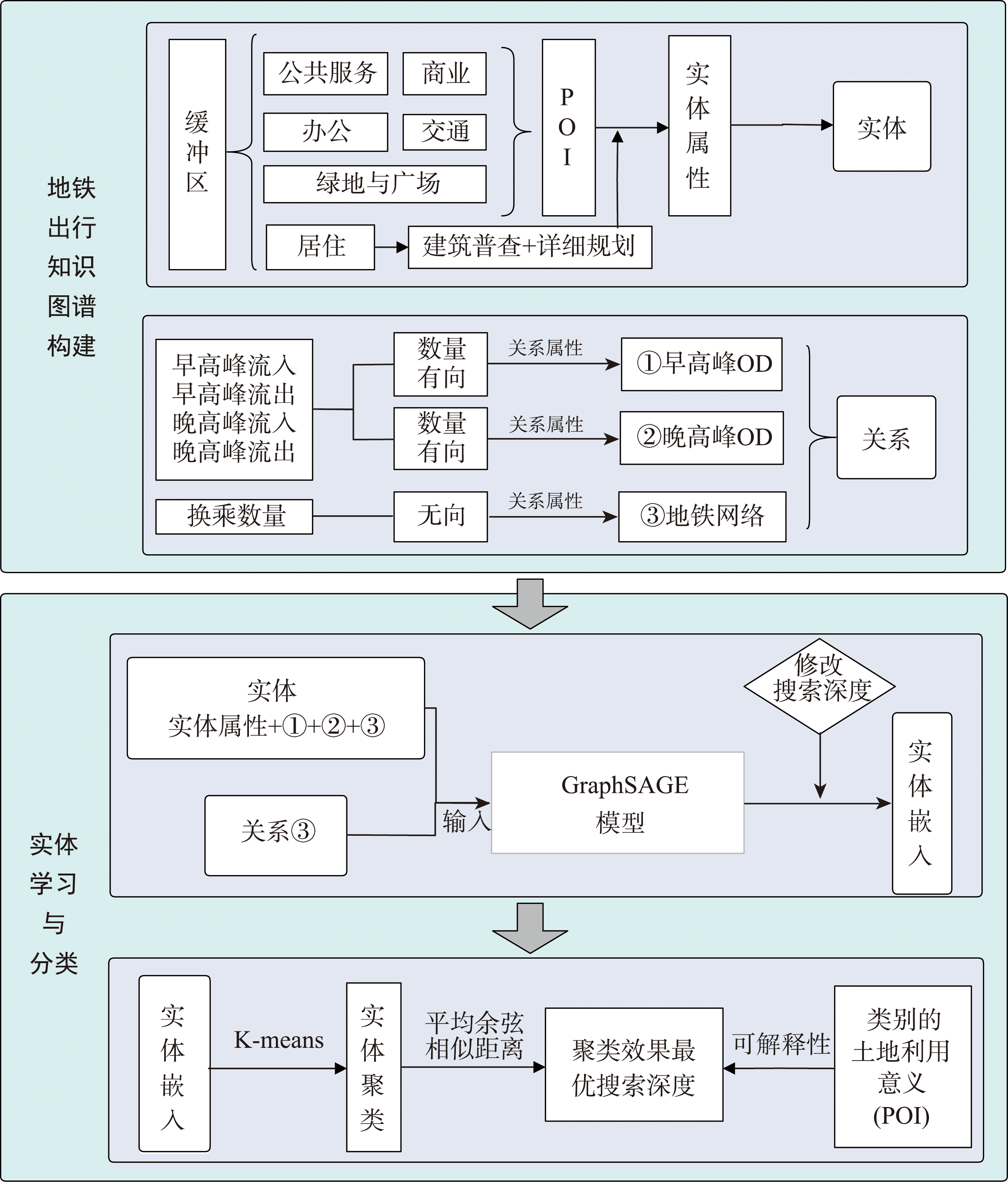

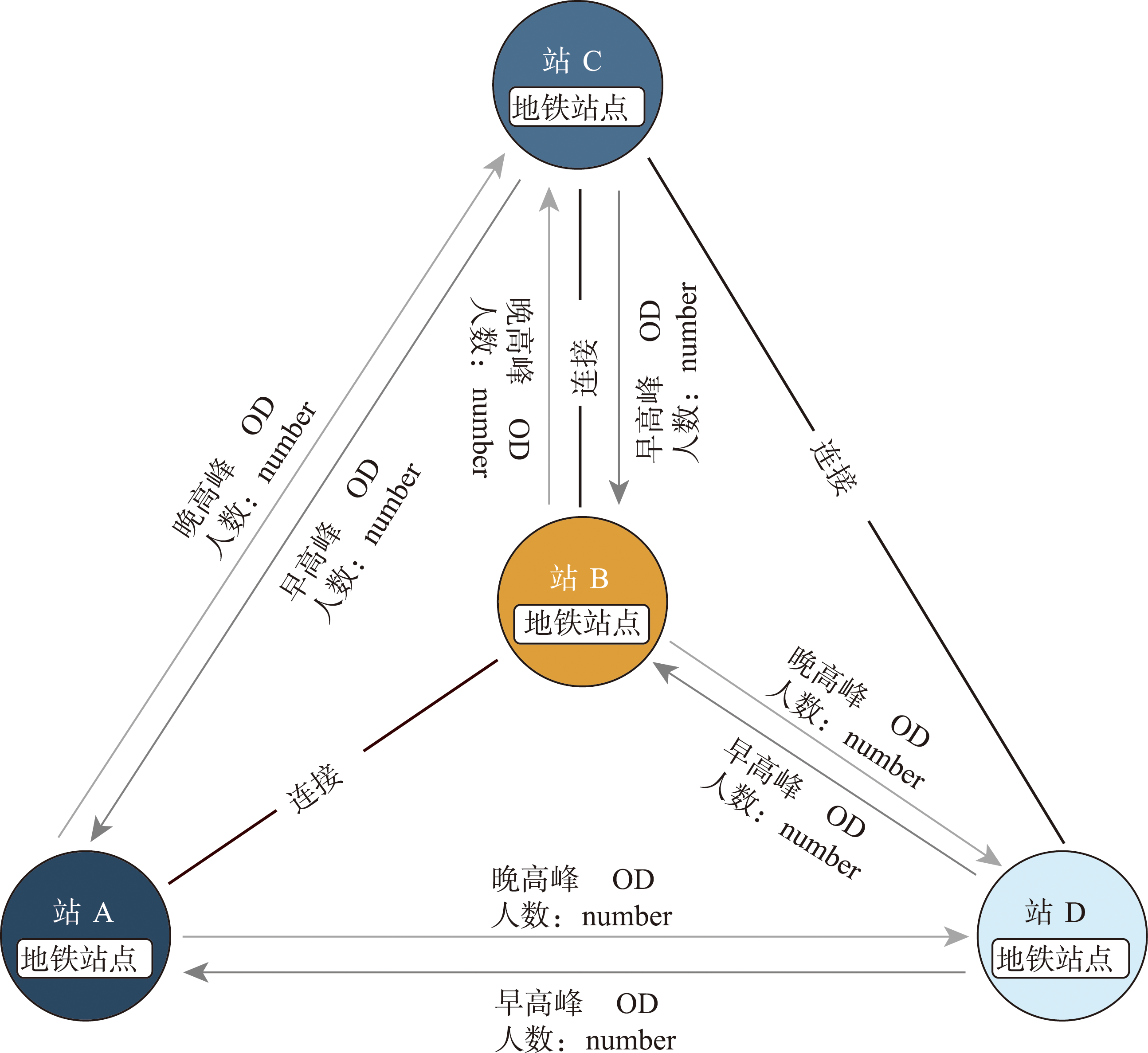

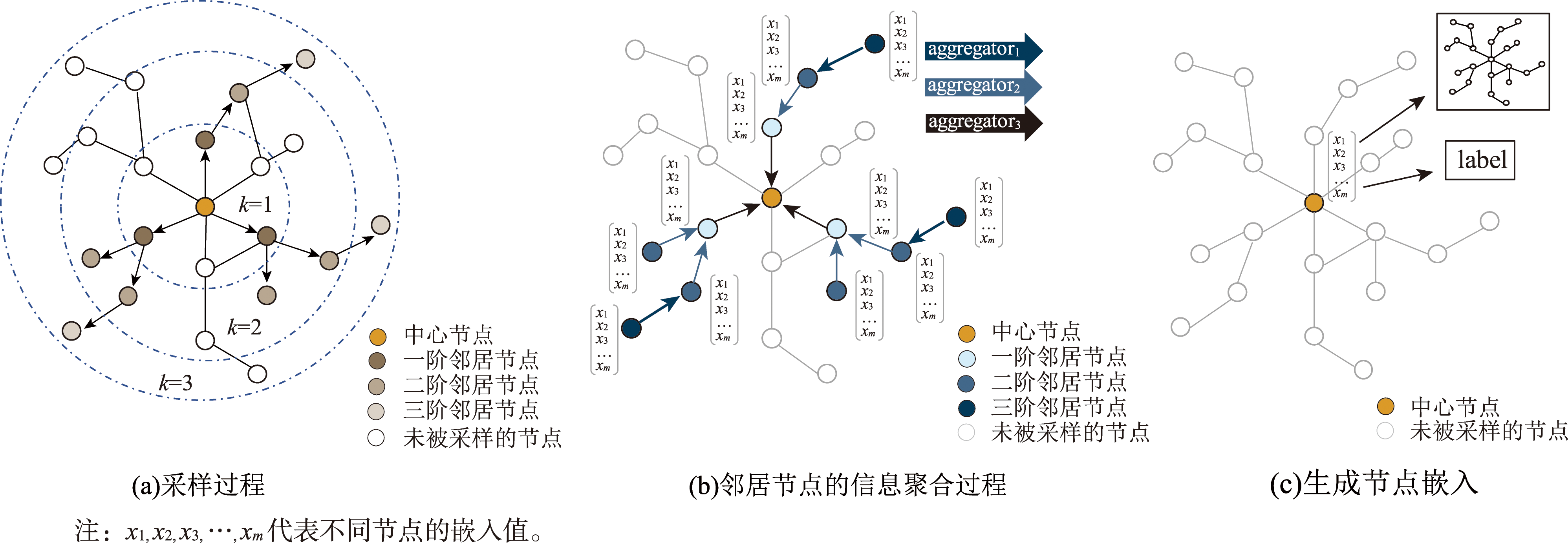

Knowledge graphs are an important data infrastructure in AI technologies and applications, and have become a hot research topic in geosciences. The size and topological features in geographic knowledge graphs are usually different from universal knowledge graphs, which are not typical small-world networks. However, existing studies often use the default network search depth when learning geographic knowledge graph representations, and its rationality needs further demonstration. For this purpose, this paper constructs a metro travel knowledge graph based on the topological structure features of metro line network, combined with passenger flow data, POI (Point of Interest) data and built environment data, etc.; then GraphSAGE model is used to learn node multidimensional feature embedding and combine POI data for semantic recognition of station classification results to verify the suitable network search depth for metro travel knowledge graph. The results showed that, compared to the default 2 layers search depth, the node embedding features of this metro travel knowledge graph work optimally when the search depth is 3 layers. This study shows that the hyperparameter selection of the geographic knowledge graph representation is supposed to take into account the geographic features, and it is important to avoid the use of results from fields such as computer science that have not been distinguished. When the search depth is 3 layers, the metro station classification results are also more reasonable and explanatory, which can provide a basis for station planning and passenger flow prediction using knowledge graph and AI methods.
LUO Qiuyu , YUE Yang , GU Yanyan . Hyperparameter Selection for Urban Metro Travel Knowledge Graph Embedding[J]. Journal of Geo-information Science, 2023 , 25(6) : 1164 -1175 . DOI: 10.12082/dqxxkx.2023.230054
表1 依据城市用地类型的POI数据的重分类Tab. 1 Reclassification of POI data by urban land use type |
大类 | 中类 |
---|---|
居住 | 第一类居住用地;第二类居住用地; 第三类居住用地;第四类居住用地 |
公共服务 | 公共设施;科教文化;体育休闲;医疗保健;政府机构 |
商业 | 餐饮服务;购物服务;金融保险;汽车摩托;生活服务;住宿服务 |
办公 | 公司企业;商务写字楼 |
交通 | 道路附属;地址地名;交通设施 |
绿地与广场 | 风景名胜;公园广场 |

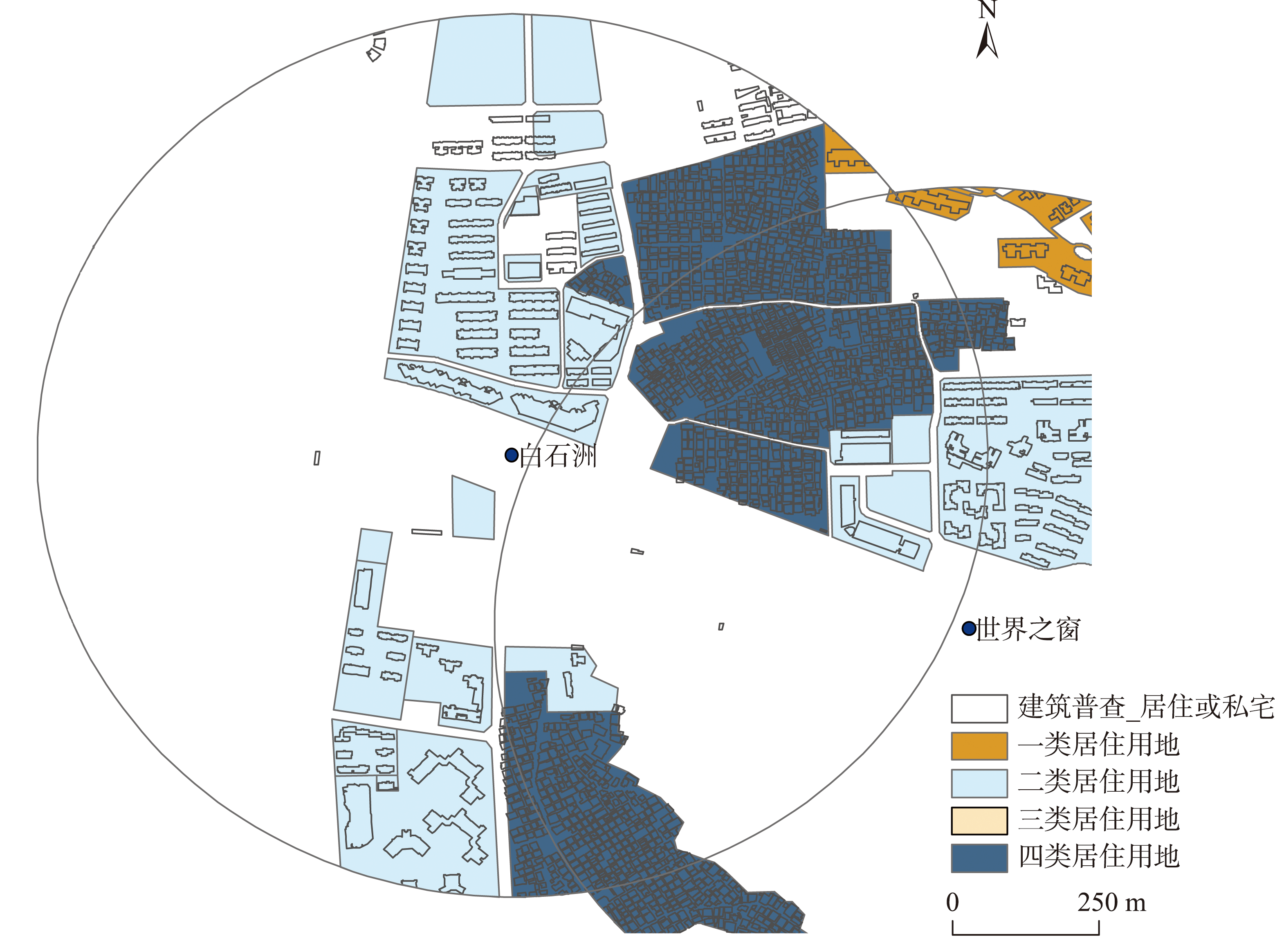

表2 4种不同类型的居住用地Tab. 2 Four different types of residential land uses |
居住用地类型 | 内容 |
---|---|
一类居住用地 | 独立式住宅(别墅),配套齐全,布局完整 |
二类居住用地 | 以多层、中高层为主,配套齐全,布局完整 |
三类居住用地 | 单身宿舍 |
四类居住用地 | 原农村居民住宅用地 |
表3 地铁刷卡数据示例Tab. 3 Examples of smart card data |
ID | 时间 | 线路 | 进出站 | 名称 | 经度/°E | 纬度/°N |
---|---|---|---|---|---|---|
68580**** | 2018-11-05T20:49:29 | 地铁一号线 | 3(进站) | 站A | 114.**** | 22.**** |
68580**** | 2018-11-05T21:30:16 | 地铁四号线 | 4(出站) | 站B | 114.**** | 22.**** |
