Variable Selection Method based on Spatio-temporal Group Lasso and Hierarchical Bayesian Spatio-temporal Model
Received date: 2022-10-10
Revised date: 2023-02-08
Online published: 2023-06-30
Supported by
National Natural Science Foundation of China(62076025)
National Natural Science Foundation of China(61572073)
Guangdong Basic and Applied Basic Research Foundation(2023A1515011320)

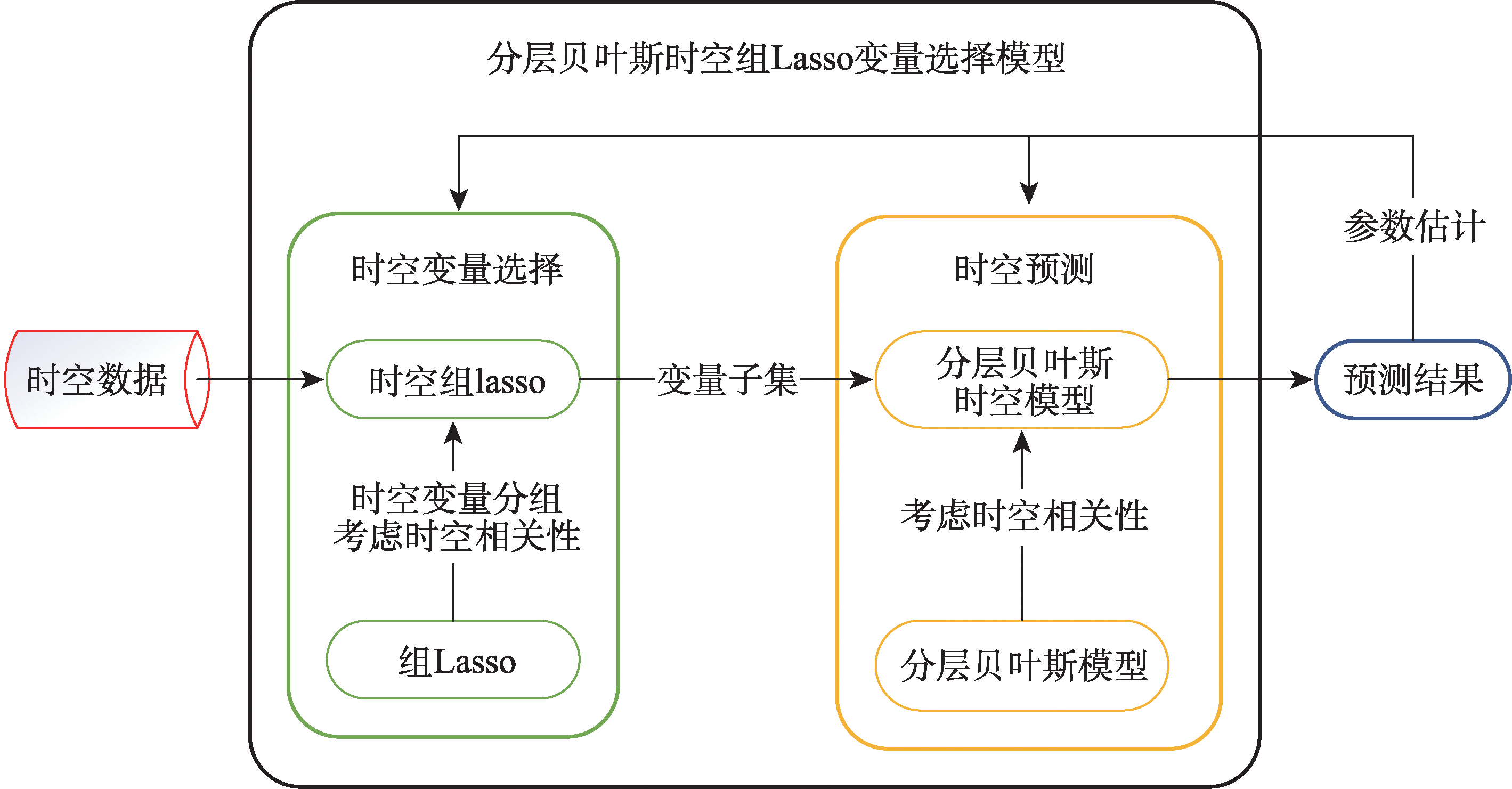

It is one of the important issues in the field of spatio-temporal data analysis to effectively select variables from high-dimensional and large-scale spatio-temporal data. As the most important features of spatio-temporal data, the temporal and spatial correlation of spatio-temporal data must be considered to make effective variable selection. However, existing spatio-temporal data variable selection methods do not fully consider the spatio-temporal correlation, and the variable selection stage is separated from the prediction stage. Moreover, these methods often require manual setting of a threshold of the number of spatiotemporal points to determine variables selection, which may lead to inaccurate selection of the subset of variables that have the greatest impact on the dependent variable, and result in poor prediction performance. In this paper, we propose a variable selection method based on the spatio-temporal group Lasso and the hierarchical Bayesian spatiotemporal model, called the hierarchical Bayesian Spatio-temporal Group Lasso Variable Selection method (HBST-GLVS). In this method, the spatio-temporal expansion is carried out simultaneously in the variable selection stage and prediction stage, and the best nearest neighbor time domain and space domain are determined adaptively through cross validation. In order to obtain the best prediction performance from the selection of variables, the selection of spatio-temporal variables and the prediction of spatiotemporal models are placed under the same framework, so that the selected variables and parameters correspond to the best prediction performance. In order to solve the problem of manual setting of the threshold of the number of spatio-temporal points, the variable selection is processed from the perspective of the entire sequence of spatio-temporal variables, without the threshold of the number of spatio-temporal points. Specifically, this method uses spatio-temporal group Lasso for variable selection, fully considers spatio-temporal correlation by introducing maximum time lag and maximum spatial neighborhood, and applies global penalty to all spatio-temporal points of the same variable based on spatio-temporal data continuity, thus avoiding the lopsidedness caused by artificial setting of thresholds. The effect of variable selection is validated using a hierarchical Bayesian spatio-temporal model, and the variable selection process and the model validation process are placed under the same framework for the adjustment of parameters, so as to obtain the optimal subset of variables. Our results show that the Root Mean Square Error (RMSE) and Mean Square Error (MAE) of the method in this paper can be reduced by 9.6%~25.7% and 6.6%~15.9%, based on Beijing air quality dataset and Portland traffic flow dataset, respectively, compared with the existing methods.
WANG Ling , KANG Zihao . Variable Selection Method based on Spatio-temporal Group Lasso and Hierarchical Bayesian Spatio-temporal Model[J]. Journal of Geo-information Science, 2023 , 25(7) : 1312 -1324 . DOI: 10.12082/dqxxkx.2023.220769

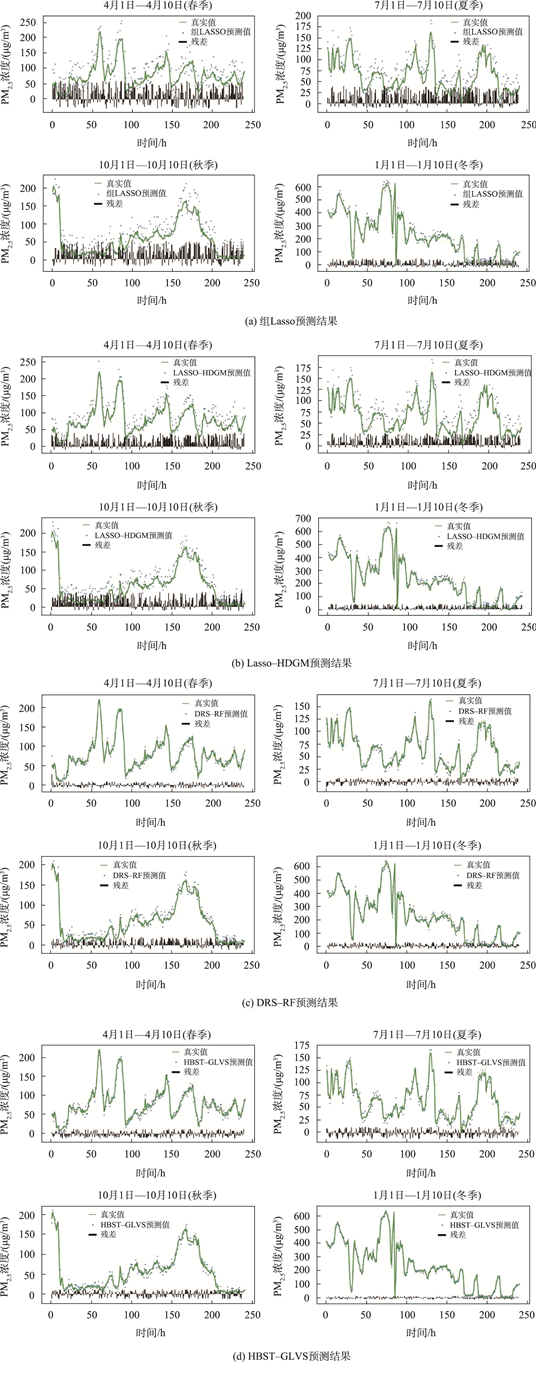

图4 各种方法在每个季节各10天中的预测结果Fig. 4 Prediction results of various methods for ten days in each season |
表1 各种方法在4个完整季节中的RMSE与平均RMSETab. 1 RMSE and average RMSE of various methods in four full seasons |
方法 | 春 | 夏 | 秋 | 冬 | 平均 |
---|---|---|---|---|---|
组Lasso | 27.29 | 25.22 | 25.44 | 28.38 | 26.58 |
Lasso-HDGM | 21.37 | 20.90 | 20.54 | 20.73 | 20.89 |
DRS-RF | 14.51 | 15.73 | 17.85 | 16.90 | 16.50 |
HBST-GLVS | 14.12 | 14.25 | 15.77 | 15.32 | 14.87 |
表2 各种方法在4个完整季节中的MAE与平均MAETab. 2 MAE and average MAE of various methods in the four full seasons |
方法 | 春 | 夏 | 秋 | 冬 | 平均 |
---|---|---|---|---|---|
组Lasso | 20.38 | 21.25 | 19.02 | 22.20 | 20.71 |
Lasso-HDGM | 17.89 | 18.35 | 17.25 | 18.43 | 17.98 |
DRS-RF | 11.70 | 12.25 | 14.23 | 14.26 | 13.11 |
HBST-GLVS | 10.89 | 10.21 | 12.98 | 12.01 | 11.02 |

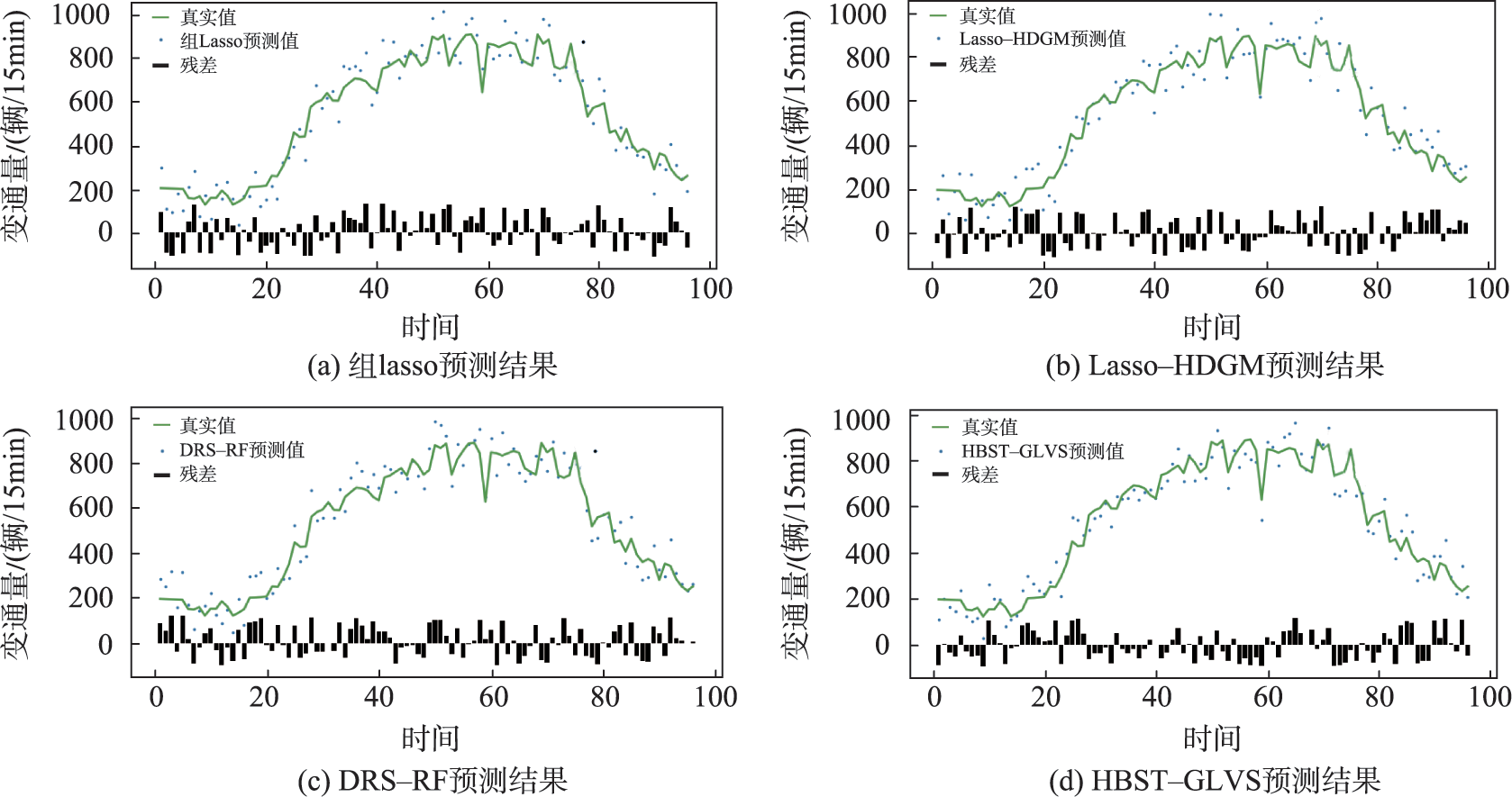

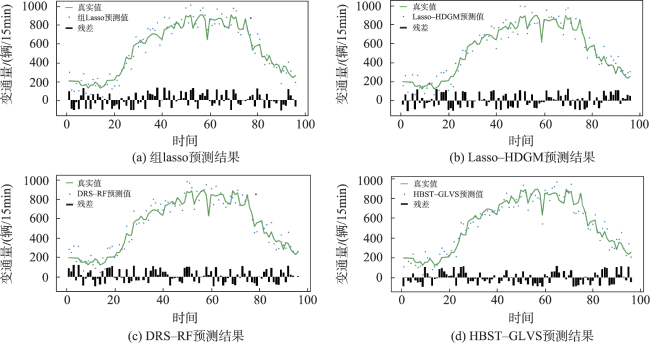

图7 不同方法对21号检测站的预测结果对比Fig. 7 Comparison of the prediction results of different methods on the 21st testing station |
表3 不同方法对21号检测站预测误差Tab. 3 Prediction error of different methods for testing station 21 (%) |
方法 | RMSE | MAE |
---|---|---|
组Lasso | 70.86 | 84.32 |
Lasso-HDGM | 70.31 | 78.77 |
DRS-RF | 67.61 | 66.76 |
HBST-GLVS | 62.47 | 60.99 |

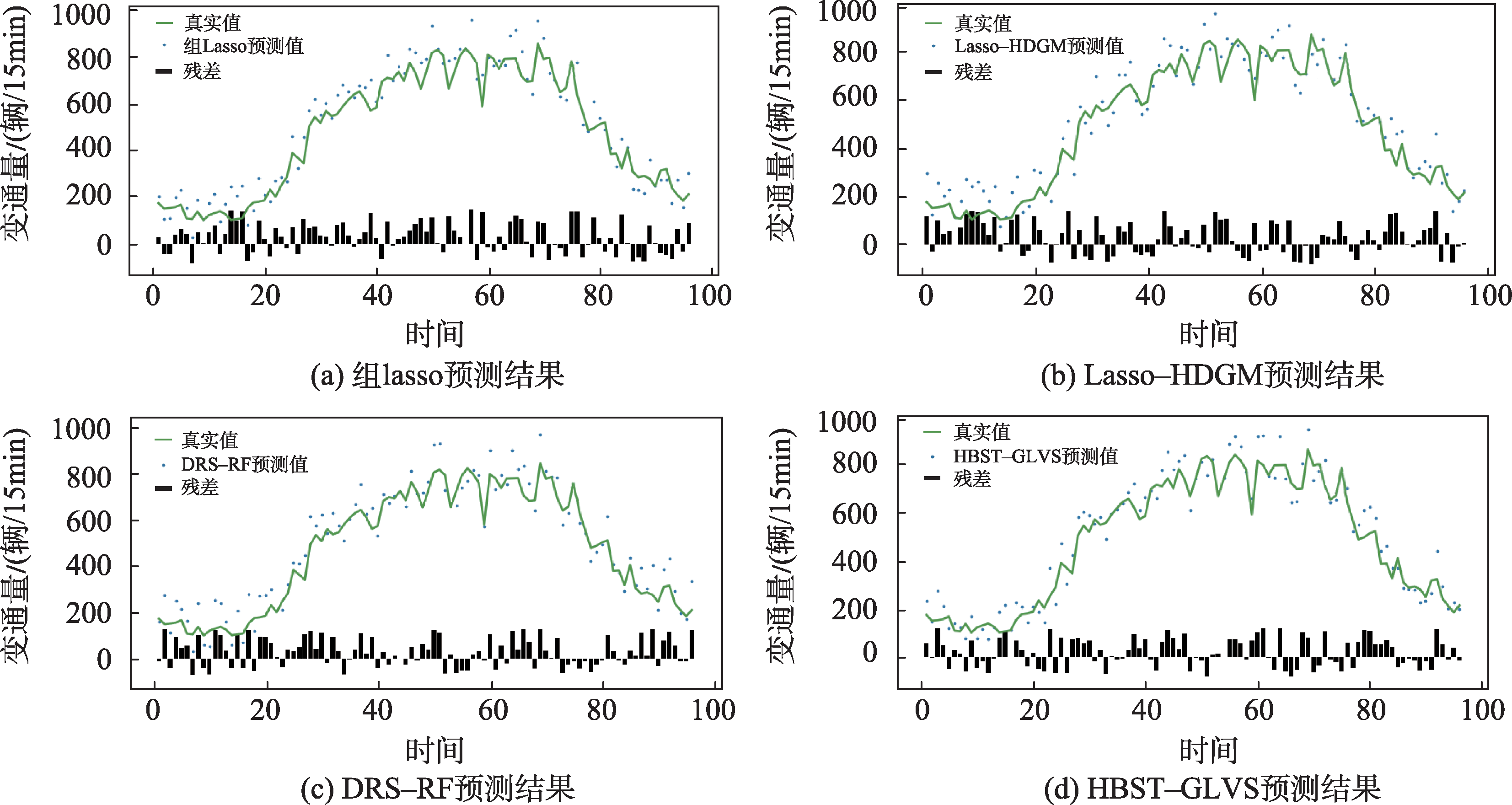

图8 不同方法对所有检测站的平均预测结果对比图Fig. 8 Comparison of the average prediction results of different methods for all testing stations |
表4 不同方法对所有检测站的平均预测误差Tab. 4 Average prediction error of different methods for all testing stations (%) |
方法 | 平均 RMSE | 平均 MAE |
---|---|---|
组Lasso | 76.02 | 88.53 |
Lasso-HDGM | 74.86 | 83.32 |
DRS-RF | 69.13 | 76.27 |
HBST-GLVS | 62.46 | 71.23 |
