Construction of Urban Spatial Multi-mode Expansion Cellular Automata Model Coupled with Maximum Entropy and Affinity Propagation Clustering
Received date: 2022-10-27
Revised date: 2022-12-06
Online published: 2023-06-30
Supported by
The Open Fund of Key Laboratory of Monitoring, Evaluation and Early Warning of Territorial Spatial Planning Implementation, Ministry of Natural Resources(LMEE-KF2021006)
National Natural Science Foundation of China(42171411)

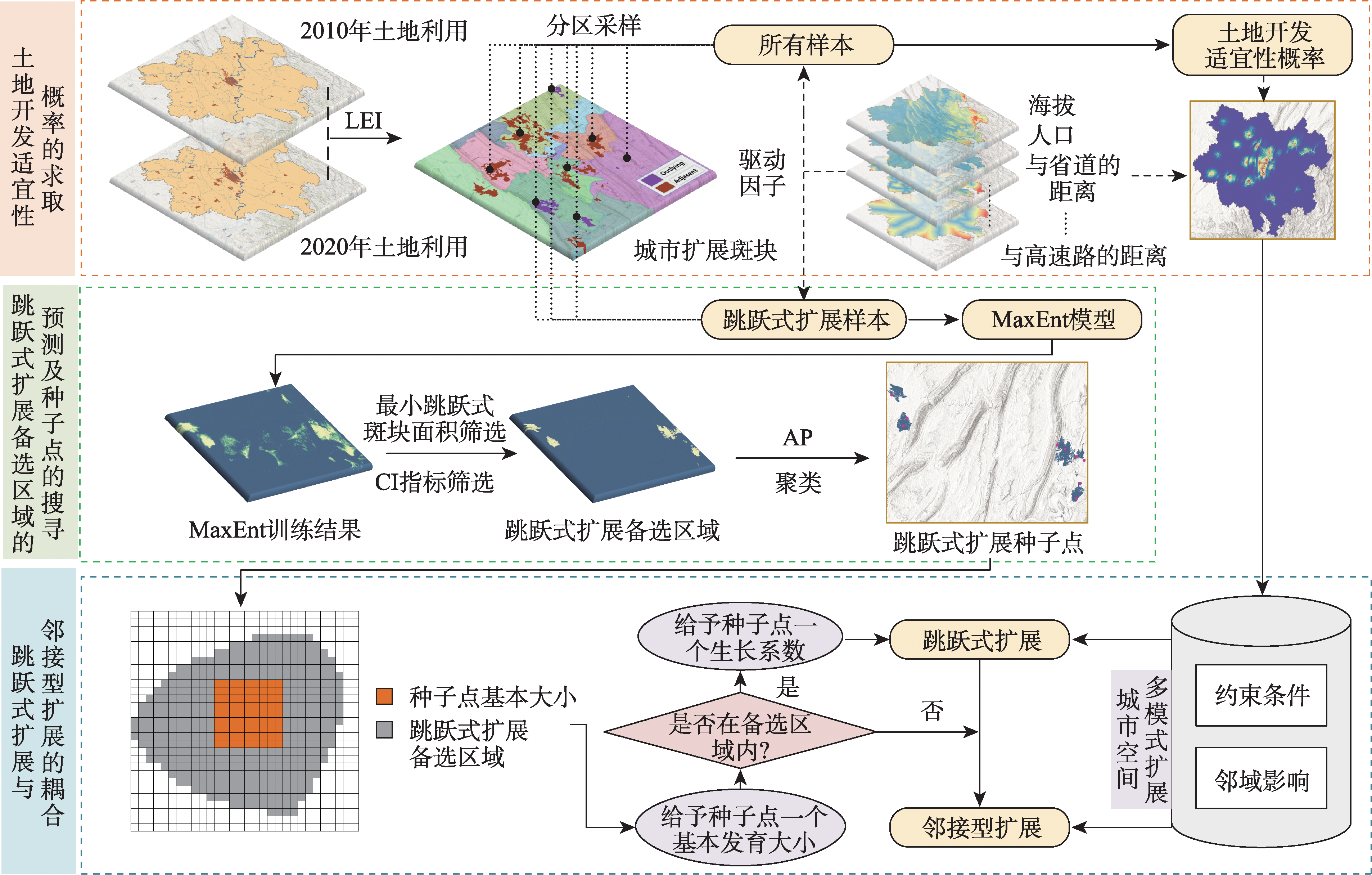

Development of multi-center clusters is an important way to optimize regional spatial structure, which results in various forms of urban space expansion, such as the adjacent type and the outlying type. Therefore, it is urgent to investigate the simulation techniques that takes into account the multi-mode expansion of urban space. However, it is still difficult to achieve the simulation of the outlying expansion in existing research, mainly due to the following problems: limited ability to show the urban growth process, large randomness of the selected "expansion seed points", and small application scale of models, etc. In this paper, a MaxEnt-AP-CA model coupling Maximum Entropy model (MaxEnt) and Affinity Propagation clustering (AP) is proposed. The MaxEnt model is used to find the alternative area of the outlying expansion, and the area and the compaction indices are used to screen the alternative area. In this way, the searching range of seed points is reduced, the randomness and the amount of data to be calculated are reduced, and the model is suitable for larger scale research. The AP algorithm is used to search for seed points in the alternative area, and these seed points grow outward from a basic size. Then the growth process of the outlying patch is demonstrated. Finally, by introducing the "growth coefficient", the conversion probabilities of different expansion modes are fused to realize the synchronous simulation of multi-mode expansion including the adjacent type and the outlying type. Taking the main metropolitan area of Chongqing as the research area, the Maxent-AP-CA is used to simulate the urban land expansion from 2010 to 2020. The results show that: (1) The accuracy of the seed points obtained by MaxEnt-AP that hit the actual outlying patch is significantly improved; (2) In terms of accuracy, the peak FoM of MaxEnt-AP-CA reaches 0.3061 with optimal parameters, which significantly improves the accuracy compared with the traditional CA model. In terms of landscape morphology, MaxEnt-AP-CA is closer to the actual situation in patch size, fragmentation degree, and aggregation degree, and can retain more patch shape features. The overall similarity between the optimal simulation results and the actual urban area is 87.04%. In terms of local details, MaxEnt-AP-CA can accurately show the outlying patches and express the real urban expansion more accurately; (3) MaxEnt-AP-CA gives consideration to multi-mode expansion, which conforms to the current situation of urban development in China and helps to promote the construction of a new urbanization pattern.
LI Qiyuan , WANG Haijun , ZHOU Zhiyong , MA Hong , CHAI Jie . Construction of Urban Spatial Multi-mode Expansion Cellular Automata Model Coupled with Maximum Entropy and Affinity Propagation Clustering[J]. Journal of Geo-information Science, 2023 , 25(7) : 1464 -1480 . DOI: 10.12082/dqxxkx.2023.220836
表1 实验数据集Tab. 1 Experimental data set |
数据类型 | 说明 | 年份 | 格式 | 来源 |
---|---|---|---|---|
地形地貌数据 | DEM、坡度 | 2019 | 30 m×30 m栅格 | 地理空间数据云[41](http://www.gscloud.cn/) |
土地利用数据 | 土地利用土地覆被遥感监测数据集(CNLUCC)包括6个一级用地类型 | 2010、2020 | 30 m×30 m栅格 | 中国科学院资源环境科学数据中心[42](http://www.resdc.cn) |
社会经济数据 | GDP、人口 | 2010 | 1 km×1 km栅格 | |
道路数据 | 县道、省道、国道、高速、铁路 | 2015 | 矢量 | |
行政区划数据 | 区县行政区划 | 2019 | 矢量 | 全国地理信息资源目录服务系统[43](https://www.webmap.cn/main.do?method=index) |
POI数据 | 区县级行政中心 | 2019 | 矢量 |

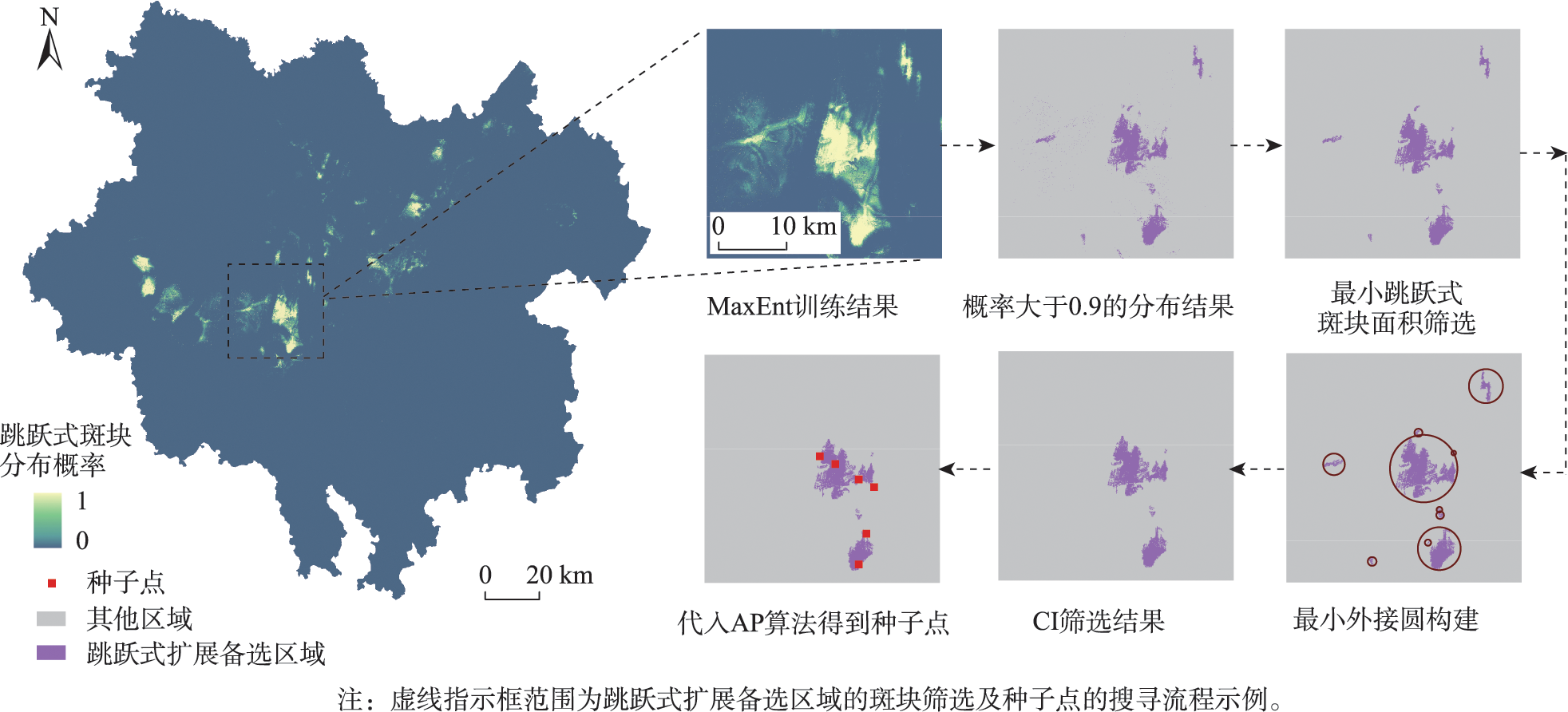

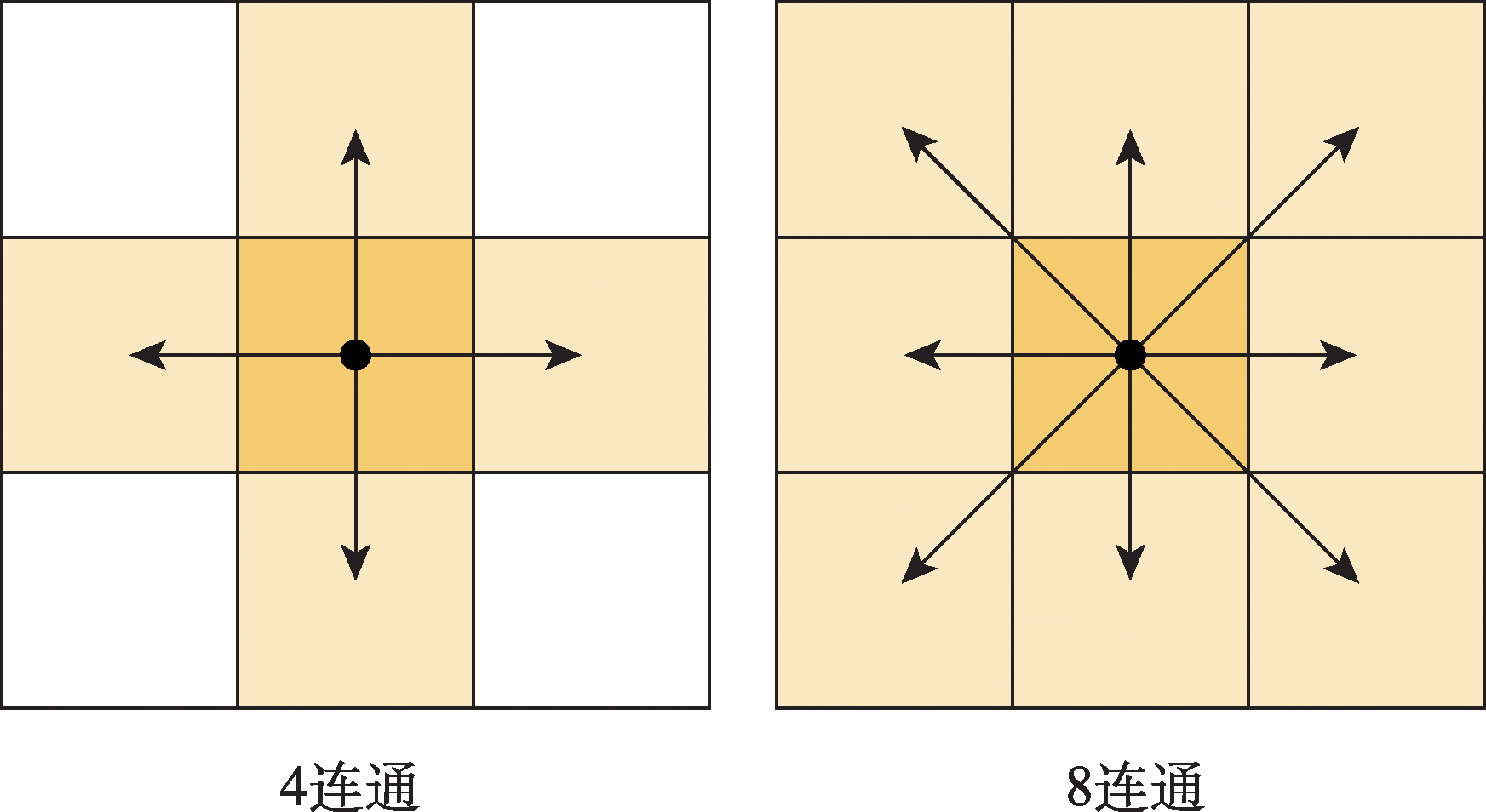

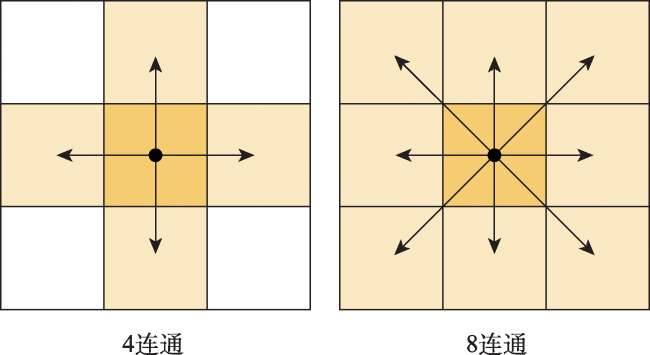

表2 筛选过程中斑块数量的变化Tab. 2 Changes in patch count during screening |

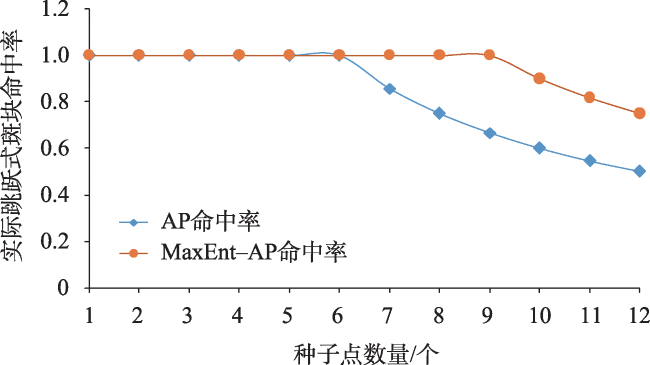

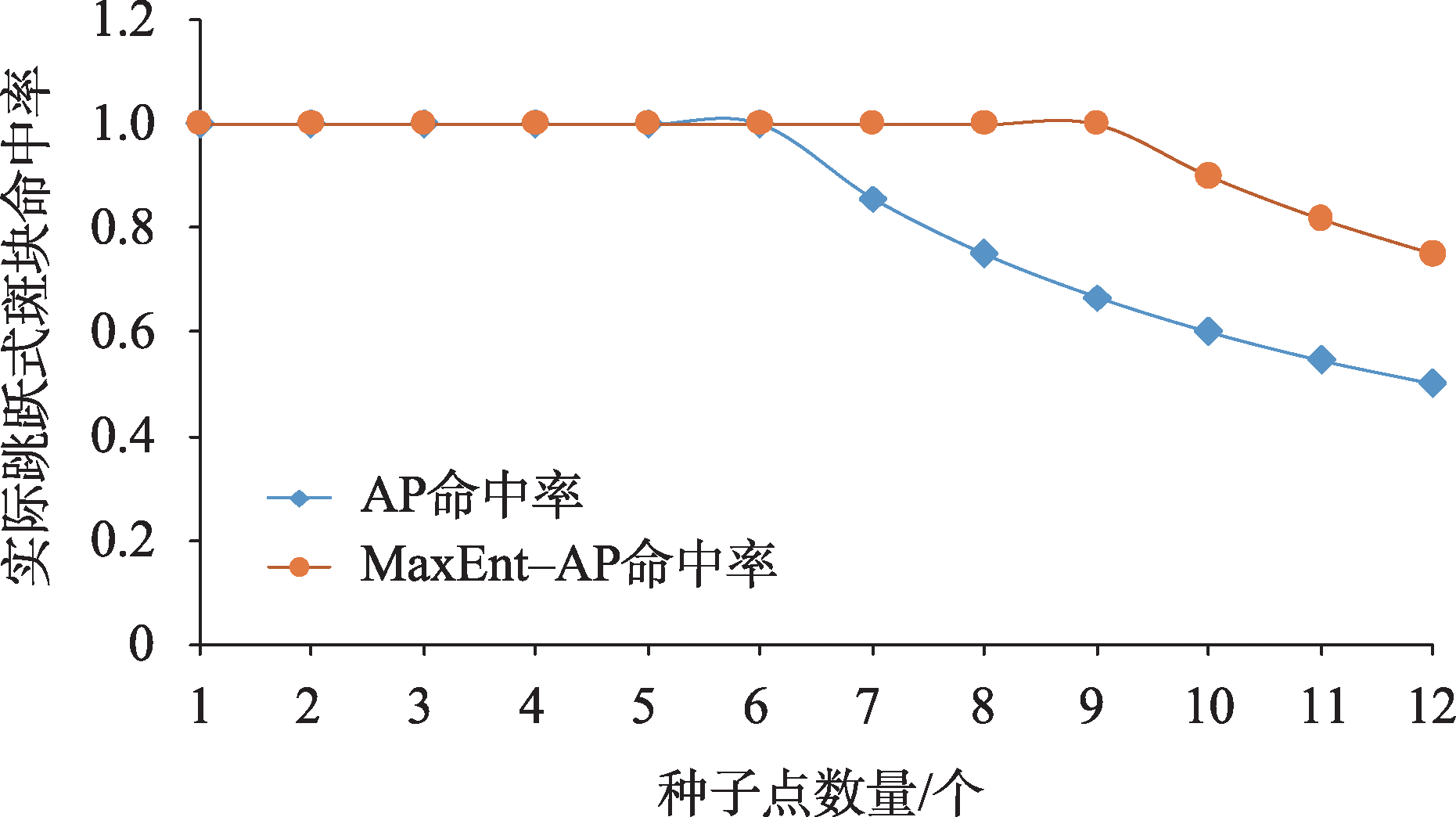

提取MaxEnt结果中概率值大于0.9的部分 | 最小跳跃式斑块面积筛选 | 值筛选 | 实际跳跃式 斑块数 | |
---|---|---|---|---|
备选区域 斑块数/个 | 7032 | 43 | 19 | 10 |

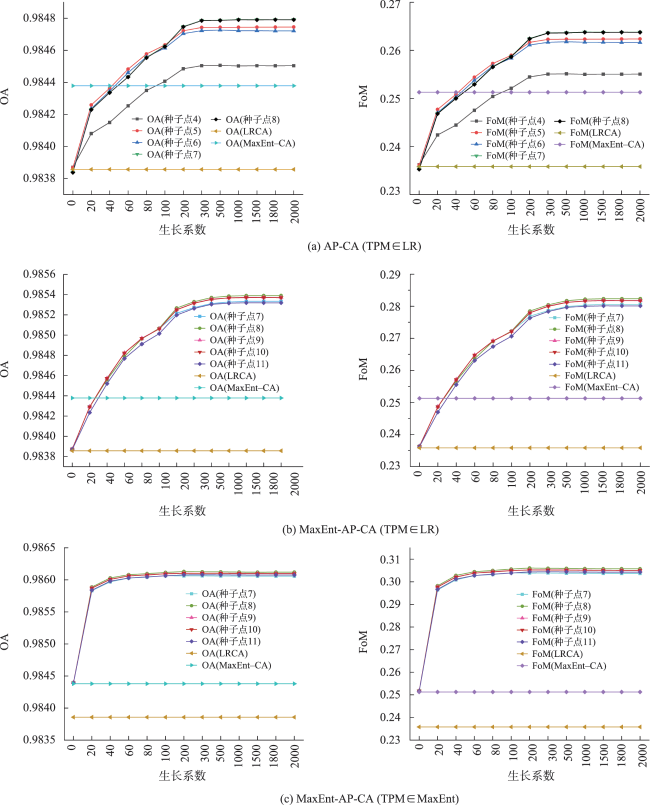

表3 MaxEnt-AP-CA及对比模型的参数Tab. 3 The parameters of MaxEnt-AP-CA and the comparison models |
模型 | 土地开发适宜性概率求取方式 | 种子点类别 | 种子点获取范围 | 参与模拟的 种子点数量区间 |
---|---|---|---|---|
LRCA | Logistic Regression | — | — | — |
MaxEnt-CA | MaxEnt | — | — | — |
AP-CA(TPM∈LR) | Logistic Regression | AP | 研究区全局 | [4,8] |
MaxEnt-AP-CA(TPM∈LR) | Logistic Regression | MaxEnt-AP | 跳跃式扩展备选区域 | [7,11] |
MaxEnt-AP-CA(TPM∈MaxEnt) | MaxEnt | MaxEnt-AP | 跳跃式扩展备选区域 | [7,11] |

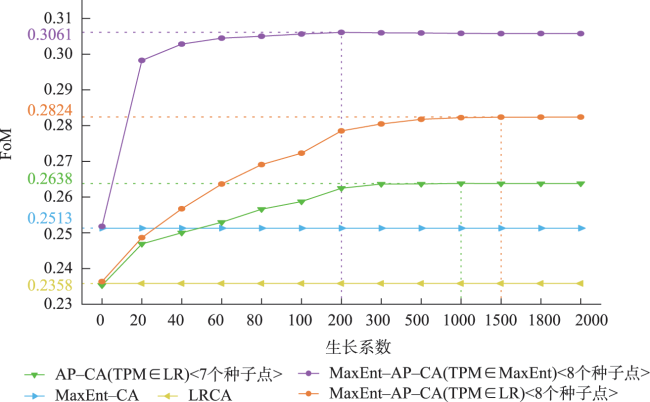

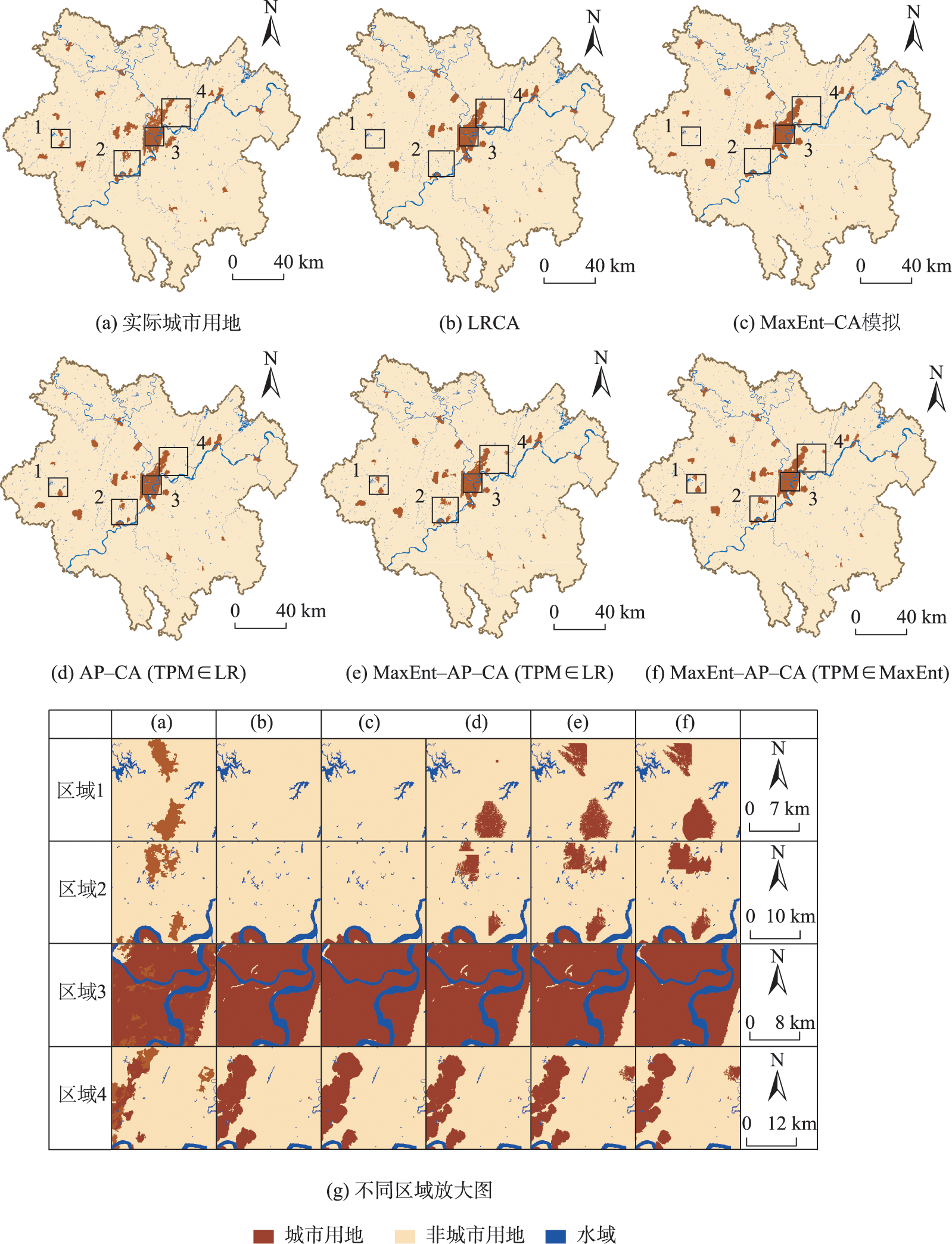

表4 景观指数及形态相似性结果Tab. 4 Results of landscape index and morphological similarity |
结果 | 景观指数 | 相似性/% | |||
---|---|---|---|---|---|
实际城市用地 | 1085.8839 | 77 | 98.1551 | 2.2592 | — |
LRCA | 529.1966 | 158 | 98.7857 | 1.3839 | 67.72 |
MaxEnt-CA | 983.6831 | 85 | 99.0594 | 1.5088 | 82.07 |
AP-CA(TPM∈LR) | 494.7518 | 169 | 98.4766 | 1.5219 | 70.16 |
MaxEnt-AP-CA(TPM∈LR) | 486.1224 | 172 | 98.2183 | 1.5957 | 73.21 |
MaxEnt-AP-CA(TPM∈MaxEnt) | 961.0697 | 87 | 98.7315 | 1.7730 | 87.04 |
表5 MaxEnt-AP-CA与部分具有代表性的多模式城市扩展CA的对比Tab. 5 Comparison between MaxEnt-AP-CA and some representative multi-mode urban expansion CA |
