Spatiotemporal Characteristics of Astronomical Solar Radiation for Martian Surface under Terrain Influence
Received date: 2022-08-01
Revised date: 2022-09-10
Online published: 2023-07-14
Supported by
National Natural Science Foundation of China(41771423)

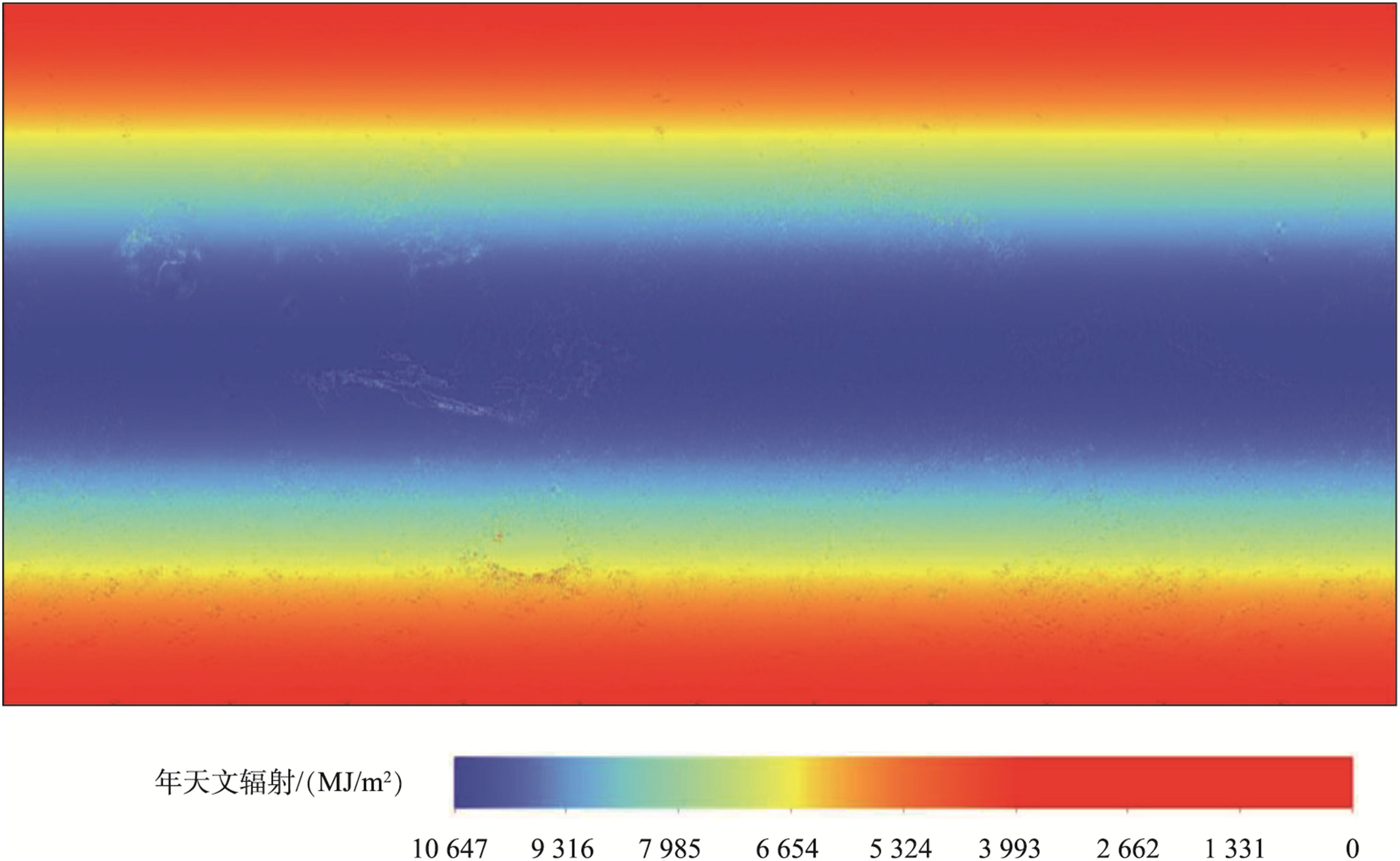

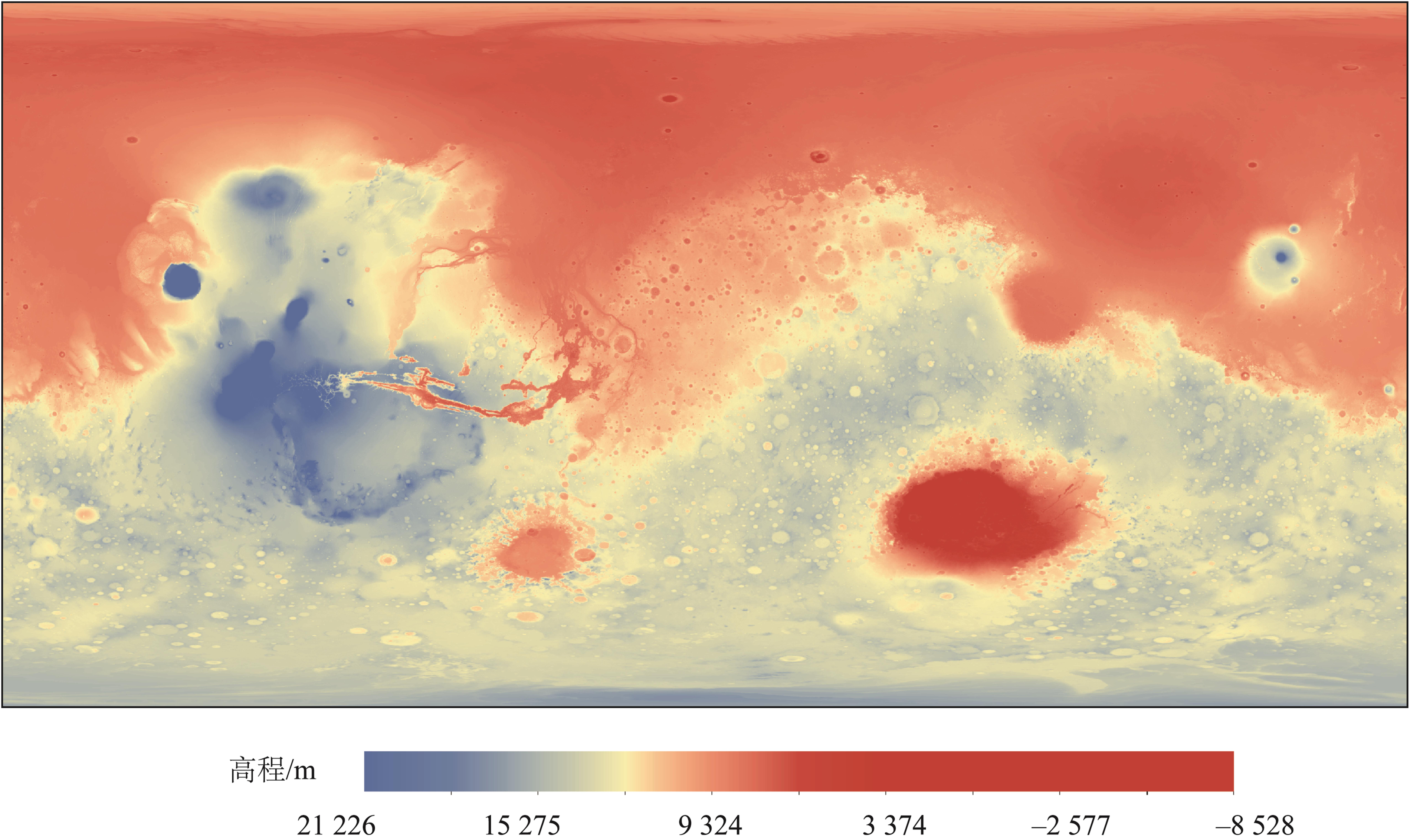

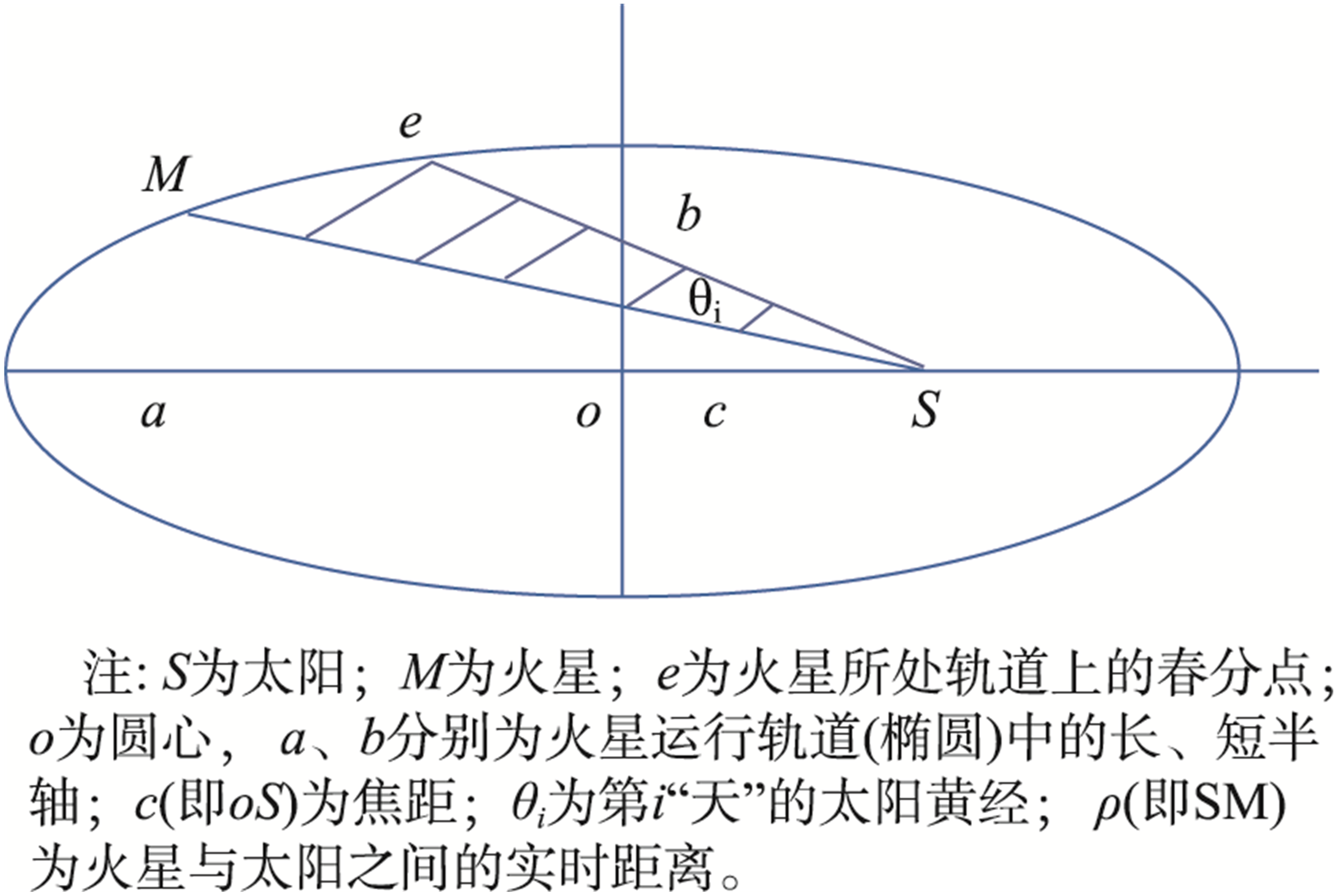

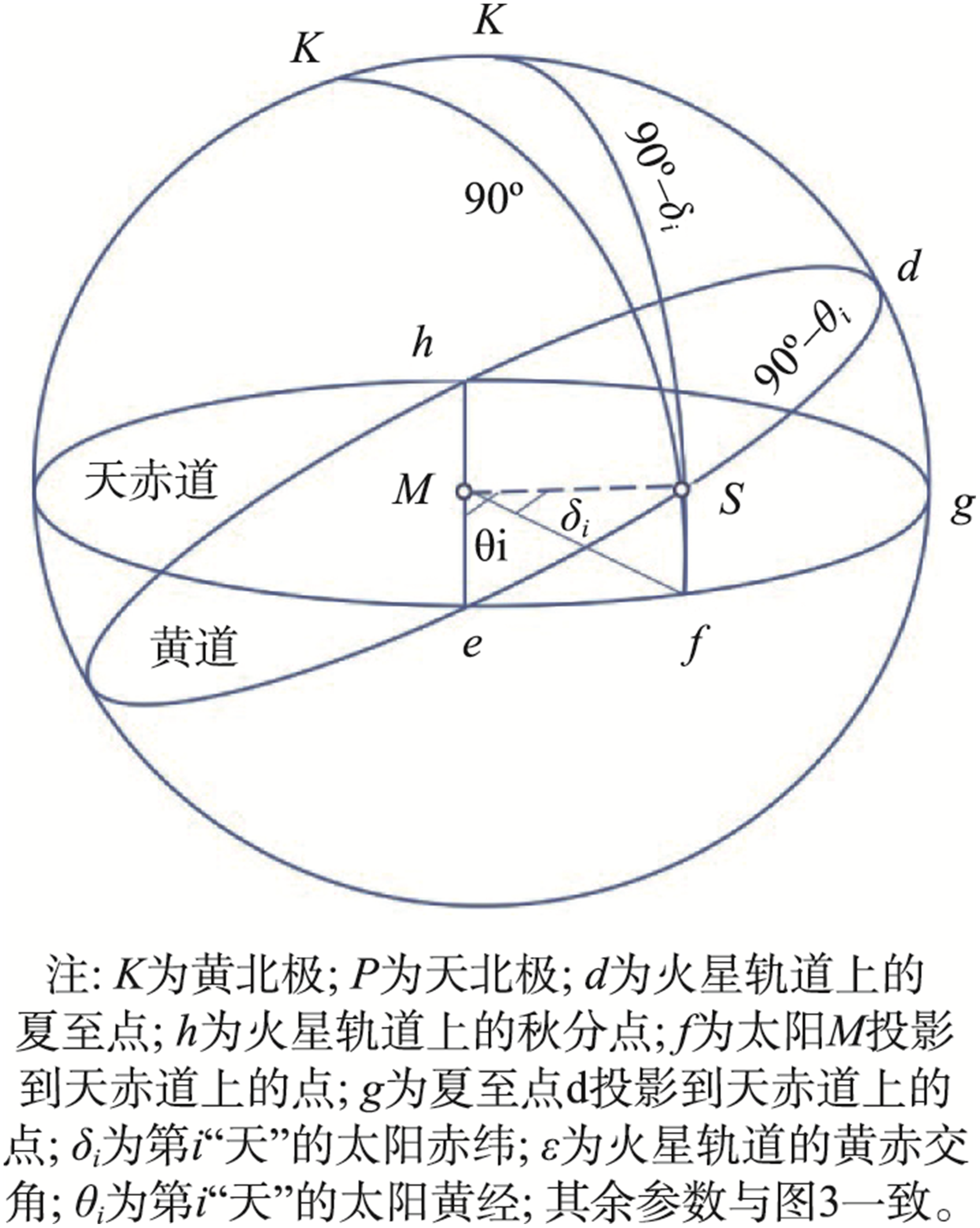

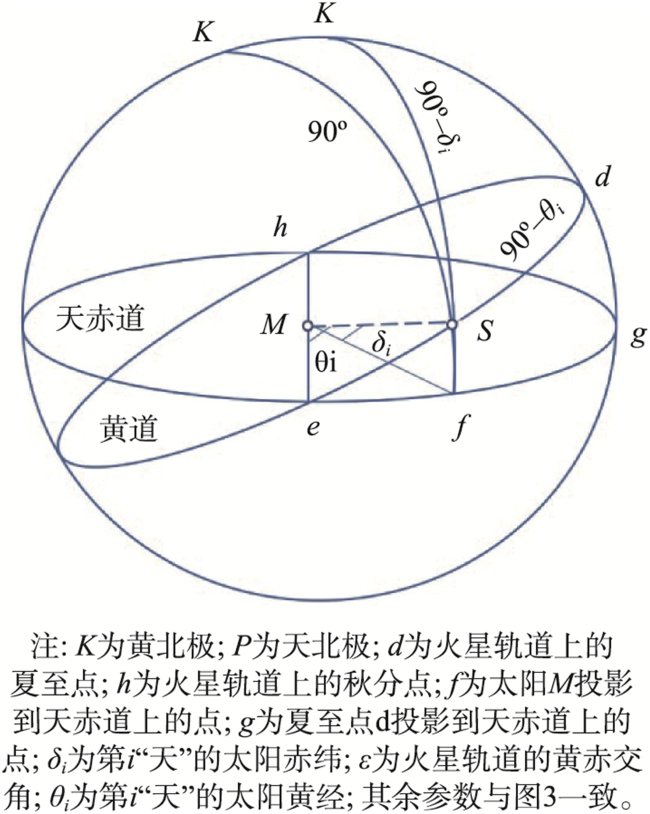

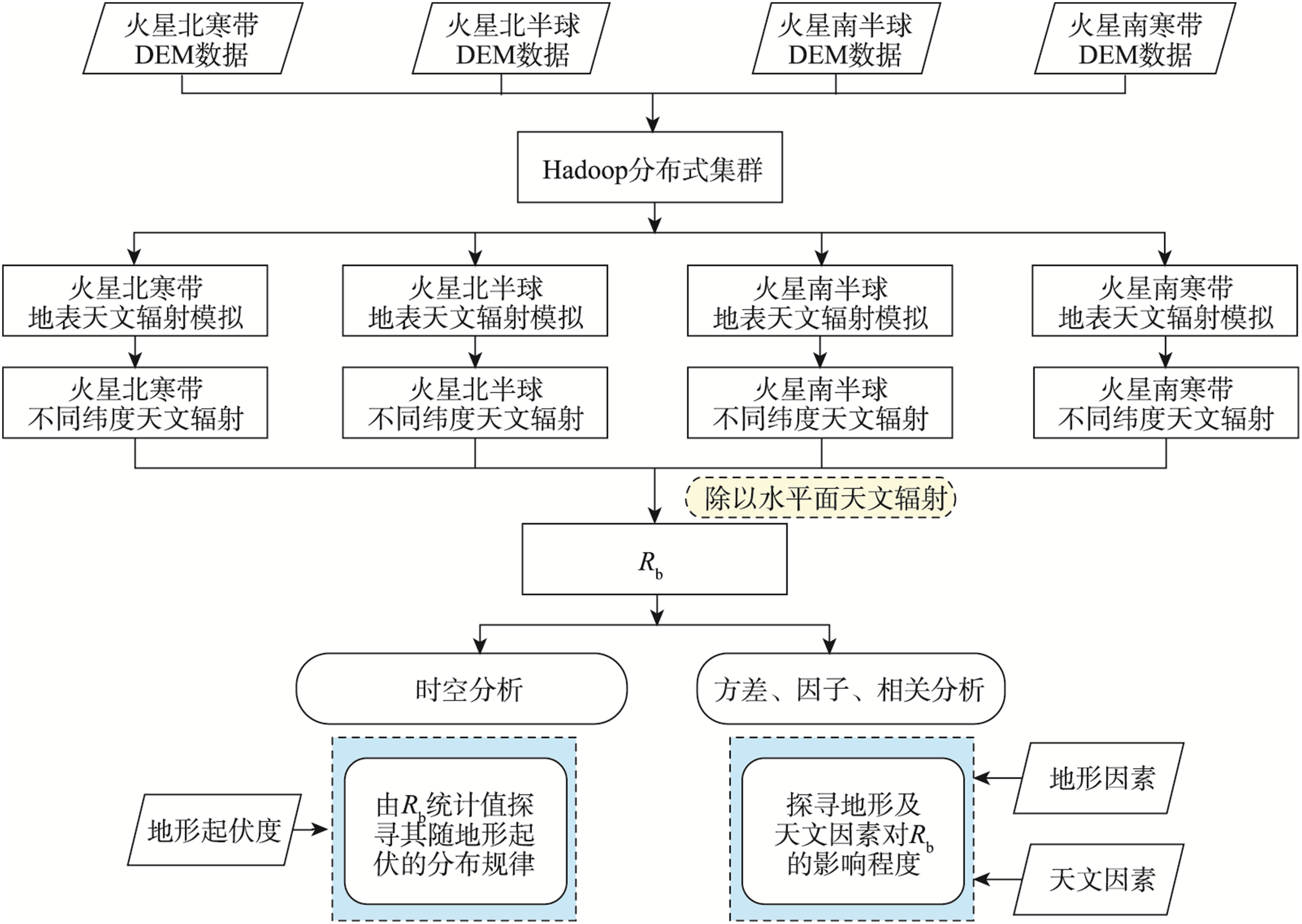

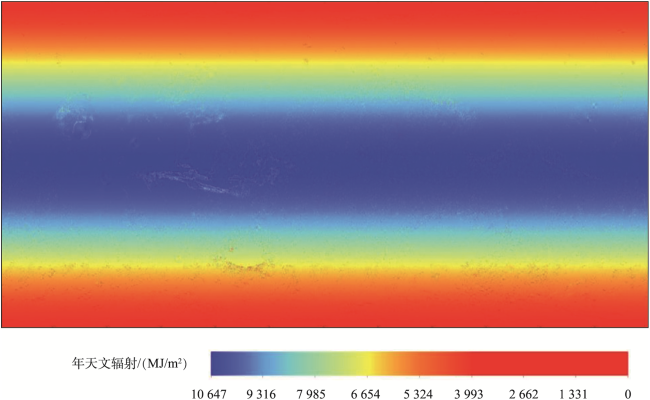

Astronomical solar radiation refers to solar radiation that falls on the Earth regardless of the influence of the atmosphere, which is a significant variable for resource assessment of solar energy. Characterizing the spatial-temporal distribution of Martian astronomical solar radiation can help the Martian exploration in the future, providing basic data for detailed utilization and efficient development of solar energy resources on Mars, as well as assistance for the scientific decision-making of governments. However, the Martian terrain is complicated, and its scale and shape are incomparable to those of the Earth. Therefore, it is impossible to ignore the influence of terrain on astronomical solar radiation on the Martian surface. Current studies of the Martian astronomical solar radiation do not consider the terrain shielding effect of the actual surface of Mars and often focus on local areas. In this paper, the comprehensive influence of latitude difference and time sequence replacement is considered. The Digital Elevation Model (DEM) with a resolution of 200 m is taken as the basic data, and a theoretical model for calculating Martian astronomical radiation based on DEM is proposed. The parallel computing framework provided by Hadoop distributed cluster is used to simulate the spatial distribution of astronomical radiation on the Martian global surface, by considering the impact of terrain, and taking 10 minutes as a time unit. The Rb is the ratio between the horizontal astronomical solar radiation and the astronomical solar radiation considering the terrain shielding effect, which is generally used to evaluate the terrain shielding effect of astronomical solar radiation. Based on the mean Rb corresponding to different global latitudes, the spatiotemporal analysis is carried out. Through interactive two-factor analysis of variance, factor analysis, and correlation analysis, the influence extent of terrain factors and astronomical factors on Rb value of shady slope and sunny slope is explored. The results show that the influence of terrain on the Martian surface has obvious regularity at the spatial-temporal scale, and the influence degree is not only related to the development of topography itself, but also affected by astronomical factors such as the height angle of the midday sun.
TU Ping , LIN Siwei , ZHOU Qianqian , XIE Jing , FAN Yugui , CHEN Nan , LIN Weibin , GUO Lianhe . Spatiotemporal Characteristics of Astronomical Solar Radiation for Martian Surface under Terrain Influence[J]. Journal of Geo-information Science, 2023 , 25(8) : 1611 -1624 . DOI: 10.12082/dqxxkx.2023.220565

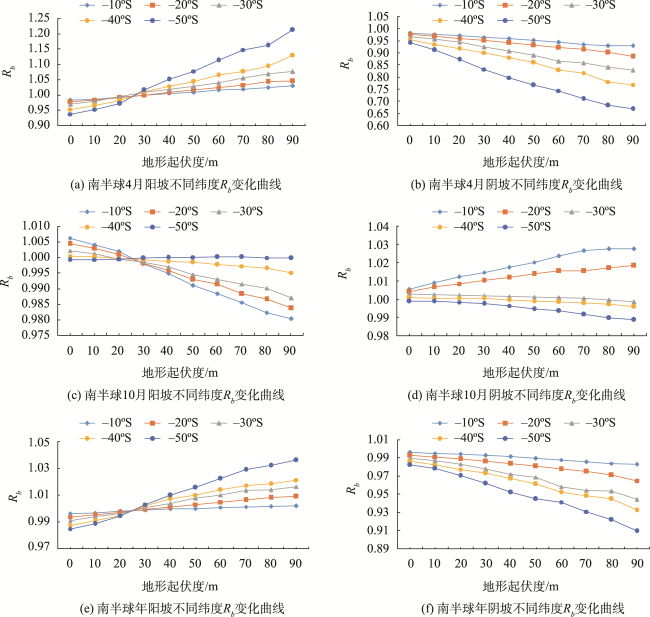

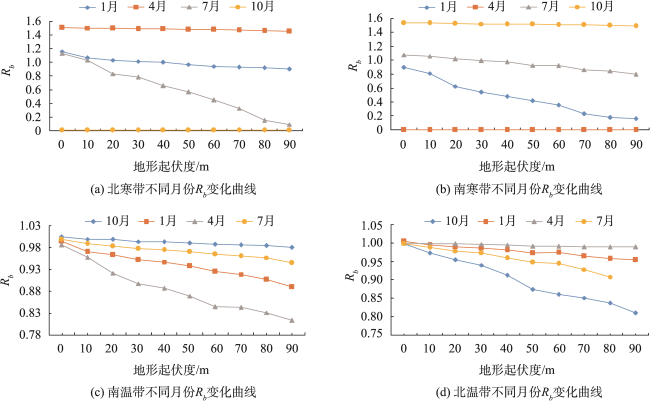

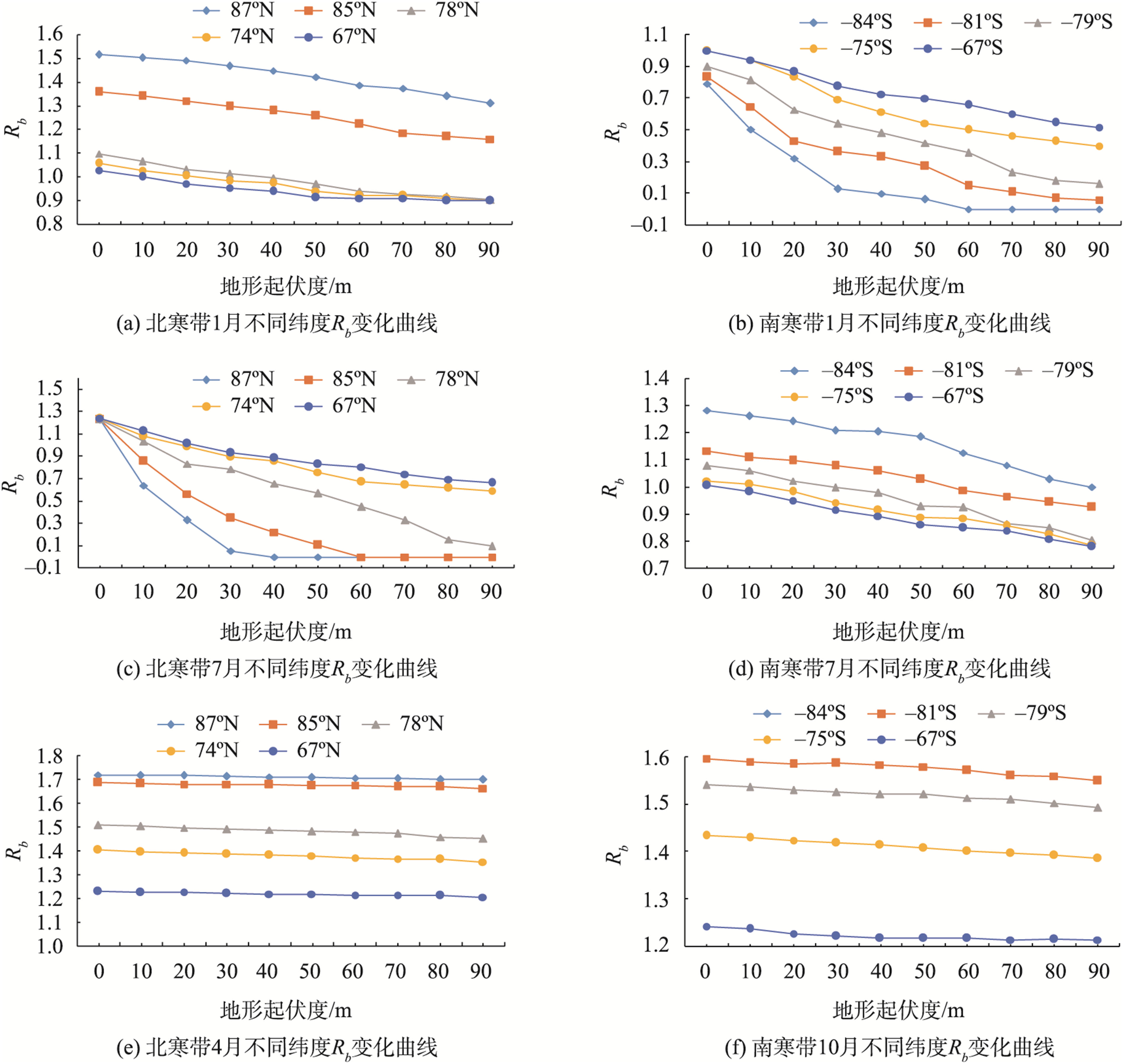

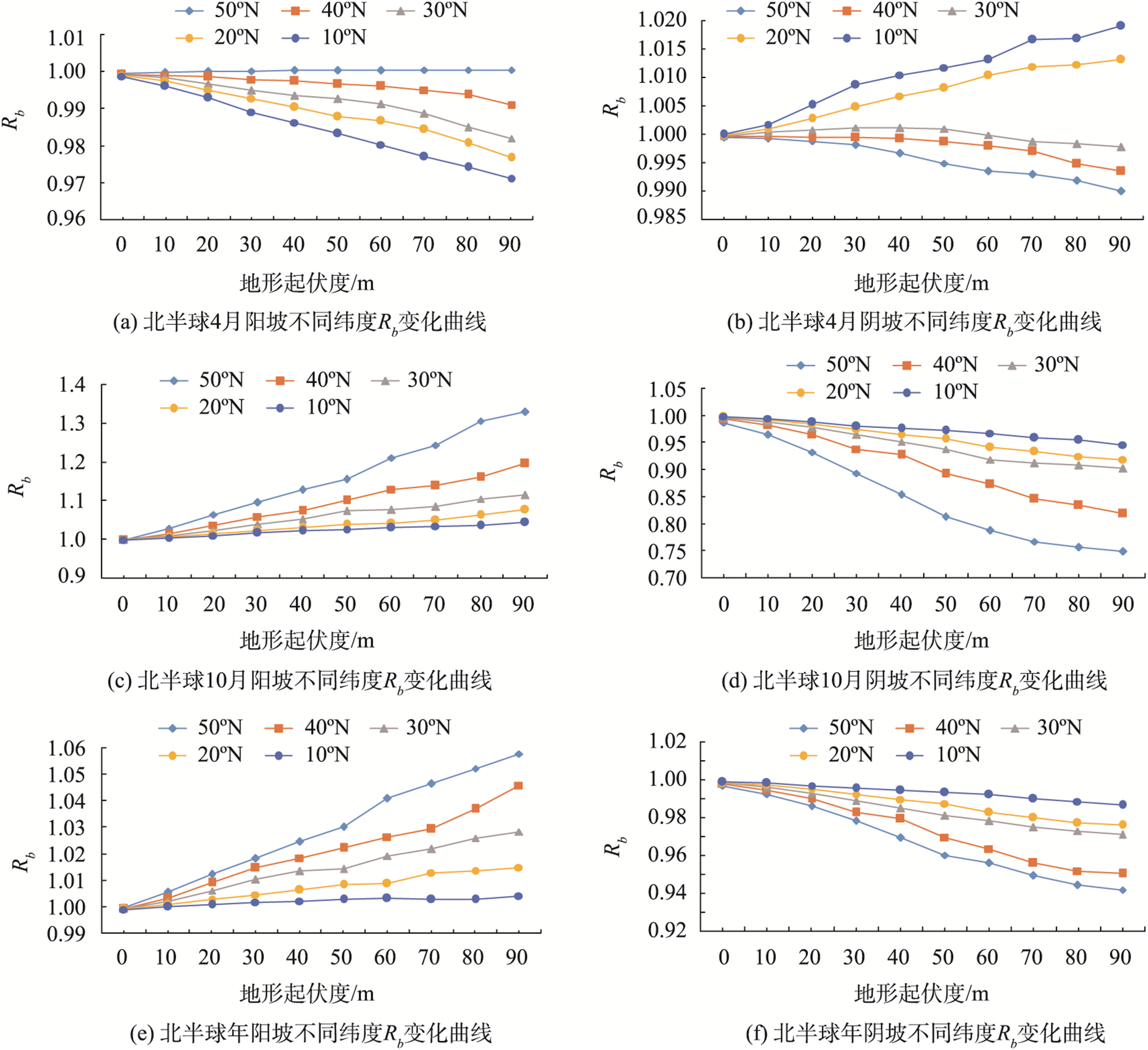

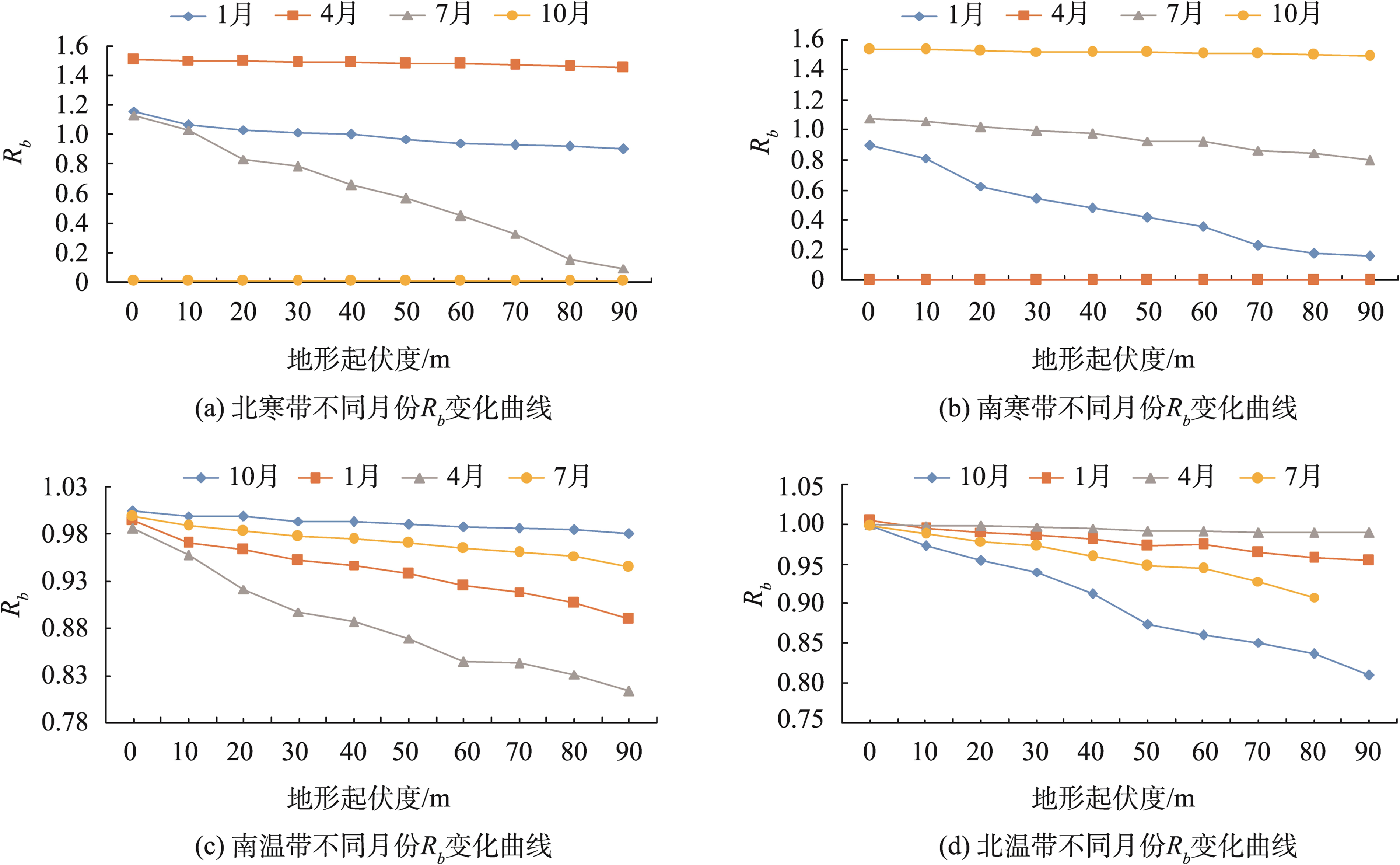

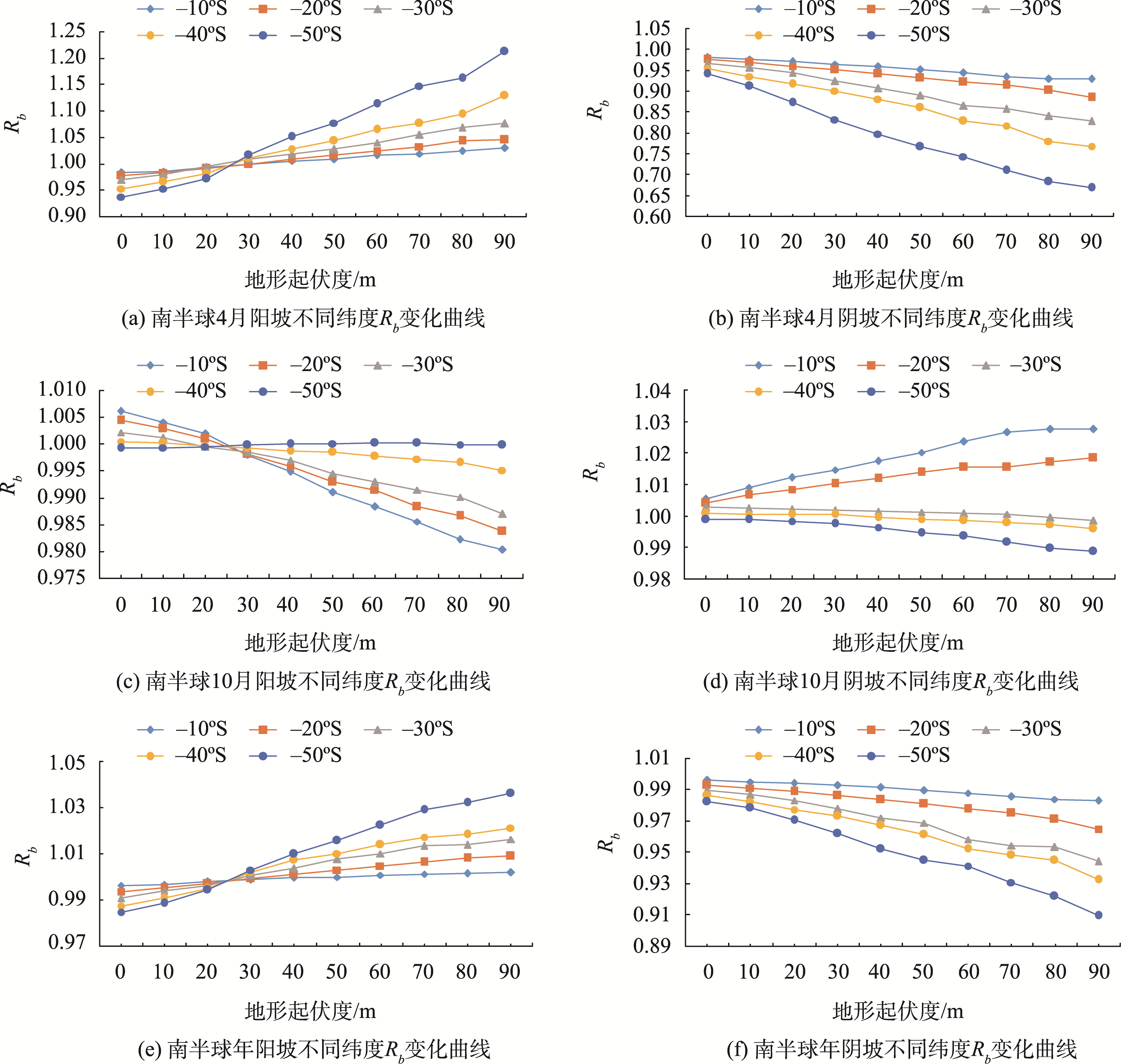

表1 有交互作用的阳坡 方差分析Tab. 1 Results of variance analysis of tailo with interaction |
方差来源 | 平方和 | 自由度 | F值 | 检验P值 |
---|---|---|---|---|
因素A:起伏度 | 0.089 691 | 12 | 5.474 144 | 5.163 134 |
因素B:纬度 | 0.042 988 | 4 | 7.8711150 | 6.685 093 |
交互 | 0.049 817 | 48 | 0.760 127 | 0.868 894 2 |
误差 | 0.266 547 | 195 |
表2 有交互作用的阴坡 方差分析Tab. 2 Results of variance analysis of Schattenseite with interaction |
方差来源 | 平方和 | 自由度 | F值 | 检验P值 |
---|---|---|---|---|
因素A:起伏度 | 0.140 069 | 12 | 2.035444 | 2.309 153 |
因素B:纬度 | 0.318 313 | 4 | 13.876 88 | 5.591 603 |
交互 | 0.069 776 | 48 | 0.253 49 | 0.998 624 6 |
误差 | 1.118 246 | 195 |

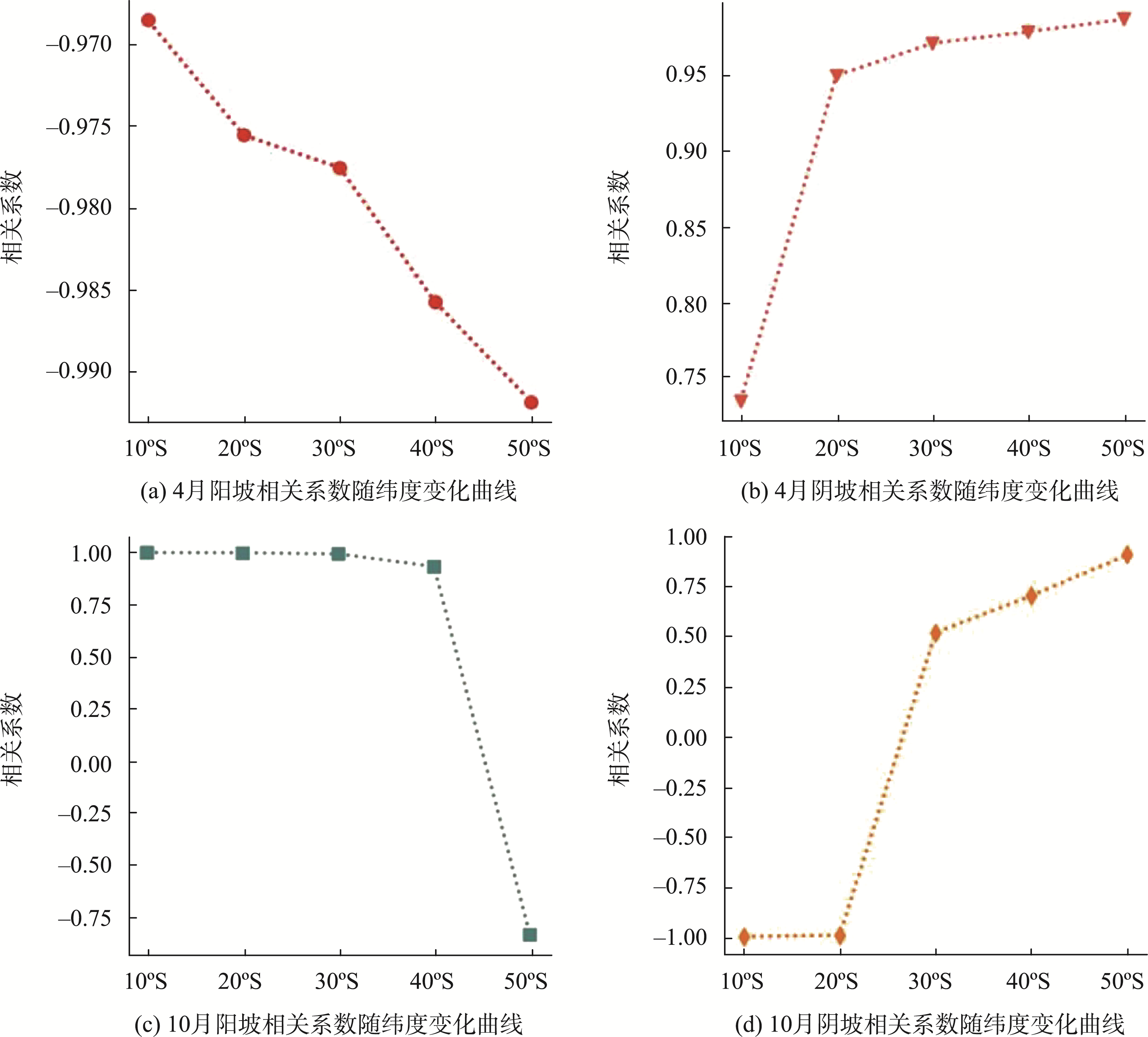

图10 不同纬度 与地形开阔度之间的相关系数曲线图Fig. 10 Correlation curves of in different latitude and terrain breadth |
表3 受地形开阔度影响百分比Tab. 3 Table of percentage of affected by terrain breadth |
纬度/°S | 4月阳坡/% | 4月阴坡/% | 10月阳坡/% | 10月阴坡/% |
---|---|---|---|---|
50 | 29.13 | 30.90 | 0.11 | 1.47 |
40 | 14.79 | 20.78 | 0.58 | 0.16 |
30 | 11.04 | 13.78 | 1.54 | 0.32 |
7.00 | 9.35 | 2.07 | 1.73 | |
10 | 4.82 | 6.99 | 2.86 | 1.92 |
表4 因子分析Tab. 4 Results of factor analysis |
阳坡4月 | F1 | F2 | F3 | 共同度 |
---|---|---|---|---|
因子载荷 | -0.432 | -0.901 | -0.030 | 0.99 980 |
0.904 | 0.422 | 0.062 | 0.99 980 | |
0.923 | 0.375 | -0.083 | 0.99 995 | |
0.865 | 0.455 | 0.212 | 0.99 995 | |
方差贡献率 | 0.652 | 0.337 | 0.056 | — |
累计贡献率 | 0.652 | 0.989 | 0.995 | — |
阳坡10月 | F1 | F2 | F3 | 共同度 |
因子载荷 | 0.529 | 0.378 | 0.759 | 0.99 869 |
0.834 | 0.356 | 0.420 | 0.99 887 | |
-0.362 | -0.884 | -0.296 | 0.99 992 | |
0.772 | 0.479 | 0.415 | 0.99 812 | |
方差贡献率 | 0.426 | 0.320 | 0.253 | — |
累计贡献率 | 0.426 | 0.746 | 0.999 | — |
阴坡4月 | F1 | F2 | F3 | 共同度 |
因子载荷 | 0.816 | 0.578 | -0.027 | 0.99 996 |
0.674 | 0.737 | 0.034 | 0.99 997 | |
0.556 | 0.831 | 0.006 | 0.99 996 | |
0.778 | 0.624 | 0.074 | 0.99 997 | |
方差贡献率 | 0.509 | 0.489 | 0.002 | — |
累计贡献率 | 0.509 | 0.998 | 0.999 | — |
阴坡10月 | F1 | F2 | F3 | 共同度 |
因子载荷 | -0.962 | 0.271 | 0.035 | 0.99 999 |
0.882 | -0.462 | 0.093 | 0.99 996 | |
-0.348 | 0.937 | -0.019 | 0.99 999 | |
0.799 | -0.581 | 0.156 | 0.99 998 | |
方差贡献率 | 0.615 | 0.376 | 0.008 | — |
累计贡献率 | 0.615 | 0.991 | 0.999 | — |
表5 各纬度下各公共因子的得分情况Tab. 5 Scores of common factors at different latitudes |
综合得分 | 10 °S | 20 °S | 30 °S | 40 °S | 50 °S |
---|---|---|---|---|---|
4月阳坡 | 1.402 | 1.302 | 1.104 | 1.057 | 0.758 |
10月阳坡 | 1.305 | 1.354 | 1.384 | 1.542 | 1.699 |
4月阴坡 | 1.099 | 0.958 | 0.731 | 0.524 | 0.083 |
10月阴坡 | 1.507 | 2.175 | 2.608 | 2.986 | 3.230 |
表6 相关系数t与样本统计量TTab. 6 Correlation coefficient t and sample statistic T |
不同月份坡向 | 相关系数t | 样本统计量T |
---|---|---|
4月阳坡 | -0.894 | -3.381 |
10月阳坡 | 0.944 | 4.971 |
4月阴坡 | 0.996 | 24.875 |
10月阴坡 | -0.995 | -16.848 |
