多尺度相关性分析的机载双极化InSAR轨道误差校正方法

doi:10.12082/dqxxkx.2021.200213

地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (4): 670-679.doi: 10.12082/dqxxkx.2021.200213

多尺度相关性分析的机载双极化InSAR轨道误差校正方法

何永红(), 靳鹏伟^*(), 蒋陈纯

湖南科技学院土木与环境工程学院,永州 425199

收稿日期:2020-04-29 修回日期:2020-08-02 出版日期:2021-04-25 发布日期:2021-06-25
通讯作者: *靳鹏伟（1981— ）,男,山西长治人,硕士,讲师,主要从事测绘与岩土工程等方面的教学与研究。 E-mail: 65450015@qq.com
作者简介:何永红（1978— ）,女,河北定州人,博士,副教授,主要从事InSAR数据处理及应用研究。E-mail: 365022968@qq.com
基金资助:
国家自然科学基金项目(41531068);国家自然科学基金项目(41671356);湖南省自然科学资金项目(2020JJ4031)

An Airborne Dual PolInSAR Orbit Error Removal Method based on Multi-Scale Correlation Analysis

HE Yonghong(), JIN Pengwei^*(), JIANG Chenchun

School of Civil and Environmental Engineering, Hunan University of Science and Engineering, Yongzhou 425199, China

Received:2020-04-29 Revised:2020-08-02 Online:2021-04-25 Published:2021-06-25
Contact: JIN Pengwei
Supported by:
National Natural Science Foundation of China(41531068);National Natural Science Foundation of China(41671356);Natural Science Foundation of Hunan Province(2020JJ4031)

摘要/Abstract

摘要：

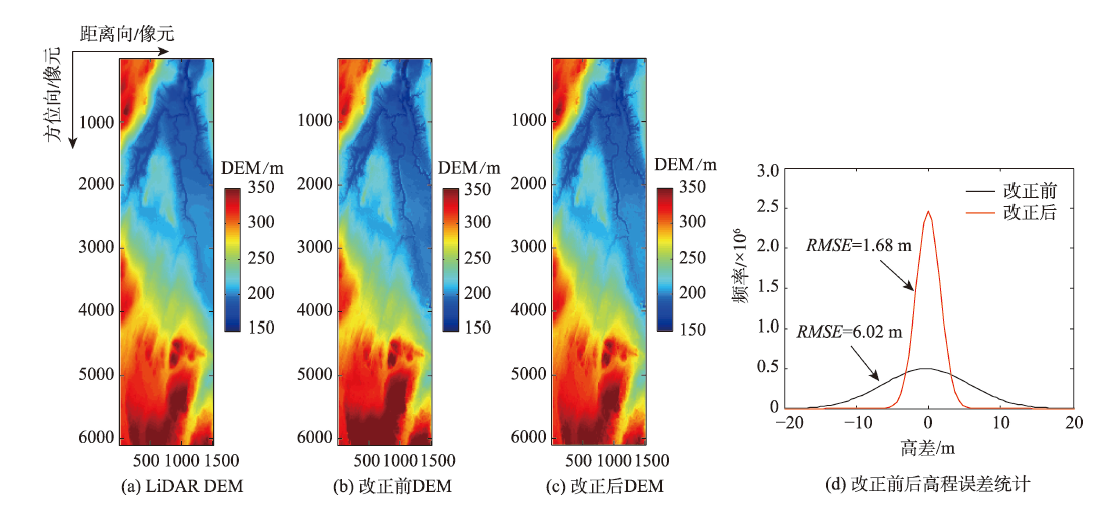

在高分辨率机载干涉SAR成像处理过程中,由于载机飞行过程中偏离理想轨迹,需要高精度的惯导系统和GPS系统记录载机的运动轨迹并进行运动补偿。然而,由于目前传感器导航精度的限制,在完成运动补偿处理后仍然存在轨道误差,从而影响干涉相位的精度,本文提出了一种机载双极化InSAR轨道误差去除方法。该方法利用小波多尺度分析对不同极化方式差分干涉相位进行多尺度分解,减弱地形误差相位、噪声相位对轨道误差的干扰,然后根据不同极化方式轨道误差的高度相关性,对相位进行降权改正,得到轨道误差改正后的差分干涉相位。为验证该方法的可靠性,分别采用模拟数据和E-SAR P波段双极化数据进行实验分析,结果表明原始差分干涉图中的轨道误差剔除明显,利用P波段获得的校正干涉图生成数字高程模型(DEM),轨道误差改正前后获取的DEM与LiDAR值的均方根误差(RMSE)分别为6.02 m和1.68 m,提高了InSAR测高精度。本研究为机载InSAR轨道误差补偿提供了一种新的思路。

关键词: PolInSAR, 运动补偿, 重复轨道, 轨道误差, 机载InSAR, 多尺度分析, 数字高程模型, 残余运动误差

Abstract:

In the process of high-resolution airborne interference SAR imaging, due to the deviation from the ideal trajectory during the flight of the aircraft, it is necessary to compensate the motion trajectory of the inertial navigation system and the GPS system. However, due to limited accuracy of current sensor navigation, orbit error still exists after motion compensation, which affects the accuracy of the interference phase. In this paper, a method of removing orbit error for airborne polarimetric interferometric SAR is proposed. This method uses wavelet multi-scale analysis to decompose the phase of differential interference in different polarization modes and reduce the interference of terrain error phase and noise phase to orbit error. According to the correlation of orbit error between different polarizations, the phase is corrected by weight reduction. Finally, we get Phase unwrapping of differential interference after orbit error correction. In order to verify the reliability of the method, simulated data and E-SAR P-band multi-polarization data are used for experimental analysis. The results show that the orbit errors are eliminated obviously. In addition, the correction interferograms obtained in P-band are also used to generate Digital Elevation Model (DEM). The Root Mean Square Error (RMSE) of DEM and LiDAR obtained before and after correction are 6.02 m and 1.68 m, respectively, which improves the accuracy of InSAR measurement. This study provides a new thought for airborne InSAR orbit error compensation.

Key words: Polarimetric SAR Interferometry (PoLInSAR), motion compensation, repeat pass, orbit error, Airborne InSAR, multiscale analysis, Digital Elevation Model (DEM), Residual Motion Error (RME)

何永红, 靳鹏伟, 蒋陈纯. 多尺度相关性分析的机载双极化InSAR轨道误差校正方法[J]. 地球信息科学学报, 2021, 23(4): 670-679.DOI:10.12082/dqxxkx.2021.200213

HE Yonghong, JIN Pengwei, JIANG Chenchun. An Airborne Dual PolInSAR Orbit Error Removal Method based on Multi-Scale Correlation Analysis[J]. Journal of Geo-information Science, 2021, 23(4): 670-679.DOI:10.12082/dqxxkx.2021.200213

图/表 8

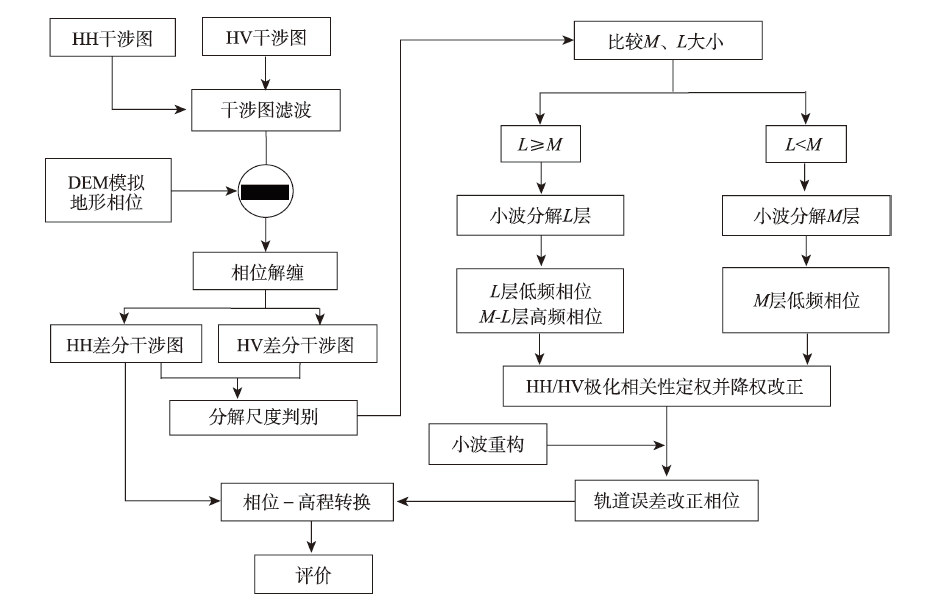

图1

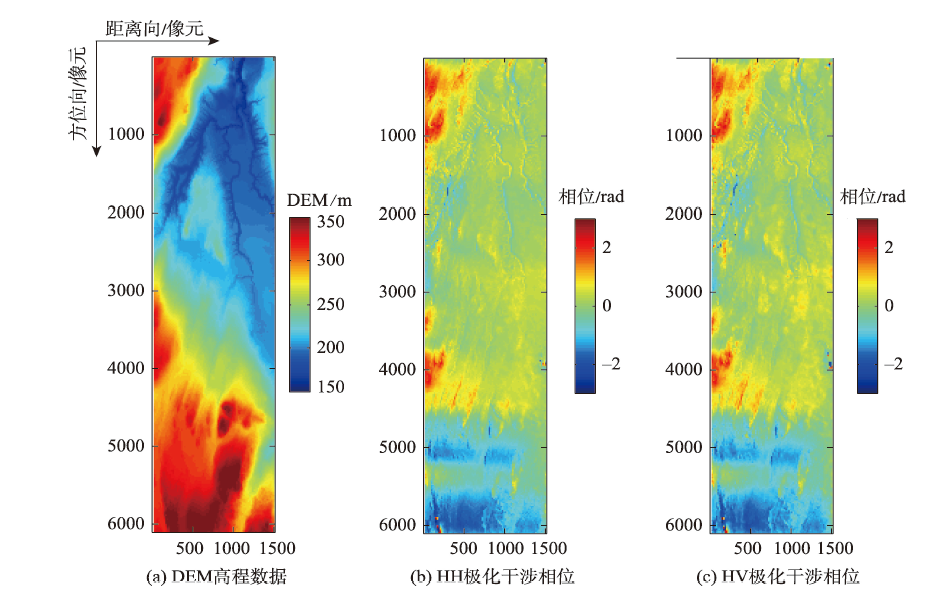

图2

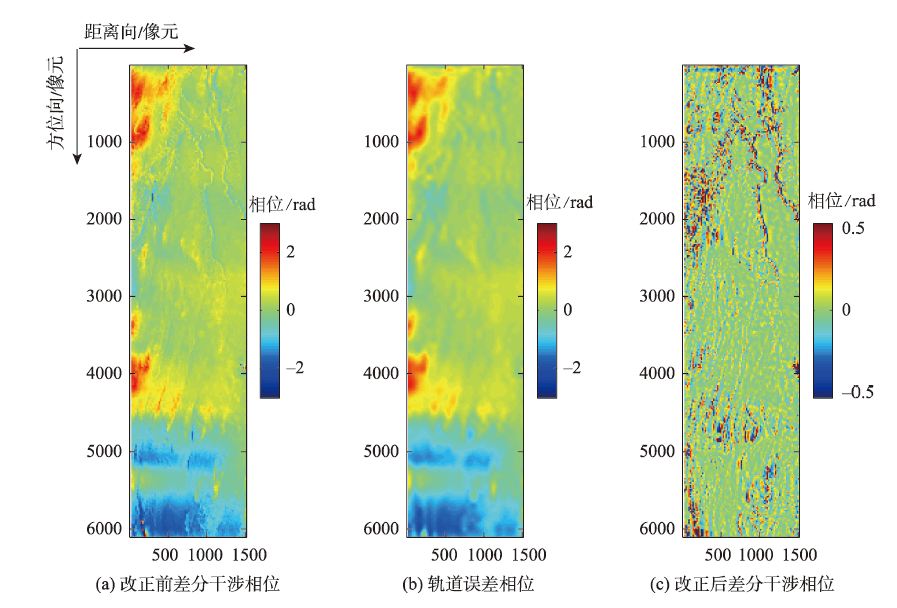

图3

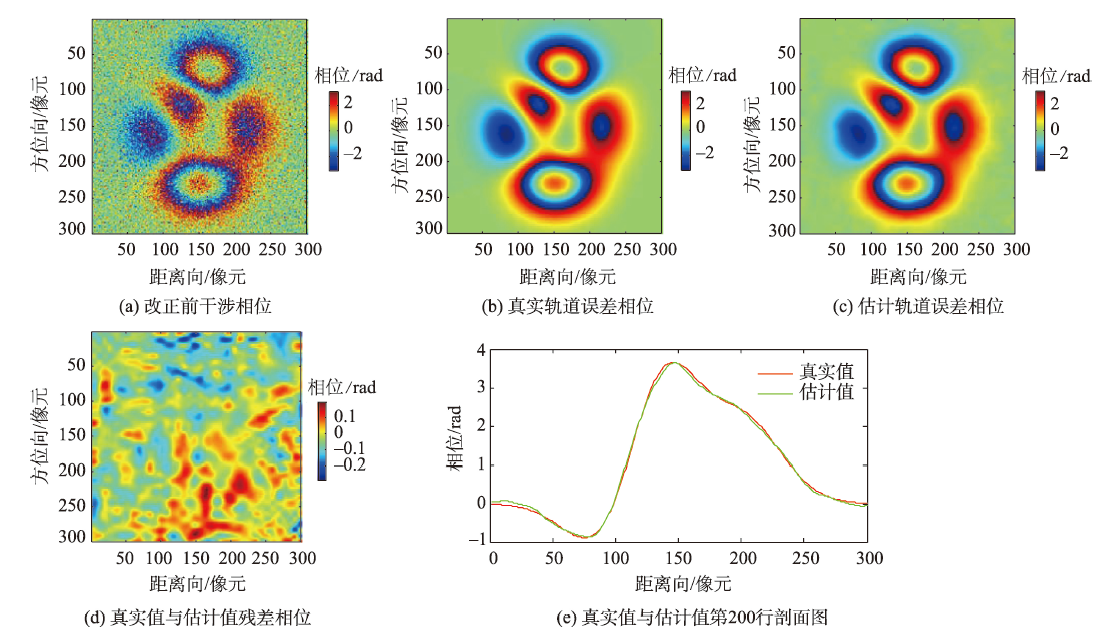

图4

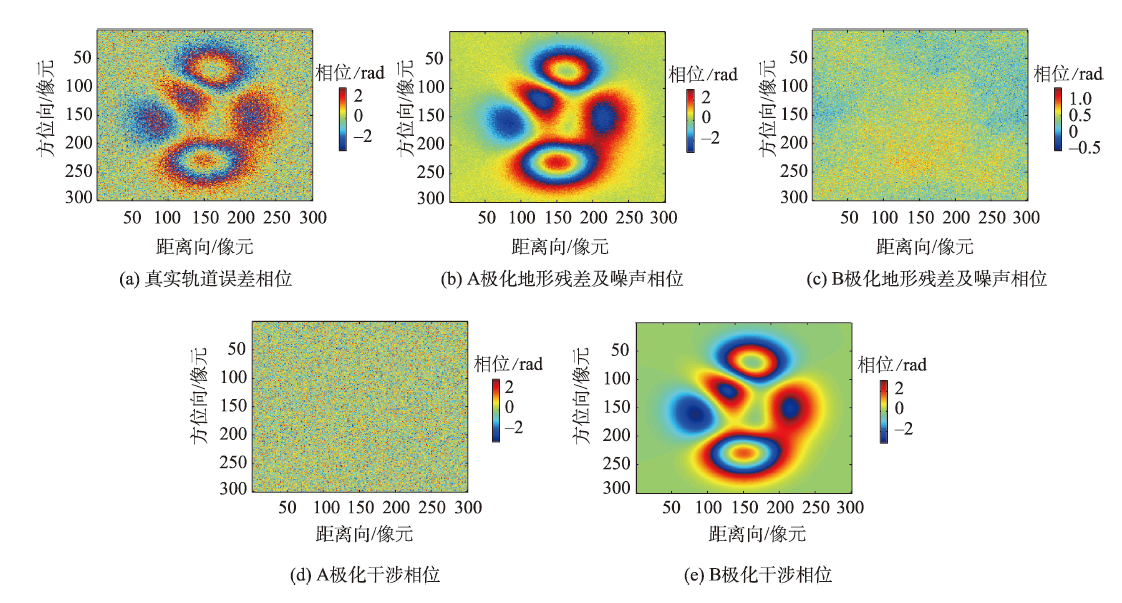

图5

图6

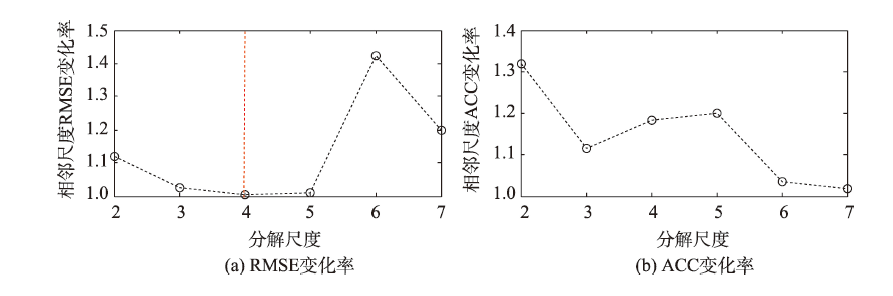

图7

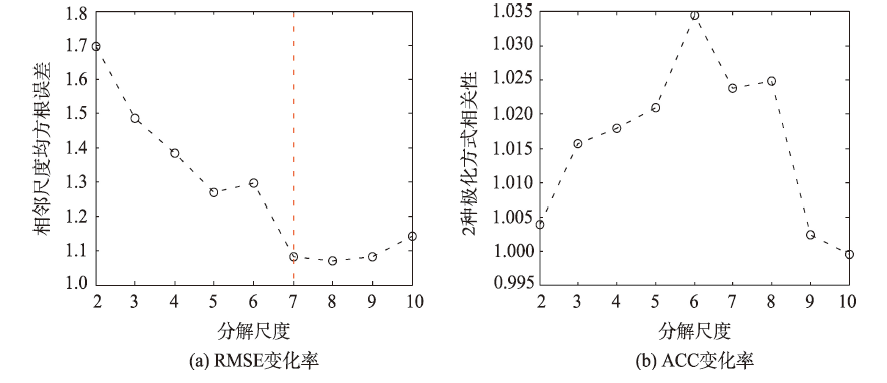

图8

参考文献 28

[1]	Zhang H, Hong J, Qiu X L, et al. Effects of residual motion compensation errors on the performance of airborne along-track interferometric SAR[J]. Frontiers of Information Technology & Electronic Engineering, 2016,17(10):1095-1106.
[2]	Demacedo K A C, Scheiber R. Precise topography and aperture-Dependent motion compensation for airborne SAR[J]. IEEE Geoscience & Remote Sensing Letters, 2005,2(2):172-176.
[3]	Hensley s, Michel T, Simard M, et al. Residual motion estimation for UAVSAR: implications of an electronically scanned array[C]. IEEE Radar Conference, Pasadena, California, USA, May 2009.
[4]	Moreira A, Huang Y. Airborne SAR processing of highly squinted data using a chirp scaling approach with integrated motion compensation[J]. IEEE Transactions on Geoscience & Remote Sensing, 1994,32(5):1029-1040.
[5]	Reigber A, Scheiber R, Jager M, et al. Very-High-Resolution airborne synthetic aperture radar imaging: Signal processing and applications[J]. Proceedings of the IEEE, 2013,101(3):759-783.
[6]	Reigber A. Correction of residual motion errors in airborne SAR interferometry[J]. Electronics Letters, 2001,37(17):1083-1084.
[7]	Prats P, Mallorqui J J. Estimation of azimuth phase undulations with multisquint processing in airborne interferometric SAR images[J]. IEEE Transactions on Geoscience & Remote Sensing, 2003,41(6):1530-1533.
[8]	Demacedo K A C, Scheiber R. An autofocus approach for residual motion errors with application to airborne repeat-pass SAR Interferometry[J]. IEEE Transactions on Geoscience & Remote Sensing, 2008,46(10):3151-3162.
[9]	Zhong X, Xiang M, Yue H, et al. Algorithm on the estimation of residual motion errors in Airborne SAR images[J]. IEEE Transactions on Geoscience & Remote Sensing, 2014,52(2):1311-1323.
[10]	Zhong X L, Guo H D, Xiang M S, et al. Residual motion estimation with point targets and its application to airborne repeat-pass SAR interferometry[J]. International Journal of Remote Sensing, 2012,33(3):762-780.
[11]	Tebaldini S, Rocca F. Phase calibration of airborne tomographic SAR data via phase center double localization[J]. IEEE Transactions on Geoscience and Remote Sensing, 2016,54(3):1775-1792.
[12]	Pardini M, Papathanassiou K, Bianco V, et al. Phase calibration of multibaseline SAR data based on a minimum entropy criterion[C]. IEEE Geoscience and Remote Sensing Symposium, 2012.
[13]	Fu H Q, Zhu J J, Wang C C, et al. A wavelet decomposition and polynomial fitting-based method for the estimation of time-Varying residual motion error in airborne interferometric SAR[J]. IEEE Transactions on Geoence & Remote Sensing, 2018,56(1):49-59.
[14]	Fu H Q, Zhu J J, Wang C C, et al. Underlying topography estimation over forest areas using high-resolution P-band single-baseline PolInSAR data[J]. Remote Sensing, 2017,9(4):363-375.
[15]	Zhang L, Wang G, Qiao Z, et al. Azimuth motion compensation with improved subaperture algorithm for airborne SAR imaging[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2017,10(1):184-193.
[16]	Wang G Y, Zhang Li, Li J, et al. Precise aperture-dependent motion compensation for high-resolution synthetic aperture radar imaging[J]. IET Radar, Sonar & Navigation, 2017,11(1):204-211.
[17]	Zeng L T, Liang Y, Xing M D, et al. Two-dimensional autofocus technique for high-resolution spotlight synthetic aperture radar[J]. IET Signal Processing, 2016,10(6):699-707.
[18]	Scheiber R, Moreira A. Coregistration of interferometric SAR images using spectral diversity[J]. IEEE Transactions on Geoscience and Remote Sensing, 2000,38(5):2179-2191.
[19]	Reigber A, Papathanassiou K. Correction of residual motion errors in airborne repeat-pass interferometry[C]. International Geoscience and Remote Sensing Symposium,Sydney, Australia, July 2001(7):3077-3079.
[20]	Reigber A, Prats P, Mallorqui J J. Refined estimation of time-varying baseline errors in Airborne SAR interferometry[J]. IEEE Geoscience & Remote Sensing Letters, 2006,3(1):145-149.
[21]	Wang H Q, Zhu J J, Fu H Q, et al. Modeling and Robust Estimation for the Residual Motion Error in Airborne SAR Interferometry[J]. IEEE Geoscience and Remote Sensing Letters, 2019,16(1):1-5.
[22]	何永红, 靳鹏伟, 舒敏. 基于多尺度相关性分析的InSAR对流层延迟误差改正算法[J]. 地球信息科学学报, 2020,22(09):1878-1886.
	[ He Y H, Jin P W, Shu Min. InSAR tropospheric delay error correction algorithm based on multi-scale correlation analysis[J]. Journal of Geo-information Science, 2020,22(9):1878-1886. ]
[23]	Reigber A, Prats P, Mallorqui J J. Refined estimation of time-varying baseline errors in airborne SAR interferometry[J]. IEEE Geoscience and Remote Sensing Letters, 2006,3(1):145-149.
[24]	Shirzaei M, Walter T R . Estimating the effect of satellite orbital error using wavelet-based robust regression applied to InSAR deformation data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2011,49(11):4600-4605.
[25]	Shirzaei M, Bürgmann, R. Topography correlated atmospheric delay correction in radar interferometry using wavelet transforms[J]. Geophysical Research Letters, 2012,39(1):1-6.
[26]	文鸿雁. 基于小波理论的变形分析模型研究[D]. 武汉:武汉大学, 2004.
	[ Wen Hongyan. Research on deformation analysis mode based on wavelet transform theory[D]. Wuhan: Wuhan University, 2004. ]
[27]	陶珂, 朱建军. 多指标融合的小波去噪最佳分解尺度选择方法[J]. 测绘学报, 2012,41(5):121-127.
	[ Tao Ke, Zhu Jianjun. A Hybrid Indicator for Determining the Best Decomposition Scale of Wavelet Denoising[J]. Acta Geodaetica et Cartographica Sinica, 2012,41(5):121-127. ]
[28]	Goswami J C, Chan A K. Fundamentals of wavelets: Theory, algorithms, and applications[M]. Hoboken, NJ: Wiley-Interscience, 1999.
