面向多分辨率DEM的河网相似性测度与分析

doi:10.12082/dqxxkx.2021.200234

地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (4): 576-583.doi: 10.12082/dqxxkx.2021.200234

• 地球信息科学理论与方法 • 上一篇下一篇

面向多分辨率DEM的河网相似性测度与分析

江岭¹^,²^,³^,^*(), 高辰¹, 韩枭¹, 孙亚婕¹, 赵明伟¹^,²^,³, 杨灿灿¹^,²^,³

1.滁州学院地理信息与旅游学院,滁州 239000
2.实景地理环境安徽省重点实验室,滁州 239000
3.安徽省地理信息智能感知与服务工程实验室,滁州 239000

收稿日期:2020-05-12 修回日期:2020-07-21 出版日期:2021-04-25 发布日期:2021-06-25
作者简介:江岭（1987— ）,男,安徽寿县人,博士,副教授,主要从事地形建模及城市雨洪模拟研究。E-mail: jiangling_xs@163.com
基金资助:
中国博士后科学基金项目(2018M642146);安徽省自然科学基金项目(1808085QD103);江苏省博士后科研资助计划项目(2018K144C);安徽省高校优秀青年骨干人才国外访学研修项目(gxgwfx2018078);国家级大学生创新创业训练计划项目(201910377055)

Quantifying Spatial Similarities of Dainage Networks on Multi-Resolution DEMs

JIANG Ling¹^,²^,³^,^*(), GAO Chen¹, HAN Xiao¹, SUN Yajie¹, ZHAO Mingwei¹^,²^,³, YANG Cancan¹^,²^,³

1. School of Geographical Information and Tourism, Chuzhou University, Chuzhou 239000, China
2. AnHui Province Key Laboratory of Physical Geographic Environment, Chuzhou 239000, China
3. Anhui Engineering Laboratory of Geo-information Smart Sensing and Services, Chuzhou 239000, China

Received:2020-05-12 Revised:2020-07-21 Online:2021-04-25 Published:2021-06-25
Contact: JIANG Ling
Supported by:
China Postdoctoral Science Foundation(2018M642146);Program of Provincial Natural Science Foundation of Anhui(1808085QD103);Jiangsu Planned Projects for Postdoctoral Research Funds(2018K144C);Anhui Overseas Visiting Projects for Outstanding Young Talents in Colleges and Universities(gxgwfx2018078);National Undergraduate Training Program for Innovation and Entrepreneurship(201910377055)

摘要/Abstract

摘要：

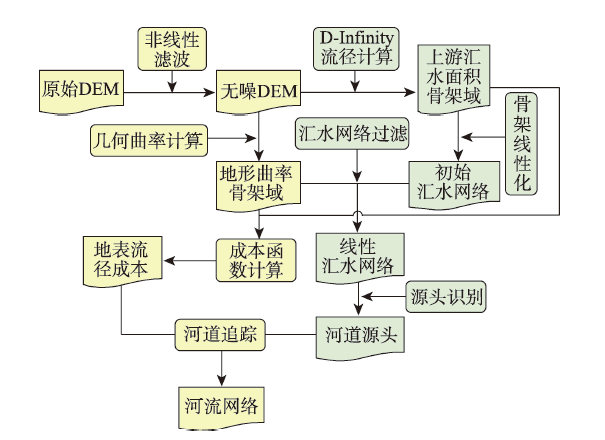

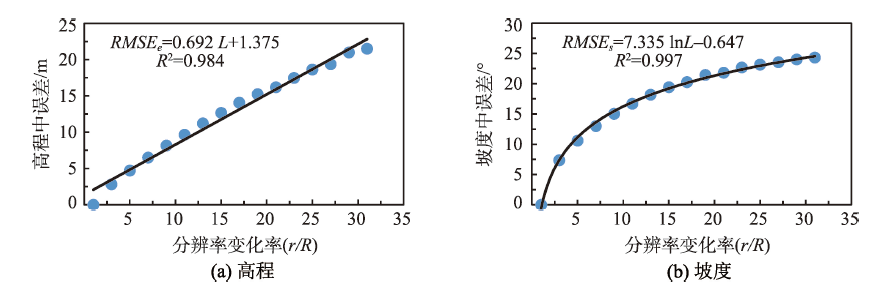

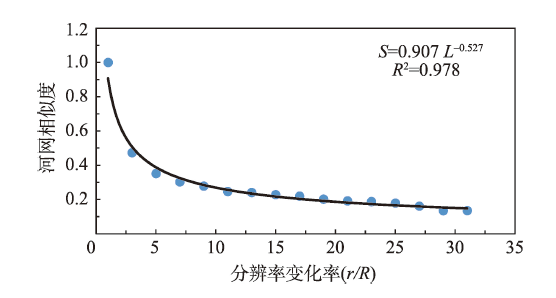

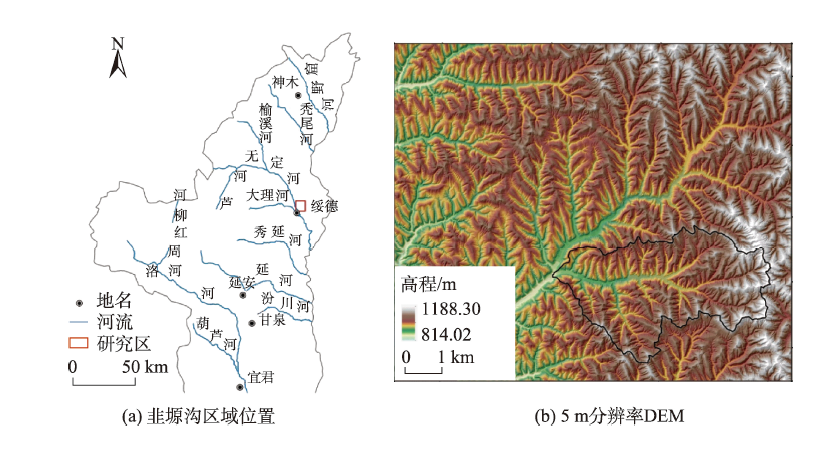

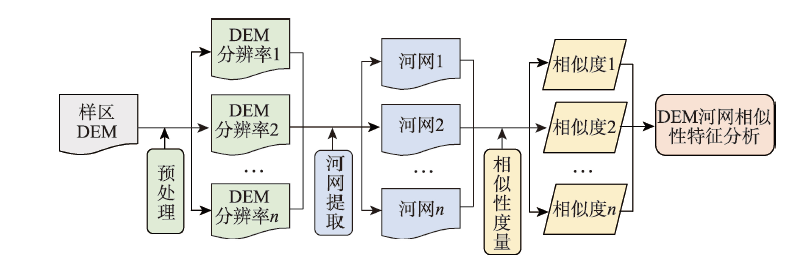

河网是地形结构的核心要素,能够有效地反映DEM对地表形态的刻画能力。实现不同分辨率条件下DEM河网相似性测度对DEM地形综合、DEM质量评估及DEM不确定性分析等研究具有重要意义。基于此,本文以黄土高原典型样区为研究区,基于5 m高精度DEM建立的多分辨率DEM数据集,构建了地形特征自适应的DEM河网自动提取方法,建立了综合拓扑关系、方位关系、距离关系及属性特征四维信息的河网相似性度量模型,并分析了河网相似性变化特征及其与地形参数的相关性。实验结果显示,河网自动提取方法的制图精度和用户精度均在90%以上,总体精度优于Passalacqua等提出的GeoNet方法,能够有效实现不同分辨率下河网较高精度提取;河网相似性度能综合反映河网空间分布特征的差异性,河网相似度与分辨率变化率之间的幂函数关系R²达0.978,且河网相似度与高程、坡度中误差分别表现为幂函数和对数函数关系,后者对数关系显著性优于前者幂函数关系。研究表明,在以河网作为DEM构建重要数据源的背景下,本文的研究成果可为DEM质量及其应用适宜性的定量评价提供基础。

关键词: DEM, 相似度, 河网, 分辨率, 地形结构, 形态特征, 误差, 坡度

Abstract:

Drainage network is a key element of topographic structure and can be applied to assess the DEM quality effectively. As the spatial resolution of DEM decrease, the topographic information represented by DEM will be more generalized. The generalized drainage networks can thus be derived from low-resolution DEM. The spatial variation of drainage networks at different DEM resolutions can be quantified by the metric of spatial similarity. This metric has been widely used in terrain generalization, quality assessment, and uncertainty analysis. Therefore, this paper aims to quantify the spatial similarity of drainage networks derived from multi-resolution DEM. Firstly, this paper presents an adaptive method to derive drainage networks from DEM at different resolutions. This adaptive approach combines the non-linear filtering of elevation data, a statistical analysis of geometric curvature, and geodesic minimization principles to automatically extract drainage networks. Secondly, the calculation of spatial similarity of drainage networks uses four indicators including topological relation, direction relation, distance relation, and attribute variation. The weighted sum is applied to sum up the four indicators, and the corresponding weights are 0.22, 0.25, 0.31 and 0.22, respectively. Finally, based on the spatial similarity of different drainage networks, the varying patterns and relationships with the errors of topographic parameters (e.g., elevation and slope) are analyzed via a sample area located in the hilly and gully regions in Loess Plateau. The results show that: (1) the adaptive method for extracting drainage networks can effectively capture the morphological features represented by DEM at different resolutions and automatically generate drainage networks with high accuracy; (2) there is a significant relationship between the spatial similarity of drainage networks and the corresponding resolution change, which can be fitted by a power function; and (3) the relationship of spatial similarity with the root mean square error of elevation and slope can be fitted by the power and logarithmic functions, respectively. The relationship with the latter is more significant than the former.

Key words: DEM, spatial similarity degree, drainage network, resolution, topographic structure, morphological character, error, slope

江岭, 高辰, 韩枭, 孙亚婕, 赵明伟, 杨灿灿. 面向多分辨率DEM的河网相似性测度与分析[J]. 地球信息科学学报, 2021, 23(4): 576-583.DOI:10.12082/dqxxkx.2021.200234

JIANG Ling, GAO Chen, HAN Xiao, SUN Yajie, ZHAO Mingwei, YANG Cancan. Quantifying Spatial Similarities of Dainage Networks on Multi-Resolution DEMs[J]. Journal of Geo-information Science, 2021, 23(4): 576-583.DOI:10.12082/dqxxkx.2021.200234

图/表 11

图1

图2

图3

图4

表1

图5

表2

图6

表3

图7

表4

参考文献 28

[1]	汤国安. 我国数字高程模型与数字地形分析研究进展[J]. 地理学报, 2014,69(9):1305-1325.
	[ Tang G A. Progress of DEM and digital terrain analysis in China[J]. Acta Geographica Sinica, 2014,69(9):1305-1325. ]
[2]	Chen Y M, Zhou Q M. A scale-adaptive DEM for multi-scale terrain analysis[J]. International Journal of Geographical Information Science, 2013,27(7):1329-1348.
[3]	江岭, 王春, 赵明伟, 等. 面向数据传输的地理栅格数据快速压缩方法[J]. 地球信息科学学报, 2016,18(7):894-901.
	[ Jiang L, Wang C, Zhao M W, et al. A fast compression approach of geo-raster data for network transmission[J]. Journal of Geo-information Science, 2016,18(7):894-901. ]
[4]	O'Callaghan J F, Mark D M. The extraction of drainage networks from digital elevation data[J]. Computer Vision, Graphics, and Image Processing, 1984,28(3):323-344.
[5]	刘学军, 卢华兴, 卞璐, 等. 基于DEM的河网提取算法的比较[J]. 水利学报, 2006,37(9):1134-1141.
	[ Liu X J, Lu H X, Bian L, et al. Comparison of algorithms for extracting drainage network from grid-based digital elevation model[J]. Journal of Hydraulic Engineering, 2006,37(9):1134-1141. ]
[6]	Du C, Ye A Z, Gan Y J, et al. Drainage network extraction from a high-resolution DEM using parallel programming in the. NET framework[J]. Journal of Hydrology, 2017,555:506-517.
[7]	孙爱立, 余钟波, 杨传国, 等. 我国水系提取阈值影响因素分析[J]. 水利学报, 2013,44(8):901-908.
	[ Sun A L, Yu Z B, Yang C G, et al. Impact factors of contribution area threshold in extracting drainage network for rivers in China[J]. Journal of Hydraulic Engineering, 2013,44(8):901-908. ]
[8]	梁启君, 梁军, 王少华, 等. 分形在数字水系累计汇水量阈值确定中的应用研究[J]. 地理与地理信息科学, 2013,29(1):111-112.
	[ Liang Q J, Liang J, Wang S H, et al. Application of fractal in determining contributing area threshold for drainage network extraction[J]. Geography and Geo-information Science, 2013,29(1):111-112. ]
[9]	罗大游, 温兴平, 沈攀, 等. 基于DEM的水系提取及集水阈值确定方法研究[J]. 水土保持通报, 2017,37(4):191-193.
	[ Luo D Y, Wen X P, Shen P, et al. Information extraction of river networks and determination of drainage area threshold using DEM data[J]. Bulletin of Soil and Water Conservation, 2017,37(4):191-193. ]
[10]	李照会, 郭良, 刘荣华, 等. 基于DEM数字河网提取时集水面积阈值与河源密度关系的研究[J]. 地球信息科学学报, 2018,20(9):1244-1251.
	[ Li Z H, Guo L, Liu R H, et al. The relationship between the threshold of catchment area for extraction of digital river network from DEM and the river source density[J]. Journal of Geo-information Science, 2018,20(9):1244-1251. ]
[11]	Pelletier J D. A robust, two-parameter method for the extraction of drainage networks from high-resolution Digital Elevation Models (DEMs): Evaluation using synthetic and real-world DEMs[J]. Water Resources Research, 2013,49(1):75-89.
[12]	Passalacqua P, Do Trung T, Foufoula-Georgiou E, et al. A geometric framework for channel network extraction from lidar: nonlinear diffusion and geodesic paths[J]. Journal of Geophysical Research: Earth Surface, 2010,115:F01002.
[13]	Sangireddy H, Stark C P, Kladzyk A, et al. GeoNet: An open source software for the automatic and objective extraction of channel heads, channel network, and channel morphology from high resolution topography data[J]. Environmental Modelling & Software, 2016,83:58-73.
[14]	Passalacqua P, Foufoula-Georgiou E. Comment on “Objective extraction of channel heads from high-resolution topographic data” by Fiona J, Clubb ,et al[J]. Water Resources Research, 2015,51(2):1372-1376.
[15]	承继成, 江美球. 流域地貌数学模型[M]. 北京: 科学出版社, 1986.
	[ Ji C C, Jiang M Q. Mathematical model of watershed geomorphology[M]. Beijing: Science Press, 1986. ]
[16]	张青年. 顾及密度差异的河系简化[J]. 测绘学报, 2006,35(2):191-196.
	[ Zhang Q N. Generalization of drainage network with density differences[J]. Acta Geodaetica et Cartographica Sinica, 2006,35(2):191-196. ]
[17]	艾廷华, 刘耀林, 黄亚锋. 河网汇水区域的层次化剖分与地图综合[J]. 测绘学报, 2007,36(2):231-236, 243.
	[ Ai T H, Liu Y L, Huang Y F. The hierarchical watershed partitioning and generalization of river network[J]. Acta Geodaetica et Cartographica Sinica, 2007,36(2):231-236, 243. ]
[18]	Ariza-Villaverde A B, Jiménez-Hornero F J, de Ravé E G. Multifractal analysis applied to the study of the accuracy of DEM-based stream derivation[J]. Geomorphology, 2013,197:85-95.
[19]	Ariza-Villaverde A B, Jiménez-Hornero F J, De Ravé E G. Influence of DEM resolution on drainage network extraction: A multifractal analysis[J]. Geomorphology, 2015,241:243-254.
[20]	Xiang J, Xu Y, Yuan J, et al. Multifractal analysis of river networks in an urban catchment on the taihu plain, China[J]. Water, 2019,11(11):2283.
[21]	Li B N, Fonseca F. TDD: A comprehensive model for qualitative spatial similarity assessment[J]. Spatial Cognition & Computation, 2006,6(1):31-62.
[22]	Yan H W. Fundamental theories of spatial similarity relations in multi-scale map spaces[J]. Chinese Geographical Science, 2010,20(1):18-22.
[23]	Yan H W, Shen Y Z, Li J. Approach to calculating spatial similarity degrees of the same river basin networks on multi-scale maps[J]. Geocarto International, 2016,31(7):765-782.
[24]	Chehreghan A, Ali Abbaspour R. An assessment of spatial similarity degree between polylines on multi-scale, multi-source maps[J]. Geocarto International, 2017,32(5):471-487.
[25]	Panholzer H, Prokop A. Wedge-filtering of geomorphologic terrestrial laser scan data[J]. Sensors, 2013,13(2):2579-2594. doi: 10.3390/s130202579 pmid: 23429548
[26]	Höhle J, Höhle M. Accuracy assessment of digital elevation models by means of robust statistical methods[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2009,64(4):398-406.
[27]	Ma B, Liu G, Ma F, et al. Effects of crop-slope interaction on slope runoff and erosion in the Loess Plateau[J]. Acta Agriculturae Scandinavica, Section B-Soil & Plant Science, 2019,69(1):12-25.
[28]	Ribolini A, Spagnolo M. Drainage network geometry versus tectonics in the Argentera Massif (French-Italian Alps)[J]. Geomorphology, 2008,93:253-266.

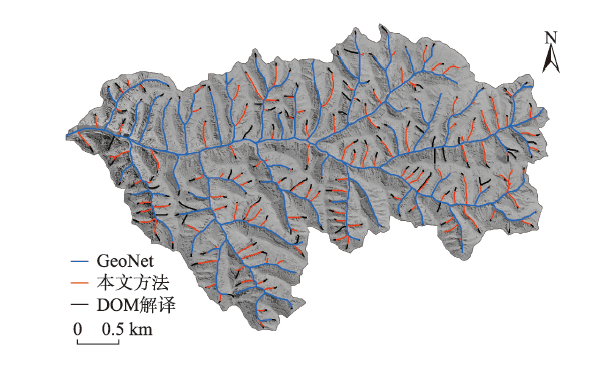

	河道数量/条	合理数量/个	漏提数量/个	制图精度/%	用户精度/%
本文方法	193	180	18	90.91	93.26
GeoNet	64	61	137	30.81	95.31

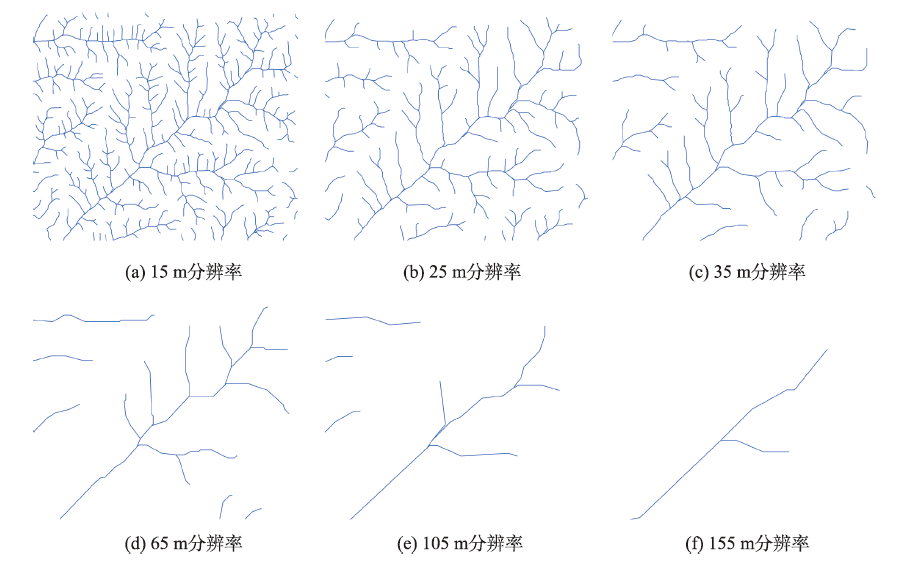

分辨率变化率（对比分辨率）	拓扑关系相似度	方位关系相似度	距离关系相似度	属性特征相似度	河网相似度
3（15 m）	0.220	0.980	0.438	0.201	0.473
5（25 m）	0.076	0.963	0.255	0.069	0.351
7（35 m）	0.039	0.928	0.179	0.032	0.303
13（65 m）	0.011	0.838	0.088	0.007	0.241
21（105 m）	0.006	0.692	0.054	0.003	0.192
31（155 m）	0.002	0.508	0.027	0.001	0.136

分辨率变化率（对比分辨率）	实算相似度	拟合相似度	拟合误差
2（10 m）	0.614	0.630	0.016
10（50 m）	0.262	0.269	0.006

分辨率变化率（对比分辨率）	河网相似度	高程中误差/m			坡度中误差/°
分辨率变化率（对比分辨率）	河网相似度	实算值	拟合值	拟合误差	实算值	拟合值	拟合误差
2（10 m）	0.614	1.726	2.880	1.154	5.119	5.051	-0.068
10（50 m）	0.262	8.811	8.701	-0.109	15.873	16.660	0.787
