面向不同环境背景的Landsat影像水体提取方法适用性研究

doi:10.12082/dqxxkx.2021.200312

地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (4): 710-722.doi: 10.12082/dqxxkx.2021.200312

面向不同环境背景的Landsat影像水体提取方法适用性研究

乔丹玉¹^,²(), 郑进辉³, 鲁晗¹^,²^,^*(), 邓磊¹^,²^,³

1.首都师范大学资源环境与旅游学院,北京 100048
2.首都师范大学三维信息获取与应用教育部重点实验室,北京 100048
3.首都师范大学地球空间信息科学与技术国际化示范学院,北京 100048

收稿日期:2020-06-16 修回日期:2020-10-01 出版日期:2021-04-25 发布日期:2021-06-25
通讯作者: 鲁晗
作者简介:乔丹玉（1995— ）,女,山东威海人,硕士生,研究方向为遥感图像处理与应用。E-mail: qiaodanyu_js@163.com
基金资助:
科技创新服务能力建设-基本科研业务费(科研类)(20530290059)

Application of Water Extraction Methods from Landsat Imagery for Different Environmental Background

QIAO Danyu¹^,²(), ZHENG Jinhui³, LU Han¹^,²^,^*(), DENG Lei¹^,²^,³

1. College of Resource Environment and Tourism, Capital Normal University, Beijing 100048, China
2. Key Laboratory of 3D Information Acquisition and Application, Ministry of Education, Capital Normal University, Beijing 100048, China
3. College of Geospatial Information Science and Technology, Capital Normal University, Beijing 100048, China

Received:2020-06-16 Revised:2020-10-01 Online:2021-04-25 Published:2021-06-25
Contact: LU Han
Supported by:
Capacity Building for Sci-Tech Innovation-Fundamental Scientific Research Funds(20530290059)

摘要/Abstract

摘要：

快速、准确地从卫星影像中提取水体信息一直是遥感应用的热点问题,在水资源管理、水环境监测和灾害应急管理等领域极具应用价值。虽然目前已有多种针对Landsat系列影像的水体提取方法,但由于地理位置、地形和水体形态等环境背景因素的影响,导致同种方法在不同的环境背景中呈现出不同的提取效果。本文针对人为影响严重、影像明暗对比强烈的城区（北京怀柔县城周边）以及地形起伏明显、水体细小的非城区（北京密云水库周边） 2种典型背景环境,选择波段设置略有差异的Landsat 5（2009年）和Landsat 8（2019年）卫星影像,对比了常用的指数法（NDWI和MNDWI）和分类法（最大似然法和支持向量机）在水体信息提取方面的优势和不足。结果表明：在城区背景中,SVM的准确性最高（总体精度>97%）;在非城区背景中,MNDWI与SVM的精度相当（总体精度>95%）,前者更适用于水体的快速提取,而后者提取的山间细碎河流更完整,且在Landsat 8中应用的效果更好。该研究为不同环境背景下水体提取方法的选择提供了参考。

关键词: 水体提取, 城区, 非城区, NDWI, MNDWI, ML, SVM, Landsat影像

Abstract:

Rapid and accurate extraction of water information from satellite images has been a hot issue in remote sensing applications and has important application value in water resources management, water environment monitoring, and disaster emergency management. Although there are a variety of water extraction methods for Landsat series images, the same method can generate different extraction results in different environmental backgrounds due to the influence of environmental background factors such as geographic location, topography, and water body shape. In order to study the applicability of water extraction methods under different environmental conditions, this article focuses on two typical environments: urban areas around Huairou County, Beijing with severe human influence and strong contrast between light and dark images, and non-urban areas around Beijing Miyun Reservoir with obvious topography and small water bodies. Water index method and classification method are tested based on water extraction and accuracy verification using Landsat 5 (2009) and Landsat 8 (2019) satellite images which have slightly different band settings. The water index method includes Normalized Difference Water Index (NDWI) and Modified Normalized Difference Water Index (MNDWI), while the classification method includes Support Vector Machine (SVM) and Maximum Likelihood (ML). Our results show that SVM has the highest accuracy with overall accuracy > 97% in the urban areas. By selecting training samples reasonably and delicately, the extracted spatial pattern of water results is close to the real water distribution. It applies well to multiple-scale and complex water bodies. In the non-urban areas, SVM can completely identify the fine rivers which are usually difficult to be identified by other methods. It is also suitable for judging the shape and flow direction of small rivers between mountains, though the shadow of the mountain could be easily mixed together by mistake. Due to the difference in sensor band settings, SVM has a better performance in Landsat 8 data. MNDWI can effectively reduce the error extraction rate, resulting in an overall accuracy > 95%. It is convenient to determine the threshold value of MNDWI through visual interpretation, which is more suitable for the rapid extraction of water in the non-urban areas. The environmental background may show different effects on water body extraction. The water index method and classification method have different advantages in different environmental backgrounds. The most suitable method should vary according to the actual situation. In scenarios with higher requirements for efficiency, we should focus on the use of index method, and design a new index which can make full use of the band information. In application scenarios where higher extraction accuracy is required, classification methods can improve the accuracy of water extraction. Moreover, we cannot ignore the differences between interpretation methods in data sources from different sensors. This study provides a reference for the selection of water extraction methods under different environmental backgrounds.

Key words: water extraction, urban, non-urban, NDWI, MNDWI, ML, SVM, Landsat

乔丹玉, 郑进辉, 鲁晗, 邓磊. 面向不同环境背景的Landsat影像水体提取方法适用性研究[J]. 地球信息科学学报, 2021, 23(4): 710-722.DOI:10.12082/dqxxkx.2021.200312

QIAO Danyu, ZHENG Jinhui, LU Han, DENG Lei. Application of Water Extraction Methods from Landsat Imagery for Different Environmental Background[J]. Journal of Geo-information Science, 2021, 23(4): 710-722.DOI:10.12082/dqxxkx.2021.200312

图/表 12

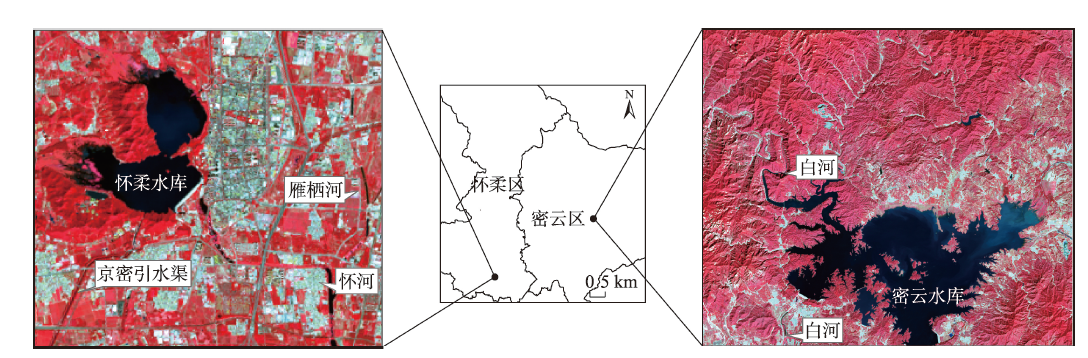

图1

表1

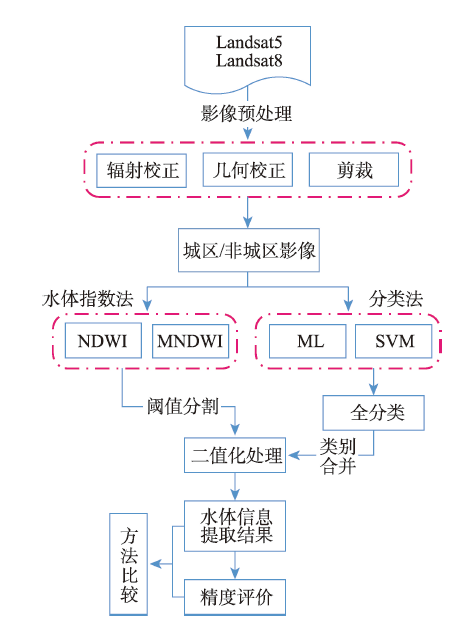

图2

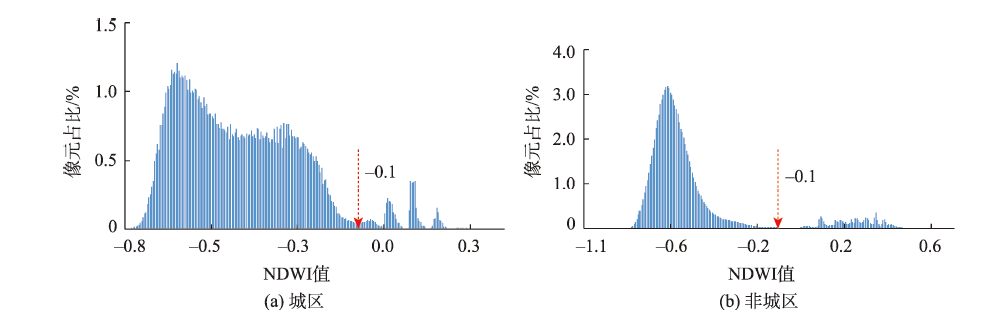

图3

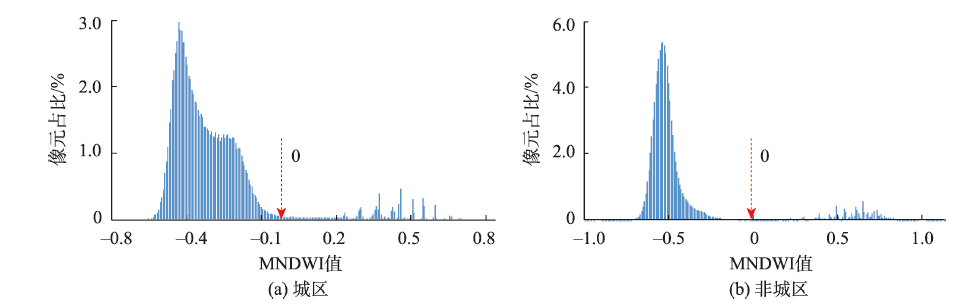

图4

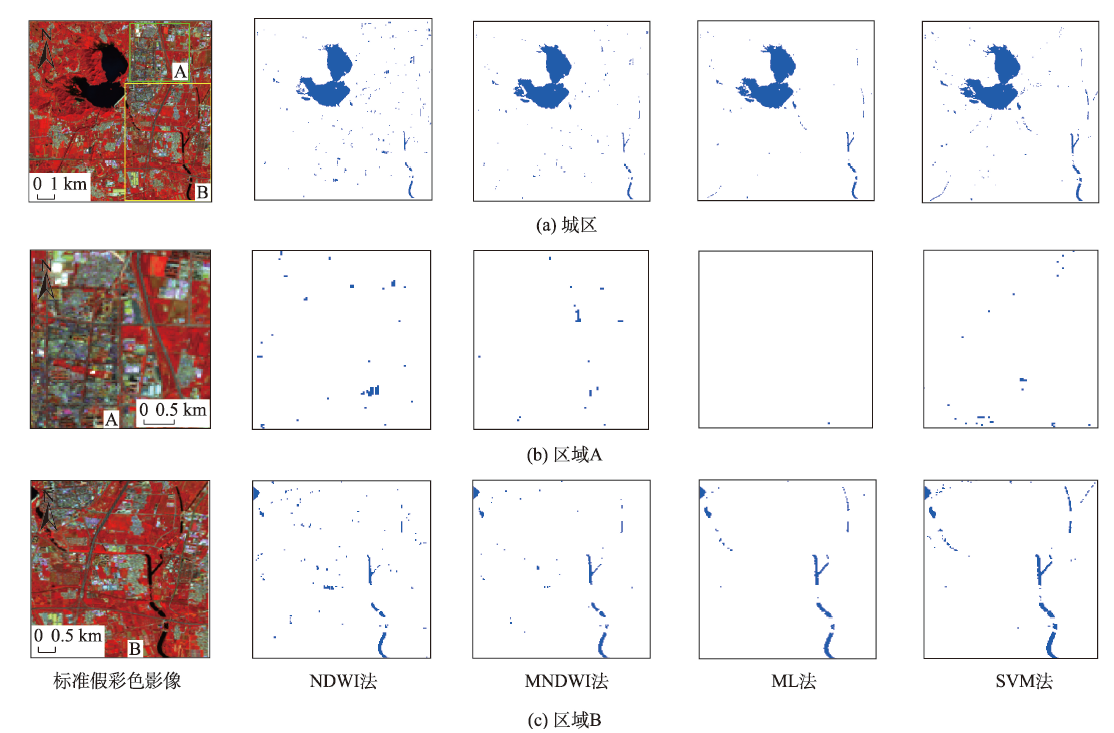

图5

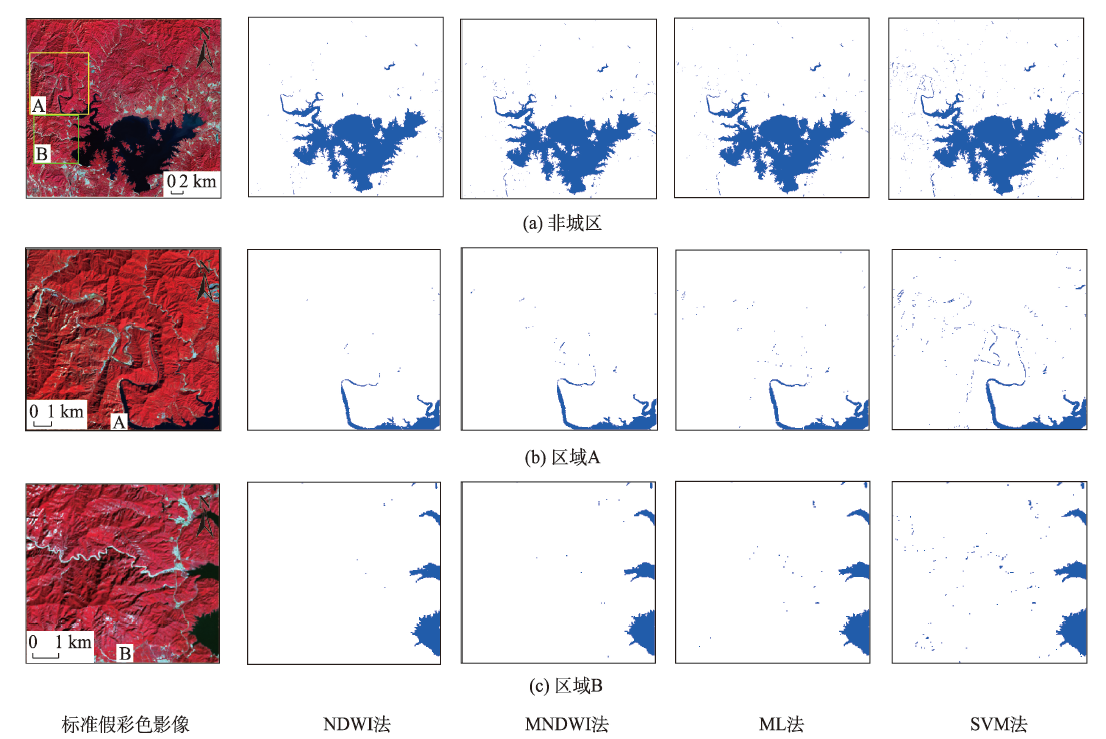

图6

表2

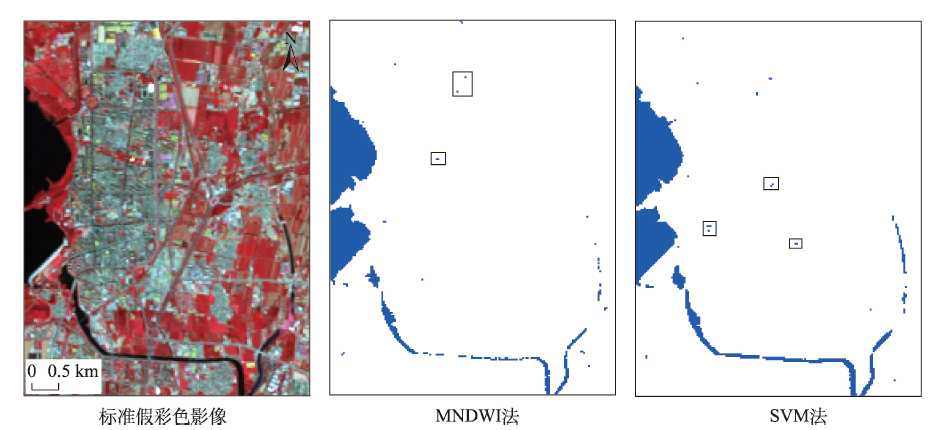

图7

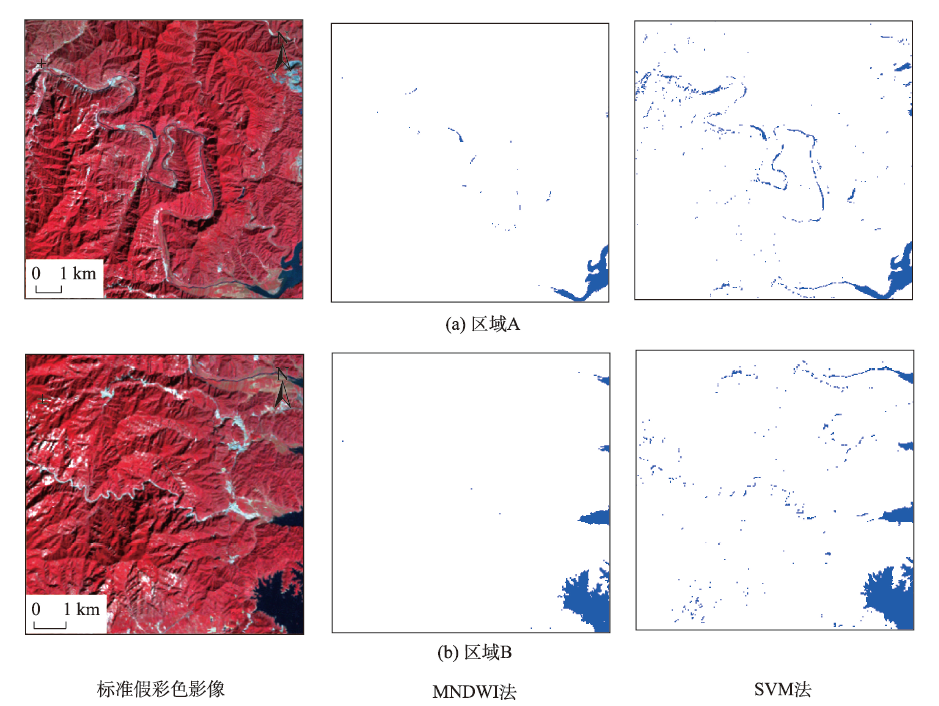

图8

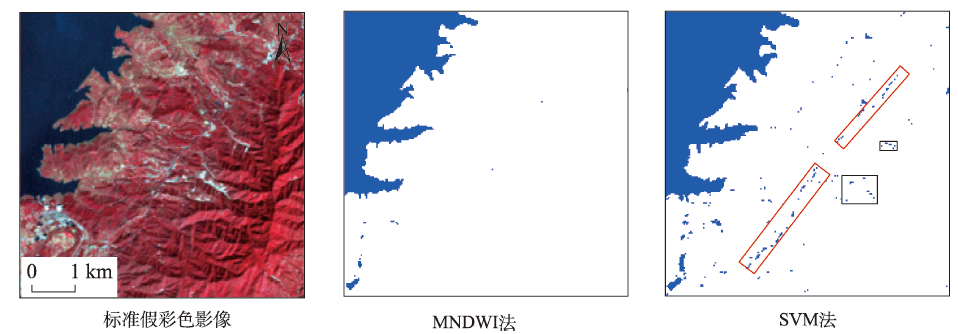

图9

表3

参考文献 39

[1]	Papa F, Prigent C, Rossow W B. Monitoring flood and discharge variations in the Large Siberian Rivers from a multi-satellite technique[J]. Surveys in Geophysics, 2008,29(4-5):297-317.
[2]	Chen Q, Zhang Y, Ekroos A, et al. The role of remote sensing technology in the EU water framework directive (WFD)[J]. Environmental Science & Policy, 2004,7(4):267-276.
[3]	刘桂林, 张落成, 刘剑, 等. 基于Landsat TM影像的水体信息提取[J]. 中国科学院大学学报, 2013,30(5):644-650.
	[ Liu G L, Zhang L C, Liu J, et al. Water body information extraction based on Landsat TM remote sensing imagery[J]. Journal of University of Chinese Academy of Sciences, 2013,30(5):644-650. ]
[4]	Jawak S D, Luis A J. A rapid extraction of water body features from Antarctic Coastal Oasis using very high-resolution satellite remote sensing data[J]. Aquatic Procedia, 2015(4):125-132.
[5]	McFEETERS S K. The use of the Normalized Difference Water Index (NDWI) in the delineation of open water features[J]. International Journal of Remote Sensing, 1996,17(7):1425-1432.
[6]	徐涵秋. 利用改进的归一化差异水体指数(MNDWI)提取水体信息的研究[J]. 遥感学报, 2005,9(5):589-595.
	[ Xu H Q. A study on information extraction of water body with the Modified Normalized Difference Water Index (MNDWI)[J]. Journal of Remote Sensing, 2005,9(5):589-595. ]
[7]	段秋亚, 孟令奎, 樊志伟, 等. GF-1卫星影像水体信息提取方法的适用性研究[J]. 国土资源遥感, 2015,27(4):79-84.
	[ Duan Q Y, Meng L K, Fan Z W, et al. Applicability of the water information extraction method based on GF-1 image[J]. Remote Sensing for Land and Resource, 2015,27(4):79-84. ]
[8]	龚文峰, 王鹏, 王双宇, 等. 基于GF-2卫星遥感影像的界河水体信息提取方法[J]. 黑龙江大学工程学报, 2018,9(4):1-7.
	[ Gong W F, Wang P, Wang S Y, et al. Methods of water body extraction in boundary river based on GF-2 satellite remote sensing image of high resolution[J]. Journal of Engineering of Heilongjiang University, 2018,9(4):1-7. ]
[9]	曹萌萌, 毛克彪, 严毅博, 等. 基于MODIS数据的洞庭湖水体和水华时空变化研究[J]. 中国环境科学, 2019,39(6):2523-2531.
	[ Cao M M, Mao K B, Yan Y B, et al. Change of temporal and spatial characteristic of water body and algal bloom area in Dongting Lake based on MODIS data[J]. China Environmental Science, 2019,39(6):2523-2531. ]
[10]	王航, 秦奋. 遥感影像水体提取研究综述[J]. 测绘科学, 2018,43(5):23-32.
	[ Wang H, Qin F. Summary of the research on water body extraction and application from remote sensing image[J]. Science of Surveying and Mapping, 2018,43(5):23-32. ]
[11]	Feyisa G L, Meilby H, Fensholt R, et al. Automated Water Extraction Index: A new technique for surface water mapping using Landsat imagery[J]. Remote Sensing of Environment, 2014,140:23-35.
[12]	Sarp G, Ozcelik M. Water body extraction and change detection using time series: A case study of Lake Burdur, Turkey[J]. Journal of Taibah University for Science, 2018,11(3):381-391.
[13]	段号然. 山东微山湖湖面面积时空变化及影响因素[D]. 太原:山西农业大学, 2019.
	[ Duan H R. The spatial and temporal Dynamic changes and driving forces in the surface area of Weishan Lake of Shandong province[J]. Taiyuan: Shanxi Agricultural University, 2019. ]
[14]	王瑾杰, 丁建丽, 张成, 等. 基于GF-1卫星影像的改进SWI水体提取方法[J]. 国土资源遥感, 2017,29(1):29-35.
	[ Wang J J, Ding J L, Zhang C, et al. Method of water information extraction by improved SWI based on GF-1 satellite image[J]. Remote Sensing for Land and Resources, 2017,29(1):29-35. ]
[15]	郑逢斌, 李坡涛, 韩林果. 基于高分二号影像的城区水体提取方法研究[J]. 河南大学学报(自然科学版), 2020,50(2):213-220.
	[ Zheng F B, Li P T, Han L G. Study on urban water extraction based on GF-2 image[J]. Journal of Henan University (Natural Science), 2020,50(2):213-220. ]
[16]	陈前, 郑利娟, 李小娟, 等. 基于深度学习的高分遥感影像水体提取模型研究[J]. 地理与地理信息科学, 2019,35(4):43-49.
	[ Chen Q, Zheng L J, Li X J, et al. Water body extraction from high-resolution satellite remote sensing images based on deep learning[J]. Geography and Geo-information Science, 2019,35(4):43-49. ]
[17]	Chen Y, Tang L, Kan Z, et al. A novel Water Body Extraction Neural Network (WBE-NN) for optical high-resolution multispectral imagery[J]. Journal of Hydrology, 2020,588:125092.
[18]	洪亮, 黄雅君, 杨昆, 等. 复杂环境下高分二号遥感影像的城市地表水体提取[J]. 遥感学报, 2019,23(5):871-882.
	[ Hong L, Huang Y J, Yang K, et al. Study on urban surface water extraction from heterogeneous environments using GF-2 remotely sensed images[J]. Journal of Remote Sensing, 2019,23(5):871-882. ]
[19]	聂欣然, 刘荣, 余健, 等. 基于不同地形的TM影像水体提取方法比较和分析[J]. 江西科学, 2017,35(3):360-366.
	[ Nie X R, Liu R, Yu J, et al. Comparison and analysis of water extraction methods of TM images based on different terrain[J]. Jiangxi Science, 2017,35(3):360-366. ]
[20]	毕海芸, 王思远, 曾江源, 等. 基于TM影像的几种常用水体提取方法的比较和分析[J]. 遥感信息, 2012,27(5):77-82.
	[ Bi H Y, Wang S Y, Zeng J Y, et al. Comparison and analysis of several common water extraction methods based on TM image[J]. Remote Sensing Information, 2010,27(5):77-82. ]
[21]	Jiang W, He G, Long T, et al. Multilayer perceptron neural network for surface water extraction in Landsat 8 OLI satellite images[J]. Remote Sensing, 2018,10(5):755.
[22]	Acharya T D, Subedi A, Lee D H. Evaluation of machine learning algorithms for surface water extraction in a Landsat 8 scene of Nepal[J]. Sensors, 2019,19(12):2769.
[23]	许静, 陈兴伟, 陈文惠. 基于波谱特征的水体信息提取方法研究[C]. 福建省第十二届水利水电青年学术交流会, 中国福建福州, 2008:20-27.
	[ Xu J, Chen X W, Chen W H. Research on water body information extraction method based on spectrum features[C]. The 12^th Water Conservancy and Hydropower Youth Academic Exchange Conference in Fujian Province, Fuzhou, Fujian, China, 2008: 20-27. ]
[24]	陈正超, 张兵, 张浩, 等. 北京一号小卫星绝对辐射定标[C]// 第八届光谱技术与应用研讨会暨交叉学科论坛, 2010: 8-13.
	[ Chen Z C, Zhang B, Zhang H, et al. Absolute radiometric calibration of Beijing-1 Microsatellite Sensors[C]// The 8^th Imaging Spectroscopy Technology and Application Seminar and Interdisciplinary Forum , 2010: 8-13. ]
[25]	韩杰, 刘小玉, 李慧娜, 等. 基于6S和FLAASH的Landsat8卫星影像大气校正精度对比研究[J]. 许昌学院学报, 2019,38(5):49-53.
	[ Han J, Liu X Y, Li H N, et al. Comparison of atmospheric correction accuracy of Landsat8 satellite image based on 6S and FLAASH[J]. Journal of Xuchang University, 2019,38(5):49-53. ]
[26]	Jensen J R. 遥感数字影像处理导论(第3版)[M]. 北京: 科学出版社, 2010.
	[ Jensen J R. Introductory digital image processing a remote sensing perspective Third edition[M]. Beijing: Science Press, 2010. ]
[27]	王增林, 朱大明. 基于遥感影像的最大似然分类算法的探讨[J]. 河南科学, 2010,28(11):1458-1461.
	[ Wang Z L, Zhu D M. A study of maximum likelihood classification algorithm based on remote sensing image[J]. Henan Science, 2010,28(11):1458-1461. ]
[28]	Vapnik V N. An overview of statistical learning theory[J]. IEEE Trans Neural Netw, 1999,10(5):988-999. doi: 10.1109/72.788640 pmid: 18252602
[29]	Roli F, Fumera G. Support vector machines for remote sensing image classification[A]. Image & Signal Processing for Remote Sensing VI, 2001.
[30]	黄奇瑞. 基于粗糙集理论和SVM分类算法的遥感影像分类[D]. 昆明:昆明理工大学, 2012.
	[ Huang Q R. RS image classification based on Rough Sets Theory and SVM Classification algorithm[D]. Kunming: Kunming University of Science and Technology, 2012. ]
[31]	Li M, Zhou X, Wang X, et al. Genetic algorithm optimized SVM in object-based classification of quickbird imagery[A]. IEEE International Conference on Spatial Data Mining & Geographical Knowledge Services, 2011:348-352.
[32]	樊彦丽. 基于多特征的SVM高分辨率遥感影像分类研究[D]. 北京:中国地质大学(北京), 2018.
	[ Fan Y L. Study of high spatial resolution remote sensing image classification based on SVM with multi-features[D]. Beijing: China University of Geosciences (Beijing), 2018. ]
[33]	彭中, 阿如旱, 范田芳. 基于决策树分类算法的遥感影像土地利用分类[J]. 阴山学刊(自然科学版), 2018,32(2):99-103.
	[ Peng Z, A R H, Fan T F. Land classification of remote sensing image based on decision tree classification algorithm[J]. Yinshan Academic Journal (Natural Science Edition), 2018,32(2):99-103. ]
[34]	王大钊, 王思梦, 黄昌. Sentinel-2和Landsat8影像的四种常用水体指数地表水体提取对比[J]. 国土资源遥感, 2019,31(3):157-165.
	[ Wang D Z, Wang S M, Huang C. Comparison of Sentinel-2 imagery with Landsat8 imagery for surface water extraction using four common water indexes[J]. Remote Sensing for Land and Resources, 2019,31(3):157-165. ]
[35]	许文宁, 王鹏新, 韩萍, 等. Kappa系数在干旱预测模型精度评价中的应用——以关中平原的干旱预测为例[J]. 自然灾害学报, 2011,20(6):81-86.
	[ Xu W N, Wang P X, Han P, et al. Application of Kappa coefficient to accuracy assessments of drought forecasting model: A case study of Guanzhong Plain[J]. Journal of Natural Disasters, 2011,20(6):81-86. ]
[36]	孙琳, 宋爱红, 高文秀. 基于最大似然法和SVM法的太湖流域HJ-1B影像分类[J]. 测绘地理信息, 2012,37(3):30-33.
	[ Sun L, Song A H, Gao W X. Land use/cover classification in Taihu Lake basin with HJ-1B images: Comparing maximum likelihood classification and support vector machine methods[J]. Journal of Geomatics, 2012,37(3):30-33. ]
[37]	王展青, 王传廷, 张富铭, 等. 基于有效候选集的支持向量机样本选择方法[J]. 计算机工程与应用, 2008,44(23):214-216.
	[ Wang Z Q, Wang C Y, Zhang F M, et al. Sample selection for support vector machines based on effective candidate set[J]. Computer Engineering and Applications, 2008,44(23):214-216. ]
[38]	潘洪涛, 王轩, 王晓飞. 训练样本对农作物遥感分类的精度影响研究[J]. 红外与激光工程, 2017,46(S1):149-156.
	[ Pan H T, Wang X, Wang X F. Study on the effect of training samples on the accuracy of crop remote sensing classification[J]. Infrared and Laser Engineering, 2017,46(S1):149-156. ]
[39]	吴振彪, 沈德才, 黄练忠, 等. 训练样本数量对最大似然监督分类精度影响的研究[J]. 林业勘查设计, 2018(2):115-117.
	[ Wu Z B, Shen D C, Huang L Z, et al. Study on the effect of the number of training samples on the accuracy of maximum likelihood supervision classification[J]. Forest Investigation Design, 2018(2):115-117. ]

Landsat 5 TM		Lansat8 OLI		地面分辨率/m
波段	波长范围/μm	波段	波长范围/μm	地面分辨率/m
B1-Blue	0.45~0.52	B1-Costal aerosol	0.43~0.45	30
B2-Green	0.52~0.60	B2-Blue	0.45~0.51	30
B3-Red	0.63~0.69	B3-Green	0.53~0.59	30
B4-NIR	0.76~0.90	B4-Red	0.64~0.67	30
B5-SWIR	1.55~1.75	B5-NIR	0.85~0.88	30
B6-LWIR	10.40~12.5	B6-SWIR1	1.57~1.65	120/30
B7-SWIR	2.08~2.35	B7-SWIR2	2.11~2.29	30

方法	OA/%		错提率/%		漏提率/%		Kappa系数
方法	城区	非城区	城区	非城区	城区	非城区	城区	非城区
NDWI	76.77	90.05	38.62	1.34	32.56	18.67	0.4724	0.8012
MNDWI	88.35	95.06	17.58	1.37	20.93	8.54	0.7237	0.9013
ML	94.09	94.82	1.40	0.87	18.02	9.49	0.8545	0.8966
SVM	97.49	96.82	6.11	4.88	1.74	1.27	0.9419	0.9363

方法	OA/%		错提率/%		漏提率/%		Kappa系数
方法	城区	非城区	城区	非城区	城区	非城区	城区	非城区
NDWI	75.81	90.04	38.92	4.80	40.70	15.19	0.4281	0.8012
MNDWI	89.61	95.06	10.42	0.17	25.00	9.49	0.7447	0.9014
ML	96.77	94.57	1.88	2.68	8.72	8.07	0.9229	0.8916
SVM	98.21	95.79	5.49	7.60	0.00	0.00	0.9586	0.9156
