动态权重约束下的农村机耕路提取方法

doi:10.12082/dqxxkx.2021.200709

地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (5): 773-784.doi: 10.12082/dqxxkx.2021.200709

• 地球信息科学理论与方法 • 上一篇下一篇

动态权重约束下的农村机耕路提取方法

戴激光¹^,²(), 王晓桐¹^,²^,^*(), 智新宇¹^,², 马榕辰¹^,², 张依蕾¹^,²

1.辽宁工程技术大学测绘与地理科学学院,阜新 123000
2.辽宁工程技术大学交通时空大数据研究中心,阜新,123000

收稿日期:2020-11-23 修回日期:2021-01-26 出版日期:2021-05-25 发布日期:2021-07-25
通讯作者: *王晓桐（1995— ）,女,辽宁营口人,硕士生,主要研究方向为道路信息提取。E-mail:wgxiaotg@163.com
作者简介:戴激光（1978— ）,男,黑龙江双鸭山人,博士,副教授,主要研究方向为遥感影像信息提取。E-mail:daijg03@163.com
基金资助:
国家自然科学基金项目(42071428);国家自然科学基金项目(42071343);辽宁省教育厅服务地方项目(LJ2019FL008);自然资源部测绘科学与地球空间信息技术重点实验室经费资助项目(2020-3-5)

An Extraction Method of Rural Mechanically Cultivated Road Under Dynamic Weight Constraint

DAI Jiguang¹^,²(), WANG Xiaotong¹^,²^,^*(), ZHI Xinyu¹^,², MA Rongchen¹^,², ZHANG Yilei¹^,²

1. School of Geomatics, Liaoning Technical University, Fuxin 123000, China
2. Institute of spatiotemporal transportation data, Liaoning Technical University, Fuxin 123000, China

Received:2020-11-23 Revised:2021-01-26 Online:2021-05-25 Published:2021-07-25
Contact: WANG Xiaotong
Supported by:
National Natural Science Foundation of China(42071428);National Natural Science Foundation of China(42071343);Liaoning Provincial Department of Education Project Services Local Projects(LJ2019FL008);Key Laboratory of Surveying and Mapping Science and Geospatial Information Technology of Ministry of Natural Resources(2020-3-5)

摘要/Abstract

摘要：

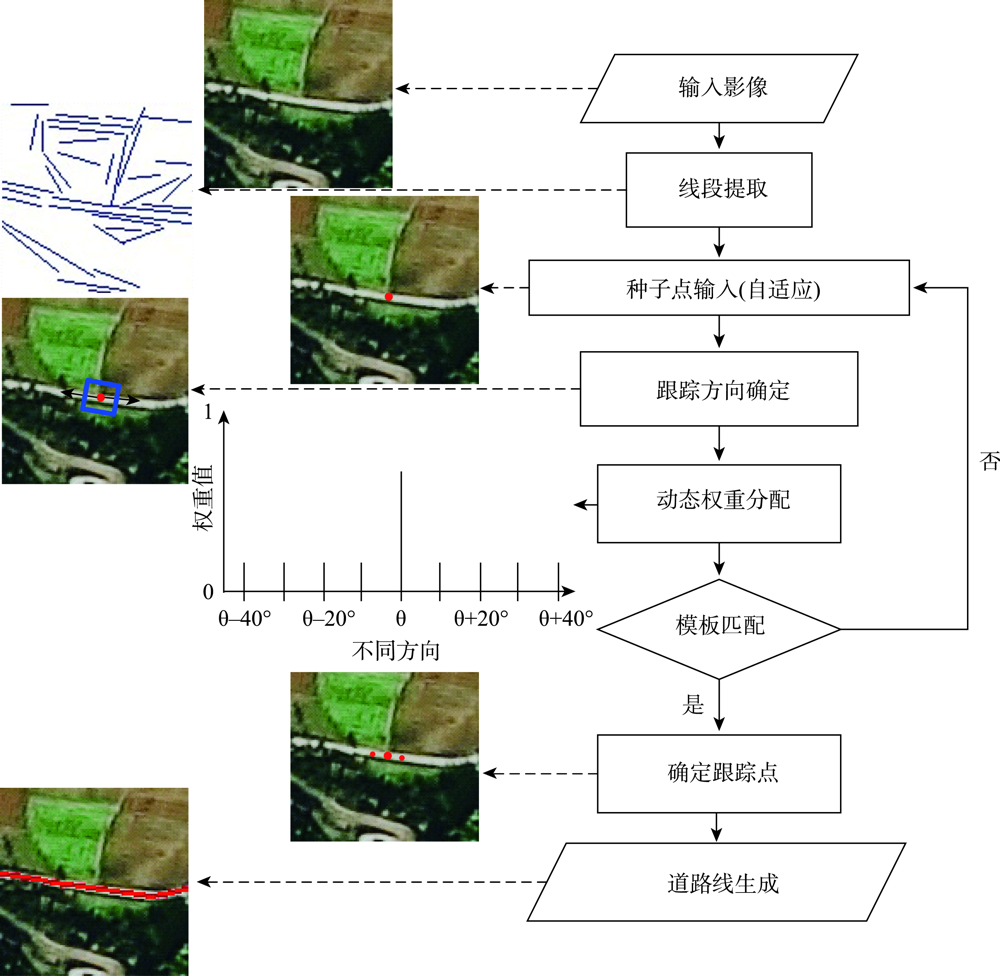

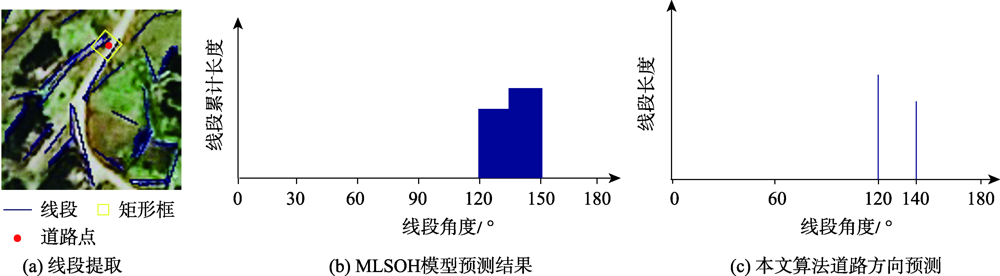

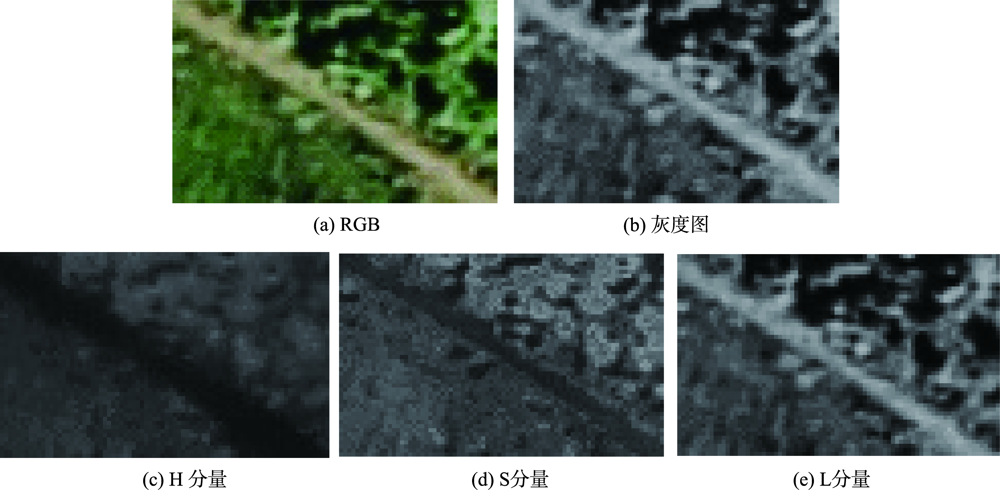

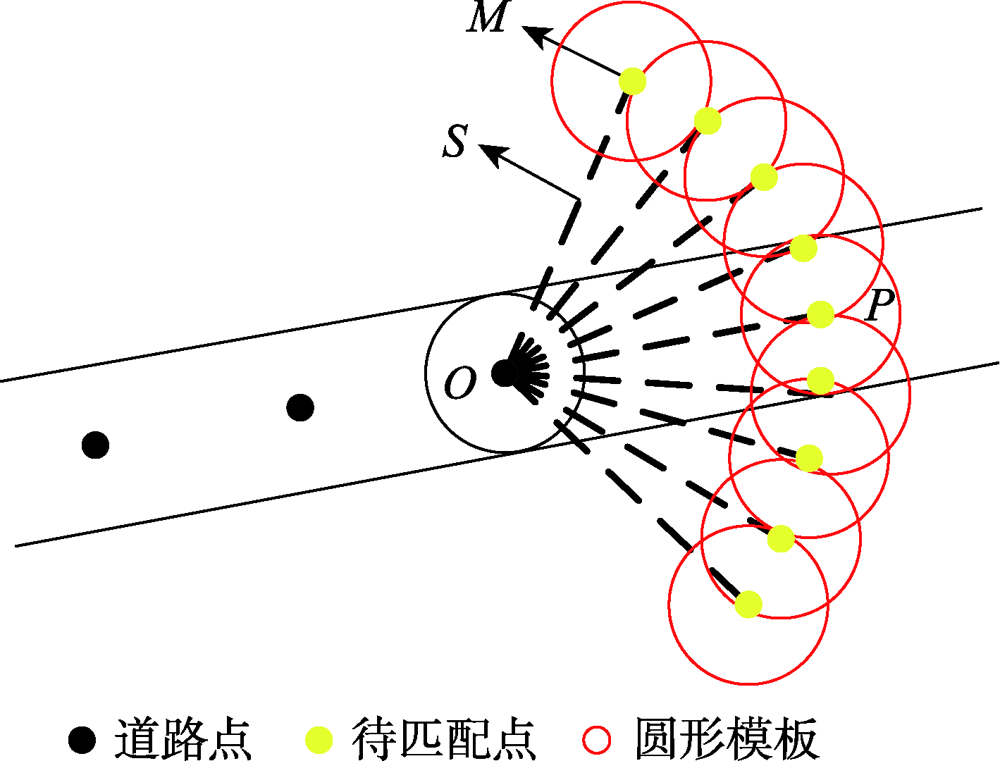

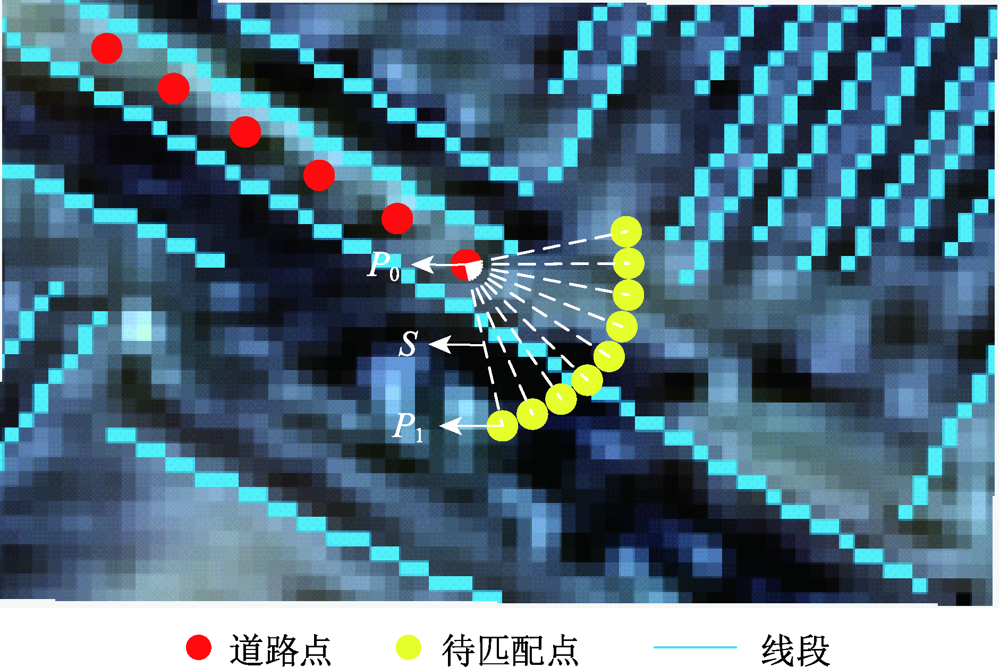

宽度窄、路面材质与农田差异性低是农村机耕路的特点,也是导致现有模板匹配方法自动化程度低的主要因素。本文针对这一问题,提出动态权重约束下的农村机耕路提取方法。该方法首先通过改进多尺度线段方向直方图（Multi-Scale Line Segment Orientation Histogram, MLSOH）模型,对机耕路局部道路方向进行预测,能够降低由于田埂干扰所导致的道路方向错误预测几率;其次为明确表征机耕路线性特征,对影像进行线段提取。并将局部区域线段长度作为权重动态分配的主要因子,对不同道路预测方向进行动态权重分配,以此解决路面宽度窄导致的匹配准确度下降问题。最后,将HSL色彩空间相似性分析模型与动态权重因子进行结合,构成HSL动态匹配模型,以此提高机耕路与农田之间的对比性。本文以3幅不同地区、不同类型的高分辨率影像为实验数据,与其他多个模板匹配算法进行对比分析,结果表明,本文方法道路提取的完整度、正确率以及质量均在95%以上。同时相对于其他方法,在保证机耕路提取精度的基础上,本文提出的方法具有自动化程度高的优点,并且本文的方法也适用于其他农村区域道路。

关键词: 机耕路, 权重分配, 动态约束, HSL色彩空间, 欧式距离, 模板匹配, 道路提取

Abstract:

The agricultural machinery field work has developed rapidly. There is an urgent need for more accurate Mechanically Cultivated Road (MCR) network data in agricultural production scheduling. Thus, it is necessary to obtain accurate and effective rural MCR information. However, compared with other types of roads, the narrow pavement width and the small difference between pavement material and farmland are the typical characteristics of rural MCR, which are the main factors leading to the low degree of automation in existing template matching methods. In order to solve the problems mentioned above and improve the accuracy of the MCR extraction, the solutions are proposed as follows: Firstly, by improving the Multi-Scale Line Segment Orientation Histogram (MLSOH) model, we can not only predict the local road direction of MCR, but also reduce the probability of wrong prediction of road direction due to the interference of ridges. Secondly, the line segments of the image are extracted, which can clearly characterize the linear characteristics of MCR. The length of line segments in the local area is taken as the main factor of the dynamic weight distribution. The dynamic weight distribution is carried out for different road prediction directions, so as to solve the problem of the decrease in matching accuracy due to the narrow width of the MCR. Finally, the similarity analysis model of HSL color space is combined with the dynamic weight factor to form the HSL dynamic matching model to improve the contrast between the MCR and the farmland, so as to increase the accuracy of the MCR extraction. In this paper, in order to verify the effectiveness of the proposed algorithm, three high-resolution remote sensing images of different regions and data types are acquired. Two GF-2 images, with a spatial resolution of 0.8 m, covered areas in Tongliao City, Inner Mongolia, and areas in Enshi City, Hubei Province, respectively. One Geo-Eye image, with a spatial resolution of 0.5 m, covered the town of Hobart, Australia. Through qualitative and quantitative analysis of the proposed and comparison algorithms, the conclusions are as follows: the road extraction integrity, accuracy, and quality of the proposed algorithm are all above 95 %. The proposed algorithm has the advantage of high automation while ensuring the extraction accuracy of MCR. It can also be extended to other rural roads.

Key words: Mechanically Cultivated Road (MCR), weight allocation, dynamic constraint, HSL color space, euclidean distance, template matching, road extraction

戴激光, 王晓桐, 智新宇, 马榕辰, 张依蕾. 动态权重约束下的农村机耕路提取方法[J]. 地球信息科学学报, 2021, 23(5): 773-784.DOI:10.12082/dqxxkx.2021.200709

DAI Jiguang, WANG Xiaotong, ZHI Xinyu, MA Rongchen, ZHANG Yilei. An Extraction Method of Rural Mechanically Cultivated Road Under Dynamic Weight Constraint[J]. Journal of Geo-information Science, 2021, 23(5): 773-784.DOI:10.12082/dqxxkx.2021.200709

图/表 12

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

表1

参考文献 28

[1]	戴激光, 王杨, 杜阳, 等. 光学遥感影像道路提取的方法综述[J]. 遥感学报, 2020,24(7):804-823.
	[ Dai J G, Wang Y, Du Y, et al. Development and prospect of road extraction method for optical remote sensing image[J]. Journal of Remote Sensing, 2020,24(7):804-823. ]
[2]	Saito S, Yamashita T, Aoki Y. Multiple object extraction from aerial imagery with convolutional neural networks[J]. Journal of Imaging Science and Technology, 2016,60(1):104021-104029. doi: 10.2352/J.ImagingSci.Technol.2016.60.1.010402
[3]	Cheng G L, Wang Y, Xu S B, et al. Automatic road detection and centerline extraction via cascaded end-to-end convolutional neural network[J]. IEEE Transactions on Geoscience and Remote Sensing, 2017,55(6):3322-3337. doi: 10.1109/TGRS.2017.2669341
[4]	Wei Y N, Wang Z L, Xu M. Road structure refined CNN for road extraction in aerial image[J]. IEEE Geoscience and Remote Sensing Letters, 2017,14(5):709-713. doi: 10.1109/LGRS.2017.2672734
[5]	Shelhamer E, Long J, Darrell T. Fully convolutional networks for semantic segmentation[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017,39(4):640-651. doi: 10.1109/TPAMI.2016.2572683 pmid: 27244717
[6]	Panboonyuen T, Jitkajornwanich K, Lawawirojwong S, et al. Road segmentation of remotely-sensed images using deep convolutional neural networks with landscape metrics and conditional random fields[J]. Remote Sensing, 2017,9(7):680. doi: 10.3390/rs9070680
[7]	Lin G S, Milan A, Shen C H, et al. RefineNet: multi-path refinement networks for high-resolution semantic segmentation[C]// 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). IEEE, 2017: 5168-5177.
[8]	He K M, Zhang X Y, Ren S Q, et al. Deep residual learning for image recognition[C]// 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). IEEE, 2016: 770-778.
[9]	Gao L, Song W D, Dai J G, et al. Road extraction from high-resolution remote sensing imagery using refined deep residual convolutional neural network[J]. Remote Sensing, 2019,11(5):552. doi: 10.3390/rs11050552
[10]	Ren S Q, He K M, Girshick R, et al. Faster R-CNN: towards real-time object detection with region proposal networks[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017,39(6):1137-1149. doi: 10.1109/TPAMI.2016.2577031
[11]	Teerapong P, Kulsawasd J, Slam L, et al. Road segmentation of remotely-sensed images using deep convolutional neural networks with landscape metrics and conditional random fields[J]. Remote Sensing, 2017,9(7):680-699. doi: 10.3390/rs9070680
[12]	Yin D D, Du S H, Wang S W, et al. A direction-guided ant colony optimization method for extraction of urban road information from very-high-resolution images[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2015,8(10):4785-4794. doi: 10.1109/JSTARS.2015.2477097
[13]	Herumurti D, Uchimura K, Koutaki G, et al. Urban road network extraction based on zebra crossing detection from a very high resolution RGB aerial image and DSM data[C]// 2013 International Conference on Signal-Image Technology & Internet-Based Systems. IEEE, 2013: 79-84.
[14]	Yi W B, Chen Y H, Tang H, et al. Experimental research on urban road extraction from high-resolution RS images using Probabilistic Topic Models[C]// 2010 IEEE International Geoscience and Remote Sensing Symposium. IEEE, 2010: 445-448.
[15]	Blaschke T, Hay G J, Kelly M, et al. Geographic object-based image analysis-towards a new paradigm[J]. ISPRS J Photogramm Remote Sens, 2014,87(100):180-191. doi: 10.1016/j.isprsjprs.2013.09.014
[16]	Maboudi M, Amini J, Hahn M, et al. Object-based road extraction from satellite images using ant colony optimization[J]. International Journal of Remote Sensing, 2017,38(1):179-198. doi: 10.1080/01431161.2016.1264026
[17]	林祥国, 张继贤, 李海涛, 等. 基于T型模板匹配半自动提取高分辨率遥感影像带状道路[J]. 武汉大学学报·信息科学版, 2009,34(3):293-296.
	[ Lin X G, Zhang J X, Li H T, et al. Semi-automatic extraction of ribbon road from high resolution remotely sensed imagery by a T-shaped template matching[J]. Geomatics and Information Science of Wuhan University, 2009,34(3):293-296. ]
[18]	Leninisha S, Vani K. Water flow based geometric active deformable model for road network[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2015,102:140-147. doi: 10.1016/j.isprsjprs.2015.01.013
[19]	孙晨阳, 周廷刚, 陈圣波, 等. 基于矩形模板匹配的线状地物半自动提取方法研究[J]. 西南大学学报(自然科学版), 2015(7):155-160.
	[ Sun C Y, Zhou T G, Chen S B, et al. Research of a semi-automatic extraction method for linear features based on rectangular template matching[J]. Journal of Southwest Agricultural University, 2015(7):155-160. ]
[20]	连仁包, 王卫星, 李娟. 自适应圆形模板及显著图的高分辨遥感图像道路提取[J]. 测绘学报, 2018,47(7):950-958.
	[ Lian R B, Wang W X, Li J. Road extraction from high-resolution remote sensing images based on adaptive circular template and saliency map[J]. Acta Geodaetica et Cartographica Sinica, 2018,47(7):950-958. ]
[21]	Dai J G, Zhu T T, Zhang Y L, et al. Lane-level road extraction from high-resolution optical satellite images[J]. Remote Sensing, 2019,11(22):2672. doi: 10.3390/rs11222672
[22]	Dai J G, Zhu T T, Wang Y, et al. Road extraction from high-resolution satellite images based on multiple descriptors[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2020,13:227-240. doi: 10.1109/JSTARS.4609443
[23]	丁磊, 张保明, 郭海涛, 等. 矢量数据辅助的高分辨率遥感影像道路自动提取[J]. 遥感学报, 2017,21(1):84-95.
	[ Ding L, Zhang B M, Guo H T, et al. Automatic road extraction from high-resolution remote sensing images assisted by vector data[J]. Journal of Remote Sensing, 2017,21(1):84-95. ]
[24]	柴文胜. 农村机耕道路建设的调查及建议[J]. 湖北农机化, 2017(4):43-44.
	[ Chai W S. Investigation and suggestion on construction of rural mechanized farming road[J]. Hubei Agricultural Mechanization, 2017(4):43-44. ]
[25]	戴激光, 朱婷婷, 张依蕾, 等. 高分辨率光学卫星影像线段融合方法[J]. 测绘学报, 2020,49(4):489-498.
	[ Dai J G, Zhu T T, Zhang Y L, et al. Line segment fusion method of high resolution optical satellite image[J]. Acta Geodaetica et Cartographica Sinica, 2020,49(4):489-498. ]
[26]	Hearn D, Baker M P, Carithers W. Computer graphics with open GL[M]. United States: Prentice Hall, 2003.
[27]	Gonzalez R C, Woods R E. Digital image processing[M]. Beijing: Publishing House of Electronics Industry, 2002: 295.
[28]	Wiedemann C, Ebner H. Automatic completion and evaluation of road networks[J]. International Archives of Photogrammetry and Remote Sensing. 2000,33:979-986.

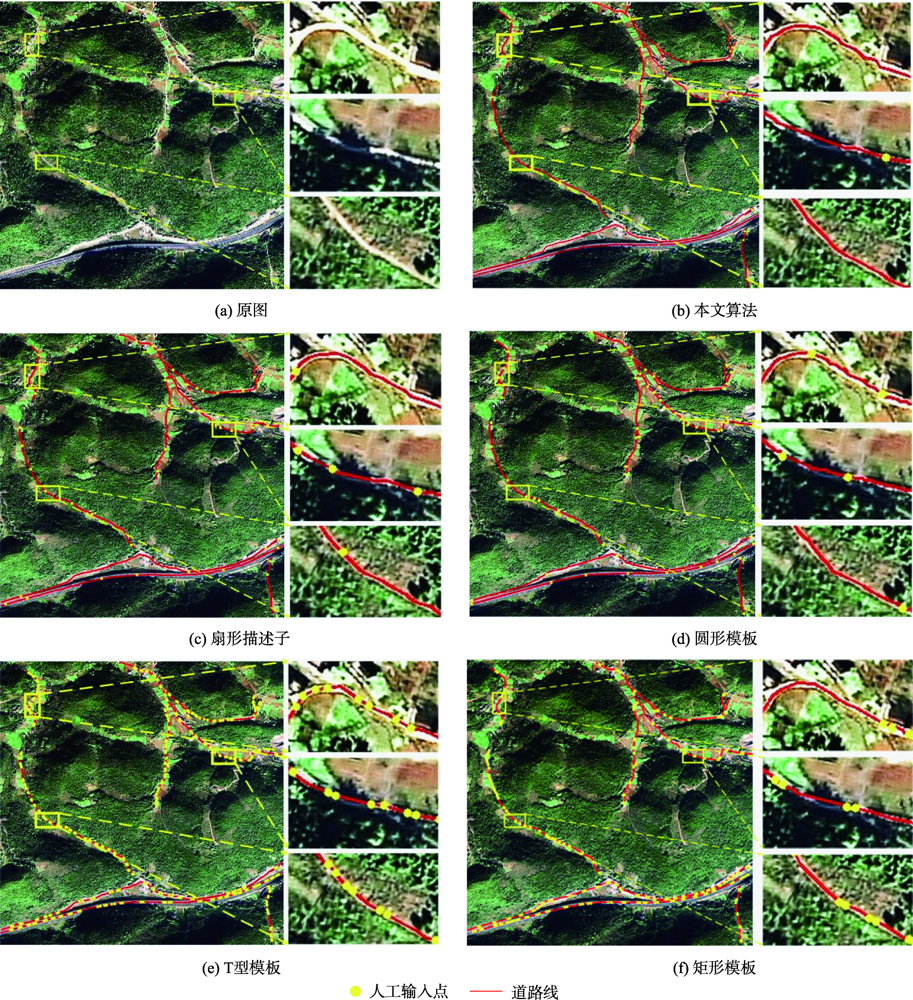

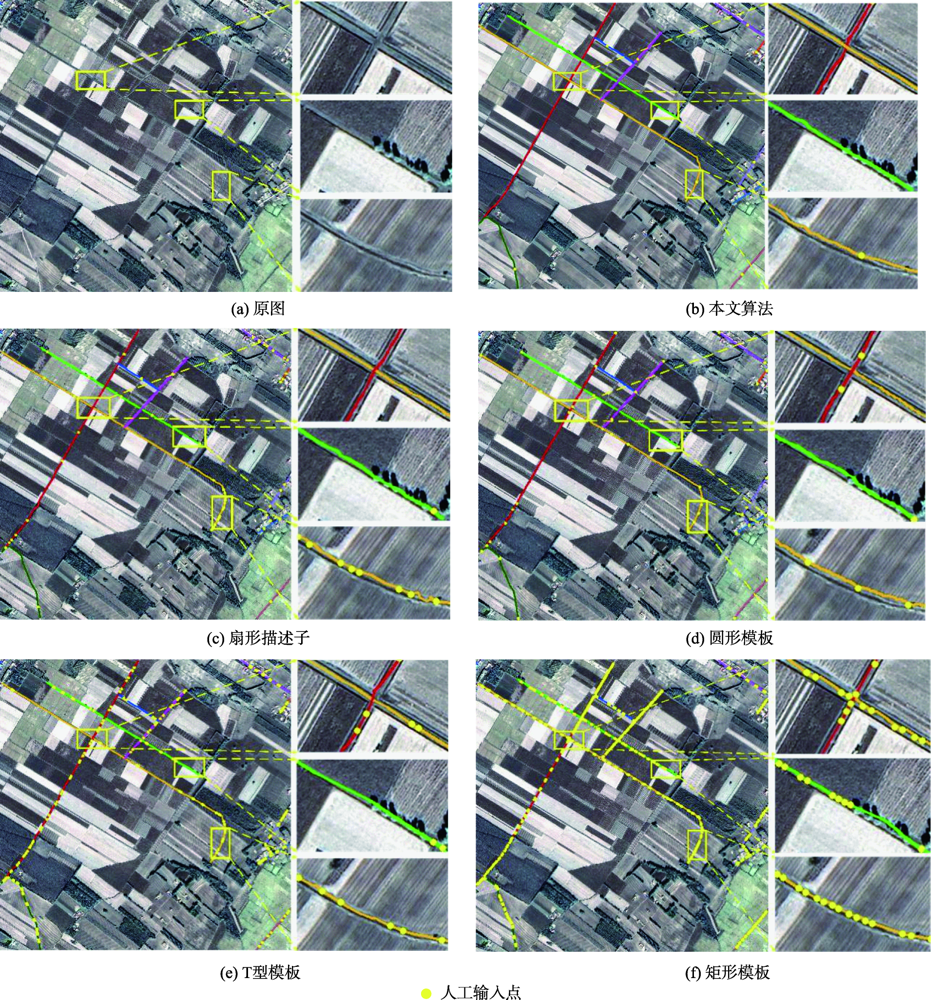

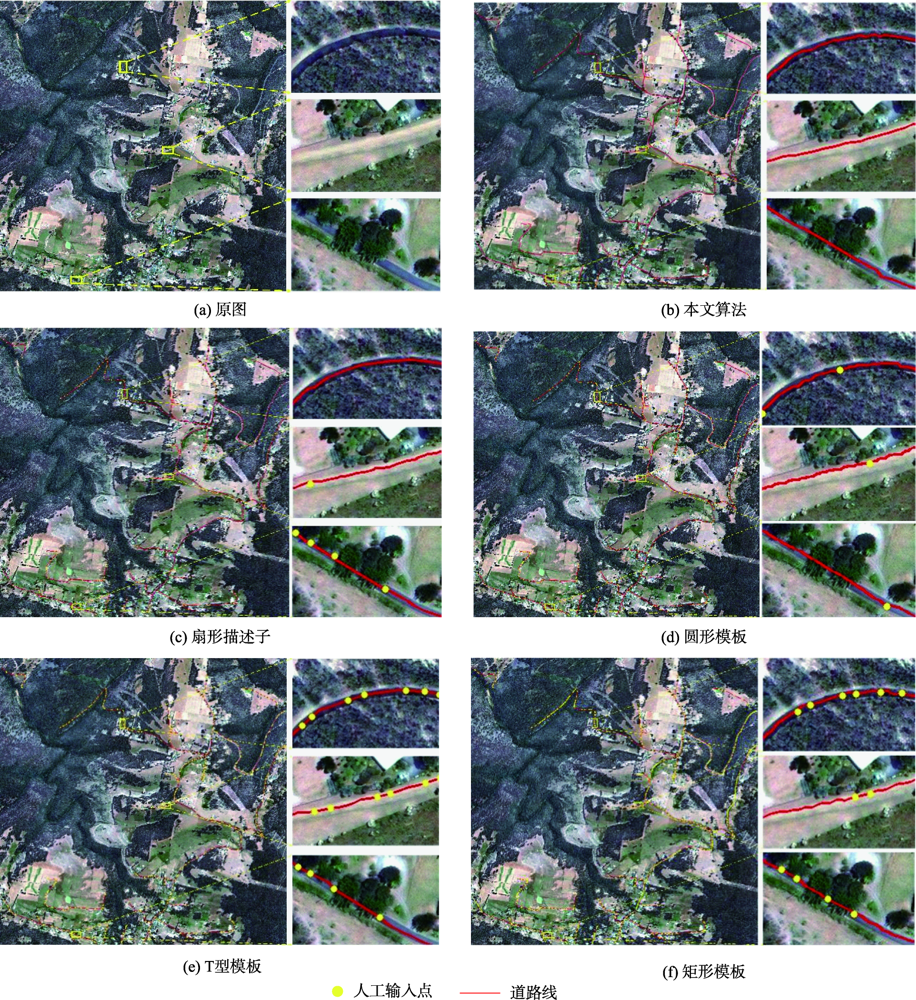

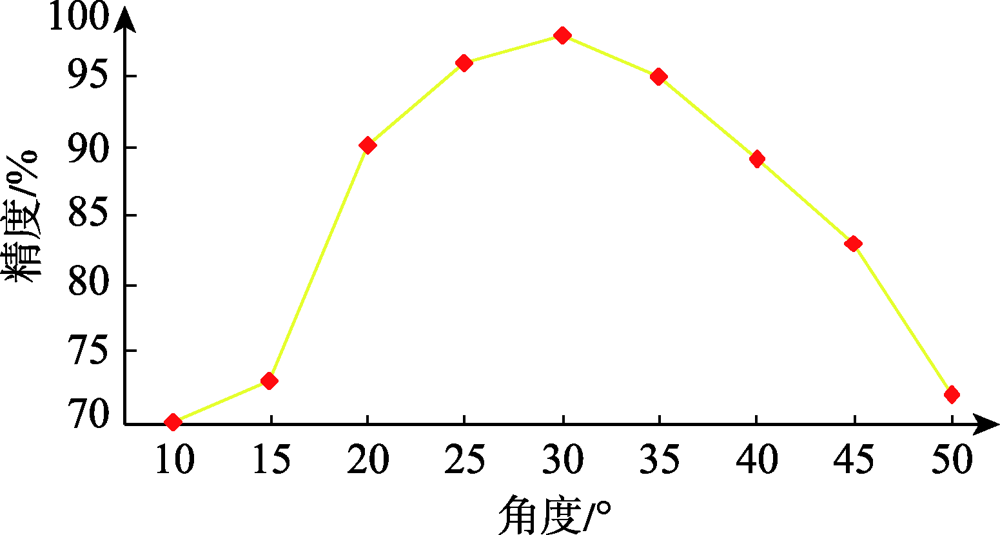

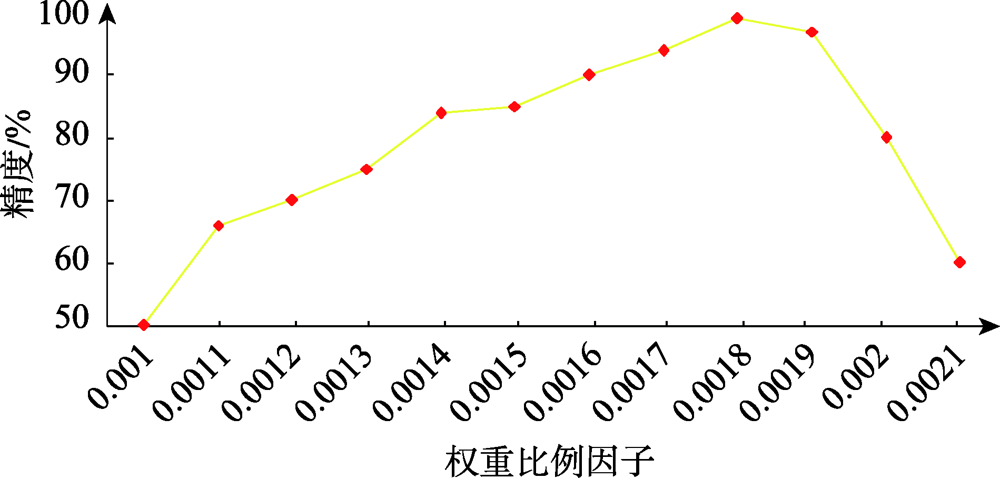

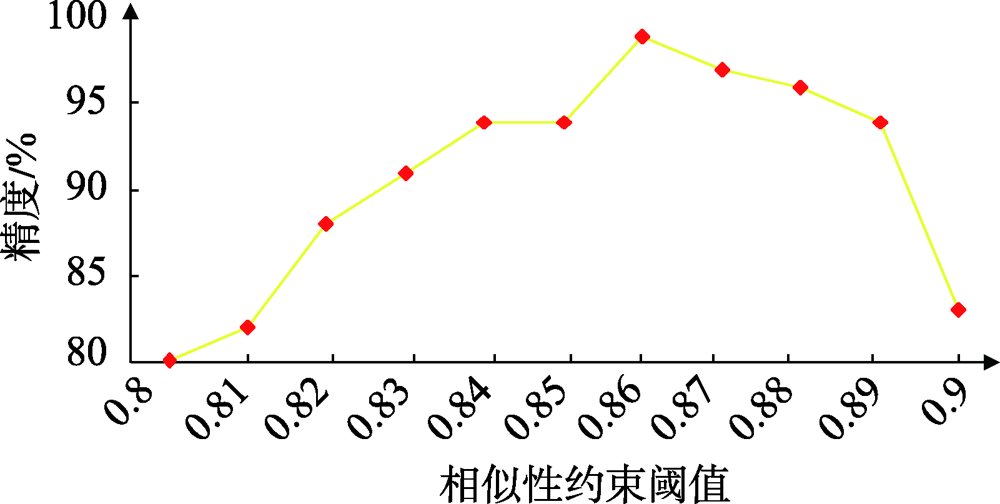

不同实验		评价参数
不同实验		完整度/%	正确率/%	提取质量/%	种子点数/个	时间/s
实验1	论文方法	98.6	99.5	97.5	14	44
	扇形描述子	98.3	99.4	97.1	52	187
	圆形模板	98.1	98.8	97.1	42	178
	T型模板	97.3	98.2	96.7	176	866
	矩形模板	98.7	96.6	93.7	422	1478
实验2	论文方法	99.6	98.9	97.2	21	74
	扇形描述子	96.7	97.7	94.7	36	153
	圆形模板	97.4	98.5	96.0	70	255
	T型模板	98.6	98.5	97.6	330	1482
	矩形模板	96.6	97.0	91.8	280	1088
实验3	论文方法	98.3	99.4	97.7	65	235
	扇形描述子	97.2	98.8	96.2	232	932
	圆形模板	97.1	99.0	96.2	292	1170
	T型模板	97.2	96.5	94.1	646	2583
	矩形模板	96.0	97.9	94.1	930	3769
