# 尼泊尔地震的NOAA卫星数据震前异常分析

1. 福建师范大学数学与信息学院,福州 350000
2. 福建农林大学计算机与信息学院,福州 350000
3. 中国地震局地震预测研究所,北京 100036

# Pre-earthquake Anomaly Data Mining of Remote Sensing OLR in Nepal Earthquake

LIN Ling1*, KONG Xiangzeng1, LI Nan2, XIONG Pan3

1. College of Mathematics and Informatics, Fujian Normal University, Fuzhou 350000, China
2. College of Computer and Information Sciences, Fujian Agriculture and Forestry University,Fuzhou 350000, China
3. Institute of Earthquake Science, China Earthquake Administration, Beijing 100036, China

Abstract

A number of researches have shown that the occurrence of earthquakes is often accompanied by abnormal warming of infrared radiation data, which is hidden in the Outgoing Long-Wave Radiation (OLR) data, which has been captured by the NOAA remote sensing satellite. These abnormal signals are embedded in a large amount of normal information and cannot be recognized by human eyes or some common methods. Many scholars utilized different means to analyze the anomaly of infrared remote sensing data. However, there were still lack of any effective processing techniques and algorithms, and most of the thermal infrared satellite remote sensing data weren't fully utilized. In this work, we propose a data mining algorithm, which is based on the anomaly features of the martingale theory. The algorithm first calculates the distance between a sample point and the cluster, and then determines whether the measured point is abnormal according to a comprehensive operation of the number of abnormal points nearest to each point, and calculates the whole event sequence data changing trend based on the martingale theory. The martingale value (i.e. CD value) corresponding to each original point is obtained, so that the original data is stripped out, the noise and the normal data are obtained, and the anomaly is analyzed before the earthquake. The OLR data sources used in the experiments on this algorithm were from three earthquakes happened in Nepal between September 2014 and July 2015 (including the Ms7.8 earthquake in April 25, 2015). We found that the CD value of the OLR data about the epicenter region began to have significant temporal correlation characteristics of anomalous data changes as early as 2 or 3 months before the earthquake. The results of this research were similar to the comparison of the OLR original and CD values of the Wenchuan and Lushan earthquakes. In this paper, we analyzed the anomaly of the three earthquakes one month before and some two weeks after the earthquakes. The experimental results show that when the earthquake is larger, and the anomaly CD value occurs earlier. In conclusion, the more obvious the anomaly is, the closer the region is to the epicenter or fault zone, the farther from the epicenter, the weaker and appeared later the abnormal signal.

Keywords： OLR ; Martingale theory ; data mining ; Nepal earthquake ; anomaly detection

0

LIN Ling, KONG Xiangzeng, LI Nan, XIONG Pan. Pre-earthquake Anomaly Data Mining of Remote Sensing OLR in Nepal Earthquake[J]. Journal of Geo-information Science, 2018, 20(8): 1169-1177 https://doi.org/10.12082/dqxxkx.2018.170567

## 2 数据源与处理

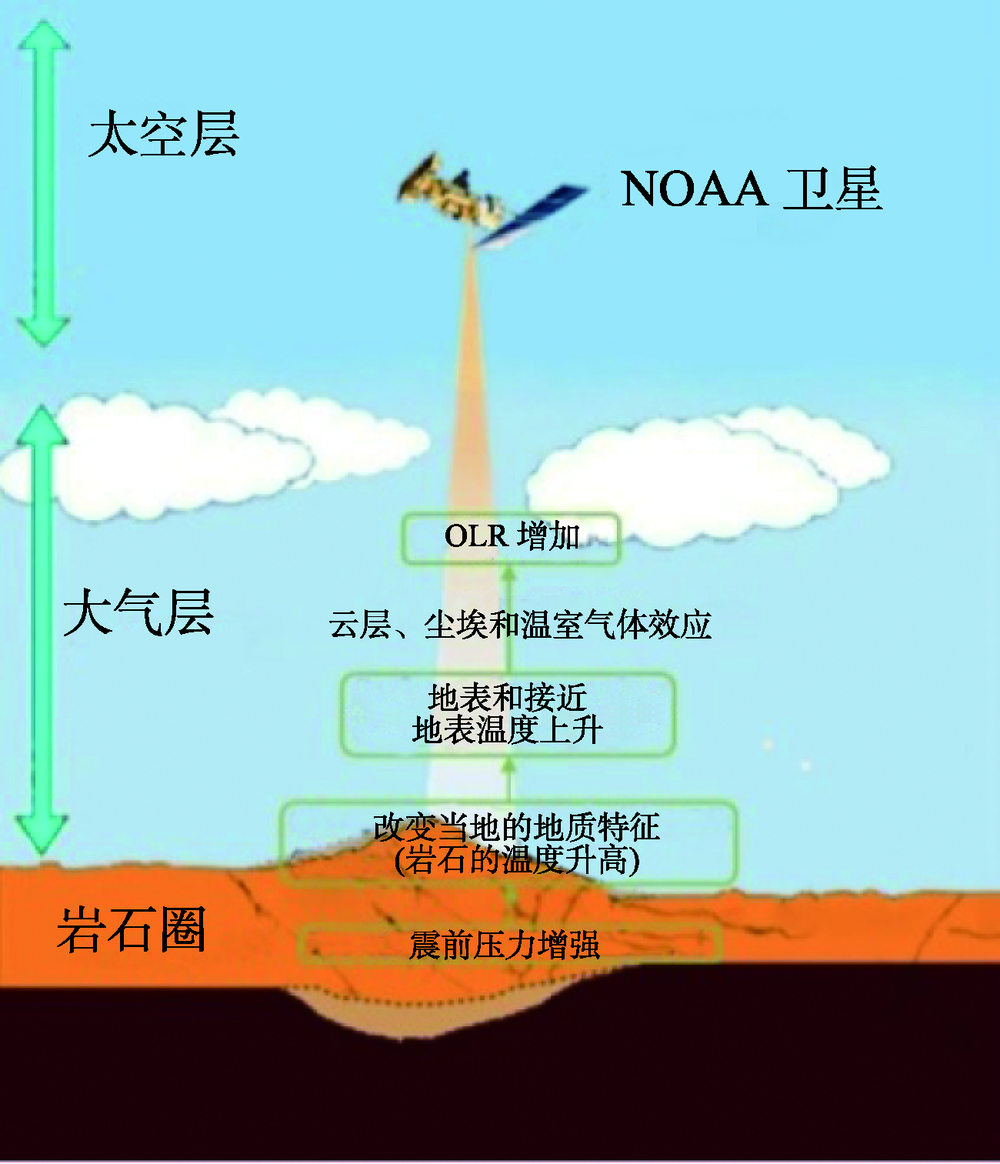

Fig. 1   Diagram of earth's Outgoing Longwave Radiation (OLR) before earthquake

Tab. 1   List of Nepal earthquakes from May 2015 to November 2014

12014-12-1815:32:1229 km SSE of Zuobude,中国27.74 °N, 86.37° E5.033.6
22015-04-2506:11:2536 km E of Khudi,尼泊尔28.23 °N, 84.73 °E7.88.2
32015-05-1207:05:1919 km SE of Kodari,尼泊尔27.81 °N, 86.07 °E7.315

Fig. 2   Diagram of grid map

## 3 算法分析

$di=dP,oi=oi-m$（1）

$pˆi,kPn,θn=⋕j|dj>di+θi,k⋕j|dj=dii$（2）

$θi,k=0.01×k-1+0.0001×100-k,k≤501-0.01×k-50-1+0.0001×100-k-50,50（3）

$Mn=∏i-1n(εpˆi,kε-1)$（4）

$CDn(ε)=∑k=1100∏i-1n(εpˆi,kε-1)100$（5）

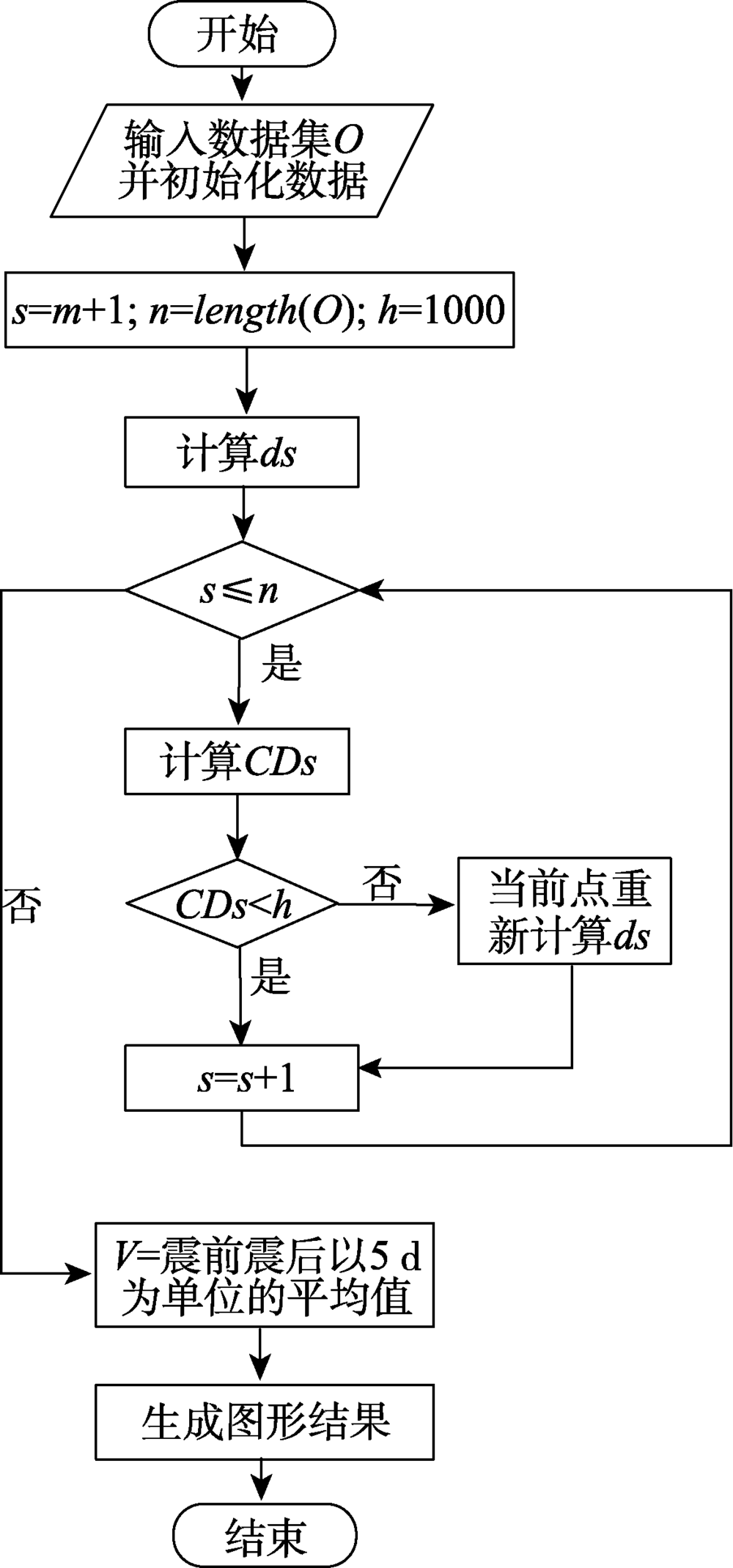

Fig. 3   Flowchart for the algorithm

## 4 结果与分析

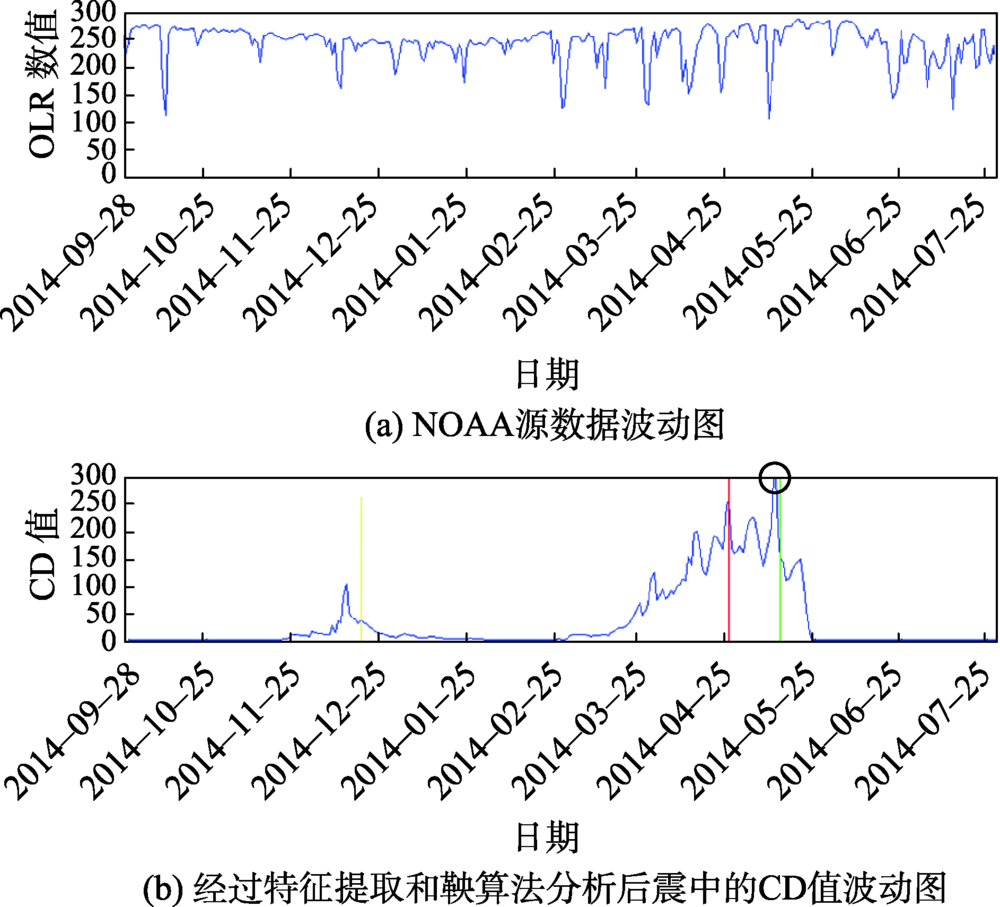

OLR数据在尼泊尔地区的时间2014年9月28日到2015年7月25日的波动原始数据图,如图4（a）所示。从温度变化数据曲线的振动频率上可以看到,2月25日之前的信号波动频率相对比较低,从2月25日开始振动频率逐渐变大,总的振幅也有所增高。通过采用基于鞅理论的算法对原始信号分析与处理后得到的CD值波动曲线图（图4（b）,曲线走势更清晰地展示了异常信息的变化情况。图4（b）中的3条竖线,分别表示在此期间的3次地震的时间,容易看出在3次地震的时间或附近均出现了震前异常信号增加的情况,与地震发生的时间相吻合。

Fig. 4   The original NOAA data graph and the wave diagram of the $CD$ values

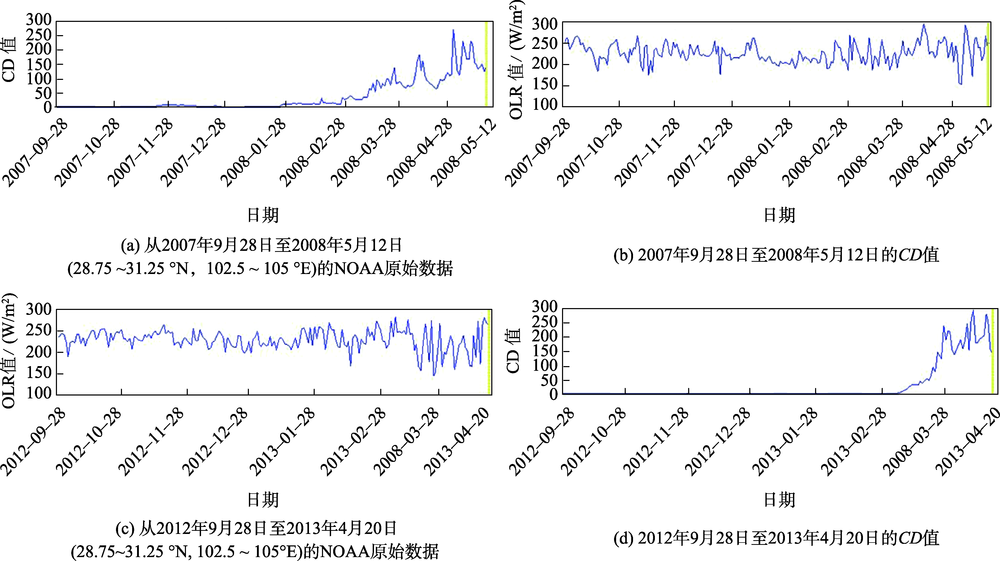

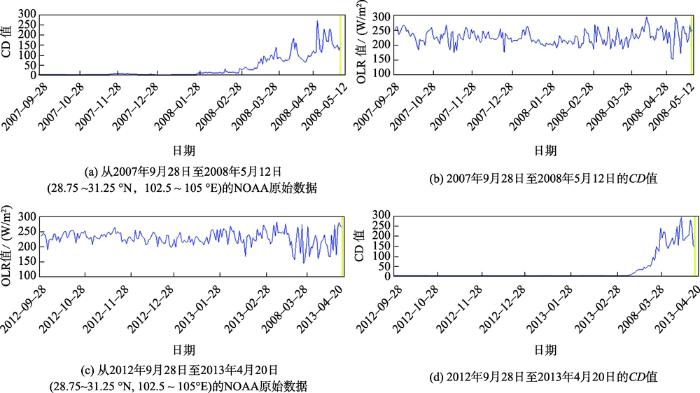

Fig. 5   The original NOAA data and $CD$ values in Wenchuan and Lushan area

### 4.2 地域相关性分析

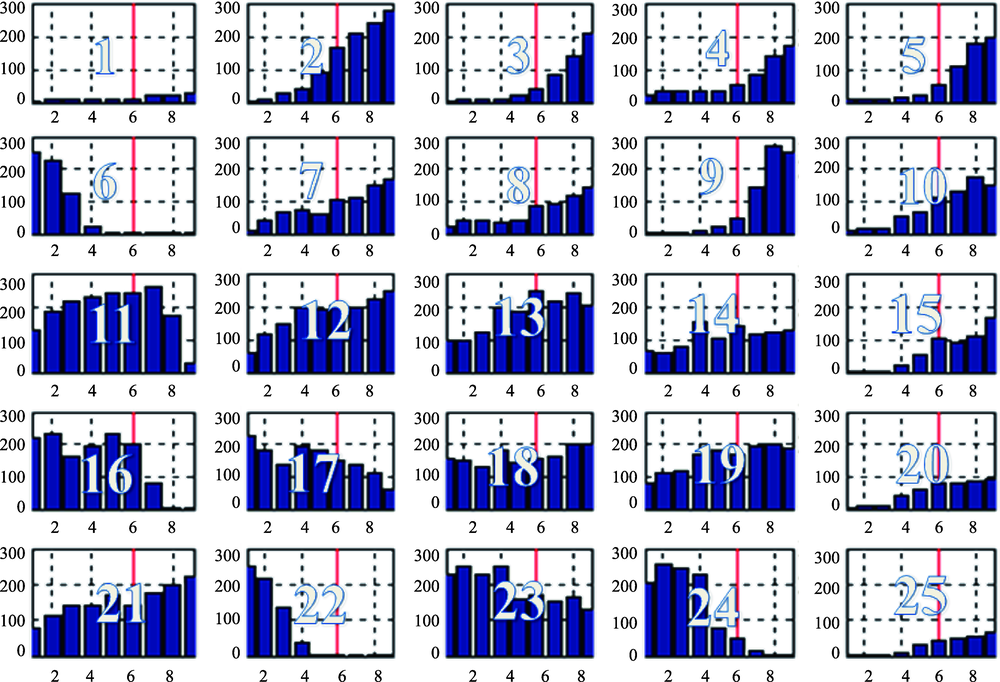

Fig. 6   Abnormal analysis of pre-earthquake and post-earthquake

## 5 结论与讨论

The authors have declared that no competing interests exist.
