地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (4): 604-616.doi: 10.12082/dqxxkx.2021.200489
收稿日期:
2020-08-26
修回日期:
2021-01-04
出版日期:
2021-04-25
发布日期:
2021-06-25
通讯作者:
*赵万民(1955— ),男,四川阆中人,教授,主要从事山地城市规划与设计研究。E-mail: zwm65126371@sina.com作者简介:
廖心治(1996— ),男,四川眉山人,硕士生,主要从事GIS与城市空间研究。E-mail: 644609584@qq.com
基金资助:
LIAO Xinzhi(), WANG Hua, ZHAO Wanmin*(
)
Received:
2020-08-26
Revised:
2021-01-04
Online:
2021-04-25
Published:
2021-06-25
Contact:
ZHAO Wanmin
Supported by:
摘要:
随着我国社会经济的不断发展,居民对医疗的需求不断增加,分析评估城市医疗设施服务范围,对解决医疗供需矛盾,提升城市健康水平具有重要意义。目前国内医疗设施服务覆盖评估,多忽视交通网络与人群分布因素,致使城市医疗服务存在不少覆盖盲区。山地城市复杂地形环境影响居民出行能力与出行方式,增大医疗设施服务覆盖的难度,传统方法难以对其准确评估。本文在分析比对现有医疗可达性研究方法优劣势的基础上,以重庆市主城区为实验区,试图针对性地采用优化两步移动搜寻法,并根据网络地图数据、官方统计数据,基于GIS平台建立医疗设施可达性分析模型,从市域、片区与社区3个层级科学评估医疗设施服务覆盖范围与各街镇医疗可达性。结果表明,改进后的方法更能处理海量医疗数据,准确模拟医疗服务范围,并输出全层级医疗设施服务覆盖评估结果,更适用于交通复杂的山地地区与多层级医疗设施服务覆盖评估。综合评估显示,重庆市主城区医疗设施服务存在大型综合医院空间分布不均、基层医疗设施内部覆盖不全的问题,并且医疗覆盖度较好的街镇仅占总数的33.1%。据此,建议老城区集聚的优质大型医疗资源向新城地区共享的同时,按照地理区位与技术能力划分、组建层级完备的医疗片区,补齐老城区基层医疗服务的短板,以期完善重庆主城区医疗设施配置。
廖心治, 王华, 赵万民. 融合地图数据的山地城市医疗设施服务覆盖评估方法研究[J]. 地球信息科学学报, 2021, 23(4): 604-616.DOI:10.12082/dqxxkx.2021.200489
LIAO Xinzhi, WANG Hua, ZHAO Wanmin. Evaluation Method of Medical Facilities Service Coverage in Mountainous Cities based on Map Data[J]. Journal of Geo-information Science, 2021, 23(4): 604-616.DOI:10.12082/dqxxkx.2021.200489

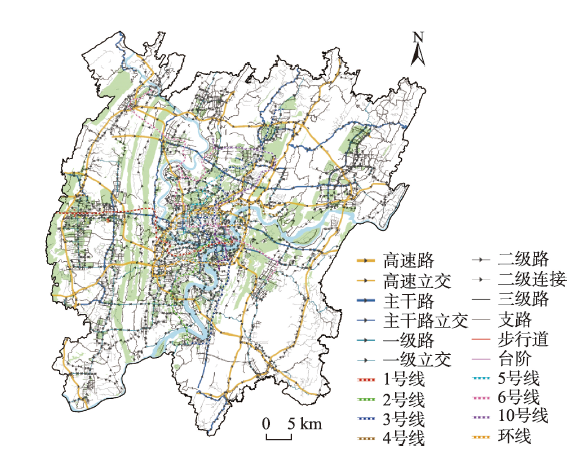

表1
交通网络数据转换与赋值
类型 | 车行网络 | 车行/步行网络 | 步行网络 | |||||
---|---|---|---|---|---|---|---|---|
重分类 | 高速路 (立交) | 主干路 (立交) | 一级次干路 (立交) | 二级次干路 (立交) | 三级次干路 | 支路 | 步行道 | 台阶 |
原始数据分类 | Motorway Motorway-link | Trunk Trunk-link | Primary Primary-link | Secondary Secondary-link | Tertiary Tertiary-link | Living-street Track Residential Service Unclassified Path Road | pedestrian Cycleway Footway | steps |
车速/(km/h) | 80 (40) | 60 (30) | 50 (30) | 45 (20) | 40 | 30 | - | - |
步行/(m/min) | - | 90 | 90 | 90 | 90 | 90 | 90 | 50 |
[1] | 黄征学, 潘彪, 滕飞, 等. 从疫情防控看大城市如何健全应急管理系统[J]. 中国发展观察, 2020(3):86-88,72. |
[ Huang Z X, Pan B, Teng F, et al. How to improve the emergency management system in big cities from the perspective of epidemic prevention and control[J]. China Development Observation, 2020(3):86-88,72. ] | |
[2] | 钱振澜, 王竹, 裘知, 等. 城乡“安全健康单元”营建体系与应对策略——基于对疫情与灾害“防-适-用”响应机制的思考[J]. 城市规划, 2020,44(3):25-30. |
[ Qian Z L, Wang Z, Qiu Z, et al. Construction system and strategy of “safety and health unit” in urban and rural areas: Based on a response mechanism of “prevention-adaption-utilization” for coping with plagues and disasters[J]. City Planning Review, 2020,44(3):25-30. ] | |
[3] | 刘静, 朱青. 城市公共服务设施布局的均衡性探究——以北京市城六区医疗设施为例[J]. 城市发展研究, 2016,23(5):6-11. |
[ Liu J, Zhu Q. Research of equalizing layout of public service facilities: Take health facilities of central six districts of Beijing for example[J]. Urban Development Studies, 2016,23(5):6-11. ] | |
[4] | 丁愫, 陈报章. 城市医疗设施空间分布合理性评估[J]. 地球信息科学学报, 2017,19(2):185-196. |
[ Ding S, Chen B Z. Rationality assessment of the spatial distributions of urban medical facility[J]. Journal of Geo-information Science, 2017,19(2):185-196. ] | |
[5] | Mayhew S. A dictionary of geography[M]. Oxford: Oxford University Press, 2006. |
[6] | Chen B Y, Yuan H, Li Q Q, et al. Measuring place-based accessibility under travel time uncertainty[J]. International Journal of Geographical Information Science, 2017,31(4):783-804. |
[7] | Kibambe Lubamba J P, Radoux J, Defourny P. Multimodal accessibility modeling from coarse transportation networks in Africa[J]. International Journal of Geographical Information Science, 2013,27(5):1005-1022. |
[8] | Benenson I, Ben-Elia E, Rofé Y, et al. The benefits of a high-resolution analysis of transit accessibility[J]. International Journal of Geographical Information Science, 2017,31(2):213-236. |
[9] | Lucas K. Transport and social exclusion: Where are we now[J]. Transport Policy, 2012,20:105-113. |
[10] | Neutens T, Accessibility, equity and health care: Review and research directions for transport geographers[J]. Journal of Transport Geography, 2015,43:14-27. |
[11] | 重庆市卫生和计划生育委员会. 重庆市主城区医疗卫生设施布局规划(2015-2020)[Z]. 2015. |
[ Layout planning of medical and health facilities in Chongqing (2015-2020)[Z]. Chongqing Health and Family Planning Commission, 2015. ] | |
[12] | 湛东升, 谢春鑫, 张文忠, 等. 基于累计机会可达性的北京城市公共服务设施复合功能识别[J]. 地球信息科学学报, 2020,22(6):1320-1329. |
[ Zhan D S, Xie C X, Zhang W Z, et al. Identifying mixed functions of urban public service facilities in Beijing by cumulative opportunity accessibility method[J]. Journal of Geo-information Science, 2020,22(6):1320-1329. ] | |
[13] | Zhang Q, Northridge M E, Jin Z, et al. Modeling accessibility of screening and treatment facilities for older adults using transportation networks[J]. Applied Geography (Sevenoaks, England), 2018,93:64-75. |
[14] | Xia N, Cheng L, Chen S, et al. Accessibility based on Gravity-Radiation model and Google Maps API: A case study in Australia[J]. Journal of Transport Geography. 2018,72:178-190. |
[15] | 王明杰, 余斌, 卓蓉蓉, 等. 分级诊疗政策背景下的乡村医疗服务空间可达性研究——以山东省新泰市为例[J]. 地域研究与开发, 2019,38(5):136-141. |
[ Wang M J, Yu B, Zhuo R R, et al. Spatial accessibility of rural medical services under the background of graded treatment system: A case study in Xintai City of Shandong Province[J]. Areal Research and Development, 2019,38(5):136-141. ] | |
[16] | 申悦, 李亮. 医疗资源可达性与居民就医行为研究进展[J]. 科技导报, 2020,38(7):85-92. |
[ Shen Y, Li L. Progress of research on medical resource accessibility and residents' health seeking behavior[J]. Science & Technology Review, 2020,38(7):85-92. ] | |
[17] | Radke J, Mu L. Spatial decompositions, modeling and mapping service regions to predict access to social programs[J]. Geographic Information Sciences, 2000,6(2):105-112. |
[18] |
Wang F, Luo W. Assessing spatial and nonspatial factors for healthcare access: Towards an integrated approach to defining health professional shortage areas[J]. Health & Place, 2005,11(2):131-146.
doi: 10.1016/j.healthplace.2004.02.003 pmid: 15629681 |
[19] |
Ngui A N, Apparicio P. Optimizing the two-step floating catchment area method for measuring spatial accessibility to medical clinics in Montreal[J]. BMC Health Services Research, 2011,11:166.
doi: 10.1186/1472-6963-11-166 pmid: 21745402 |
[20] |
Love D, Lindquist P. The geographical accessibility of hospitals to the aged: A geographic information systems analysis within Illinois[J]. Health Services Research, 1995,29(6):629-651.
pmid: 7860317 |
[21] | Bissonnette L, Wilson K, Bell S, et al. Neighborhoods and potential access to health care: The role of spatial and aspatial factors[J]. Health and Place, 2012,18(4):84-853. |
[22] | 刘倩, 李诚固, 申庆喜, 等. 长春市医疗设施空间格局与演变特征[J]. 经济地理, 2017,37(7):139-145. |
[ Liu Q, Li C G, Shen Q X, et al. Spatial evolution character of medical facilities in Changchun City[J]. Economic Geography, 2017,37(7):139-145. ] | |
[23] | 谢小华, 王瑞璋, 文东宏, 等. 医疗设施布局的GIS优化评价——以翔安区医疗设施为例[J]. 地球信息科学学报, 2015,17(3):317-328. |
[ Xie X H, Wang R Z, Wen D H, et al. Evaluating the medical facilities layout based on GIS: an application of xiang'an district[J]. Journal of Geo-information Science, 2015,17(3):317-328. ] | |
[24] | 钟少颖, 杨鑫, 陈锐. 层级性公共服务设施空间可达性研究——以北京市综合性医疗设施为例[J]. 地理研究, 2016,35(4):731-744. |
[ Zhong S Y, Yang X, Chen R. The accessibility measurement of hierarchy public service facilities based on multi-mode network dataset and the two-step 2SFCA: A case study of Beijing's medical facilities[J]. Geographical Research, 2016,35(4):731-744. ] | |
[25] | 聂艺菲, 冯长春. 基于分级诊疗的就医可达性研究——以潍坊市中心城区为例[J]. 北京大学学报(自然科学版), 2020,56(2):307-314. |
[ Nie Y F, Feng C C. Research on accessibility of medical treatment based on grading treatment: A case study of Weifang City center area[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 2020,56(2):307-314. ] | |
[26] | 徐璐. 上海市基本医疗机构分布空间公平性度量[J]. 规划师, 2016,32(z2):24-29. |
[ Xu L. Spatial equity analysis of basic medical institutions, Shanghai[J]. Planners, 2016,32(z2):24-29. ] | |
[27] |
Siegel M, Koller D, Vogt V, et al. Developing a composite index of spatial accessibility across different health care sectors: A German example[J]. Health Policy. 2016,120(2):205-212.
doi: 10.1016/j.healthpol.2016.01.001 pmid: 26831039 |
[28] | 吴先赋, 李永树, 王金明, 等. 基于POI数据的成都市区生活设施空间格局分析[J]. 测绘地理信息, 2019,44(3):122-126. |
[ Wu X F, Li Y S, Wang J M, et al. Spatial pattern analysis of living facilities in Chengdu urban area based on POI data[J]. Journal of Geomatics, 2019,44(3):122-126. ] | |
[29] | 庄晓平, 陶楠, 王江萍. 基于POI数据的城市15 min社区生活圈便利度评价研究——以武汉三区为例[J]. 华中建筑, 2020,38(6):76-79. |
[ Zhuang X P, Tao N, Wang J P. The evaluation of the convenience of 15-minute community life circles based on POI data: Taking three districts of Wuhan as an example[J]. Huazhong Architecture, 2020,38(6):76-79. ] | |
[30] | 艾廷华, 雷英哲, 谢鹏, 等. 等时线模型支持下的深圳市综合医院空间可达性测度分析[J]. 地球信息科学学报, 2020,22(1):113-121. |
[ Ai T H, Lei Y Z, Xie P, et al. Quantifying spatial accessibility of shenzhen's hospitals by the isochrone model[J]. Journal of Geo-information Science, 2020,22(1):113-121. ] | |
[31] | García-Albertos P, Picornell M, Salas-Olmedo M H, et al. Exploring the potential of mobile phone records and online route planners for dynamic accessibility analysis[J]. Transportation Research Part A: Policy and Practice. 2019,125:294-307. |
[32] | Rong P, Zheng Z, Kwan M, et al. Evaluation of the spatial equity of medical facilities based on improved potential model and map service API: A case study in Zhengzhou, China[J]. Applied Geography, 2020,119:102192. |
[33] | Socharoentum M, Karimi H A. A comparative analysis of routes generated by Web Mapping APIs[J]. Cartography and geographic information science, 2015,42(1):33-43. |
[34] | Páez A, Moniruzzaman M, Bourbonnais P, et al. Developing a web-based accessibility calculator prototype for the Greater Montreal Area[J]. Transportation Research Part A: Policy and Practice, 2013,58:103-115. |
[35] | 重庆市统计局. 重庆市卫生健康统计年鉴2019[M]. 北京: 中国统计出版社, 2019. |
[ Chongqing city bureau of statistics. Chongqing Health Statistical Yearbook-2019[M]. Beijing: China Statistics Press, 2019. ] | |
[36] | 重庆市人民政府. 重庆市城乡总体规划(2007-2020)[Z]. 2011. |
[ Urban rural master plan of Chongqing (2007-2020)[Z]. Chongqing Municipal Government, 2011. ] | |
[37] | 中华人民共和国住房和城乡建设部. 中华人民共和国国家标准:城市道路工程技术规范GB51286-2018[S]. 北京: 中国建筑工业出版社, 2018. |
[ Ministry of Housing and Urban-Rural Development of the People's Republic of China. National Standard (Mandatory) of the People's Republic of China: Technical code far urban road engineering.GB 51286-2018[S]. Beijing: China Architecture & Building Press, 2018. ] | |
[38] | 中华人民共和国交通运输部. 公路工程技术标准JTG B01-2014[S]. 北京: 人民交通出版社, 2015. |
[ Technical standard of highway engineering. JTG B01-2014[S]. Beijing: China Communications Press, 2015. ] | |
[39] | 中华人民共和国住房和城乡建设部. 中华人民共和国国家标准:城市居住区规划设计标准GB 50180-2018[S]. 北京: 中国建筑工业出版社. |
[ Ministry of Housing and Urban-Rural Development of the People's Republic of China. National Standard (Mandatory) of the People's Republic of China:Standard for urban residential area planning and design.GB 50180-2018[S]. Beijing: China Architecture & Building Press. | |
[40] | 宋正娜, 陈雯, 车前进, 等. 基于改进潜能模型的就医空间可达性度量和缺医地区判断——以江苏省如东县为例[J]. 地理科学, 2010,30(2):213-219. |
[ Song Z N, Chen W, Che Q J, et al. Measurement of spatial accessibility to health care facilities and defining health professional shortage areas based on improved potential model: A case study of Rudong County in Jiangsu Province[J]. Scientia Geographica Sinica, 2010,30(2):213-219. ] |
