地球信息科学学报 >

2017 , Vol. 19 >Issue 7: 880 - 885

DOI: https://doi.org/10.3724/SP.J.1047.2017.00880

地球信息科学理论与方法

基于元胞自动机模型的河道汇流过程模拟

  • 张文富 , 1 ,
  • 林广发 , 1, 2, 3, * ,
  • 张明锋 1, 2, 3 ,
  • 李清远 1
展开
  • 1. 福建师范大学地理研究所,福州 350007
  • 2. 福建省陆地灾害监测评估工程技术研究中心,福州 350007
  • 3. 海西地理国情动态监测与应急保障研究中心,福州 350007
*通讯作者：林广发（1970-）,男,福建上杭人,博士,副教授,主要从事地理信息系统应用研究。E-mail:

作者简介：张文富（1990-）,男,河南沈丘人,硕士生,研究方向为地理信息系统。E-mail:

收稿日期: 2016-08-15

  要求修回日期: 2017-04-07

  网络出版日期: 2017-07-10

基金资助

国家重点研发计划重点专项（2016YFC0502905）

福建省公益类科研院所专项（2015R1034-1）

福建省测绘地理信息局科技基金项目（2017JX03）

研究生科研创新基金立项项目（GY201609）

收起

The Simulation of Channel Flow Process based on Cellular Automation

  • ZHANG Wenfu , 1 ,
  • LIN Guangfa , 1, 2, 3, * ,
  • ZHANG Mingfeng 1, 2, 3 ,
  • LI Qingyuan 1
Expand
  • 1. Institute of Geography, Fujian Normal University, Fuzhou 350007, China
  • 2. Fujian Provincial Engineering Research Center for Monitoring and Assessing Terrestrial Disasters, Fuzhou 350007, China
  • 3. Research Center for National Geographical Condition Monitoring and Emergency Support in the Economic Zone on the West Side of the Taiwan Strait, Fuzhou 350007, China
*Corresponding author: LIN Guangfa, E-mail:

Received date: 2016-08-15

  Request revised date: 2017-04-07

  Online published: 2017-07-10

Copyright

《地球信息科学学报》编辑部 所有
Fold

摘要

对河道汇流过程进行模拟可为洪水灾害预警预报提供参考。利用水力水文学方法能很好地模拟河道汇流过程,但需要输入的参数多,运算过程复杂,对数据精度要求高,而且在无资料区流域无法确定河道上断面流量情况下,该方法具有一定局限性。本文将元胞自动机模型与水文模型相结合,构建了河道汇流过程中的元胞自动机模型和产流汇流规则。通过建立河道坡面拓扑关系,利用SCS-CN（Soil Conservation Service-Curve Number）模型逐个计算河道元胞上的坡面入流,并利用曼宁方程模拟河道汇流过程,最后在ArcEngine平台下进行二次开发,实现了河道汇流可视化。本文以厦门市茂林溪流域为研究区,对1997年5月6日至7日的一场降雨进行了模拟。将本文模拟结果与该流域其他学者的研究进行了对比分析,结果表明在输入数据与水文模型参数相同的情况下,本文不仅模拟出每次降雨间隔产生的较小洪峰,并且整场降雨产生的最大洪峰流量精度与时间精度均提高了5倍,可以更准确地模拟河道汇流过程,适用于河道汇流可视化,该模拟可以为洪水灾害预警预报提供一定参考。

关键词： 元胞自动机; 水文模型; 河道汇流; 可视化; 过程模拟

本文引用格式

张文富 , 林广发 , 张明锋 , 李清远 . 基于元胞自动机模型的河道汇流过程模拟[J]. 地球信息科学学报, 2017 , 19(7) : 880 -885 . DOI: 10.3724/SP.J.1047.2017.00880

Abstract

Simulating the channel flow process can provide suggestion to flood disaster forecasting and warning. The hydraulics and hydrology model presently used in simulating channel flow process have many disadvantages, for example, many parameters need to be input and the operation process is complex. What is more, there are high requirements for data precision and it is inapplicable to the ungagged catchments where the condition of river section flow is unknown. In this study, the cellular automata model of the overland runoff and channel confluence rules was constructed by combining the cellular automata model with the hydrological model. Through establishing the river slope topology, we used the SCS-CN (Soil Conservation Service-Curve Number) to calculate the slope inflow of each channel cellular. Then, we used Manning equation to simulate river confluence process. In the end, the process was visualized using ArcEngine. The basin of Maolin Creek in Xiamen was taken as a study case, in which the rainfall-runoff process during May 6-7 in 1997 was simulated to conform this model. Compared with other scholars’ study results, our results can not only simulate the small flood peak in each rain interval but also increase 5 times in the maximum peak flow precision and 5 times in the time precision under the same condition of the input data and hydrologic model parameters. Using the cellular automation can get higher accuracy and it is suitable for channel flow visualization, which can provide reference to flood disaster forecastingand warning.

Key words： cellular automation; hydrological model; channel flow concentration; visualization; process simulation

1 引言

模拟河道汇流过程是水力水文学研究的主要内容之一,对洪水灾害预警预报具有重要的意义。水力学方法一般以圣维南方程组为依据进行演算,而水文学方法则以水量平衡方程和槽蓄方程联立求解进行演算[1]。上述方法计算过程中一般假设已知上断面流量,推算下断面流量,适用于模拟小尺度范围内已知上断面流量的河道的汇流过程。而对于以整个流域为研究范围,无法确定上断面流量的情况下难以直接使用上述方法。元胞自动机（Cellular Automaton,CA）是一种时空离散化的局部动力学模型,特别适用于地理空间系统的动态模拟研究[2]。将CA与水力水文学方法相结合能有效模拟,以流域为研究范围且无法确定上断面流量情况下的河道汇流过程。
目前CA在水文模拟的研究方向主要有降雨径流模拟[3-5]、淹没蔓延模拟[6-11]、水力侵蚀模拟[12-14]等,而针对河道汇流方面的研究还比较少。汤富平等[3]构建了基于CA的分布式水文模型,模拟了小流域内的降雨径流过程,结果表明将CA与水文模型相结合不仅可以计算流域内降雨的产流量还可以动态显示径流的空间变化过程,但其研究中未划分坡面与河道,当流域尺度、河道特征变化较大时会引起较大误差;Shao Q等[4]建立了RunCA（The Runoff Model Based on Cellular Automata）模拟地表径流,并分别在实验室环境和Pine Glen流域进行了模拟验证,结果表明该模型可以很好地模拟径流时空变化;王伟等[15]在传统DEM槽蓄量计算法的基础上,探讨了一种采用CA构建河道水流演进模型并计算槽蓄量的方法,表明把CA引入水文领域进行河道水流模拟和计算是可行的,但其研究只实现了河道水流从上段面向下断面的演进,没有考虑降雨及旁侧入流的影响,不适用于整个流域的河道汇流过程模拟。
现有研究通常利用水力水文学方法模拟河道汇流过程,该方法假设已知河道上断面流量的情况下计算下断面流量,虽然可以模拟河道汇流过程,但输入参数多,计算过程复杂,对数据精度要求高,在无资料区流域无法确定上断面流量的情况下具有明显的局限性。本文将CA应用于河道汇流过程模拟,把每个河道单元定义为一个元胞,通过建立河道坡面拓扑关系,计算基于河道元胞的坡面等流时单元,利用SCS-CN（Soil Conservation Service-Curve Number）模型计算每个河道元胞上的坡面入流,然后利用曼宁方程定义河道元胞汇流规则,模拟河道洪水汇流过程,最后在ArcEngine平台下进行二次开发实现了该模拟过程。

2 河道汇流过程中元胞自动机模型的构建与实现

2.1 元胞自动机模型描述

CA模型是一种时间、空间和状态都离散的动力学模型,是描述、认识和模拟复杂系统行为强有力的方法,并逐步演化为认识和理解客观世界的一种新的科学[16]。典型的元胞自动机模型如式（1） 所示。
CA = ( L d , N , S , f ) （1）
式中：L表示元胞空间;d表示元胞空间维数,元胞空间由一定数量的元胞组成;S表示元胞的有限的、离散的状态集合;N表示一个所有邻域内元胞的组合（包括中心元胞）;f表示元胞状态转换规则。

2.2 元胞与元胞空间的定义

基于CA的河道汇流模型中将所有河网作为元胞空间。将河道按一定距离进行划分,每个河道单元作为一个元胞,每个元胞的形状大小等特征由该元胞对应的河道单元属性特征决定。每个河道元胞包含属性：元胞ID、下游元胞nextID、坡度s、水流流向dir、水流长度l、坡面单元集合O、曼宁糙率系数n、元胞流量V。元胞状态表达式如式（2）所示。
S = < ID , nextID , s , dir , l , O , n , V > （2）

2.3 邻域定义

将元胞按照河道上下游关系进行邻域划分,当上下游没有分叉河道时认为该元胞邻域为与其紧邻的2个河道元胞。当河道单元上游有多个支流时,认为该河道元胞邻域为上游各支流中每个与当前河道相邻的河道单元及下游临近河道单元,本文提取河网后上游元胞最多有2个临近元胞,因此研究中只对上游存在1个或2个邻近元胞的情况进行邻域定义（图1）。而实际研究中部分河段可能存在更多支流同时汇入,这种情况下仍然可以按以上方法进行邻域定义。

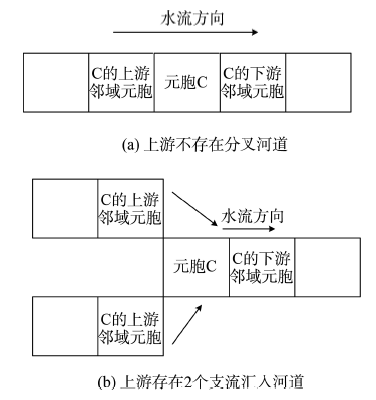

Fig. 1 Definition of the cellular neighborhood

图1 元胞邻域定义

2.4 转换规则构建

基于CA的河道汇流过程中转换规则主要用于描述元胞流量属性状态变化。元胞流量主要由坡面入流、邻域元胞入流、元胞自身存储流量、降雨量构成,其中降雨量可以从降雨情景数据中获取,而其他流量变化通过构建相应的规则进行获取,因此需要建立的转换规则有坡面产流计算规则与河道汇流计算规则（图2）。

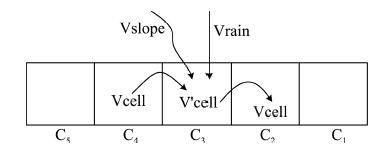

Fig. 2 Flow process of channel base on CA

图2 基于CA的河道汇流过程图

2.4.1 坡面产流计算规则
通过构建坡面产流计算规则,可以获取流入每个河道元胞的坡面入流量。以单个坡面单元为研究对象,产流过程由SCS-CN模型[17]计算。
F S = Q P - I a （3）
按水量平衡原理：
P = I a + F + Q （4）
经整理后,可用式（5）计算元胞上任一坡面径流深：
Q = P - I a 2 P - I a + S （5）
式中：S为土壤潜在最大滞蓄量/mm;Ia为降雨初损/mm;P为降雨量/mm;F为实际入渗量/mm。根据径流深Q及降雨时长t可计算净雨强度ic：
i c = Q t （6）
坡面流流速用近似运动波动力方程和连续方程[18]来估算,因此对平稳流单个格网的坡面汇流时间t可以用运动波方程表示。
t = l 0.6 n 0.6 i c 0.4 s 0.3 （7）
式中：ic是净雨强度/(m/s);l是该坡面单元水流长 度/m;n是曼宁糙率系数;s是坡面单元的坡度 值/(m/m)。
2.4.2 河道汇流规则
河道汇流模型中局部转换规则用于描述水流在河道中流动过程,主要为上游河道元胞向下游流量分配过程。元胞中流量汇流模型由曼宁方程和连续方程[18]求得,计算公式为：
v = s 0.3 q 0.4 n 0.6 B 0.4 （8）
式中：s是单元坡度值/(m/m);q是汇流量/(m3/s);B是河道宽度/m;n为一级土地覆盖分类对应的曼宁粗糙系数。s、B、n作为元胞静态属性分别根据河道单元具体特征在构建元胞时写入到元胞属性中,q作为元胞动态属性,在计算过程中由坡面入流Vslope、上游元胞入流Vcell、元胞自身存储流量V′cell、降雨量Vrain计算得出。
q = V slope + V cell + V ' cell + V rain （9）
河道汇流过程中的水流流动为上游元胞向下游元胞的水流分配过程,为了避免计算时间步长对模拟结果产生影响,根据模拟时间间隔t内的水流长度与元胞长度进行比例换算得到流入下游元胞的流量 q ′ 。
l ' = vt （10）
q ′ = q l ' l , l ' ≤ l q ( l ' - nl ) l , l ' > l , 其中 n = l ' / l 向下取整 （11）
经过以上步骤建立了基于CA的河道汇流模型,具体实现算法流程图如图3所示。

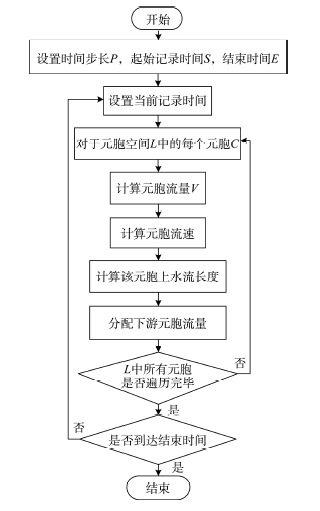

Fig. 3 Flow chart of concentration algorithm

图3 汇流算法流程图

2.5 模型实现

在ArcEngine平台下进行二次开发实现以上模型,主要设计功能有：河道元胞构建、河道等流时单元计算、坡面入流过程线计算、河道汇流计算（图4）。

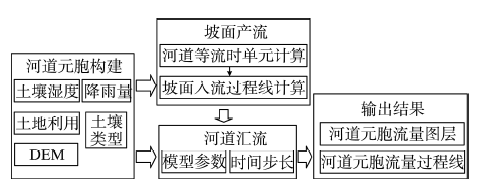

Fig. 4 Data process flow chart of the model

图4 各功能模块流程图

（1） 河道元胞构建：在获取研究区土地利用数据、土壤湿度、土壤类型、降雨数据的基础上构建河道元胞。构建的河道元胞具有曼宁糙率系数、坡面单元集合、水流流向、坡度、水流长度等属性。最终将构建的河道元胞在XML中表示。
（2） 河道等流时单元计算：传统意义上的等流时单元以出山口为基准,所有具有相同值的等流时单元到达出山口时间相同。河道单元的等流时单元以河道为基准,具有相同值的等流时单元流到其对应河道单元时间相同。根据元胞中的坡面汇流时间、汇流方向及坡面单元集合等属性数据可计算每个河道单元的坡面等流时单元。根据河道单元的等流时图层可以计算流入到河道元胞的坡面入流流量。
（3） 坡面入流过程线计算：在以上功能的基础上,利用每个河道元胞的坡面单元集合对河道等流时单元进行统计,获取每个河道元胞的坡面入流流量过程线。
（4） 河道汇流计算：在构建河道元胞,获取每个元胞对应坡面流量过程线的基础上,设定模型参数、模拟运行时间及时间步长,利用构建的河道汇流规则模拟河道水流过程,可以输出某一时间的所有河道元胞流量和具体某一河道元胞的流量过程线。

3 模型应用与分析

3.1 研究区概况及基本参数设置

茂林溪流域位于福建省厦门市同安区北部,发源于汪前村云顶山,最终汇入汀溪水库。流域地形主要为山地和丘陵,总面积为50.5 km2,高程为 80 ~ 1169.93 m,平均高程为502.78 m。土壤类型以红壤和水稻土为主,土地覆盖类型以林地和农业用地为主。本文选取该区域1997年5月6日至7日的降水事件作为模型验证的案例,并根据降雨时间分布特征进行了场次划分,并对每个场次引起的出山口河道断面洪峰流量进行了模拟。
实验数据包括：DEM数据、土地利用数据、土壤类型数据、降雨数据等（来自福省陆地灾害监测评估工程技术研究中心）。为了验证该模型的精度,便于与未使用CA情况下进行对比,模拟试验中所用数据格式与模型参数均参考了文献[19],模型参数均使用经验值。

3.2 计算结果及分析

图5为本文将CA模型与水文学方法相结合进行模拟的结果,图6为文献[19]仅使用水文学方法模拟的结果。在模拟数据与模型参数均相同情况下,将本文结果与文献[19]的结果进行对比分析：本次降雨模拟共引起4次洪峰,从图5与表1中本文模拟结果可以看出第1、2、4次洪峰模拟结果洪峰流量均接近真实值,相对误差均在10%以内,峰现时差均小于10 min,模拟效果较好;在文献[19]模拟的结果中,第1次洪峰误差约为200%,未模拟出第2、3次洪峰,第4次洪峰相对误差为20.7%。第4次洪峰实测值为943 m3/s,为本次降雨模拟最大洪峰流量,本文模拟的洪峰流量为980 m3/s,相对误差为4%,峰现时差为360 s,文献[19]的模拟流量为748 m3/s,相对误差为20.7%,峰现时差约为0.5 h。综上,本文模拟结果相比文献[19]不仅模拟出每次降雨间隔产生的较小洪峰,并且在整场降雨产生的最大洪峰流量精度与时间精度上均提高了5倍。

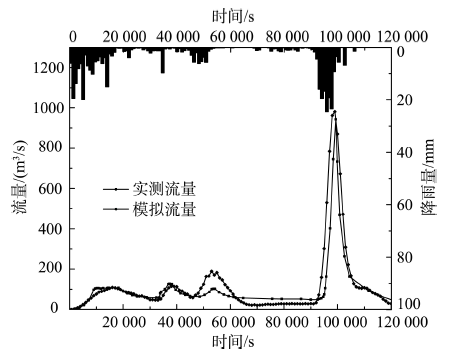

Fig. 5 Discharge lines of measured value and simulated value in outlet cellular

图5 出山口实测流量与模拟流量对比

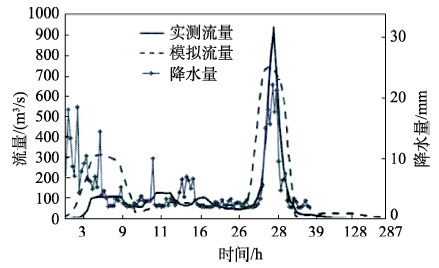

Fig. 6 Discharge lines of measured value and simulated value on May, 6-7th, 1997

图6 1997年5月6日至7日实测与模拟流量过程线[19]

Tab.1 Error of flood peak in outlet

表1 出山口洪峰流量误差表

洪峰序号 实测洪峰/(m3/s) 计算洪峰/(m3/s) 洪峰相对误差/% 峰现时差/s
1 107 109 2 600
2 127 114 10 800
3 102 188 84 700
4 943 980 4 360
本文第3次洪峰模拟误差较大,模型建立过程中将坡面流产流过程独立计算,假定同一降雨情景下坡面汇流过程中不存在净雨强度变化,未考虑坡面汇流过程中雨强变化对坡面流速的影响。在本次模拟过程中,5×104 ~ 6×104 s产生较强降雨,坡面汇流过程中流速较大,6×104 ~ 8×104 s雨强几乎为零,该时间内坡面汇流流速较小,而在本模型中将5×104 ~ 6×104 s产生的降雨始终使用原来的雨强进行计算,因此产生洪峰较大并且提前,而洪峰过后流量偏小。但本次降雨模拟的总体纳什系数为0.84,达到了精度要求。
利用CA模型不仅可以计算出河道中任意断面的流量还可以实现河道汇流可视化。根据河道中流量变化情况对洪水形成过程进行分析研究,从模拟的河道流量过程图中可以看出,河道中不同断面流量变化过程,从图7（a）中可以看出降雨初始阶段河道中上游和下游流量较小,中游流量相对增大,随着降雨的持续而在图7（b）、（c）中可以看出河道中流量增大,而中下游流量相对较大。

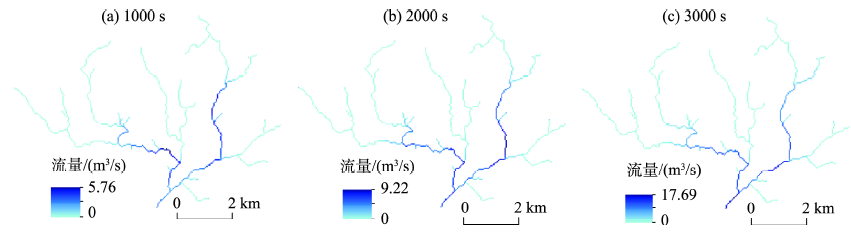

Fig.7 Distribution of simulated discharge in channels

图7 部分时刻模拟河道汇流流量

4 结论

本文利用元胞自动机基于简单的规则可以模拟复杂事物动态变化的优点,模拟了河道汇流过程。首先根据河道属性特征构建了河道元胞,利用SCS-CN模型构建坡面产流规则,计算了每个河道元胞上的坡面入流;然后利用曼宁方程构建河道汇流规则,模拟河道汇流过程;在ArcEngine平台下实现了河道汇流可视化。利用厦门市茂林溪流域1997年5月6日至7日的降雨径流数据进行模拟验证,将本文模拟结果与该流域其他学者的研究结果进行了对比分析,在输入数据与水文模型参数相同的情况下,本文模拟的最大洪峰流量精度与时间精度均提高了5倍,可以更准确地模拟河道汇流过程。
本文中通过建立河道坡面拓扑关系,计算每个河道元胞的坡面入流,而实际应用中无法对每个河道元胞的坡面产流汇流模型进行参数率定,因此获取的河道元胞上的坡面入流具有一定误差,该方面还需要进一步研究。
